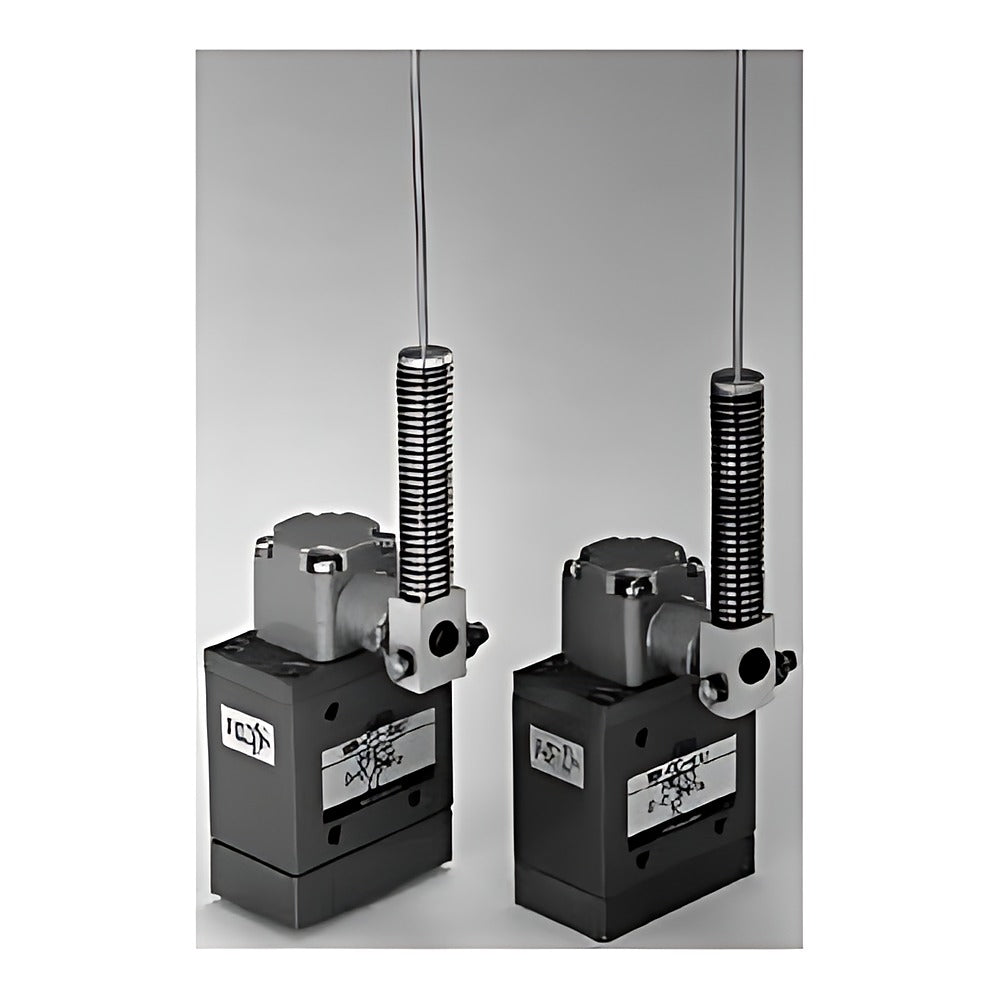

CKD MM Medium Mechanical Valve (3-Port, Rc1/8 / Push-in 4 mm)

CKD MM Medium Mechanical Valve (3-Port, Rc1/8 / Push-in 4 mm)

CKD MM medium mechanical valves are poppet 3-port valves equivalent to a small limit switch, for mechanical detection in all-pneumatic control circuits.

Key features

  • Poppet valve, normally closed (0) or normally open (1, made to order)
  • Rc1/8 thread (0) or push-in fitting 4 mm (1) connection
  • Actuators: pin plunger, roller arm, adjustable roller lever, roller levers, rod lever, wire lever, spring rod
  • Part of the CKD Total Air (all-pneumatic) control system

Specifications

Fluid Compressed air
Valve structure Poppet valve
Min. operating pressure 0 MPa
Max. operating pressure 0.8 MPa
Proof pressure 1.2 MPa
Effective area Rc1/8 2.5 mm2, push-in 1.6 mm2
Ambient/fluid temperature 5 to 60 C
Source CKD Korea catalog CB-023SK-9, p. 1996-2007
MM-00-PP Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Pin plunger
MM-00-RA Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller arm
MM-00-RAA Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Adjustable roller lever
MM-00-RAB Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller lever (B)
MM-00-RAC Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller lever (C)
MM-00-RAD Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Rod lever
MM-00-RAE Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Wire lever
MM-00-RAF Valve: N.C. 3-port | Port: Rc1/8 | Actuator: Spring rod
MM-01-PP Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Pin plunger
MM-01-RA Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller arm
MM-01-RAA Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Adjustable roller lever
MM-01-RAB Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller lever (B)
MM-01-RAC Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller lever (C)
MM-01-RAD Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Rod lever
MM-01-RAE Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Wire lever
MM-01-RAF Valve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Spring rod
MM-10-PP Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Pin plunger
MM-10-RA Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller arm
MM-10-RAA Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Adjustable roller lever
MM-10-RAB Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller lever (B)
MM-10-RAC Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller lever (C)
MM-10-RAD Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Rod lever
MM-10-RAE Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Wire lever
MM-10-RAF Valve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Spring rod
MM-11-PP Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Pin plunger
MM-11-RA Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller arm
MM-11-RAA Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Adjustable roller lever
MM-11-RAB Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller lever (B)
MM-11-RAC Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller lever (C)
MM-11-RAD Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Rod lever
MM-11-RAE Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Wire lever
MM-11-RAF Valve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Spring rod
MM-00 Legacy code | base model, specify actuator
MM-01 Legacy code | base model, specify actuator
MM-10 Legacy code | base model, specify actuator
MM-11 Legacy code | base model, specify actuator
Pneumatic ControlCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MM Medium Mechanical Valve (3-Port, Rc1/8 / Push-in 4 mm)

Brand CKD·Pneumatic Control

Available part numbers (36)

MM-00-PP, MM-00-RA, MM-00-RAA, MM-00-RAB, MM-00-RAC, MM-00-RAD, MM-00-RAE, MM-00-RAF, MM-01-PP, MM-01-RA + 26 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MM-00-PPValve: N.C. 3-port | Port: Rc1/8 | Actuator: Pin plunger
MM-00-RAValve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller arm
MM-00-RAAValve: N.C. 3-port | Port: Rc1/8 | Actuator: Adjustable roller lever
MM-00-RABValve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller lever (B)
MM-00-RACValve: N.C. 3-port | Port: Rc1/8 | Actuator: Roller lever (C)
MM-00-RADValve: N.C. 3-port | Port: Rc1/8 | Actuator: Rod lever
MM-00-RAEValve: N.C. 3-port | Port: Rc1/8 | Actuator: Wire lever
MM-00-RAFValve: N.C. 3-port | Port: Rc1/8 | Actuator: Spring rod
MM-01-PPValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Pin plunger
MM-01-RAValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller arm
MM-01-RAAValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Adjustable roller lever
MM-01-RABValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller lever (B)
MM-01-RACValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Roller lever (C)
MM-01-RADValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Rod lever
MM-01-RAEValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Wire lever
MM-01-RAFValve: N.C. 3-port | Port: Push-in 4 mm | Actuator: Spring rod
MM-10-PPValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Pin plunger
MM-10-RAValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller arm
MM-10-RAAValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Adjustable roller lever
MM-10-RABValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller lever (B)
MM-10-RACValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Roller lever (C)
MM-10-RADValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Rod lever
MM-10-RAEValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Wire lever
MM-10-RAFValve: N.O. 3-port (MTO) | Port: Rc1/8 | Actuator: Spring rod
MM-11-PPValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Pin plunger
MM-11-RAValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller arm
MM-11-RAAValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Adjustable roller lever
MM-11-RABValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller lever (B)
MM-11-RACValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Roller lever (C)
MM-11-RADValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Rod lever
MM-11-RAEValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Wire lever
MM-11-RAFValve: N.O. 3-port (MTO) | Port: Push-in 4 mm | Actuator: Spring rod
MM-00Legacy code | base model, specify actuator
MM-01Legacy code | base model, specify actuator
MM-10Legacy code | base model, specify actuator
MM-11Legacy code | base model, specify actuator
