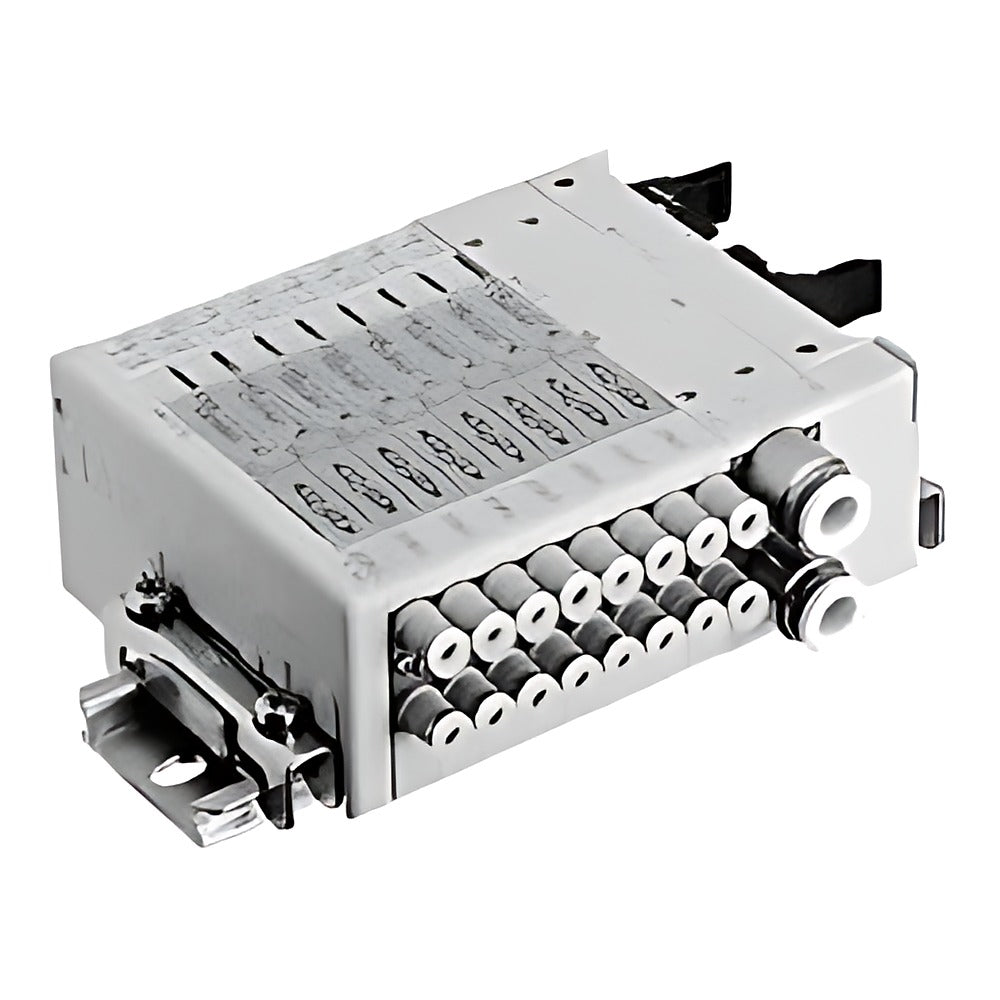

CKD MN3E00/MN4E00 Block Manifold Valve Block (7 mm Pitch)

CKD MN3E00/MN4E00 Block Manifold Valve Block (7 mm Pitch)

CKD N3E00/N4E00 pilot-operated 3- and 4-port solenoid valve blocks with 7 mm pitch for the MN3E00/MN4E00 wiring-reduced block manifold.

Key features

  • 7 mm valve pitch for compact, highly integrated manifolds
  • 3-port single/double, 3-port 2-in-1 (NC/NO combinations) and 4-port 2-position single/double valve blocks
  • Cartridge push-in fittings ø1.8, ø3, ø4, inch ø1/8 and ø5/32 in, or M3 female thread, side or upward
  • Manual override: non-locking/locking combined (standard) or non-locking only (M)
  • Individual-wiring D-type connector versions (D2, D20-D23, D2N, D3), double wiring (W), low-heat circuit (E) and A/B port filter (F) are order options not multiplied here
  • Block manifolds (MN3E.../MN4E...) are built to a manifold specification sheet from electrical, valve, supply/exhaust, regulator, dummy and end blocks on a DIN rail, 1 to 24 stations

Specifications

Valve type Pilot-operated soft spool valve
Fluid Compressed air
Operating pressure 0.2 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature 5 to 55°C
Flow rate C [dm³/(s·bar)] P→A/B 0.30, A/B→R 0.32
Response time 20 ms or less (0.5 MPa)
Power consumption 0.4 W (low-heat type 0.22 W)
Insulation / indicator Class B / LED
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 939-971, 1002-1003
N3E0010-C18-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0010-C18-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0010-CL18-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0010-CL18-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0010-C3-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0010-C3-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0010-CL3-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0010-CL3-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0010-C4-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0010-C4-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0010-CL4-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0010-CL4-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0010-M3-3 Valve: 3-port | Function: Single NC, spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0010-M3-4 Valve: 3-port | Function: Single NC, spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0010-C3N-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0010-C3N-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0010-CL3N-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0010-CL3N-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0010-C4N-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0010-C4N-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0010-CL4N-3 Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0010-CL4N-4 Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00110-C18-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00110-C18-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00110-CL18-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00110-CL18-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00110-C3-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00110-C3-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00110-CL3-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00110-CL3-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00110-C4-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00110-C4-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00110-CL4-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00110-CL4-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00110-M3-3 Valve: 3-port | Function: Single NO, spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E00110-M3-4 Valve: 3-port | Function: Single NO, spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E00110-C3N-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00110-C3N-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00110-CL3N-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00110-CL3N-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00110-C4N-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00110-C4N-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00110-CL4N-3 Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00110-CL4N-4 Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0020-C18-3 Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0020-C18-4 Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0020-CL18-3 Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0020-CL18-4 Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0020-C3-3 Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0020-C3-4 Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0020-CL3-3 Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0020-CL3-4 Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0020-C4-3 Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0020-C4-4 Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0020-CL4-3 Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0020-CL4-4 Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0020-M3-3 Valve: 3-port | Function: Double NC, detent | Connection: M3 female thread | Voltage: 24 VDC
N3E0020-M3-4 Valve: 3-port | Function: Double NC, detent | Connection: M3 female thread | Voltage: 12 VDC
N3E0020-C3N-3 Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0020-C3N-4 Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0020-CL3N-3 Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0020-CL3N-4 Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0020-C4N-3 Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0020-C4N-4 Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0020-CL4N-3 Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0020-CL4N-4 Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00210-C18-3 Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00210-C18-4 Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00210-CL18-3 Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00210-CL18-4 Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00210-C3-3 Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00210-C3-4 Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00210-CL3-3 Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00210-CL3-4 Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00210-C4-3 Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00210-C4-4 Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00210-CL4-3 Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00210-CL4-4 Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00210-M3-3 Valve: 3-port | Function: Double NO, detent | Connection: M3 female thread | Voltage: 24 VDC
N3E00210-M3-4 Valve: 3-port | Function: Double NO, detent | Connection: M3 female thread | Voltage: 12 VDC
N3E00210-C3N-3 Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00210-C3N-4 Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00210-CL3N-3 Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00210-CL3N-4 Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00210-C4N-3 Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00210-C4N-4 Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00210-CL4N-3 Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00210-CL4N-4 Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00660-C18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00660-C18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00660-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00660-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00660-C3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00660-C3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00660-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00660-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00660-C4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00660-C4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00660-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00660-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00660-M3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00660-M3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00660-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00660-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00660-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00660-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00660-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00660-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00660-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00660-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0066S0-C18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0066S0-C18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0066S0-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0066S0-C3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0066S0-C3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0066S0-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0066S0-C4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0066S0-C4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0066S0-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0066S0-M3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0066S0-M3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0066S0-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0066S0-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0066S0-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0066S0-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0066S0-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0066S0-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0066S0-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0066S0-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00670-C18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00670-C18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00670-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00670-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00670-C3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00670-C3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00670-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00670-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00670-C4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00670-C4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00670-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00670-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00670-M3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00670-M3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00670-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00670-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00670-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00670-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00670-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00670-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00670-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00670-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0067S0-C18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0067S0-C18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0067S0-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0067S0-C3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0067S0-C3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0067S0-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0067S0-C4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0067S0-C4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0067S0-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0067S0-M3-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0067S0-M3-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0067S0-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0067S0-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0067S0-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0067S0-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0067S0-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0067S0-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0067S0-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0067S0-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00760-C18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00760-C18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00760-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00760-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00760-C3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00760-C3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00760-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00760-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00760-C4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00760-C4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00760-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00760-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00760-M3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00760-M3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00760-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00760-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00760-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00760-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00760-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00760-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00760-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00760-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0076S0-C18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0076S0-C18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0076S0-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0076S0-C3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0076S0-C3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0076S0-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0076S0-C4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0076S0-C4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0076S0-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0076S0-M3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0076S0-M3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0076S0-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0076S0-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0076S0-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0076S0-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0076S0-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0076S0-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0076S0-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0076S0-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00770-C18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00770-C18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00770-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00770-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00770-C3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00770-C3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00770-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00770-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00770-C4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00770-C4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00770-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00770-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00770-M3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00770-M3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00770-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00770-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00770-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00770-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00770-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00770-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00770-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00770-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0077S0-C18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0077S0-C18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0077S0-CL18-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL18-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0077S0-C3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0077S0-C3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0077S0-CL3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0077S0-C4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0077S0-C4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0077S0-CL4-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL4-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0077S0-M3-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0077S0-M3-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0077S0-C3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0077S0-C3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0077S0-CL3N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0077S0-CL3N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0077S0-C4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0077S0-C4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0077S0-CL4N-3 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0077S0-CL4N-4 Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N4E0010-C18-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N4E0010-C18-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N4E0010-CL18-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N4E0010-CL18-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N4E0010-C3-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N4E0010-C3-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N4E0010-CL3-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N4E0010-CL3-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N4E0010-C4-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N4E0010-C4-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N4E0010-CL4-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N4E0010-CL4-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N4E0010-M3-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: M3 female thread | Voltage: 24 VDC
N4E0010-M3-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: M3 female thread | Voltage: 12 VDC
N4E0010-C3N-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N4E0010-C3N-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N4E0010-CL3N-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N4E0010-CL3N-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N4E0010-C4N-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N4E0010-C4N-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N4E0010-CL4N-3 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N4E0010-CL4N-4 Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N4E0020-C18-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N4E0020-C18-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N4E0020-CL18-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N4E0020-CL18-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N4E0020-C3-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N4E0020-C3-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N4E0020-CL3-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N4E0020-CL3-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N4E0020-C4-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N4E0020-C4-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N4E0020-CL4-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N4E0020-CL4-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N4E0020-M3-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: M3 female thread | Voltage: 24 VDC
N4E0020-M3-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: M3 female thread | Voltage: 12 VDC
N4E0020-C3N-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N4E0020-C3N-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N4E0020-CL3N-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N4E0020-CL3N-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N4E0020-C4N-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N4E0020-C4N-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N4E0020-CL4N-3 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N4E0020-CL4N-4 Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
Solenoid ValvesCKD
308 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN3E00/MN4E00 Block Manifold Valve Block (7 mm Pitch)

Brand CKD·Solenoid Valves

Available part numbers (308)

N3E0010-C18-3, N3E0010-C18-4, N3E0010-CL18-3, N3E0010-CL18-4, N3E0010-C3-3, N3E0010-C3-4, N3E0010-CL3-3, N3E0010-CL3-4, N3E0010-C4-3, N3E0010-C4-4 + 298 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N3E0010-C18-3Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0010-C18-4Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0010-CL18-3Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0010-CL18-4Valve: 3-port | Function: Single NC, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0010-C3-3Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0010-C3-4Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0010-CL3-3Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0010-CL3-4Valve: 3-port | Function: Single NC, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0010-C4-3Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0010-C4-4Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0010-CL4-3Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0010-CL4-4Valve: 3-port | Function: Single NC, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0010-M3-3Valve: 3-port | Function: Single NC, spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0010-M3-4Valve: 3-port | Function: Single NC, spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0010-C3N-3Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0010-C3N-4Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0010-CL3N-3Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0010-CL3N-4Valve: 3-port | Function: Single NC, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0010-C4N-3Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0010-C4N-4Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0010-CL4N-3Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0010-CL4N-4Valve: 3-port | Function: Single NC, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00110-C18-3Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00110-C18-4Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00110-CL18-3Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00110-CL18-4Valve: 3-port | Function: Single NO, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00110-C3-3Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00110-C3-4Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00110-CL3-3Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00110-CL3-4Valve: 3-port | Function: Single NO, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00110-C4-3Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00110-C4-4Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00110-CL4-3Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00110-CL4-4Valve: 3-port | Function: Single NO, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00110-M3-3Valve: 3-port | Function: Single NO, spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E00110-M3-4Valve: 3-port | Function: Single NO, spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E00110-C3N-3Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00110-C3N-4Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00110-CL3N-3Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00110-CL3N-4Valve: 3-port | Function: Single NO, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00110-C4N-3Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00110-C4N-4Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00110-CL4N-3Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00110-CL4N-4Valve: 3-port | Function: Single NO, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0020-C18-3Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0020-C18-4Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0020-CL18-3Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0020-CL18-4Valve: 3-port | Function: Double NC, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0020-C3-3Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0020-C3-4Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0020-CL3-3Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0020-CL3-4Valve: 3-port | Function: Double NC, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0020-C4-3Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0020-C4-4Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0020-CL4-3Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0020-CL4-4Valve: 3-port | Function: Double NC, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0020-M3-3Valve: 3-port | Function: Double NC, detent | Connection: M3 female thread | Voltage: 24 VDC
N3E0020-M3-4Valve: 3-port | Function: Double NC, detent | Connection: M3 female thread | Voltage: 12 VDC
N3E0020-C3N-3Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0020-C3N-4Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0020-CL3N-3Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0020-CL3N-4Valve: 3-port | Function: Double NC, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0020-C4N-3Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0020-C4N-4Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0020-CL4N-3Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0020-CL4N-4Valve: 3-port | Function: Double NC, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00210-C18-3Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00210-C18-4Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00210-CL18-3Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00210-CL18-4Valve: 3-port | Function: Double NO, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00210-C3-3Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00210-C3-4Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00210-CL3-3Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00210-CL3-4Valve: 3-port | Function: Double NO, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00210-C4-3Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00210-C4-4Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00210-CL4-3Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00210-CL4-4Valve: 3-port | Function: Double NO, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00210-M3-3Valve: 3-port | Function: Double NO, detent | Connection: M3 female thread | Voltage: 24 VDC
N3E00210-M3-4Valve: 3-port | Function: Double NO, detent | Connection: M3 female thread | Voltage: 12 VDC
N3E00210-C3N-3Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00210-C3N-4Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00210-CL3N-3Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00210-CL3N-4Valve: 3-port | Function: Double NO, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00210-C4N-3Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00210-C4N-4Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00210-CL4N-3Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00210-CL4N-4Valve: 3-port | Function: Double NO, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00660-C18-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00660-C18-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00660-CL18-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00660-CL18-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00660-C3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00660-C3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00660-CL3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00660-CL3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00660-C4-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00660-C4-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00660-CL4-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00660-CL4-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00660-M3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00660-M3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00660-C3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00660-C3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00660-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00660-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00660-C4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00660-C4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00660-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00660-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0066S0-C18-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0066S0-C18-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0066S0-CL18-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL18-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0066S0-C3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0066S0-C3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0066S0-CL3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0066S0-C4-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0066S0-C4-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0066S0-CL4-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0066S0-CL4-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0066S0-M3-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0066S0-M3-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0066S0-C3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0066S0-C3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0066S0-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0066S0-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0066S0-C4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0066S0-C4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0066S0-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0066S0-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00670-C18-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00670-C18-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00670-CL18-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00670-CL18-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00670-C3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00670-C3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00670-CL3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00670-CL3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00670-C4-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00670-C4-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00670-CL4-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00670-CL4-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00670-M3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00670-M3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00670-C3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00670-C3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00670-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00670-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00670-C4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00670-C4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00670-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00670-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0067S0-C18-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0067S0-C18-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0067S0-CL18-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL18-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0067S0-C3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0067S0-C3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0067S0-CL3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0067S0-C4-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0067S0-C4-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0067S0-CL4-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0067S0-CL4-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0067S0-M3-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0067S0-M3-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0067S0-C3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0067S0-C3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0067S0-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0067S0-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0067S0-C4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0067S0-C4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0067S0-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0067S0-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NC/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00760-C18-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00760-C18-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00760-CL18-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00760-CL18-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00760-C3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00760-C3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00760-CL3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00760-CL3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00760-C4-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00760-C4-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00760-CL4-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00760-CL4-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00760-M3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00760-M3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00760-C3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00760-C3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00760-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00760-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00760-C4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00760-C4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00760-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00760-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0076S0-C18-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0076S0-C18-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0076S0-CL18-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL18-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0076S0-C3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0076S0-C3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0076S0-CL3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0076S0-C4-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0076S0-C4-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0076S0-CL4-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0076S0-CL4-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0076S0-M3-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0076S0-M3-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0076S0-C3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0076S0-C3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0076S0-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0076S0-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0076S0-C4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0076S0-C4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0076S0-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0076S0-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NC, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E00770-C18-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E00770-C18-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E00770-CL18-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E00770-CL18-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E00770-C3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E00770-C3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E00770-CL3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E00770-CL3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E00770-C4-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E00770-C4-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E00770-CL4-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E00770-CL4-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E00770-M3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: M3 female thread | Voltage: 24 VDC
N3E00770-M3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: M3 female thread | Voltage: 12 VDC
N3E00770-C3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E00770-C3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E00770-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E00770-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E00770-C4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E00770-C4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E00770-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E00770-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, differential return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N3E0077S0-C18-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N3E0077S0-C18-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N3E0077S0-CL18-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL18-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N3E0077S0-C3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N3E0077S0-C3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N3E0077S0-CL3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N3E0077S0-C4-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N3E0077S0-C4-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N3E0077S0-CL4-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N3E0077S0-CL4-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N3E0077S0-M3-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: M3 female thread | Voltage: 24 VDC
N3E0077S0-M3-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: M3 female thread | Voltage: 12 VDC
N3E0077S0-C3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N3E0077S0-C3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N3E0077S0-CL3N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N3E0077S0-CL3N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N3E0077S0-C4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N3E0077S0-C4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N3E0077S0-CL4N-3Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N3E0077S0-CL4N-4Valve: 3-port x2 (2-in-1) | Function: NO/NO, diff. spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N4E0010-C18-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N4E0010-C18-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N4E0010-CL18-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N4E0010-CL18-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N4E0010-C3-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, side | Voltage: 24 VDC
N4E0010-C3-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, side | Voltage: 12 VDC
N4E0010-CL3-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, upward | Voltage: 24 VDC
N4E0010-CL3-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø3 push-in, upward | Voltage: 12 VDC
N4E0010-C4-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, side | Voltage: 24 VDC
N4E0010-C4-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, side | Voltage: 12 VDC
N4E0010-CL4-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, upward | Voltage: 24 VDC
N4E0010-CL4-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø4 push-in, upward | Voltage: 12 VDC
N4E0010-M3-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: M3 female thread | Voltage: 24 VDC
N4E0010-M3-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: M3 female thread | Voltage: 12 VDC
N4E0010-C3N-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N4E0010-C3N-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N4E0010-CL3N-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N4E0010-CL3N-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N4E0010-C4N-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N4E0010-C4N-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N4E0010-CL4N-3Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N4E0010-CL4N-4Valve: 4-port | Function: 2-pos. single, spring return | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC
N4E0020-C18-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, side | Voltage: 24 VDC
N4E0020-C18-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, side | Voltage: 12 VDC
N4E0020-CL18-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, upward | Voltage: 24 VDC
N4E0020-CL18-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1.8 push-in, upward | Voltage: 12 VDC
N4E0020-C3-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, side | Voltage: 24 VDC
N4E0020-C3-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, side | Voltage: 12 VDC
N4E0020-CL3-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, upward | Voltage: 24 VDC
N4E0020-CL3-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø3 push-in, upward | Voltage: 12 VDC
N4E0020-C4-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, side | Voltage: 24 VDC
N4E0020-C4-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, side | Voltage: 12 VDC
N4E0020-CL4-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, upward | Voltage: 24 VDC
N4E0020-CL4-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø4 push-in, upward | Voltage: 12 VDC
N4E0020-M3-3Valve: 4-port | Function: 2-pos. double, detent | Connection: M3 female thread | Voltage: 24 VDC
N4E0020-M3-4Valve: 4-port | Function: 2-pos. double, detent | Connection: M3 female thread | Voltage: 12 VDC
N4E0020-C3N-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, side | Voltage: 24 VDC
N4E0020-C3N-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, side | Voltage: 12 VDC
N4E0020-CL3N-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, upward | Voltage: 24 VDC
N4E0020-CL3N-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø1/8 in push-in, upward | Voltage: 12 VDC
N4E0020-C4N-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, side | Voltage: 24 VDC
N4E0020-C4N-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, side | Voltage: 12 VDC
N4E0020-CL4N-3Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, upward | Voltage: 24 VDC
N4E0020-CL4N-4Valve: 4-port | Function: 2-pos. double, detent | Connection: ø5/32 in push-in, upward | Voltage: 12 VDC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
