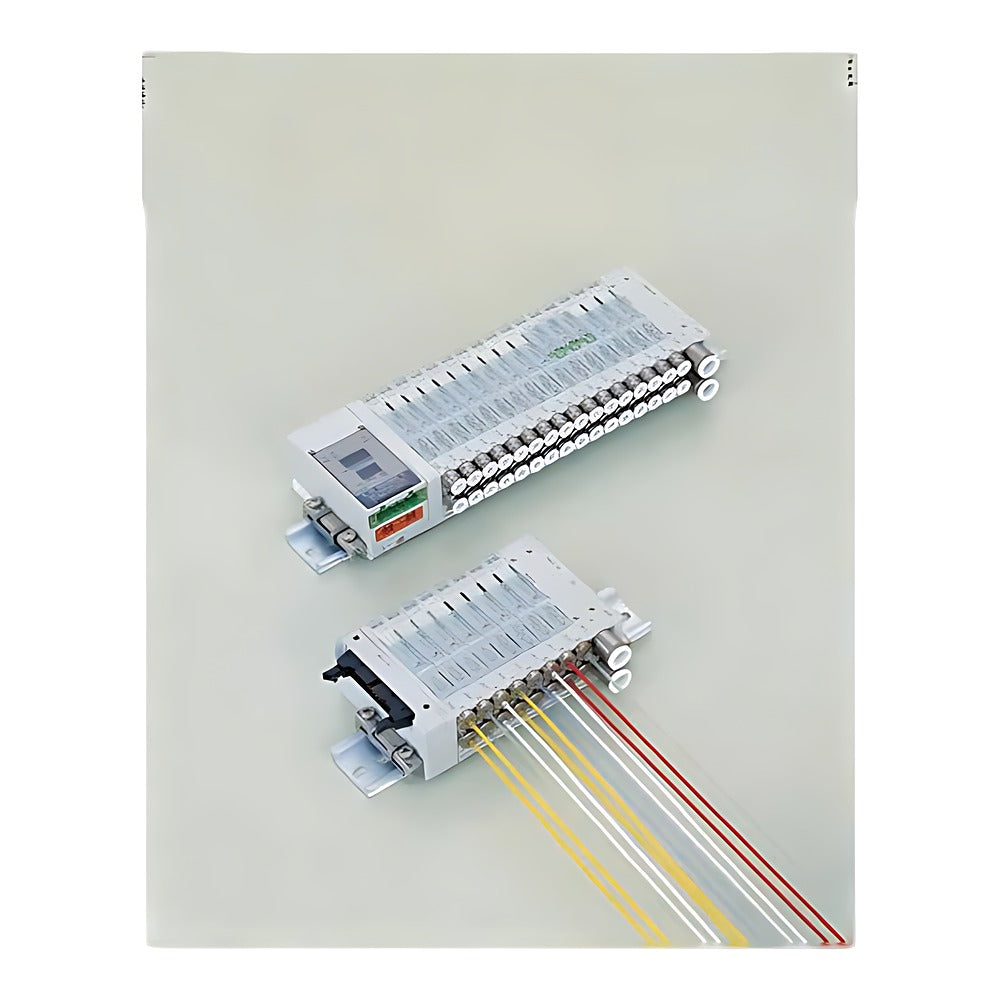

CKD MN3EX0/MN4EX0 Mix Block Manifold (MN4E0/MN4E00 Mix)

CKD MN3EX0/MN4EX0 block manifold that mixes 7 mm-wide MN4E00 and 10 mm-wide MN4E0 valve blocks on one DIN-rail manifold, for cylinders ø4 to ø32.

Key features

Combines 7 mm (MN E00) and 10 mm (MN E0) valve blocks in a single wire-saving manifold
Valve type 3 (3-port / dual 3-port valves) or 4 (4-port, 3- and 4-port mix)
Wiring: mid electrical blocks (TM), D-sub (T30), flat cable (T5x), serial (T6G1, T7x incl. EtherCAT) or individual D-connector (D2x/D3); TX electrical-block mix by specification sheet
Options (not multiplied): regulator-block manifold (R), non-locking manual (M), double wiring (W), low-heat/power-saving (E), ozone (A), A/B port filter (F)
Code format MN4EX0-[port]-[R]-[M][wiring][W][option]-[stations]-[voltage]; 1 to 32 stations (dummy blocks count as stations)

Specifications

Fluid	Compressed air
Valve type	Pilot-operated soft spool valve
Operating pressure	0.2 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient / fluid temperature	5 to 55 °C
Applicable cylinder bore	ø4 to ø32
Rated voltage	DC24V (3) listed; DC12V (4) available
P/R port	Push-in ø6, ø8
Source	CKD Korea catalog CB-023SK-9, p. 996-997 (specs per MN E00 p. 948, MN E0 p. 972)

MN3EX0-C18-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-C18-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-C18-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-C18-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-C18-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-C18-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-C18-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-C18-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-C18-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-C18-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-C18-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-C18-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-C18-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-C18-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-C18-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-C18-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-C18-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-C18-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-C18-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-C18-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-C18-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-C18-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-C18-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-C18-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-C18-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-C18-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-C18-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-C18-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-C18-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-C18-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-C18-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-C18-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-C18-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-C18-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-C18-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-C18-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-C18-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-C18-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-C18-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-C18-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-C18-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-C18-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-C18-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-C18-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-C18-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-C18-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-C18-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-C18-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-C18-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-C18-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-C18-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-C18-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-C18-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-C18-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-C18-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-C18-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-C18-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-C18-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-C18-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-C18-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-C18-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CL18-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CL18-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CL18-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CL18-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CL18-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CL18-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CL18-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CL18-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CL18-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CL18-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CL18-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CL18-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CL18-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CL18-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CL18-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CL18-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CL18-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CL18-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CL18-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CL18-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CL18-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CL18-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CL18-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CL18-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CL18-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CL18-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CL18-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CL18-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CL18-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CL18-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CL18-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CL18-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CL18-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CL18-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CL18-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CL18-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CL18-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CL18-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CL18-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CL18-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CL18-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CL18-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CL18-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CL18-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CL18-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CL18-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CL18-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CL18-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CL18-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CL18-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CL18-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CL18-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CL18-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CL18-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CL18-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CL18-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CL18-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CL18-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CL18-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CL18-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CL18-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-C4-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-C4-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-C4-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-C4-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-C4-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-C4-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-C4-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-C4-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-C4-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-C4-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-C4-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-C4-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-C4-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-C4-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-C4-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-C4-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-C4-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-C4-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-C4-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-C4-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-C4-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-C4-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-C4-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-C4-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-C4-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-C4-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-C4-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-C4-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-C4-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-C4-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-C4-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-C4-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-C4-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-C4-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-C4-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-C4-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-C4-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-C4-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-C4-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-C4-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-C4-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-C4-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-C4-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-C4-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-C4-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-C4-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-C4-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-C4-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-C4-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-C4-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-C4-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-C4-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-C4-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-C4-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-C4-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-C4-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-C4-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-C4-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-C4-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-C4-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-C4-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CL4-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CL4-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CL4-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CL4-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CL4-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CL4-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CL4-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CL4-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CL4-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CL4-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CL4-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CL4-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CL4-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CL4-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CL4-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CL4-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CL4-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CL4-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CL4-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CL4-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CL4-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CL4-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CL4-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CL4-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CL4-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CL4-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CL4-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CL4-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CL4-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CL4-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CL4-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CL4-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CL4-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CL4-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CL4-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CL4-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CL4-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CL4-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CL4-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CL4-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CL4-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CL4-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CL4-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CL4-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CL4-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CL4-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CL4-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CL4-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CL4-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CL4-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CL4-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CL4-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CL4-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CL4-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CL4-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CL4-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CL4-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CL4-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CL4-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CL4-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CL4-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CX-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CX-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CX-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CX-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CX-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CX-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CX-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CX-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CX-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CX-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CX-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CX-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CX-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CX-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CX-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CX-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CX-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CX-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CX-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CX-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CX-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CX-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CX-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CX-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CX-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CX-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CX-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CX-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CX-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CX-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CX-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CX-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CX-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CX-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CX-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CX-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CX-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CX-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CX-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CX-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CX-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CX-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CX-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CX-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CX-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CX-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CX-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CX-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CX-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CX-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CX-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CX-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CX-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CX-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CX-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CX-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CX-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CX-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CX-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CX-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CX-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-C3N-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-C3N-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-C3N-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-C3N-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-C3N-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-C3N-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-C3N-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-C3N-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-C3N-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-C3N-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-C3N-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-C3N-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-C3N-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-C3N-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-C3N-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-C3N-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-C3N-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-C3N-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-C3N-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-C3N-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-C3N-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-C3N-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-C3N-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-C3N-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-C3N-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-C3N-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-C3N-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-C3N-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-C3N-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-C3N-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-C3N-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-C3N-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-C3N-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-C3N-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-C3N-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-C3N-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-C3N-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-C3N-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-C3N-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-C3N-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-C3N-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-C3N-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-C3N-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-C3N-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-C3N-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-C3N-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-C3N-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-C3N-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-C3N-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-C3N-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-C3N-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-C3N-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-C3N-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-C3N-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-C3N-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-C3N-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-C3N-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-C3N-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-C3N-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-C3N-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-C3N-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CL3N-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CL3N-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CL3N-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CL3N-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CL3N-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CL3N-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CL3N-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CL3N-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CL3N-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CL3N-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CL3N-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CL3N-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CL3N-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CL3N-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CL3N-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CL3N-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CL3N-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CL3N-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CL3N-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CL3N-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CL3N-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CL3N-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CL3N-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CL3N-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CL3N-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CL3N-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CL3N-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CL3N-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CL3N-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CL3N-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CL3N-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CL3N-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CL3N-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CL3N-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CL3N-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CL3N-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CL3N-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CL3N-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CL3N-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CL3N-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CL3N-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CL3N-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CL3N-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CL3N-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CL3N-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CL3N-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CL3N-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CL3N-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CL3N-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CL3N-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CL3N-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CL3N-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CL3N-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CL3N-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CL3N-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CL3N-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CL3N-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CL3N-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CL3N-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CL3N-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CL3N-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-C4N-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-C4N-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-C4N-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-C4N-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-C4N-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-C4N-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-C4N-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-C4N-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-C4N-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-C4N-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-C4N-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-C4N-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-C4N-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-C4N-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-C4N-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-C4N-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-C4N-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-C4N-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-C4N-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-C4N-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-C4N-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-C4N-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-C4N-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-C4N-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-C4N-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-C4N-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-C4N-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-C4N-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-C4N-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-C4N-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-C4N-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-C4N-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-C4N-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-C4N-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-C4N-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-C4N-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-C4N-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-C4N-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-C4N-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-C4N-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-C4N-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-C4N-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-C4N-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-C4N-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-C4N-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-C4N-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-C4N-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-C4N-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-C4N-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-C4N-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-C4N-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-C4N-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-C4N-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-C4N-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-C4N-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-C4N-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-C4N-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-C4N-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-C4N-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-C4N-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-C4N-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CL4N-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CL4N-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CL4N-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CL4N-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CL4N-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CL4N-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CL4N-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CL4N-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CL4N-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CL4N-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CL4N-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CL4N-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CL4N-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CL4N-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CL4N-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CL4N-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CL4N-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CL4N-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CL4N-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CL4N-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CL4N-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CL4N-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CL4N-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CL4N-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CL4N-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CL4N-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CL4N-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CL4N-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CL4N-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CL4N-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CL4N-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CL4N-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CL4N-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CL4N-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CL4N-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CL4N-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CL4N-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CL4N-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CL4N-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CL4N-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CL4N-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CL4N-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CL4N-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CL4N-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CL4N-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CL4N-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CL4N-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CL4N-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CL4N-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CL4N-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CL4N-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CL4N-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CL4N-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CL4N-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CL4N-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CL4N-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CL4N-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CL4N-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CL4N-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CL4N-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CL4N-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN3EX0-CXN-TM1A-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN3EX0-CXN-TM1C-5-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN3EX0-CXN-TM52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN3EX0-CXN-T30-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN3EX0-CXN-T30-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN3EX0-CXN-T30N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN3EX0-CXN-T30N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN3EX0-CXN-T30R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN3EX0-CXN-T30R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN3EX0-CXN-T30NR-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN3EX0-CXN-T30NR-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN3EX0-CXN-T50-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN3EX0-CXN-T50-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN3EX0-CXN-T50R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN3EX0-CXN-T50R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN3EX0-CXN-T51-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN3EX0-CXN-T51-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN3EX0-CXN-T51R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN3EX0-CXN-T51R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN3EX0-CXN-T52-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN3EX0-CXN-T52R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN3EX0-CXN-T53-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN3EX0-CXN-T53-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN3EX0-CXN-T53R-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN3EX0-CXN-T53R-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN3EX0-CXN-T6G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN3EX0-CXN-T6G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN3EX0-CXN-T7D1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN3EX0-CXN-T7D1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN3EX0-CXN-T7D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN3EX0-CXN-T7D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN3EX0-CXN-T7G1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN3EX0-CXN-T7G1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN3EX0-CXN-T7G2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN3EX0-CXN-T7G2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN3EX0-CXN-T7N1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN3EX0-CXN-T7N1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN3EX0-CXN-T7N2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN3EX0-CXN-T7N2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN3EX0-CXN-T7EC1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN3EX0-CXN-T7EC1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN3EX0-CXN-T7EC2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN3EX0-CXN-T7EC2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN3EX0-CXN-T7ECT1-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN3EX0-CXN-T7ECT1-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN3EX0-CXN-T7ECT2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN3EX0-CXN-T7ECT2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN3EX0-CXN-D2-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN3EX0-CXN-D2-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN3EX0-CXN-D20-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN3EX0-CXN-D20-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN3EX0-CXN-D21-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN3EX0-CXN-D21-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN3EX0-CXN-D22-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN3EX0-CXN-D22-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN3EX0-CXN-D23-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN3EX0-CXN-D23-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN3EX0-CXN-D2N-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN3EX0-CXN-D2N-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN3EX0-CXN-D3-8-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN3EX0-CXN-D3-16-3		Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-C18-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-C18-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-C18-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-C18-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-C18-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-C18-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-C18-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-C18-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-C18-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-C18-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-C18-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-C18-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-C18-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-C18-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-C18-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-C18-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-C18-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-C18-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-C18-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-C18-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-C18-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-C18-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-C18-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-C18-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-C18-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-C18-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-C18-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-C18-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-C18-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-C18-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-C18-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-C18-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-C18-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-C18-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-C18-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-C18-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-C18-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-C18-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-C18-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-C18-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-C18-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-C18-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-C18-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-C18-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-C18-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-C18-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-C18-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-C18-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-C18-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-C18-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-C18-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-C18-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-C18-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-C18-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-C18-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-C18-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-C18-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-C18-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-C18-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-C18-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-C18-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CL18-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CL18-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CL18-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CL18-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CL18-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CL18-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CL18-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CL18-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CL18-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CL18-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CL18-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CL18-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CL18-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CL18-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CL18-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CL18-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CL18-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CL18-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CL18-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CL18-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CL18-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CL18-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CL18-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CL18-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CL18-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CL18-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CL18-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CL18-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CL18-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CL18-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CL18-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CL18-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CL18-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CL18-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CL18-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CL18-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CL18-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CL18-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CL18-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CL18-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CL18-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CL18-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CL18-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CL18-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CL18-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CL18-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CL18-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CL18-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CL18-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CL18-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CL18-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CL18-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CL18-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CL18-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CL18-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CL18-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CL18-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CL18-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CL18-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CL18-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CL18-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-C4-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-C4-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-C4-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-C4-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-C4-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-C4-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-C4-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-C4-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-C4-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-C4-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-C4-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-C4-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-C4-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-C4-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-C4-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-C4-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-C4-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-C4-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-C4-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-C4-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-C4-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-C4-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-C4-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-C4-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-C4-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-C4-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-C4-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-C4-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-C4-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-C4-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-C4-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-C4-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-C4-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-C4-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-C4-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-C4-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-C4-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-C4-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-C4-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-C4-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-C4-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-C4-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-C4-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-C4-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-C4-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-C4-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-C4-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-C4-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-C4-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-C4-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-C4-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-C4-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-C4-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-C4-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-C4-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-C4-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-C4-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-C4-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-C4-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-C4-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-C4-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CL4-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CL4-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CL4-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CL4-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CL4-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CL4-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CL4-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CL4-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CL4-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CL4-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CL4-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CL4-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CL4-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CL4-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CL4-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CL4-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CL4-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CL4-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CL4-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CL4-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CL4-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CL4-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CL4-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CL4-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CL4-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CL4-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CL4-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CL4-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CL4-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CL4-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CL4-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CL4-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CL4-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CL4-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CL4-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CL4-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CL4-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CL4-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CL4-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CL4-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CL4-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CL4-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CL4-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CL4-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CL4-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CL4-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CL4-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CL4-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CL4-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CL4-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CL4-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CL4-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CL4-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CL4-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CL4-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CL4-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CL4-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CL4-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CL4-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CL4-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CL4-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CX-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CX-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CX-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CX-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CX-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CX-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CX-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CX-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CX-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CX-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CX-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CX-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CX-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CX-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CX-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CX-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CX-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CX-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CX-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CX-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CX-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CX-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CX-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CX-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CX-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CX-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CX-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CX-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CX-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CX-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CX-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CX-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CX-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CX-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CX-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CX-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CX-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CX-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CX-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CX-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CX-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CX-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CX-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CX-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CX-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CX-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CX-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CX-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CX-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CX-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CX-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CX-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CX-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CX-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CX-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CX-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CX-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CX-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CX-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CX-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CX-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-C3N-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-C3N-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-C3N-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-C3N-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-C3N-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-C3N-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-C3N-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-C3N-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-C3N-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-C3N-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-C3N-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-C3N-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-C3N-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-C3N-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-C3N-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-C3N-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-C3N-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-C3N-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-C3N-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-C3N-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-C3N-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-C3N-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-C3N-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-C3N-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-C3N-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-C3N-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-C3N-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-C3N-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-C3N-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-C3N-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-C3N-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-C3N-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-C3N-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-C3N-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-C3N-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-C3N-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-C3N-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-C3N-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-C3N-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-C3N-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-C3N-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-C3N-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-C3N-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-C3N-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-C3N-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-C3N-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-C3N-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-C3N-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-C3N-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-C3N-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-C3N-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-C3N-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-C3N-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-C3N-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-C3N-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-C3N-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-C3N-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-C3N-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-C3N-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-C3N-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-C3N-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CL3N-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CL3N-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CL3N-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CL3N-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CL3N-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CL3N-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CL3N-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CL3N-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CL3N-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CL3N-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CL3N-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CL3N-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CL3N-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CL3N-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CL3N-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CL3N-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CL3N-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CL3N-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CL3N-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CL3N-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CL3N-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CL3N-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CL3N-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CL3N-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CL3N-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CL3N-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CL3N-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CL3N-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CL3N-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CL3N-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CL3N-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CL3N-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CL3N-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CL3N-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CL3N-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CL3N-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CL3N-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CL3N-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CL3N-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CL3N-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CL3N-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CL3N-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CL3N-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CL3N-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CL3N-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CL3N-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CL3N-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CL3N-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CL3N-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CL3N-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CL3N-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CL3N-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CL3N-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CL3N-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CL3N-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CL3N-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CL3N-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CL3N-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CL3N-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CL3N-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CL3N-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-C4N-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-C4N-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-C4N-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-C4N-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-C4N-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-C4N-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-C4N-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-C4N-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-C4N-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-C4N-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-C4N-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-C4N-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-C4N-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-C4N-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-C4N-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-C4N-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-C4N-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-C4N-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-C4N-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-C4N-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-C4N-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-C4N-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-C4N-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-C4N-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-C4N-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-C4N-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-C4N-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-C4N-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-C4N-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-C4N-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-C4N-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-C4N-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-C4N-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-C4N-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-C4N-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-C4N-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-C4N-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-C4N-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-C4N-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-C4N-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-C4N-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-C4N-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-C4N-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-C4N-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-C4N-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-C4N-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-C4N-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-C4N-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-C4N-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-C4N-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-C4N-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-C4N-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-C4N-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-C4N-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-C4N-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-C4N-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-C4N-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-C4N-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-C4N-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-C4N-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-C4N-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CL4N-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CL4N-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CL4N-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CL4N-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CL4N-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CL4N-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CL4N-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CL4N-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CL4N-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CL4N-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CL4N-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CL4N-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CL4N-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CL4N-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CL4N-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CL4N-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CL4N-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CL4N-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CL4N-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CL4N-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CL4N-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CL4N-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CL4N-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CL4N-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CL4N-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CL4N-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CL4N-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CL4N-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CL4N-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CL4N-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CL4N-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CL4N-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CL4N-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CL4N-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CL4N-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CL4N-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CL4N-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CL4N-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CL4N-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CL4N-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CL4N-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CL4N-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CL4N-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CL4N-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CL4N-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CL4N-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CL4N-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CL4N-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CL4N-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CL4N-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CL4N-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CL4N-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CL4N-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CL4N-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CL4N-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CL4N-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CL4N-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CL4N-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CL4N-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CL4N-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CL4N-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
MN4EX0-CXN-TM1A-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
MN4EX0-CXN-TM1C-5-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
MN4EX0-CXN-TM52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
MN4EX0-CXN-T30-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
MN4EX0-CXN-T30-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
MN4EX0-CXN-T30N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
MN4EX0-CXN-T30N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
MN4EX0-CXN-T30R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
MN4EX0-CXN-T30R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
MN4EX0-CXN-T30NR-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
MN4EX0-CXN-T30NR-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
MN4EX0-CXN-T50-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
MN4EX0-CXN-T50-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
MN4EX0-CXN-T50R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
MN4EX0-CXN-T50R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
MN4EX0-CXN-T51-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
MN4EX0-CXN-T51-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
MN4EX0-CXN-T51R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
MN4EX0-CXN-T51R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
MN4EX0-CXN-T52-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
MN4EX0-CXN-T52R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
MN4EX0-CXN-T53-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
MN4EX0-CXN-T53-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
MN4EX0-CXN-T53R-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
MN4EX0-CXN-T53R-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
MN4EX0-CXN-T6G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
MN4EX0-CXN-T6G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
MN4EX0-CXN-T7D1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
MN4EX0-CXN-T7D1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
MN4EX0-CXN-T7D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
MN4EX0-CXN-T7D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
MN4EX0-CXN-T7G1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
MN4EX0-CXN-T7G1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
MN4EX0-CXN-T7G2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
MN4EX0-CXN-T7G2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
MN4EX0-CXN-T7N1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
MN4EX0-CXN-T7N1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
MN4EX0-CXN-T7N2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
MN4EX0-CXN-T7N2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
MN4EX0-CXN-T7EC1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
MN4EX0-CXN-T7EC1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
MN4EX0-CXN-T7EC2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
MN4EX0-CXN-T7EC2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
MN4EX0-CXN-T7ECT1-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
MN4EX0-CXN-T7ECT1-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
MN4EX0-CXN-T7ECT2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
MN4EX0-CXN-T7ECT2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
MN4EX0-CXN-D2-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
MN4EX0-CXN-D2-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
MN4EX0-CXN-D20-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
MN4EX0-CXN-D20-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
MN4EX0-CXN-D21-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
MN4EX0-CXN-D21-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
MN4EX0-CXN-D22-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
MN4EX0-CXN-D22-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
MN4EX0-CXN-D23-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
MN4EX0-CXN-D23-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
MN4EX0-CXN-D2N-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
MN4EX0-CXN-D2N-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
MN4EX0-CXN-D3-8-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
MN4EX0-CXN-D3-16-3		Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16

Valve ManifoldsCKD

1220 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN3EX0/MN4EX0 Mix Block Manifold (MN4E0/MN4E00 Mix)

Brand CKD·Valve Manifolds

Available part numbers (1220)

MN3EX0-C18-TM1A-8-3, MN3EX0-C18-TM1C-5-3, MN3EX0-C18-TM52-8-3, MN3EX0-C18-T30-8-3, MN3EX0-C18-T30-16-3, MN3EX0-C18-T30N-8-3, MN3EX0-C18-T30N-16-3, MN3EX0-C18-T30R-8-3, MN3EX0-C18-T30R-16-3, MN3EX0-C18-T30NR-8-3 + 1210 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MN3EX0-C18-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-C18-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-C18-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-C18-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-C18-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-C18-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-C18-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-C18-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-C18-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-C18-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-C18-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-C18-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-C18-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-C18-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-C18-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-C18-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-C18-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-C18-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-C18-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-C18-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-C18-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-C18-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-C18-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-C18-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-C18-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-C18-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-C18-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-C18-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-C18-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-C18-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-C18-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-C18-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-C18-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-C18-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-C18-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-C18-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-C18-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-C18-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-C18-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-C18-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-C18-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-C18-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-C18-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-C18-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-C18-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-C18-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-C18-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-C18-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-C18-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-C18-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-C18-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-C18-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-C18-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-C18-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-C18-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-C18-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-C18-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-C18-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-C18-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-C18-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-C18-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CL18-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CL18-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CL18-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CL18-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CL18-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CL18-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CL18-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CL18-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CL18-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CL18-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CL18-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CL18-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CL18-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CL18-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CL18-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CL18-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CL18-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CL18-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CL18-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CL18-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CL18-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CL18-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CL18-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CL18-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CL18-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CL18-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CL18-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CL18-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CL18-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CL18-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CL18-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CL18-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CL18-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CL18-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CL18-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CL18-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CL18-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CL18-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CL18-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CL18-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CL18-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CL18-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CL18-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CL18-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CL18-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CL18-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CL18-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CL18-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CL18-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CL18-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CL18-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CL18-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CL18-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CL18-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CL18-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CL18-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CL18-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CL18-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CL18-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CL18-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CL18-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-C4-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-C4-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-C4-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-C4-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-C4-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-C4-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-C4-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-C4-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-C4-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-C4-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-C4-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-C4-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-C4-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-C4-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-C4-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-C4-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-C4-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-C4-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-C4-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-C4-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-C4-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-C4-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-C4-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-C4-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-C4-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-C4-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-C4-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-C4-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-C4-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-C4-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-C4-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-C4-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-C4-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-C4-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-C4-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-C4-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-C4-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-C4-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-C4-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-C4-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-C4-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-C4-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-C4-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-C4-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-C4-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-C4-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-C4-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-C4-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-C4-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-C4-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-C4-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-C4-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-C4-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-C4-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-C4-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-C4-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-C4-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-C4-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-C4-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-C4-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-C4-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CL4-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CL4-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CL4-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CL4-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CL4-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CL4-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CL4-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CL4-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CL4-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CL4-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CL4-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CL4-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CL4-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CL4-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CL4-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CL4-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CL4-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CL4-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CL4-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CL4-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CL4-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CL4-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CL4-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CL4-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CL4-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CL4-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CL4-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CL4-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CL4-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CL4-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CL4-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CL4-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CL4-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CL4-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CL4-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CL4-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CL4-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CL4-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CL4-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CL4-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CL4-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CL4-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CL4-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CL4-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CL4-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CL4-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CL4-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CX-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CX-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CX-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CX-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CX-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CX-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CX-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CX-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CX-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CX-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CX-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CX-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CX-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CX-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CX-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CX-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CX-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CX-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CX-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CX-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CX-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CX-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CX-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CX-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CX-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CX-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CX-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CX-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CX-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CX-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CX-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CX-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CX-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CX-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CX-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CX-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CX-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CX-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CX-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CX-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CX-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CX-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CX-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CX-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CX-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CX-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CX-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CX-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CX-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CX-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CX-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CX-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CX-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CX-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CX-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CX-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CX-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CX-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CX-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CX-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CX-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-C3N-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-C3N-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-C3N-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-C3N-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-C3N-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-C3N-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-C3N-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-C3N-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-C3N-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-C3N-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-C3N-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-C3N-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-C3N-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-C3N-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-C3N-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-C3N-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-C3N-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-C3N-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-C3N-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-C3N-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-C3N-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-C3N-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-C3N-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-C3N-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-C3N-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-C3N-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-C3N-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-C3N-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-C3N-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-C3N-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-C3N-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-C3N-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-C3N-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-C3N-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-C3N-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-C3N-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-C3N-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-C3N-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-C3N-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-C3N-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-C3N-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-C3N-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-C3N-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-C3N-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-C3N-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-C3N-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-C3N-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-C3N-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-C3N-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-C3N-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-C3N-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-C3N-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-C3N-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-C3N-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-C3N-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-C3N-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-C3N-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-C3N-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-C3N-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-C3N-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-C3N-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CL3N-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CL3N-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CL3N-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CL3N-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CL3N-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CL3N-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CL3N-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CL3N-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CL3N-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CL3N-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CL3N-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CL3N-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CL3N-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CL3N-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CL3N-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CL3N-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CL3N-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CL3N-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CL3N-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CL3N-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CL3N-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CL3N-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CL3N-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CL3N-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CL3N-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CL3N-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CL3N-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CL3N-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CL3N-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CL3N-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CL3N-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CL3N-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CL3N-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CL3N-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CL3N-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CL3N-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CL3N-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CL3N-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CL3N-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CL3N-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CL3N-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CL3N-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CL3N-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CL3N-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CL3N-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CL3N-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CL3N-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CL3N-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CL3N-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CL3N-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CL3N-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CL3N-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CL3N-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CL3N-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CL3N-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CL3N-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CL3N-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CL3N-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CL3N-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CL3N-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CL3N-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-C4N-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-C4N-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-C4N-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-C4N-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-C4N-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-C4N-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-C4N-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-C4N-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-C4N-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-C4N-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-C4N-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-C4N-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-C4N-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-C4N-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-C4N-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-C4N-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-C4N-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-C4N-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-C4N-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-C4N-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-C4N-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-C4N-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-C4N-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-C4N-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-C4N-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-C4N-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-C4N-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-C4N-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-C4N-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-C4N-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-C4N-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-C4N-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-C4N-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-C4N-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-C4N-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-C4N-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-C4N-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-C4N-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-C4N-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-C4N-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-C4N-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-C4N-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-C4N-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-C4N-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-C4N-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-C4N-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-C4N-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-C4N-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-C4N-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-C4N-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-C4N-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-C4N-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-C4N-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-C4N-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-C4N-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-C4N-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-C4N-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-C4N-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-C4N-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-C4N-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-C4N-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CL4N-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CL4N-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CL4N-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CL4N-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CL4N-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CL4N-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CL4N-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CL4N-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CL4N-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CL4N-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CL4N-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CL4N-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CL4N-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CL4N-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CL4N-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CL4N-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CL4N-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CL4N-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CL4N-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CL4N-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CL4N-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CL4N-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CL4N-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CL4N-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CL4N-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CL4N-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4N-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4N-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4N-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4N-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4N-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4N-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4N-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4N-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4N-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4N-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CL4N-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CL4N-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CL4N-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CL4N-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CL4N-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CL4N-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CL4N-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CL4N-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CL4N-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CL4N-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CL4N-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CL4N-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CL4N-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CL4N-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CL4N-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CL4N-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CL4N-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CL4N-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CL4N-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CL4N-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CL4N-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CL4N-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CL4N-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CL4N-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CL4N-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN3EX0-CXN-TM1A-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN3EX0-CXN-TM1C-5-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN3EX0-CXN-TM52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN3EX0-CXN-T30-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN3EX0-CXN-T30-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN3EX0-CXN-T30N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN3EX0-CXN-T30N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN3EX0-CXN-T30R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN3EX0-CXN-T30R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN3EX0-CXN-T30NR-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN3EX0-CXN-T30NR-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN3EX0-CXN-T50-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN3EX0-CXN-T50-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN3EX0-CXN-T50R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN3EX0-CXN-T50R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN3EX0-CXN-T51-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN3EX0-CXN-T51-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN3EX0-CXN-T51R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN3EX0-CXN-T51R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN3EX0-CXN-T52-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN3EX0-CXN-T52R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN3EX0-CXN-T53-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN3EX0-CXN-T53-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN3EX0-CXN-T53R-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN3EX0-CXN-T53R-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN3EX0-CXN-T6G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN3EX0-CXN-T6G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN3EX0-CXN-T7D1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN3EX0-CXN-T7D1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN3EX0-CXN-T7D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN3EX0-CXN-T7D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN3EX0-CXN-T7G1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN3EX0-CXN-T7G1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN3EX0-CXN-T7G2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN3EX0-CXN-T7G2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN3EX0-CXN-T7N1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN3EX0-CXN-T7N1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN3EX0-CXN-T7N2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN3EX0-CXN-T7N2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN3EX0-CXN-T7EC1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN3EX0-CXN-T7EC1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN3EX0-CXN-T7EC2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN3EX0-CXN-T7EC2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN3EX0-CXN-T7ECT1-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN3EX0-CXN-T7ECT1-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN3EX0-CXN-T7ECT2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN3EX0-CXN-T7ECT2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN3EX0-CXN-D2-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN3EX0-CXN-D2-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN3EX0-CXN-D20-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN3EX0-CXN-D20-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN3EX0-CXN-D21-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN3EX0-CXN-D21-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN3EX0-CXN-D22-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN3EX0-CXN-D22-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN3EX0-CXN-D23-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN3EX0-CXN-D23-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN3EX0-CXN-D2N-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN3EX0-CXN-D2N-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN3EX0-CXN-D3-8-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN3EX0-CXN-D3-16-3	Valve type: 3-port / dual 3-port \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-C18-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-C18-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-C18-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-C18-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-C18-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-C18-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-C18-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-C18-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-C18-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-C18-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-C18-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-C18-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-C18-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-C18-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-C18-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-C18-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-C18-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-C18-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-C18-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-C18-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-C18-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-C18-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-C18-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-C18-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-C18-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-C18-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-C18-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-C18-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-C18-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-C18-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-C18-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-C18-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-C18-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-C18-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-C18-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-C18-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-C18-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-C18-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-C18-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-C18-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-C18-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-C18-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-C18-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-C18-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-C18-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-C18-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-C18-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-C18-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-C18-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-C18-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-C18-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-C18-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-C18-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-C18-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-C18-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-C18-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-C18-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-C18-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-C18-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-C18-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-C18-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CL18-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CL18-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CL18-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CL18-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CL18-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CL18-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CL18-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CL18-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CL18-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CL18-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CL18-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CL18-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CL18-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CL18-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CL18-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CL18-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CL18-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CL18-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CL18-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CL18-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CL18-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CL18-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CL18-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CL18-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CL18-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CL18-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CL18-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CL18-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CL18-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CL18-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CL18-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CL18-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CL18-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CL18-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CL18-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CL18-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CL18-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CL18-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CL18-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CL18-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CL18-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CL18-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CL18-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CL18-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CL18-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CL18-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CL18-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CL18-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CL18-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CL18-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CL18-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CL18-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CL18-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CL18-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CL18-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CL18-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CL18-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CL18-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CL18-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CL18-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CL18-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1.8 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-C4-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-C4-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-C4-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-C4-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-C4-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-C4-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-C4-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-C4-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-C4-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-C4-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-C4-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-C4-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-C4-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-C4-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-C4-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-C4-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-C4-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-C4-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-C4-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-C4-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-C4-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-C4-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-C4-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-C4-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-C4-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-C4-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-C4-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-C4-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-C4-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-C4-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-C4-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-C4-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-C4-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-C4-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-C4-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-C4-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-C4-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-C4-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-C4-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-C4-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-C4-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-C4-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-C4-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-C4-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-C4-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-C4-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-C4-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-C4-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-C4-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-C4-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-C4-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-C4-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-C4-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-C4-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-C4-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-C4-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-C4-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-C4-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-C4-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-C4-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-C4-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CL4-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CL4-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CL4-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CL4-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CL4-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CL4-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CL4-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CL4-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CL4-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CL4-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CL4-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CL4-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CL4-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CL4-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CL4-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CL4-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CL4-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CL4-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CL4-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CL4-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CL4-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CL4-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CL4-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CL4-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CL4-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CL4-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CL4-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CL4-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CL4-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CL4-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CL4-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CL4-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CL4-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CL4-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CL4-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CL4-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CL4-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CL4-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CL4-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CL4-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CL4-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CL4-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CL4-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CL4-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CL4-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CL4-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CL4-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø4 up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CX-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CX-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CX-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CX-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CX-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CX-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CX-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CX-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CX-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CX-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CX-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CX-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CX-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CX-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CX-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CX-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CX-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CX-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CX-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CX-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CX-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CX-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CX-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CX-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CX-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CX-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CX-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CX-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CX-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CX-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CX-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CX-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CX-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CX-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CX-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CX-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CX-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CX-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CX-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CX-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CX-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CX-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CX-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CX-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CX-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CX-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CX-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CX-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CX-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CX-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CX-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CX-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CX-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CX-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CX-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CX-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CX-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CX-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CX-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CX-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CX-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (metric) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-C3N-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-C3N-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-C3N-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-C3N-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-C3N-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-C3N-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-C3N-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-C3N-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-C3N-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-C3N-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-C3N-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-C3N-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-C3N-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-C3N-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-C3N-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-C3N-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-C3N-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-C3N-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-C3N-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-C3N-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-C3N-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-C3N-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-C3N-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-C3N-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-C3N-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-C3N-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-C3N-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-C3N-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-C3N-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-C3N-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-C3N-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-C3N-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-C3N-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-C3N-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-C3N-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-C3N-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-C3N-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-C3N-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-C3N-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-C3N-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-C3N-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-C3N-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-C3N-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-C3N-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-C3N-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-C3N-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-C3N-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-C3N-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-C3N-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-C3N-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-C3N-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-C3N-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-C3N-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-C3N-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-C3N-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-C3N-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-C3N-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-C3N-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-C3N-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-C3N-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-C3N-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CL3N-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CL3N-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CL3N-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CL3N-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CL3N-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CL3N-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CL3N-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CL3N-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CL3N-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CL3N-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CL3N-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CL3N-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CL3N-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CL3N-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CL3N-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CL3N-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CL3N-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CL3N-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CL3N-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CL3N-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CL3N-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CL3N-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CL3N-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CL3N-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CL3N-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CL3N-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CL3N-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CL3N-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CL3N-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CL3N-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CL3N-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CL3N-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CL3N-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CL3N-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CL3N-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CL3N-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CL3N-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CL3N-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CL3N-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CL3N-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CL3N-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CL3N-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CL3N-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CL3N-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CL3N-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CL3N-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CL3N-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CL3N-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CL3N-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CL3N-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CL3N-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CL3N-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CL3N-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CL3N-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CL3N-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CL3N-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CL3N-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CL3N-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CL3N-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CL3N-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CL3N-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø1/8" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-C4N-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-C4N-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-C4N-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-C4N-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-C4N-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-C4N-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-C4N-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-C4N-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-C4N-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-C4N-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-C4N-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-C4N-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-C4N-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-C4N-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-C4N-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-C4N-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-C4N-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-C4N-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-C4N-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-C4N-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-C4N-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-C4N-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-C4N-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-C4N-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-C4N-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-C4N-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-C4N-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-C4N-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-C4N-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-C4N-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-C4N-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-C4N-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-C4N-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-C4N-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-C4N-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-C4N-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-C4N-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-C4N-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-C4N-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-C4N-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-C4N-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-C4N-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-C4N-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-C4N-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-C4N-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-C4N-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-C4N-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-C4N-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-C4N-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-C4N-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-C4N-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-C4N-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-C4N-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-C4N-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-C4N-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-C4N-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-C4N-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-C4N-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-C4N-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-C4N-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-C4N-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" side \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CL4N-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CL4N-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CL4N-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CL4N-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CL4N-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CL4N-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CL4N-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CL4N-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CL4N-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CL4N-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CL4N-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CL4N-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CL4N-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CL4N-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CL4N-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CL4N-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CL4N-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CL4N-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CL4N-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CL4N-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CL4N-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CL4N-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CL4N-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CL4N-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CL4N-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CL4N-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4N-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4N-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4N-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4N-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4N-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4N-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4N-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4N-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4N-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4N-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CL4N-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CL4N-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CL4N-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CL4N-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CL4N-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CL4N-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CL4N-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CL4N-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CL4N-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CL4N-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CL4N-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CL4N-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CL4N-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CL4N-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CL4N-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CL4N-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CL4N-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CL4N-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CL4N-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CL4N-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CL4N-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CL4N-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CL4N-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CL4N-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CL4N-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Push-in ø5/32" up \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16
	MN4EX0-CXN-TM1A-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P x2 \| Detail: - \| Stations: 8
	MN4EX0-CXN-TM1C-5-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block RITS 6P \| Detail: - \| Stations: 5
	MN4EX0-CXN-TM52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Mid block flat cable 10P \| Detail: - \| Stations: 8
	MN4EX0-CXN-T30-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 8
	MN4EX0-CXN-T30-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left \| Stations: 16
	MN4EX0-CXN-T30N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 8
	MN4EX0-CXN-T30N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Left, 4-40UNC \| Stations: 16
	MN4EX0-CXN-T30R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 8
	MN4EX0-CXN-T30R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right \| Stations: 16
	MN4EX0-CXN-T30NR-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 8
	MN4EX0-CXN-T30NR-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: D-sub 25P \| Detail: Right, 4-40UNC \| Stations: 16
	MN4EX0-CXN-T50-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 8
	MN4EX0-CXN-T50-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Left \| Stations: 16
	MN4EX0-CXN-T50R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 8
	MN4EX0-CXN-T50R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P, power terminal \| Detail: Right \| Stations: 16
	MN4EX0-CXN-T51-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 8
	MN4EX0-CXN-T51-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Left \| Stations: 16
	MN4EX0-CXN-T51R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 8
	MN4EX0-CXN-T51R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 20P \| Detail: Right \| Stations: 16
	MN4EX0-CXN-T52-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Left \| Stations: 8
	MN4EX0-CXN-T52R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 10P \| Detail: Right \| Stations: 8
	MN4EX0-CXN-T53-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 8
	MN4EX0-CXN-T53-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Left \| Stations: 16
	MN4EX0-CXN-T53R-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 8
	MN4EX0-CXN-T53R-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Flat cable 26P \| Detail: Right \| Stations: 16
	MN4EX0-CXN-T6G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 8
	MN4EX0-CXN-T6G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link \| Detail: 16 points \| Stations: 16
	MN4EX0-CXN-T7D1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 8
	MN4EX0-CXN-T7D1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 16 points \| Stations: 16
	MN4EX0-CXN-T7D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 8
	MN4EX0-CXN-T7D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial DeviceNet \| Detail: 32 points \| Stations: 16
	MN4EX0-CXN-T7G1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 8
	MN4EX0-CXN-T7G1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 16 points \| Stations: 16
	MN4EX0-CXN-T7G2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 8
	MN4EX0-CXN-T7G2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial CC-Link (T7) \| Detail: 32 points \| Stations: 16
	MN4EX0-CXN-T7N1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 8
	MN4EX0-CXN-T7N1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 16 points \| Stations: 16
	MN4EX0-CXN-T7N2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 8
	MN4EX0-CXN-T7N2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial S-LINK V \| Detail: 32 points \| Stations: 16
	MN4EX0-CXN-T7EC1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 8
	MN4EX0-CXN-T7EC1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, port side \| Stations: 16
	MN4EX0-CXN-T7EC2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 8
	MN4EX0-CXN-T7EC2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, port side \| Stations: 16
	MN4EX0-CXN-T7ECT1-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 8
	MN4EX0-CXN-T7ECT1-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 16 points, wiring side \| Stations: 16
	MN4EX0-CXN-T7ECT2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 8
	MN4EX0-CXN-T7ECT2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Serial EtherCAT \| Detail: 32 points, wiring side \| Stations: 16
	MN4EX0-CXN-D2-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 8
	MN4EX0-CXN-D2-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 300 mm \| Stations: 16
	MN4EX0-CXN-D20-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 8
	MN4EX0-CXN-D20-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 500 mm \| Stations: 16
	MN4EX0-CXN-D21-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 8
	MN4EX0-CXN-D21-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 1000 mm \| Stations: 16
	MN4EX0-CXN-D22-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 8
	MN4EX0-CXN-D22-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 2000 mm \| Stations: 16
	MN4EX0-CXN-D23-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 8
	MN4EX0-CXN-D23-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead 3000 mm \| Stations: 16
	MN4EX0-CXN-D2N-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 8
	MN4EX0-CXN-D2N-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Lead without socket \| Stations: 16
	MN4EX0-CXN-D3-8-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 8
	MN4EX0-CXN-D3-16-3	Valve type: 4-port / 3+4-port mix \| A/B port: Mixed push-in (inch) \| Wiring: Individual D-connector \| Detail: Socket with terminal \| Stations: 16

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MN3EX0/MN4EX0 Mix Block Manifold (MN4E0/MN4E00 Mix)
