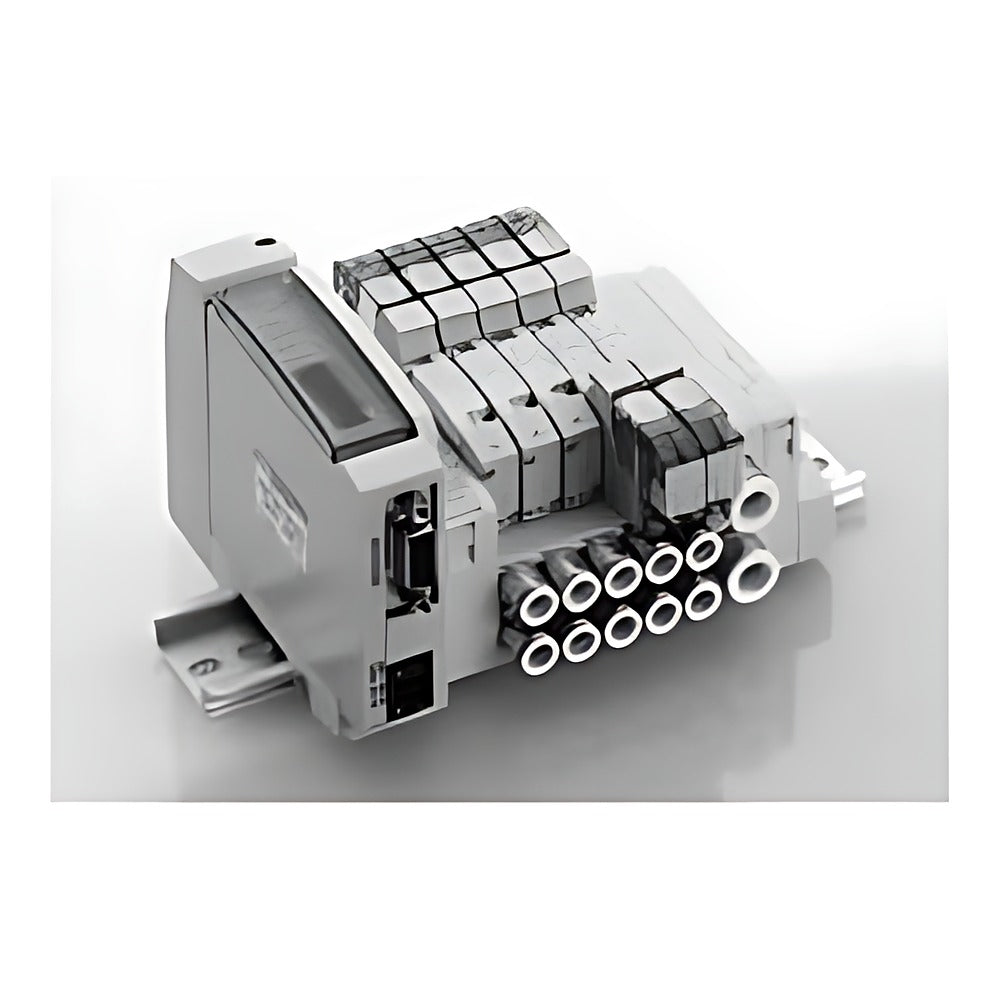

CKD MN3GB1/2-T Wiring-Saving Block Manifold (Clean P70)

CKD MN3GB1/2-T Wiring-Saving Block Manifold (Clean P70)

Clean-room (P70) CKD MN3GB1/2-T wiring-saving block manifolds combine 3GB dual 3-port valve blocks with base-side piping and a collective electrical block on a DIN rail.

Key features

  • Clean spec P70 (dust-generation prevention, exhaust treatment); P74 copper/silicone/halogen-free is made-to-order
  • Dual 3-port valve blocks (66/67/76/77) and mixed manifolds
  • A/B ports on the block side
  • Terminal block, D-sub, flat cable or serial transmission wiring
  • Up to 24 stations (3G1) or 20 stations (3G2)

Specifications

Manifold type Wiring-saving block manifold, DIN rail
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Solenoid points T10: 16, T30: 24
Clean spec P70: dust-proof, exhaust treatment
Source CKD Korea catalog CB-033S-4, p. 665-682
MN3GB1660R-C4-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1660R-C4-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1660R-C4-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1660R-C4-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1660R-C4-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1660R-C4-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1660R-C4-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1660R-C4-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1660R-C4-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1660R-C4-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1660R-C4-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1660R-C4-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1660R-C4-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1660R-C4-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1660R-C4-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1660R-C4-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1660R-C4-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1660R-C4-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1660R-C4-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1660R-C4-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1660R-C6-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1660R-C6-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1660R-C6-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1660R-C6-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1660R-C6-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1660R-C6-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1660R-C6-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1660R-C6-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1660R-C6-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1660R-C6-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1660R-C6-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1660R-C6-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1660R-C6-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1660R-C6-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1660R-C6-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1660R-C6-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1660R-C6-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1660R-C6-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1660R-C6-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1660R-C6-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1670R-C4-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1670R-C4-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1670R-C4-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1670R-C4-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1670R-C4-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1670R-C4-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1670R-C4-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1670R-C4-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1670R-C4-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1670R-C4-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1670R-C4-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1670R-C4-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1670R-C4-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1670R-C4-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1670R-C4-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1670R-C4-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1670R-C4-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1670R-C4-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1670R-C4-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1670R-C4-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1670R-C6-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1670R-C6-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1670R-C6-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1670R-C6-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1670R-C6-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1670R-C6-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1670R-C6-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1670R-C6-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1670R-C6-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1670R-C6-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1670R-C6-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1670R-C6-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1670R-C6-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1670R-C6-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1670R-C6-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1670R-C6-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1670R-C6-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1670R-C6-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1670R-C6-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1670R-C6-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1760R-C4-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1760R-C4-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1760R-C4-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1760R-C4-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1760R-C4-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1760R-C4-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1760R-C4-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1760R-C4-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1760R-C4-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1760R-C4-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1760R-C4-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1760R-C4-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1760R-C4-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1760R-C4-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1760R-C4-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1760R-C4-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1760R-C4-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1760R-C4-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1760R-C4-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1760R-C4-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1760R-C6-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1760R-C6-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1760R-C6-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1760R-C6-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1760R-C6-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1760R-C6-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1760R-C6-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1760R-C6-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1760R-C6-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1760R-C6-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1760R-C6-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1760R-C6-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1760R-C6-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1760R-C6-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1760R-C6-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1760R-C6-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1760R-C6-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1760R-C6-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1760R-C6-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1760R-C6-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1770R-C4-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1770R-C4-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1770R-C4-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1770R-C4-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1770R-C4-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1770R-C4-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1770R-C4-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1770R-C4-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1770R-C4-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1770R-C4-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1770R-C4-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1770R-C4-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1770R-C4-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1770R-C4-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1770R-C4-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1770R-C4-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1770R-C4-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1770R-C4-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1770R-C4-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1770R-C4-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1770R-C6-T10-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1770R-C6-T10-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1770R-C6-T10-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1770R-C6-T10-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1770R-C6-T10-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1770R-C6-T10-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1770R-C6-T10-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1770R-C6-T10-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1770R-C6-T30-1-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1770R-C6-T30-2-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1770R-C6-T30-3-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1770R-C6-T30-4-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1770R-C6-T30-5-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1770R-C6-T30-6-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1770R-C6-T30-7-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1770R-C6-T30-8-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1770R-C6-T30-9-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1770R-C6-T30-10-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1770R-C6-T30-11-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1770R-C6-T30-12-3-P70 Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C4-T10-1-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB180R-C4-T10-2-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB180R-C4-T10-3-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB180R-C4-T10-4-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB180R-C4-T10-5-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB180R-C4-T10-6-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB180R-C4-T10-7-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB180R-C4-T10-8-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB180R-C4-T10-9-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB180R-C4-T10-10-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB180R-C4-T10-11-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB180R-C4-T10-12-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB180R-C4-T10-13-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB180R-C4-T10-14-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB180R-C4-T10-15-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB180R-C4-T10-16-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB180R-C4-T30-1-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB180R-C4-T30-2-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB180R-C4-T30-3-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB180R-C4-T30-4-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB180R-C4-T30-5-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB180R-C4-T30-6-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB180R-C4-T30-7-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB180R-C4-T30-8-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB180R-C4-T30-9-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB180R-C4-T30-10-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB180R-C4-T30-11-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB180R-C4-T30-12-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C4-T30-13-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB180R-C4-T30-14-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB180R-C4-T30-15-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB180R-C4-T30-16-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB180R-C4-T30-17-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB180R-C4-T30-18-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB180R-C4-T30-19-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB180R-C4-T30-20-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB180R-C4-T30-21-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN3GB180R-C4-T30-22-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN3GB180R-C4-T30-23-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN3GB180R-C4-T30-24-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN3GB180R-C6-T10-1-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB180R-C6-T10-2-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB180R-C6-T10-3-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB180R-C6-T10-4-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB180R-C6-T10-5-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB180R-C6-T10-6-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB180R-C6-T10-7-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB180R-C6-T10-8-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB180R-C6-T10-9-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB180R-C6-T10-10-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB180R-C6-T10-11-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB180R-C6-T10-12-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB180R-C6-T10-13-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB180R-C6-T10-14-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB180R-C6-T10-15-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB180R-C6-T10-16-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB180R-C6-T30-1-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB180R-C6-T30-2-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB180R-C6-T30-3-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB180R-C6-T30-4-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB180R-C6-T30-5-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB180R-C6-T30-6-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB180R-C6-T30-7-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB180R-C6-T30-8-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB180R-C6-T30-9-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB180R-C6-T30-10-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB180R-C6-T30-11-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB180R-C6-T30-12-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C6-T30-13-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB180R-C6-T30-14-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB180R-C6-T30-15-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB180R-C6-T30-16-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB180R-C6-T30-17-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB180R-C6-T30-18-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB180R-C6-T30-19-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB180R-C6-T30-20-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB180R-C6-T30-21-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN3GB180R-C6-T30-22-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN3GB180R-C6-T30-23-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN3GB180R-C6-T30-24-3-P70 Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN3GB2660R-C4-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C4-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C4-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C4-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C4-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C4-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C4-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C4-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C4-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C4-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C4-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C4-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C4-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C4-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C4-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C4-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C4-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C4-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C4-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C4-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2660R-C6-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C6-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C6-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C6-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C6-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C6-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C6-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C6-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C6-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C6-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C6-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C6-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C6-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C6-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C6-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C6-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C6-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C6-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C6-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C6-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2660R-C8-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C8-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C8-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C8-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C8-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C8-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C8-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C8-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C8-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C8-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C8-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C8-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C8-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C8-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C8-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C8-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C8-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C8-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C8-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C8-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C4-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C4-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C4-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C4-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C4-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C4-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C4-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C4-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C4-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C4-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C4-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C4-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C4-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C4-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C4-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C4-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C4-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C4-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C4-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C4-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C6-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C6-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C6-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C6-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C6-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C6-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C6-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C6-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C6-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C6-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C6-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C6-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C6-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C6-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C6-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C6-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C6-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C6-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C6-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C6-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C8-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C8-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C8-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C8-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C8-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C8-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C8-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C8-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C8-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C8-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C8-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C8-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C8-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C8-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C8-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C8-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C8-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C8-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C8-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C8-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C4-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C4-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C4-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C4-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C4-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C4-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C4-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C4-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C4-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C4-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C4-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C4-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C4-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C4-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C4-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C4-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C4-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C4-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C4-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C4-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C6-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C6-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C6-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C6-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C6-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C6-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C6-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C6-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C6-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C6-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C6-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C6-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C6-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C6-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C6-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C6-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C6-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C6-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C6-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C6-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C8-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C8-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C8-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C8-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C8-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C8-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C8-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C8-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C8-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C8-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C8-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C8-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C8-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C8-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C8-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C8-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C8-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C8-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C8-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C8-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C4-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C4-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C4-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C4-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C4-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C4-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C4-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C4-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C4-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C4-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C4-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C4-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C4-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C4-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C4-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C4-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C4-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C4-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C4-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C4-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C6-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C6-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C6-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C6-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C6-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C6-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C6-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C6-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C6-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C6-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C6-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C6-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C6-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C6-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C6-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C6-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C6-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C6-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C6-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C6-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C8-T10-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C8-T10-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C8-T10-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C8-T10-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C8-T10-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C8-T10-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C8-T10-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C8-T10-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C8-T30-1-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C8-T30-2-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C8-T30-3-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C8-T30-4-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C8-T30-5-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C8-T30-6-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C8-T30-7-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C8-T30-8-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C8-T30-9-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C8-T30-10-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C8-T30-11-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C8-T30-12-3-P70 Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C4-T10-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C4-T10-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C4-T10-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C4-T10-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C4-T10-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C4-T10-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C4-T10-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C4-T10-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C4-T10-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C4-T10-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C4-T10-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C4-T10-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C4-T10-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C4-T10-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C4-T10-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C4-T10-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C4-T30-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C4-T30-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C4-T30-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C4-T30-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C4-T30-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C4-T30-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C4-T30-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C4-T30-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C4-T30-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C4-T30-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C4-T30-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C4-T30-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C4-T30-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C4-T30-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C4-T30-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C4-T30-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C4-T30-17-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C4-T30-18-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C4-T30-19-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C4-T30-20-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB280R-C6-T10-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C6-T10-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C6-T10-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C6-T10-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C6-T10-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C6-T10-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C6-T10-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C6-T10-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C6-T10-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C6-T10-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C6-T10-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C6-T10-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C6-T10-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C6-T10-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C6-T10-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C6-T10-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C6-T30-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C6-T30-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C6-T30-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C6-T30-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C6-T30-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C6-T30-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C6-T30-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C6-T30-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C6-T30-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C6-T30-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C6-T30-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C6-T30-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C6-T30-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C6-T30-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C6-T30-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C6-T30-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C6-T30-17-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C6-T30-18-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C6-T30-19-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C6-T30-20-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB280R-C8-T10-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C8-T10-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C8-T10-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C8-T10-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C8-T10-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C8-T10-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C8-T10-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C8-T10-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C8-T10-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C8-T10-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C8-T10-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C8-T10-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C8-T10-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C8-T10-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C8-T10-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C8-T10-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C8-T30-1-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C8-T30-2-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C8-T30-3-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C8-T30-4-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C8-T30-5-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C8-T30-6-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C8-T30-7-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C8-T30-8-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C8-T30-9-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C8-T30-10-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C8-T30-11-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C8-T30-12-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C8-T30-13-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C8-T30-14-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C8-T30-15-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C8-T30-16-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C8-T30-17-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C8-T30-18-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C8-T30-19-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C8-T30-20-3-P70 Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
Valve ManifoldsCKD
588 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN3GB1/2-T Wiring-Saving Block Manifold (Clean P70)

Brand CKD·Valve Manifolds

Available part numbers (588)

MN3GB1660R-C4-T10-1-3-P70, MN3GB1660R-C4-T10-2-3-P70, MN3GB1660R-C4-T10-3-3-P70, MN3GB1660R-C4-T10-4-3-P70, MN3GB1660R-C4-T10-5-3-P70, MN3GB1660R-C4-T10-6-3-P70, MN3GB1660R-C4-T10-7-3-P70, MN3GB1660R-C4-T10-8-3-P70, MN3GB1660R-C4-T30-1-3-P70, MN3GB1660R-C4-T30-2-3-P70 + 578 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MN3GB1660R-C4-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1660R-C4-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1660R-C4-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1660R-C4-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1660R-C4-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1660R-C4-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1660R-C4-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1660R-C4-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1660R-C4-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1660R-C4-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1660R-C4-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1660R-C4-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1660R-C4-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1660R-C4-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1660R-C4-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1660R-C4-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1660R-C4-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1660R-C4-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1660R-C4-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1660R-C4-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1660R-C6-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1660R-C6-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1660R-C6-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1660R-C6-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1660R-C6-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1660R-C6-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1660R-C6-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1660R-C6-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1660R-C6-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1660R-C6-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1660R-C6-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1660R-C6-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1660R-C6-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1660R-C6-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1660R-C6-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1660R-C6-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1660R-C6-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1660R-C6-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1660R-C6-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1660R-C6-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1670R-C4-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1670R-C4-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1670R-C4-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1670R-C4-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1670R-C4-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1670R-C4-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1670R-C4-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1670R-C4-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1670R-C4-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1670R-C4-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1670R-C4-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1670R-C4-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1670R-C4-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1670R-C4-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1670R-C4-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1670R-C4-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1670R-C4-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1670R-C4-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1670R-C4-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1670R-C4-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1670R-C6-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1670R-C6-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1670R-C6-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1670R-C6-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1670R-C6-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1670R-C6-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1670R-C6-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1670R-C6-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1670R-C6-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1670R-C6-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1670R-C6-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1670R-C6-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1670R-C6-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1670R-C6-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1670R-C6-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1670R-C6-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1670R-C6-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1670R-C6-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1670R-C6-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1670R-C6-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1760R-C4-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1760R-C4-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1760R-C4-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1760R-C4-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1760R-C4-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1760R-C4-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1760R-C4-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1760R-C4-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1760R-C4-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1760R-C4-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1760R-C4-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1760R-C4-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1760R-C4-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1760R-C4-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1760R-C4-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1760R-C4-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1760R-C4-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1760R-C4-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1760R-C4-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1760R-C4-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1760R-C6-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1760R-C6-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1760R-C6-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1760R-C6-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1760R-C6-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1760R-C6-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1760R-C6-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1760R-C6-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1760R-C6-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1760R-C6-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1760R-C6-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1760R-C6-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1760R-C6-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1760R-C6-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1760R-C6-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1760R-C6-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1760R-C6-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1760R-C6-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1760R-C6-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1760R-C6-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1770R-C4-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1770R-C4-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1770R-C4-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1770R-C4-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1770R-C4-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1770R-C4-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1770R-C4-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1770R-C4-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1770R-C4-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1770R-C4-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1770R-C4-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1770R-C4-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1770R-C4-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1770R-C4-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1770R-C4-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1770R-C4-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1770R-C4-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1770R-C4-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1770R-C4-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1770R-C4-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB1770R-C6-T10-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB1770R-C6-T10-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB1770R-C6-T10-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB1770R-C6-T10-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB1770R-C6-T10-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB1770R-C6-T10-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB1770R-C6-T10-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB1770R-C6-T10-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB1770R-C6-T30-1-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB1770R-C6-T30-2-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB1770R-C6-T30-3-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB1770R-C6-T30-4-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB1770R-C6-T30-5-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB1770R-C6-T30-6-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB1770R-C6-T30-7-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB1770R-C6-T30-8-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB1770R-C6-T30-9-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB1770R-C6-T30-10-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB1770R-C6-T30-11-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB1770R-C6-T30-12-3-P70Model: MN3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C4-T10-1-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB180R-C4-T10-2-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB180R-C4-T10-3-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB180R-C4-T10-4-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB180R-C4-T10-5-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB180R-C4-T10-6-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB180R-C4-T10-7-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB180R-C4-T10-8-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB180R-C4-T10-9-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB180R-C4-T10-10-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB180R-C4-T10-11-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB180R-C4-T10-12-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB180R-C4-T10-13-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB180R-C4-T10-14-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB180R-C4-T10-15-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB180R-C4-T10-16-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB180R-C4-T30-1-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB180R-C4-T30-2-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB180R-C4-T30-3-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB180R-C4-T30-4-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB180R-C4-T30-5-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB180R-C4-T30-6-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB180R-C4-T30-7-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB180R-C4-T30-8-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB180R-C4-T30-9-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB180R-C4-T30-10-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB180R-C4-T30-11-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB180R-C4-T30-12-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C4-T30-13-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB180R-C4-T30-14-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB180R-C4-T30-15-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB180R-C4-T30-16-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB180R-C4-T30-17-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB180R-C4-T30-18-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB180R-C4-T30-19-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB180R-C4-T30-20-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB180R-C4-T30-21-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN3GB180R-C4-T30-22-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN3GB180R-C4-T30-23-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN3GB180R-C4-T30-24-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN3GB180R-C6-T10-1-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB180R-C6-T10-2-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB180R-C6-T10-3-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB180R-C6-T10-4-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB180R-C6-T10-5-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB180R-C6-T10-6-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB180R-C6-T10-7-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB180R-C6-T10-8-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB180R-C6-T10-9-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB180R-C6-T10-10-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB180R-C6-T10-11-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB180R-C6-T10-12-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB180R-C6-T10-13-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB180R-C6-T10-14-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB180R-C6-T10-15-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB180R-C6-T10-16-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB180R-C6-T30-1-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB180R-C6-T30-2-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB180R-C6-T30-3-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB180R-C6-T30-4-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB180R-C6-T30-5-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB180R-C6-T30-6-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB180R-C6-T30-7-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB180R-C6-T30-8-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB180R-C6-T30-9-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB180R-C6-T30-10-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB180R-C6-T30-11-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB180R-C6-T30-12-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB180R-C6-T30-13-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB180R-C6-T30-14-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB180R-C6-T30-15-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB180R-C6-T30-16-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB180R-C6-T30-17-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB180R-C6-T30-18-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB180R-C6-T30-19-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB180R-C6-T30-20-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB180R-C6-T30-21-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN3GB180R-C6-T30-22-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN3GB180R-C6-T30-23-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN3GB180R-C6-T30-24-3-P70Model: MN3GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN3GB2660R-C4-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C4-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C4-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C4-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C4-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C4-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C4-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C4-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C4-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C4-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C4-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C4-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C4-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C4-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C4-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C4-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C4-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C4-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C4-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C4-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2660R-C6-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C6-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C6-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C6-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C6-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C6-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C6-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C6-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C6-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C6-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C6-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C6-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C6-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C6-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C6-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C6-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C6-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C6-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C6-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C6-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2660R-C8-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2660R-C8-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2660R-C8-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2660R-C8-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2660R-C8-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2660R-C8-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2660R-C8-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2660R-C8-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2660R-C8-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2660R-C8-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2660R-C8-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2660R-C8-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2660R-C8-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2660R-C8-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2660R-C8-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2660R-C8-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2660R-C8-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2660R-C8-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2660R-C8-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2660R-C8-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C4-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C4-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C4-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C4-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C4-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C4-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C4-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C4-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C4-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C4-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C4-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C4-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C4-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C4-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C4-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C4-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C4-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C4-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C4-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C4-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C6-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C6-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C6-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C6-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C6-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C6-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C6-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C6-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C6-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C6-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C6-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C6-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C6-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C6-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C6-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C6-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C6-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C6-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C6-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C6-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2670R-C8-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2670R-C8-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2670R-C8-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2670R-C8-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2670R-C8-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2670R-C8-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2670R-C8-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2670R-C8-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2670R-C8-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2670R-C8-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2670R-C8-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2670R-C8-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2670R-C8-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2670R-C8-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2670R-C8-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2670R-C8-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2670R-C8-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2670R-C8-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2670R-C8-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2670R-C8-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C4-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C4-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C4-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C4-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C4-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C4-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C4-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C4-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C4-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C4-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C4-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C4-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C4-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C4-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C4-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C4-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C4-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C4-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C4-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C4-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C6-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C6-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C6-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C6-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C6-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C6-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C6-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C6-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C6-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C6-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C6-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C6-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C6-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C6-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C6-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C6-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C6-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C6-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C6-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C6-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2760R-C8-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2760R-C8-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2760R-C8-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2760R-C8-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2760R-C8-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2760R-C8-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2760R-C8-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2760R-C8-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2760R-C8-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2760R-C8-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2760R-C8-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2760R-C8-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2760R-C8-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2760R-C8-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2760R-C8-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2760R-C8-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2760R-C8-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2760R-C8-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2760R-C8-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2760R-C8-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C4-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C4-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C4-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C4-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C4-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C4-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C4-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C4-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C4-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C4-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C4-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C4-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C4-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C4-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C4-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C4-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C4-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C4-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C4-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C4-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C6-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C6-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C6-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C6-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C6-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C6-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C6-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C6-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C6-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C6-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C6-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C6-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C6-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C6-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C6-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C6-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C6-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C6-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C6-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C6-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB2770R-C8-T10-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB2770R-C8-T10-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB2770R-C8-T10-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB2770R-C8-T10-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB2770R-C8-T10-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB2770R-C8-T10-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB2770R-C8-T10-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB2770R-C8-T10-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB2770R-C8-T30-1-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB2770R-C8-T30-2-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB2770R-C8-T30-3-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB2770R-C8-T30-4-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB2770R-C8-T30-5-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB2770R-C8-T30-6-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB2770R-C8-T30-7-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB2770R-C8-T30-8-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB2770R-C8-T30-9-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB2770R-C8-T30-10-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB2770R-C8-T30-11-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB2770R-C8-T30-12-3-P70Model: MN3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C4-T10-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C4-T10-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C4-T10-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C4-T10-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C4-T10-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C4-T10-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C4-T10-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C4-T10-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C4-T10-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C4-T10-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C4-T10-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C4-T10-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C4-T10-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C4-T10-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C4-T10-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C4-T10-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C4-T30-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C4-T30-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C4-T30-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C4-T30-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C4-T30-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C4-T30-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C4-T30-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C4-T30-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C4-T30-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C4-T30-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C4-T30-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C4-T30-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C4-T30-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C4-T30-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C4-T30-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C4-T30-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C4-T30-17-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C4-T30-18-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C4-T30-19-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C4-T30-20-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB280R-C6-T10-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C6-T10-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C6-T10-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C6-T10-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C6-T10-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C6-T10-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C6-T10-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C6-T10-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C6-T10-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C6-T10-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C6-T10-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C6-T10-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C6-T10-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C6-T10-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C6-T10-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C6-T10-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C6-T30-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C6-T30-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C6-T30-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C6-T30-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C6-T30-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C6-T30-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C6-T30-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C6-T30-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C6-T30-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C6-T30-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C6-T30-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C6-T30-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C6-T30-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C6-T30-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C6-T30-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C6-T30-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C6-T30-17-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C6-T30-18-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C6-T30-19-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C6-T30-20-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN3GB280R-C8-T10-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN3GB280R-C8-T10-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GB280R-C8-T10-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GB280R-C8-T10-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GB280R-C8-T10-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GB280R-C8-T10-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GB280R-C8-T10-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GB280R-C8-T10-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GB280R-C8-T10-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN3GB280R-C8-T10-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN3GB280R-C8-T10-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN3GB280R-C8-T10-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN3GB280R-C8-T10-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN3GB280R-C8-T10-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN3GB280R-C8-T10-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN3GB280R-C8-T10-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN3GB280R-C8-T30-1-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN3GB280R-C8-T30-2-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GB280R-C8-T30-3-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GB280R-C8-T30-4-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GB280R-C8-T30-5-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GB280R-C8-T30-6-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GB280R-C8-T30-7-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GB280R-C8-T30-8-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GB280R-C8-T30-9-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN3GB280R-C8-T30-10-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN3GB280R-C8-T30-11-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN3GB280R-C8-T30-12-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN3GB280R-C8-T30-13-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN3GB280R-C8-T30-14-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN3GB280R-C8-T30-15-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN3GB280R-C8-T30-16-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN3GB280R-C8-T30-17-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN3GB280R-C8-T30-18-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN3GB280R-C8-T30-19-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN3GB280R-C8-T30-20-3-P70Model: MN3GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
