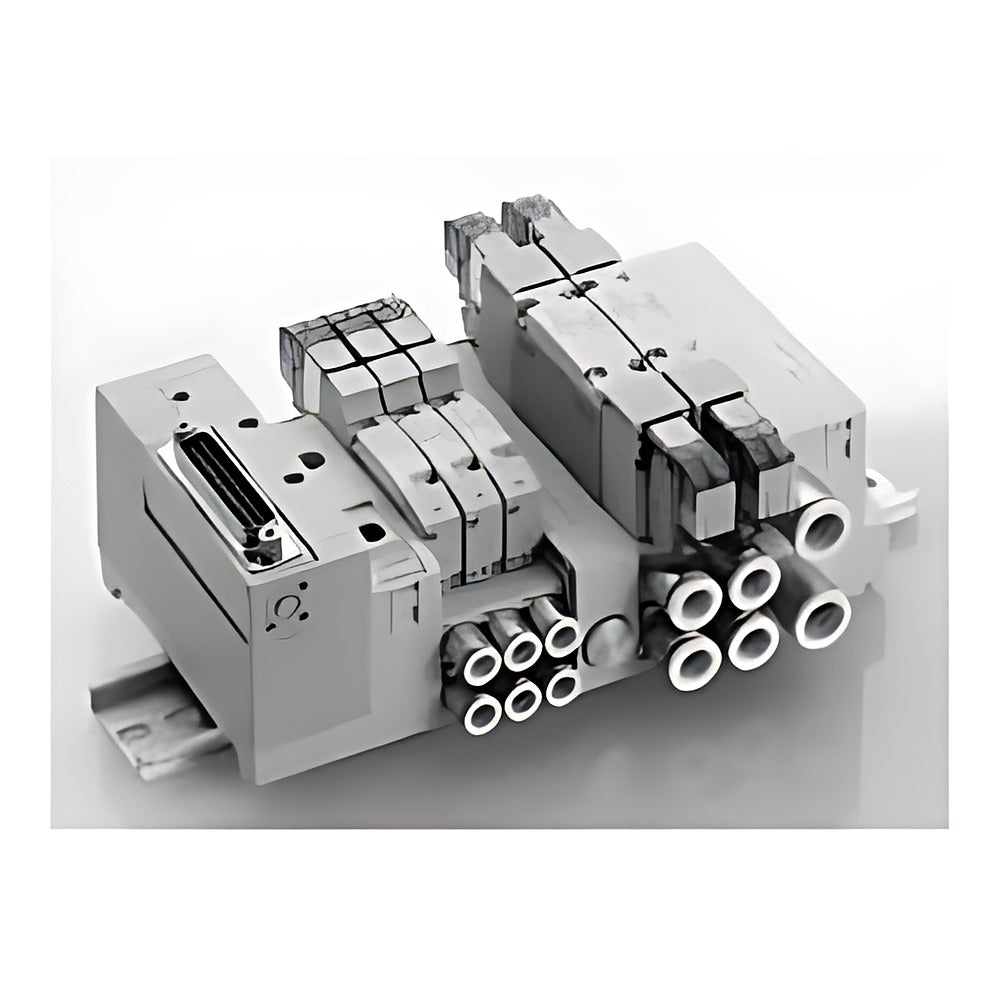

CKD MN4GA/MN4GB Block Manifold Components (Clean Room, P70/P74)

CKD MN4GA/MN4GB Block Manifold Components (Clean Room, P70/P74)

CKD clean-spec block components for MN4GA/MN4GB block manifolds: valve blocks, supply/exhaust, end, partition and mix blocks, spacers, tag plates and cartridge fittings.

Key features

  • Valve blocks with masking plate (MP) or bare resin valve blocks (V1) for 4G1/4G2, direct (N4GA) or base piping (N4GB) with A/B port fitting code
  • Wiring-reduction versions MPS/MPD and V2 need a cable length code 2-10 (calculated per p670) and are not expanded here
  • Supply/exhaust blocks Q (internal pilot) / QK (external pilot) with P-port filter; end, partition (SA/S/SP/SE) and N4G12R mix blocks
  • Supply (P) and exhaust (R) spacers, tag holders and tag plates (200/300/400 mm), cartridge push-in fittings for supply/exhaust blocks
  • P70: exhaust treatment; P74 (valve blocks): copper, silicone and halogen materials excluded. Electrical blocks cannot be ordered alone; DIN rail N4GR-BAA<length>-P70 in 12.5 mm pitch

Specifications

Series MN4GA1/2, MN4GB1/2 block manifolds
Fluid Compressed air
Clean spec P70 exhaust treatment / P74 material-limited
Max. manifold stations 20 (mix manifold)
Made to order Inch L-type fittings, inch elbow supply ports
Code format <block>R-<type>-<port>-<P70|P74>
Source CKD Korea catalog CB-033S-4, p. 683-704
N4GA1R-MP-P70 Part: Valve block + masking plate | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA1R-MP-P74 Part: Valve block + masking plate | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GA2R-MP-P70 Part: Valve block + masking plate | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA2R-MP-P74 Part: Valve block + masking plate | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CF-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P70
N4GB1R-MP-C18-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C4-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C6-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-CL18-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL4-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL6-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CD18-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CD4-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CD6-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CFNC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C18NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C4NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C6NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-CFNO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C18NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C4NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C6NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-CL18NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL6NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL18NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL6NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CD18NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD4NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD6NC-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD18NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-CD4NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-CD6NO-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-C3N-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C4N-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-CL3N-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL4N-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-C3NCN-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C4NCN-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C3NON-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C4NON-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-CL3NCN-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NCN-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL3NON-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NON-P70 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CF-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CFNC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CFNO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6NC-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6NO-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3N-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4N-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3N-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4N-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3NCN-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NCN-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3NON-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NON-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3NCN-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NCN-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3NON-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NON-P74 Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C6-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C8-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-CL6-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CL8-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CD6-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB2R-MP-CD8-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4GB2R-MP-C4NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C6NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C8NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C4NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C6NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C8NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-CL4NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CD6NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-MP-CD8NC-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-MP-CD6NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-MP-CD8NO-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-MP-C6N-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C8N-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-CL6N-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CL8N-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-C6NCN-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C8NCN-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C6NON-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C8NON-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-CL6NCN-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NCN-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NON-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NON-P70 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-C4-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL4NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8NC-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8NO-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6N-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8N-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6N-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8N-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NCN-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NCN-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NON-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NON-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NCN-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NCN-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NON-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NON-P74 Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GA1R-V1-P70 Part: Valve block (resin base) | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA1R-V1-P74 Part: Valve block (resin base) | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GA2R-V1-P70 Part: Valve block (resin base) | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA2R-V1-P74 Part: Valve block (resin base) | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CF-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P70
N4GB1R-V1-C18-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C4-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C6-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-CL18-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL4-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL6-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CD18-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CD4-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CD6-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CFNC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C18NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C4NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C6NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-CFNO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C18NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C4NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C6NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-CL18NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL6NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL18NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL6NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CD18NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD4NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD6NC-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD18NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-CD4NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-CD6NO-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-C3N-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C4N-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-CL3N-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL4N-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-C3NCN-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C4NCN-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C3NON-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C4NON-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-CL3NCN-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NCN-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL3NON-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NON-P70 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CF-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CFNC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CFNO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6NC-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6NO-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3N-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4N-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3N-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4N-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3NCN-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NCN-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3NON-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NON-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3NCN-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NCN-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3NON-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NON-P74 Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C6-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C8-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-CL6-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CL8-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CD6-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB2R-V1-CD8-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4GB2R-V1-C4NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C6NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C8NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C4NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C6NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C8NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-CL4NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CD6NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-V1-CD8NC-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-V1-CD6NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-V1-CD8NO-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-V1-C6N-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C8N-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-CL6N-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CL8N-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-C6NCN-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C8NCN-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C6NON-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C8NON-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-CL6NCN-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NCN-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NON-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NON-P70 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-C4-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL4NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8NC-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8NO-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6N-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8N-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6N-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8N-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NCN-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NCN-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NON-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NON-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NCN-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NCN-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NON-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NON-P74 Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4G1R-Q-6-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-6L-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-6D-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-8-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-8L-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-8D-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-6N-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-6LN-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-6DN-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-8N-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-8LN-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-8DN-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-6M-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: Straight | Clean spec: P70
N4G1R-Q-6LM-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type up | Clean spec: P70
N4G1R-Q-6DM-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type down | Clean spec: P70
N4G1R-Q-8M-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G1R-Q-8LM-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G1R-Q-8DM-P70 Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G1R-QK-6-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-QK-6L-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-6D-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-8-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-QK-8L-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-8D-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-6N-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-QK-6LN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-6DN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-8N-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-QK-8LN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-8DN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-6M-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: Straight | Clean spec: P70
N4G1R-QK-6LM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type up | Clean spec: P70
N4G1R-QK-6DM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type down | Clean spec: P70
N4G1R-QK-8M-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G1R-QK-8LM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G1R-QK-8DM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-Q-8-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-8L-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-8D-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-10-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-10L-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-10D-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-8N-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-8LN-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-8DN-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-10N-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-10LN-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-10DN-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-8M-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G2R-Q-8ML-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G2R-Q-8DM-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-Q-10M-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: Straight | Clean spec: P70
N4G2R-Q-10LM-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type up | Clean spec: P70
N4G2R-Q-10DM-P70 Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type down | Clean spec: P70
N4G2R-QK-8-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-QK-8L-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-8D-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-10-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-QK-10L-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-10D-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-8N-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-QK-8LN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-8DN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-10N-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-QK-10LN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-10DN-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-8M-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G2R-QK-8ML-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G2R-QK-8DM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-QK-10M-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: Straight | Clean spec: P70
N4G2R-QK-10LM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type up | Clean spec: P70
N4G2R-QK-10DM-P70 Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type down | Clean spec: P70
N4G1R-EL-P70 Part: End block | Model: N4G1 | Connection: - | Style: Left | Clean spec: P70
N4G1R-ER-P70 Part: End block | Model: N4G1 | Connection: - | Style: Right | Clean spec: P70
N4G1R-SA-P70 Part: Partition block | Model: N4G1 | Connection: - | Style: P/R/PA blocked | Clean spec: P70
N4G1R-S-P70 Part: Partition block | Model: N4G1 | Connection: - | Style: P/R blocked, PA through | Clean spec: P70
N4G1R-SP-P70 Part: Partition block | Model: N4G1 | Connection: - | Style: P blocked, R/PA through | Clean spec: P70
N4G1R-SE-P70 Part: Partition block | Model: N4G1 | Connection: - | Style: R blocked, P/PA through | Clean spec: P70
N4G2R-EL-P70 Part: End block | Model: N4G2 | Connection: - | Style: Left | Clean spec: P70
N4G2R-ER-P70 Part: End block | Model: N4G2 | Connection: - | Style: Right | Clean spec: P70
N4G2R-SA-P70 Part: Partition block | Model: N4G2 | Connection: - | Style: P/R/PA blocked | Clean spec: P70
N4G2R-S-P70 Part: Partition block | Model: N4G2 | Connection: - | Style: P/R blocked, PA through | Clean spec: P70
N4G2R-SP-P70 Part: Partition block | Model: N4G2 | Connection: - | Style: P blocked, R/PA through | Clean spec: P70
N4G2R-SE-P70 Part: Partition block | Model: N4G2 | Connection: - | Style: R blocked, P/PA through | Clean spec: P70
N4G12R-MIX-P70 Part: Mix block (4G1/4G2) | Model: N4G12 | Connection: - | Style: 4G1 left, 4G2 right | Clean spec: P70
N4G1R-TAG-HOLDER-P70 Part: Tag holder (2 pcs/set) | Model: N4G1 | Connection: - | Style: Tag holder | Clean spec: P70
N4G2R-TAG-HOLDER-P70 Part: Tag holder (2 pcs/set) | Model: N4G2 | Connection: - | Style: Tag holder | Clean spec: P70
N4G1R-TAG-PLATE-A-200-P70 Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-A-300-P70 Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-A-400-P70 Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-200-P70 Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-300-P70 Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-400-P70 Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-200-P70 Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-300-P70 Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-400-P70 Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-200-P70 Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-300-P70 Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-400-P70 Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-Q-JOINT-6-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-8-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-6L-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-6LL-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-8L-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-8LL-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-6N-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-8N-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-6LN-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-6LLN-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-8LN-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-8LLN-P70 Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-8-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-10-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-8L-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-8LL-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-10L-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-10LL-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-8N-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-10N-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-8LN-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-8LLN-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-10LN-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-10LLN-P70 Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Elbow, long | Clean spec: P70
N4GR-QK-JOINT-6-P70 Part: Cartridge fitting, PA port | Model: N4G | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GR-QK-JOINT-6L-P70 Part: Cartridge fitting, PA port | Model: N4G | Connection: phi6 push-in | Style: Elbow | Clean spec: P70
Solenoid Valve PartsCKD
437 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GA/MN4GB Block Manifold Components (Clean Room, P70/P74)

Brand CKD·Solenoid Valve Parts

Available part numbers (437)

N4GA1R-MP-P70, N4GA1R-MP-P74, N4GA2R-MP-P70, N4GA2R-MP-P74, N4GB1R-MP-CF-P70, N4GB1R-MP-C18-P70, N4GB1R-MP-C4-P70, N4GB1R-MP-C6-P70, N4GB1R-MP-CL18-P70, N4GB1R-MP-CL4-P70 + 427 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N4GA1R-MP-P70Part: Valve block + masking plate | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA1R-MP-P74Part: Valve block + masking plate | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GA2R-MP-P70Part: Valve block + masking plate | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA2R-MP-P74Part: Valve block + masking plate | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CF-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P70
N4GB1R-MP-C18-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C4-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C6-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-CL18-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL4-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL6-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CD18-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CD4-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CD6-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB1R-MP-CFNC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C18NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C4NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C6NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-CFNO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C18NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C4NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C6NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-CL18NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL6NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL18NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL6NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CD18NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD4NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD6NC-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-MP-CD18NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-CD4NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-CD6NO-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-MP-C3N-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-C4N-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P70
N4GB1R-MP-CL3N-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-CL4N-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-MP-C3NCN-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C4NCN-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-MP-C3NON-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-C4NON-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-MP-CL3NCN-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NCN-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-MP-CL3NON-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CL4NON-P70Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-MP-CF-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CFNC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CFNO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C18NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C6NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL18NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL6NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6NC-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD18NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD4NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CD6NO-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3N-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4N-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3N-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4N-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3NCN-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NCN-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C3NON-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-C4NON-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3NCN-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NCN-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL3NON-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-MP-CL4NON-P74Part: Valve block + masking plate | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C6-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C8-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-CL6-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CL8-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CD6-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB2R-MP-CD8-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4GB2R-MP-C4NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C6NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C8NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C4NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C6NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C8NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-CL4NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CD6NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-MP-CD8NC-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-MP-CD6NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-MP-CD8NO-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-MP-C6N-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-C8N-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4GB2R-MP-CL6N-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-CL8N-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-MP-C6NCN-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C8NCN-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-MP-C6NON-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-C8NON-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-MP-CL6NCN-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NCN-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-MP-CL6NON-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-CL8NON-P70Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-MP-C4-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C4NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL4NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8NC-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD6NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CD8NO-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6N-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8N-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6N-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8N-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NCN-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NCN-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C6NON-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-C8NON-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NCN-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NCN-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL6NON-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-MP-CL8NON-P74Part: Valve block + masking plate | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GA1R-V1-P70Part: Valve block (resin base) | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA1R-V1-P74Part: Valve block (resin base) | Model: N4GA1 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GA2R-V1-P70Part: Valve block (resin base) | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P70
N4GA2R-V1-P74Part: Valve block (resin base) | Model: N4GA2 | Connection: Direct piping (on block) | Style: Individual wiring | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CF-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P70
N4GB1R-V1-C18-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C4-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C6-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-CL18-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL4-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL6-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CD18-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CD4-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CD6-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB1R-V1-CFNC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C18NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C4NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C6NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-CFNO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C18NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C4NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C6NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-CL18NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL6NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL18NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL6NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CD18NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD4NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD6NC-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB1R-V1-CD18NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-CD4NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-CD6NO-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB1R-V1-C3N-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-C4N-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P70
N4GB1R-V1-CL3N-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-CL4N-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P70
N4GB1R-V1-C3NCN-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C4NCN-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB1R-V1-C3NON-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-C4NON-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB1R-V1-CL3NCN-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NCN-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB1R-V1-CL3NON-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CL4NON-P70Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB1R-V1-CF-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CFNC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CFNO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 barb | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C18NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C6NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL18NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL6NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6NC-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD18NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi1.8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD4NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi4 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CD6NO-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3N-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4N-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3N-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4N-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3NCN-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NCN-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C3NON-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-C4NON-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3NCN-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NCN-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL3NON-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 1/8 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB1R-V1-CL4NON-P74Part: Valve block (resin base) | Model: N4GB1 | Connection: 5/32 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C6-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C8-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-CL6-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CL8-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CD6-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4GB2R-V1-CD8-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4GB2R-V1-C4NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C6NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C8NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C4NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C6NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C8NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-CL4NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CD6NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-V1-CD8NC-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P70
N4GB2R-V1-CD6NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-V1-CD8NO-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P70
N4GB2R-V1-C6N-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-C8N-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4GB2R-V1-CL6N-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-CL8N-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4GB2R-V1-C6NCN-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C8NCN-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P70
N4GB2R-V1-C6NON-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-C8NON-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P70
N4GB2R-V1-CL6NCN-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NCN-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P70
N4GB2R-V1-CL6NON-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-CL8NON-P70Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P70
N4GB2R-V1-C4-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C4NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL4NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi4 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8NC-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: A only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD6NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi6 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CD8NO-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: phi8 push-in | Style: B only, L-type down | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6N-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8N-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6N-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8N-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NCN-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NCN-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A port only, B plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C6NON-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-C8NON-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B port only, A plugged | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NCN-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NCN-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: A only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL6NON-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 1/4 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4GB2R-V1-CL8NON-P74Part: Valve block (resin base) | Model: N4GB2 | Connection: 5/16 in push-in | Style: B only, L-type up | Clean spec: P74 (Cu/Si/halogen-free)
N4G1R-Q-6-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-6L-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-6D-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-8-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-8L-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-8D-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-6N-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-6LN-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-6DN-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-8N-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-8LN-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G1R-Q-8DN-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G1R-Q-6M-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: Straight | Clean spec: P70
N4G1R-Q-6LM-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type up | Clean spec: P70
N4G1R-Q-6DM-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type down | Clean spec: P70
N4G1R-Q-8M-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G1R-Q-8LM-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G1R-Q-8DM-P70Part: Supply/exhaust, int. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G1R-QK-6-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-QK-6L-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-6D-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi6 push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-8-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-QK-8L-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-8D-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-6N-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-QK-6LN-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-6DN-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 1/4 in push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-8N-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-QK-8LN-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G1R-QK-8DN-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G1R-QK-6M-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: Straight | Clean spec: P70
N4G1R-QK-6LM-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type up | Clean spec: P70
N4G1R-QK-6DM-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 1/4 in, R phi6 | Style: L-type down | Clean spec: P70
N4G1R-QK-8M-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G1R-QK-8LM-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G1R-QK-8DM-P70Part: Supply/exhaust, ext. pilot | Model: N4G1 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-Q-8-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-8L-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-8D-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-10-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-10L-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-10D-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-8N-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-8LN-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-8DN-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-10N-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-10LN-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type up | Clean spec: P70
N4G2R-Q-10DN-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type down | Clean spec: P70
N4G2R-Q-8M-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G2R-Q-8ML-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G2R-Q-8DM-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-Q-10M-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: Straight | Clean spec: P70
N4G2R-Q-10LM-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type up | Clean spec: P70
N4G2R-Q-10DM-P70Part: Supply/exhaust, int. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type down | Clean spec: P70
N4G2R-QK-8-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-QK-8L-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-8D-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi8 push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-10-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-QK-10L-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-10D-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: phi10 push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-8N-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-QK-8LN-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-8DN-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 5/16 in push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-10N-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-QK-10LN-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type up | Clean spec: P70
N4G2R-QK-10DN-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: 3/8 in push-in | Style: L-type down | Clean spec: P70
N4G2R-QK-8M-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: Straight | Clean spec: P70
N4G2R-QK-8ML-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type up | Clean spec: P70
N4G2R-QK-8DM-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 5/16 in, R phi8 | Style: L-type down | Clean spec: P70
N4G2R-QK-10M-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: Straight | Clean spec: P70
N4G2R-QK-10LM-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type up | Clean spec: P70
N4G2R-QK-10DM-P70Part: Supply/exhaust, ext. pilot | Model: N4G2 | Connection: P 3/8 in, R phi10 | Style: L-type down | Clean spec: P70
N4G1R-EL-P70Part: End block | Model: N4G1 | Connection: - | Style: Left | Clean spec: P70
N4G1R-ER-P70Part: End block | Model: N4G1 | Connection: - | Style: Right | Clean spec: P70
N4G1R-SA-P70Part: Partition block | Model: N4G1 | Connection: - | Style: P/R/PA blocked | Clean spec: P70
N4G1R-S-P70Part: Partition block | Model: N4G1 | Connection: - | Style: P/R blocked, PA through | Clean spec: P70
N4G1R-SP-P70Part: Partition block | Model: N4G1 | Connection: - | Style: P blocked, R/PA through | Clean spec: P70
N4G1R-SE-P70Part: Partition block | Model: N4G1 | Connection: - | Style: R blocked, P/PA through | Clean spec: P70
N4G2R-EL-P70Part: End block | Model: N4G2 | Connection: - | Style: Left | Clean spec: P70
N4G2R-ER-P70Part: End block | Model: N4G2 | Connection: - | Style: Right | Clean spec: P70
N4G2R-SA-P70Part: Partition block | Model: N4G2 | Connection: - | Style: P/R/PA blocked | Clean spec: P70
N4G2R-S-P70Part: Partition block | Model: N4G2 | Connection: - | Style: P/R blocked, PA through | Clean spec: P70
N4G2R-SP-P70Part: Partition block | Model: N4G2 | Connection: - | Style: P blocked, R/PA through | Clean spec: P70
N4G2R-SE-P70Part: Partition block | Model: N4G2 | Connection: - | Style: R blocked, P/PA through | Clean spec: P70
N4G12R-MIX-P70Part: Mix block (4G1/4G2) | Model: N4G12 | Connection: - | Style: 4G1 left, 4G2 right | Clean spec: P70
N4G1R-TAG-HOLDER-P70Part: Tag holder (2 pcs/set) | Model: N4G1 | Connection: - | Style: Tag holder | Clean spec: P70
N4G2R-TAG-HOLDER-P70Part: Tag holder (2 pcs/set) | Model: N4G2 | Connection: - | Style: Tag holder | Clean spec: P70
N4G1R-TAG-PLATE-A-200-P70Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-A-300-P70Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-A-400-P70Part: Tag plate, MN4GA1/2 | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-200-P70Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-300-P70Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B1-400-P70Part: Tag plate, MN4GB1 wide | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-200-P70Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-300-P70Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G1R-TAG-PLATE-B2-400-P70Part: Tag plate, MN4GB1 narrow | Model: N4G1 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-200-P70Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 200 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-300-P70Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 300 mm | Style: Tag plate | Clean spec: P70
N4G2R-TAG-PLATE-B-400-P70Part: Tag plate, MN4GB2 | Model: N4G2 | Connection: Length 400 mm | Style: Tag plate | Clean spec: P70
N4G1R-Q-JOINT-6-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-8-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-6L-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-6LL-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi6 push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-8L-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-8LL-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: phi8 push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-6N-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-8N-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G1R-Q-JOINT-6LN-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-6LLN-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 1/4 in push-in | Style: Elbow, long | Clean spec: P70
N4G1R-Q-JOINT-8LN-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Elbow | Clean spec: P70
N4G1R-Q-JOINT-8LLN-P70Part: Cartridge fitting, P/R port | Model: N4G1 | Connection: 5/16 in push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-8-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-10-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-8L-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-8LL-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi8 push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-10L-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-10LL-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: phi10 push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-8N-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-10N-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Straight | Clean spec: P70
N4G2R-Q-JOINT-8LN-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-8LLN-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 5/16 in push-in | Style: Elbow, long | Clean spec: P70
N4G2R-Q-JOINT-10LN-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Elbow | Clean spec: P70
N4G2R-Q-JOINT-10LLN-P70Part: Cartridge fitting, P/R port | Model: N4G2 | Connection: 3/8 in push-in | Style: Elbow, long | Clean spec: P70
N4GR-QK-JOINT-6-P70Part: Cartridge fitting, PA port | Model: N4G | Connection: phi6 push-in | Style: Straight | Clean spec: P70
N4GR-QK-JOINT-6L-P70Part: Cartridge fitting, PA port | Model: N4G | Connection: phi6 push-in | Style: Elbow | Clean spec: P70

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
