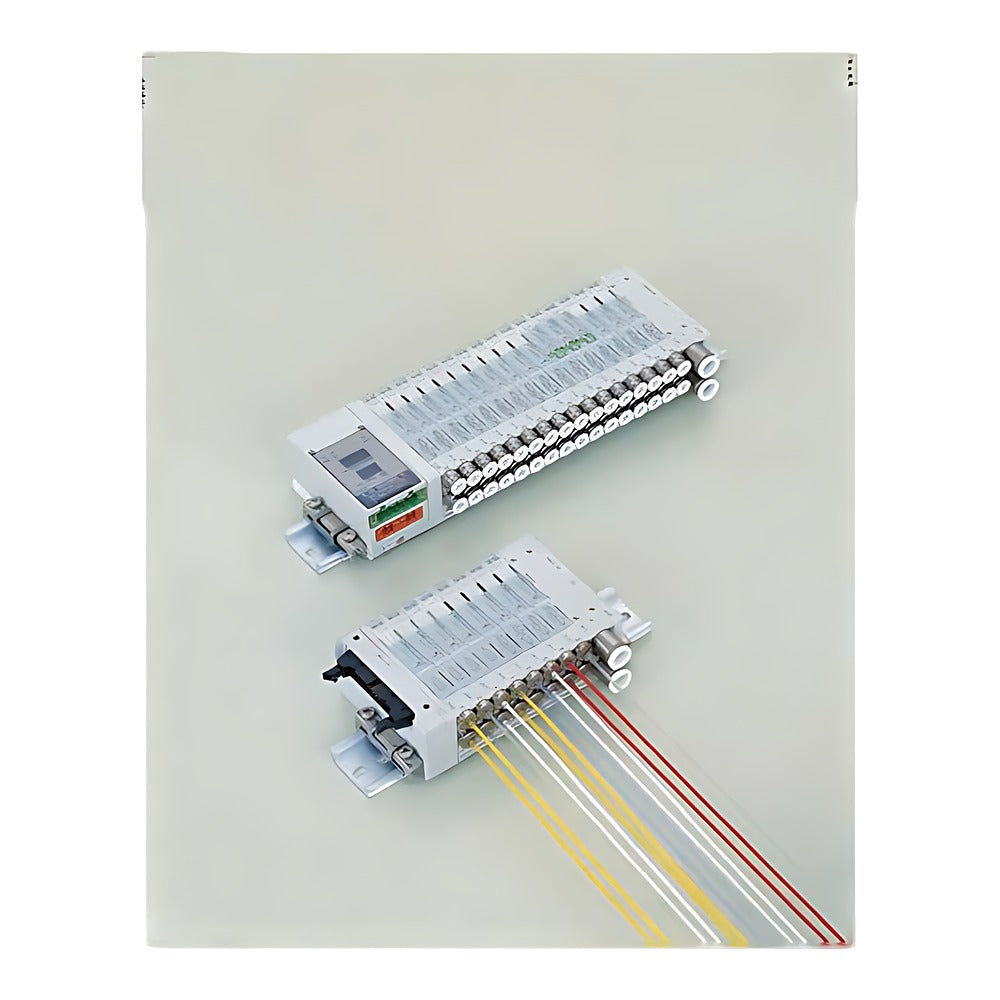

CKD MN4GA/MN4GB Block Manifold Piping Blocks, Spacers and Fittings

CKD MN4GA/MN4GB Block Manifold Piping Blocks, Spacers and Fittings

CKD supply/exhaust, end, partition and mix blocks plus spacers, pilot check valves, cartridge fittings, silencers, blank plugs and tag plates for MN4GA/MN4GB block manifolds.

Key features

  • Supply/exhaust blocks with internal (Q) or external (QK, ø6 PA port) pilot, built-in P filter, central or open (X) exhaust, ø6-ø10 or inch fittings straight/elbow
  • End blocks L/R with central exhaust (E) or built-in muffler (EX); partition blocks SA/S/SP/SE separate pressure zones
  • N4G12R-MIX joins 4G1 and 4G2 sizes on one rail
  • Supply/exhaust spacers (4GR-P/-R), inline stop valve spacer (IS) and spacer pilot check valve (PC) mount under a valve
  • Cartridge fittings for supply/exhaust blocks, silencers SLW-H, blank plugs GWP-B/PG-P2-B, tag holders and tag plates 200/300/400 mm
  • Spacer position and quantity are specified on the manifold specification sheet

Specifications

Applicable manifolds MN4GA1/2, MN4GB1/2, MN3GA/MN3GB, MN4GX12 mix
Body Resin split block base
Mounting DIN rail
Fluid Compressed air
Supply spacer C (P to A/B) 4G1 0.70, 4G2 1.6 dm³/(s·bar)
Exhaust spacer C (A/B to R) 4G1 0.68, 4G2 1.9 dm³/(s·bar)
Pilot check valve 0.2-0.7 MPa; 4G1R-PC-M 22 g, 4G2R-PC-M 182.5 g
Source CKD Korea catalog CB-023SK-9, p. 366-382, 480-494
N4G1R-Q-6DN Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: ø1/4 in | Form: Elbow down, central exhaust
N4G1R-Q-6DNX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: ø1/4 in | Form: Elbow down, open exhaust
N4G1R-Q-8DN Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: ø5/16 in | Form: Elbow down, central exhaust
N4G1R-Q-8DNX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: ø5/16 in | Form: Elbow down, open exhaust
N4G1R-Q-6M Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Straight, central exhaust
N4G1R-Q-6MX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Straight, open exhaust
N4G1R-Q-6LM Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow up, central exhaust
N4G1R-Q-6LMX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow up, open exhaust
N4G1R-Q-6DM Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow down, central exhaust
N4G1R-Q-6DMX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow down, open exhaust
N4G1R-Q-8M Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, central exhaust
N4G1R-Q-8MX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, open exhaust
N4G1R-Q-8LM Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, central exhaust
N4G1R-Q-8LMX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, open exhaust
N4G1R-Q-8DM Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, central exhaust
N4G1R-Q-8DMX Component: Supply/exhaust block | Size: 4G1 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, open exhaust
N4G1R-QK-6DN Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: ø1/4 in | Form: Elbow down, central exhaust
N4G1R-QK-6DNX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: ø1/4 in | Form: Elbow down, open exhaust
N4G1R-QK-8DN Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: ø5/16 in | Form: Elbow down, central exhaust
N4G1R-QK-8DNX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: ø5/16 in | Form: Elbow down, open exhaust
N4G1R-QK-6M Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Straight, central exhaust
N4G1R-QK-6MX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Straight, open exhaust
N4G1R-QK-6LM Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow up, central exhaust
N4G1R-QK-6LMX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow up, open exhaust
N4G1R-QK-6DM Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow down, central exhaust
N4G1R-QK-6DMX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø1/4 in / R ø6 | Form: Elbow down, open exhaust
N4G1R-QK-8M Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, central exhaust
N4G1R-QK-8MX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, open exhaust
N4G1R-QK-8LM Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, central exhaust
N4G1R-QK-8LMX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, open exhaust
N4G1R-QK-8DM Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, central exhaust
N4G1R-QK-8DMX Component: Supply/exhaust block | Size: 4G1 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, open exhaust
N4G2R-Q-8DN Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: ø5/16 in | Form: Elbow down, central exhaust
N4G2R-Q-8DNX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: ø5/16 in | Form: Elbow down, open exhaust
N4G2R-Q-10DN Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: ø3/8 in | Form: Elbow down, central exhaust
N4G2R-Q-10DNX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: ø3/8 in | Form: Elbow down, open exhaust
N4G2R-Q-8M Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, central exhaust
N4G2R-Q-8MX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, open exhaust
N4G2R-Q-8LM Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, central exhaust
N4G2R-Q-8LMX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, open exhaust
N4G2R-Q-8DM Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, central exhaust
N4G2R-Q-8DMX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, open exhaust
N4G2R-Q-10M Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Straight, central exhaust
N4G2R-Q-10MX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Straight, open exhaust
N4G2R-Q-10LM Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow up, central exhaust
N4G2R-Q-10LMX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow up, open exhaust
N4G2R-Q-10DM Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow down, central exhaust
N4G2R-Q-10DMX Component: Supply/exhaust block | Size: 4G2 | Function: Internal pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow down, open exhaust
N4G2R-QK-8DN Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: ø5/16 in | Form: Elbow down, central exhaust
N4G2R-QK-8DNX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: ø5/16 in | Form: Elbow down, open exhaust
N4G2R-QK-10DN Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: ø3/8 in | Form: Elbow down, central exhaust
N4G2R-QK-10DNX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: ø3/8 in | Form: Elbow down, open exhaust
N4G2R-QK-8M Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, central exhaust
N4G2R-QK-8MX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Straight, open exhaust
N4G2R-QK-8LM Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, central exhaust
N4G2R-QK-8LMX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow up, open exhaust
N4G2R-QK-8DM Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, central exhaust
N4G2R-QK-8DMX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø5/16 in / R ø8 | Form: Elbow down, open exhaust
N4G2R-QK-10M Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Straight, central exhaust
N4G2R-QK-10MX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Straight, open exhaust
N4G2R-QK-10LM Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow up, central exhaust
N4G2R-QK-10LMX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow up, open exhaust
N4G2R-QK-10DM Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow down, central exhaust
N4G2R-QK-10DMX Component: Supply/exhaust block | Size: 4G2 | Function: External pilot | Dimension: P ø3/8 in / R ø10 | Form: Elbow down, open exhaust
4G2R-PC Component: Spacer pilot check valve | Size: 4G2 | Function: No manual device | Dimension: - | Form: -
N4G1R-TAG-HOLDER Component: Tag holder (2 pcs/set) | Size: 4G1 | Function: Holds tag plate | Dimension: - | Form: -
N4G2R-TAG-HOLDER Component: Tag holder (2 pcs/set) | Size: 4G2 | Function: Holds tag plate | Dimension: - | Form: -
Valve Parts & AccessoriesCKD
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GA/MN4GB Block Manifold Piping Blocks, Spacers and Fittings

Brand CKD·Valve Parts & Accessories

Available part numbers (67)

N4G1R-Q-6DN, N4G1R-Q-6DNX, N4G1R-Q-8DN, N4G1R-Q-8DNX, N4G1R-Q-6M, N4G1R-Q-6MX, N4G1R-Q-6LM, N4G1R-Q-6LMX, N4G1R-Q-6DM, N4G1R-Q-6DMX + 57 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
