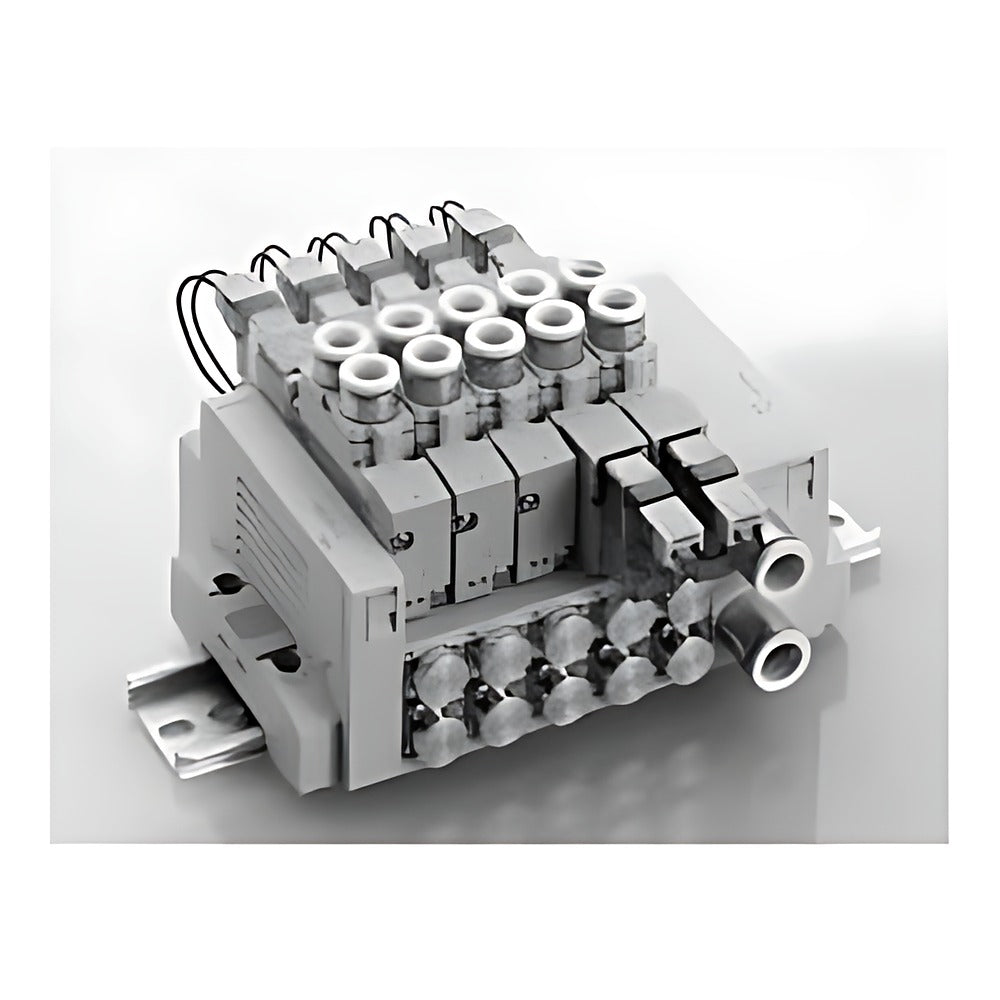

CKD MN4GA/MN4GB Valve Blocks and Single Valves (Clean P70)

CKD MN4GA/MN4GB Valve Blocks and Single Valves (Clean P70)

Clean-room (P70) valve blocks with mounted solenoid valve (N4GA/N3GA/N4GB/N3GB) and base-mounted single valves for adding or replacing stations on CKD MN block manifolds.

Key features

  • Clean spec P70 (dust-generation prevention, exhaust treatment); P74 copper/silicone/halogen-free is made-to-order
  • Valve block = solenoid valve assembled on a resin block, ready to add to an MN manifold
  • Individual wiring (grommet, E connector) and wiring-saving A2N versions
  • 5-port single/double/3-position and 3-port N.C./N.O./dual 3-port functions
  • Direct piping blocks (N*GA) and base piping blocks (N*GB); single valves **9R for maintenance

Specifications

Applicable manifolds MN3GA/MN4GA, MN3GB/MN4GB size 1, 2
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Voltage (code 3) DC24V
Valve type Pilot-operated soft spool
Clean spec P70: dust-proof, exhaust treatment
Source CKD Korea catalog CB-033S-4, p. 635-667
N4GA110R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA110R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA110R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA110R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA110R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA110R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA119R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA119R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA120R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA120R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA120R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA120R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA120R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA120R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA129R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA129R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA130R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA130R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA130R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA130R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA130R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA130R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA139R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA139R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA140R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA140R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA140R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA140R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA140R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA140R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA149R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA149R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA150R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA150R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA150R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA150R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA150R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA150R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA159R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA159R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA210R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA210R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA210R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA210R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA210R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA210R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA210R-C8-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA210R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA210R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA219R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA219R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA219R-C8-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA220R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA220R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA220R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA220R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA220R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA220R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA220R-C8-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA220R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA220R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA229R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA229R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA229R-C8-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA230R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA230R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA230R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA230R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA230R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA230R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA230R-C8-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA230R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA230R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA239R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA239R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA239R-C8-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA240R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA240R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA240R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA240R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA240R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA240R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA240R-C8-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA240R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA240R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA249R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA249R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA249R-C8-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA250R-C4-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA250R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA250R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA250R-C6-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA250R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA250R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA250R-C8-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA250R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA250R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA259R-C4-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA259R-C6-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA259R-C8-3-P70 Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA110R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA110R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA110R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA110R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA110R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA110R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA119R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA119R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1110R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1110R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1110R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1119R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1119R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1660R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1660R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1660R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1669R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1669R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1670R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1670R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1670R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1679R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1679R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1760R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1760R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1760R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1769R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1769R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1770R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1770R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1770R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1779R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1779R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA210R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA210R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA210R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA210R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA210R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA210R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA210R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA210R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA210R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA219R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA219R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA219R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2110R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2110R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2110R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2110R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2110R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2119R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2119R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2119R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2660R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2660R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2660R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2660R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2660R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2669R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2669R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2669R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2670R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2670R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2670R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2670R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2670R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2679R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2679R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2679R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2760R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2760R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2760R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2760R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2760R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2769R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2769R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2769R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C4-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2770R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2770R-C6-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2770R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2770R-C8-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2770R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2779R-C4-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2779R-C6-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2779R-C8-3-P70 Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB110R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB110R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB110R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB110R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB110R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB110R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB120R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB120R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB120R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB120R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB120R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB120R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB130R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB130R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB130R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB130R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB130R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB130R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB140R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB140R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB140R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB140R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB140R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB140R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB150R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB150R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB150R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB150R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB150R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB150R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB210R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB210R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB210R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB210R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C8-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB210R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB210R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB220R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB220R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB220R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB220R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C8-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB220R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB220R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB230R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB230R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB230R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB230R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C8-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB230R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB230R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB240R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB240R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB240R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB240R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C8-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB240R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB240R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C4-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB250R-C4-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB250R-C4-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C6-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB250R-C6-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB250R-C6-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C8-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB250R-C8-E2-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB250R-C8-A2N-3-P70 Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB1660R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1660R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1660R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1660R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1660R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1660R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1670R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1670R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1670R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1670R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1670R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1670R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1760R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1760R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1760R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1760R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1760R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1760R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1770R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1770R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1770R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1770R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1770R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1770R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2660R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2660R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C8-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2660R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2670R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2670R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C8-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2670R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2760R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2760R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C8-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2760R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C4-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C4-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2770R-C4-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C6-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C6-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2770R-C6-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C8-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C8-E2-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2770R-C8-A2N-3-P70 Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
Solenoid ValvesCKD
355 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GA/MN4GB Valve Blocks and Single Valves (Clean P70)

Brand CKD·Solenoid Valves

Available part numbers (355)

N4GA110R-C4-3-P70, N4GA110R-C4-E2-3-P70, N4GA110R-C4-A2N-3-P70, N4GA110R-C6-3-P70, N4GA110R-C6-E2-3-P70, N4GA110R-C6-A2N-3-P70, 4GA119R-C4-3-P70, 4GA119R-C6-3-P70, N4GA120R-C4-3-P70, N4GA120R-C4-E2-3-P70 + 345 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N4GA110R-C4-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA110R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA110R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA110R-C6-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA110R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA110R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA119R-C4-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA119R-C6-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA120R-C4-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA120R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA120R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA120R-C6-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA120R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA120R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA129R-C4-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA129R-C6-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA130R-C4-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA130R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA130R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA130R-C6-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA130R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA130R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA139R-C4-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA139R-C6-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA140R-C4-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA140R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA140R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA140R-C6-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA140R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA140R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA149R-C4-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA149R-C6-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA150R-C4-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA150R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA150R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA150R-C6-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA150R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA150R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
4GA159R-C4-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA159R-C6-3-P70Item: Single valve, 5-port | Model: 4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA210R-C4-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA210R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA210R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA210R-C6-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA210R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA210R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA210R-C8-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA210R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA210R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA219R-C4-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA219R-C6-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA219R-C8-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA220R-C4-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA220R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA220R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA220R-C6-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA220R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA220R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA220R-C8-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA220R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA220R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA229R-C4-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA229R-C6-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA229R-C8-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA230R-C4-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA230R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA230R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA230R-C6-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA230R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA230R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA230R-C8-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA230R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA230R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA239R-C4-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA239R-C6-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA239R-C8-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA240R-C4-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA240R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA240R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA240R-C6-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA240R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA240R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA240R-C8-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA240R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA240R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA249R-C4-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA249R-C6-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA249R-C8-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA250R-C4-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GA250R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GA250R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GA250R-C6-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GA250R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GA250R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GA250R-C8-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GA250R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GA250R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
4GA259R-C4-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
4GA259R-C6-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
4GA259R-C8-3-P70Item: Single valve, 5-port | Model: 4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA110R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA110R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA110R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA110R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA110R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA110R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA119R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA119R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1110R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1110R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1110R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1110R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1119R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1119R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1660R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1660R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1660R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1660R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1669R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1669R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1670R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1670R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1670R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1670R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1679R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1679R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1760R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1760R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1760R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1760R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1769R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1769R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C4-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA1770R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA1770R-C6-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA1770R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA1770R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
3GA1779R-C4-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA1779R-C6-3-P70Item: Single valve, 3-port | Model: 3GA1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA210R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA210R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA210R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA210R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA210R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA210R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA210R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA210R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA210R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA219R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA219R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA219R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2110R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2110R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2110R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2110R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2110R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2110R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2119R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2119R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2119R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2660R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2660R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2660R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2660R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2660R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2660R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2669R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2669R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2669R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2670R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2670R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2670R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2670R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2670R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2670R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2679R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2679R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2679R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2760R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2760R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2760R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2760R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2760R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2760R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2769R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2769R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2769R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C4-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GA2770R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GA2770R-C6-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GA2770R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GA2770R-C8-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GA2770R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GA2770R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
3GA2779R-C4-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
3GA2779R-C6-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
3GA2779R-C8-3-P70Item: Single valve, 3-port | Model: 3GA2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB110R-C4-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB110R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB110R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB110R-C6-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB110R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB110R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB120R-C4-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB120R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB120R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB120R-C6-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB120R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB120R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB130R-C4-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB130R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB130R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB130R-C6-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB130R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB130R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB140R-C4-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB140R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB140R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB140R-C6-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB140R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB140R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB150R-C4-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB150R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB150R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB150R-C6-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB150R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB150R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C4-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB210R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB210R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C6-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB210R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB210R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB210R-C8-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB210R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB210R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C4-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB220R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB220R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C6-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB220R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB220R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB220R-C8-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB220R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB220R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C4-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB230R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB230R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C6-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB230R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB230R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB230R-C8-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB230R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB230R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C4-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB240R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB240R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C6-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB240R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB240R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB240R-C8-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB240R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB240R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C4-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N4GB250R-C4-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N4GB250R-C4-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C6-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N4GB250R-C6-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N4GB250R-C6-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N4GB250R-C8-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N4GB250R-C8-E2-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N4GB250R-C8-A2N-3-P70Item: Valve block, 5-port | Model: N4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB1660R-C4-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1660R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1660R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1660R-C6-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1660R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1660R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1670R-C4-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1670R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1670R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1670R-C6-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1670R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1670R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1760R-C4-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1760R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1760R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1760R-C6-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1760R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1760R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB1770R-C4-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB1770R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB1770R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB1770R-C6-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB1770R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB1770R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB1 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C4-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2660R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C6-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2660R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2660R-C8-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2660R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2660R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C4-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2670R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C6-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2670R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2670R-C8-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2670R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2670R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C4-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2760R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C6-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2760R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2760R-C8-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2760R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2760R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C4-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C4-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: E connector, lamp+surge
N3GB2770R-C4-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C6-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C6-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: E connector, lamp+surge
N3GB2770R-C6-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N wiring-saving, no lead
N3GB2770R-C8-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Grommet lead 300 mm
N3GB2770R-C8-E2-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: E connector, lamp+surge
N3GB2770R-C8-A2N-3-P70Item: Valve block, 3-port | Model: N3GB2 | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N wiring-saving, no lead

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
