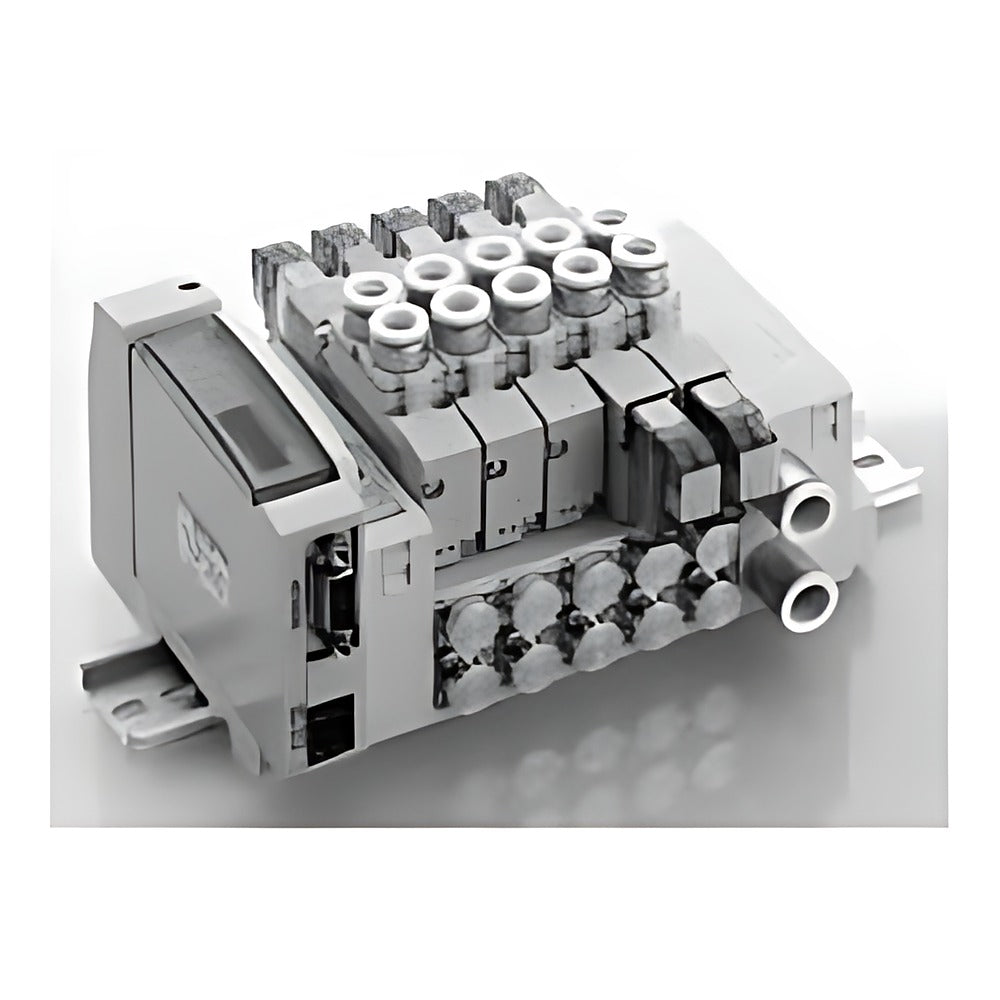

CKD MN4GA1/2-T Wiring-Saving Block Manifold (Clean P70)

CKD MN4GA1/2-T Wiring-Saving Block Manifold (Clean P70)

Clean-room (P70) CKD MN4GA1/2-T wiring-saving block manifolds combine 4GA 5-port valve blocks with a collective electrical block on a DIN rail and direct A/B piping.

Key features

  • Clean spec P70 (dust-generation prevention, exhaust treatment); P74 copper/silicone/halogen-free is made-to-order
  • Electrical block on the left (T*) or right (T*R) of the valve blocks
  • Terminal block T10/T11, D-sub T30, flat cable T50-T53, serial T6/T7/T8
  • Standard or double (W/W1) wiring pattern; optional wiring cover Q
  • Up to 24 stations (4G1) or 20 stations (4G2) depending on wiring type

Specifications

Manifold type Wiring-saving block manifold, DIN rail
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Solenoid points T10: 16, T30: 24
Clean spec P70: dust-proof, exhaust treatment
Source CKD Korea catalog CB-033S-4, p. 649-664
MN4GA110R-C4-T10-1-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA110R-C4-T10-2-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA110R-C4-T10-3-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA110R-C4-T10-4-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA110R-C4-T10-5-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA110R-C4-T10-6-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA110R-C4-T10-7-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA110R-C4-T10-8-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA110R-C4-T10-9-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA110R-C4-T10-10-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA110R-C4-T10-11-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA110R-C4-T10-12-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA110R-C4-T10-13-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA110R-C4-T10-14-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA110R-C4-T10-15-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA110R-C4-T10-16-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA110R-C4-T30-1-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA110R-C4-T30-2-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA110R-C4-T30-3-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA110R-C4-T30-4-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA110R-C4-T30-5-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA110R-C4-T30-6-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA110R-C4-T30-7-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA110R-C4-T30-8-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA110R-C4-T30-9-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA110R-C4-T30-10-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA110R-C4-T30-11-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA110R-C4-T30-12-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA110R-C4-T30-13-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA110R-C4-T30-14-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA110R-C4-T30-15-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA110R-C4-T30-16-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA110R-C4-T30-17-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA110R-C4-T30-18-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA110R-C4-T30-19-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA110R-C4-T30-20-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA110R-C4-T30-21-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA110R-C4-T30-22-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA110R-C4-T30-23-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA110R-C4-T30-24-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA110R-C6-T10-1-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA110R-C6-T10-2-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA110R-C6-T10-3-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA110R-C6-T10-4-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA110R-C6-T10-5-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA110R-C6-T10-6-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA110R-C6-T10-7-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA110R-C6-T10-8-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA110R-C6-T10-9-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA110R-C6-T10-10-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA110R-C6-T10-11-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA110R-C6-T10-12-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA110R-C6-T10-13-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA110R-C6-T10-14-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA110R-C6-T10-15-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA110R-C6-T10-16-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA110R-C6-T30-1-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA110R-C6-T30-2-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA110R-C6-T30-3-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA110R-C6-T30-4-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA110R-C6-T30-5-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA110R-C6-T30-6-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA110R-C6-T30-7-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA110R-C6-T30-8-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA110R-C6-T30-9-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA110R-C6-T30-10-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA110R-C6-T30-11-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA110R-C6-T30-12-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA110R-C6-T30-13-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA110R-C6-T30-14-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA110R-C6-T30-15-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA110R-C6-T30-16-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA110R-C6-T30-17-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA110R-C6-T30-18-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA110R-C6-T30-19-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA110R-C6-T30-20-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA110R-C6-T30-21-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA110R-C6-T30-22-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA110R-C6-T30-23-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA110R-C6-T30-24-3-P70 Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA120R-C4-T10-1-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA120R-C4-T10-2-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA120R-C4-T10-3-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA120R-C4-T10-4-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA120R-C4-T10-5-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA120R-C4-T10-6-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA120R-C4-T10-7-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA120R-C4-T10-8-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA120R-C4-T30-1-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA120R-C4-T30-2-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA120R-C4-T30-3-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA120R-C4-T30-4-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA120R-C4-T30-5-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA120R-C4-T30-6-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA120R-C4-T30-7-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA120R-C4-T30-8-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA120R-C4-T30-9-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA120R-C4-T30-10-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA120R-C4-T30-11-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA120R-C4-T30-12-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA120R-C6-T10-1-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA120R-C6-T10-2-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA120R-C6-T10-3-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA120R-C6-T10-4-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA120R-C6-T10-5-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA120R-C6-T10-6-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA120R-C6-T10-7-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA120R-C6-T10-8-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA120R-C6-T30-1-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA120R-C6-T30-2-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA120R-C6-T30-3-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA120R-C6-T30-4-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA120R-C6-T30-5-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA120R-C6-T30-6-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA120R-C6-T30-7-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA120R-C6-T30-8-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA120R-C6-T30-9-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA120R-C6-T30-10-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA120R-C6-T30-11-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA120R-C6-T30-12-3-P70 Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA130R-C4-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA130R-C4-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA130R-C4-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA130R-C4-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA130R-C4-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA130R-C4-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA130R-C4-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA130R-C4-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA130R-C4-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA130R-C4-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA130R-C4-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA130R-C4-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA130R-C4-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA130R-C4-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA130R-C4-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA130R-C4-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA130R-C4-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA130R-C4-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA130R-C4-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA130R-C4-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA130R-C6-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA130R-C6-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA130R-C6-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA130R-C6-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA130R-C6-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA130R-C6-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA130R-C6-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA130R-C6-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA130R-C6-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA130R-C6-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA130R-C6-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA130R-C6-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA130R-C6-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA130R-C6-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA130R-C6-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA130R-C6-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA130R-C6-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA130R-C6-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA130R-C6-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA130R-C6-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA140R-C4-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA140R-C4-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA140R-C4-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA140R-C4-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA140R-C4-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA140R-C4-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA140R-C4-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA140R-C4-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA140R-C4-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA140R-C4-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA140R-C4-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA140R-C4-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA140R-C4-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA140R-C4-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA140R-C4-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA140R-C4-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA140R-C4-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA140R-C4-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA140R-C4-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA140R-C4-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA140R-C6-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA140R-C6-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA140R-C6-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA140R-C6-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA140R-C6-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA140R-C6-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA140R-C6-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA140R-C6-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA140R-C6-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA140R-C6-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA140R-C6-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA140R-C6-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA140R-C6-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA140R-C6-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA140R-C6-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA140R-C6-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA140R-C6-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA140R-C6-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA140R-C6-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA140R-C6-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA150R-C4-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA150R-C4-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA150R-C4-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA150R-C4-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA150R-C4-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA150R-C4-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA150R-C4-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA150R-C4-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA150R-C4-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA150R-C4-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA150R-C4-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA150R-C4-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA150R-C4-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA150R-C4-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA150R-C4-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA150R-C4-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA150R-C4-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA150R-C4-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA150R-C4-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA150R-C4-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA150R-C6-T10-1-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA150R-C6-T10-2-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA150R-C6-T10-3-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA150R-C6-T10-4-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA150R-C6-T10-5-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA150R-C6-T10-6-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA150R-C6-T10-7-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA150R-C6-T10-8-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA150R-C6-T30-1-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA150R-C6-T30-2-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA150R-C6-T30-3-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA150R-C6-T30-4-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA150R-C6-T30-5-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA150R-C6-T30-6-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA150R-C6-T30-7-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA150R-C6-T30-8-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA150R-C6-T30-9-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA150R-C6-T30-10-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA150R-C6-T30-11-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA150R-C6-T30-12-3-P70 Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C4-T10-1-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA180R-C4-T10-2-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA180R-C4-T10-3-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA180R-C4-T10-4-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA180R-C4-T10-5-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA180R-C4-T10-6-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA180R-C4-T10-7-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA180R-C4-T10-8-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA180R-C4-T10-9-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA180R-C4-T10-10-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA180R-C4-T10-11-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA180R-C4-T10-12-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA180R-C4-T10-13-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA180R-C4-T10-14-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA180R-C4-T10-15-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA180R-C4-T10-16-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA180R-C4-T30-1-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA180R-C4-T30-2-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA180R-C4-T30-3-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA180R-C4-T30-4-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA180R-C4-T30-5-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA180R-C4-T30-6-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA180R-C4-T30-7-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA180R-C4-T30-8-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA180R-C4-T30-9-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA180R-C4-T30-10-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA180R-C4-T30-11-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA180R-C4-T30-12-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C4-T30-13-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA180R-C4-T30-14-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA180R-C4-T30-15-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA180R-C4-T30-16-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA180R-C4-T30-17-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA180R-C4-T30-18-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA180R-C4-T30-19-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA180R-C4-T30-20-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA180R-C4-T30-21-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA180R-C4-T30-22-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA180R-C4-T30-23-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA180R-C4-T30-24-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA180R-C6-T10-1-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA180R-C6-T10-2-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA180R-C6-T10-3-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA180R-C6-T10-4-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA180R-C6-T10-5-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA180R-C6-T10-6-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA180R-C6-T10-7-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA180R-C6-T10-8-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA180R-C6-T10-9-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA180R-C6-T10-10-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA180R-C6-T10-11-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA180R-C6-T10-12-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA180R-C6-T10-13-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA180R-C6-T10-14-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA180R-C6-T10-15-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA180R-C6-T10-16-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA180R-C6-T30-1-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA180R-C6-T30-2-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA180R-C6-T30-3-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA180R-C6-T30-4-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA180R-C6-T30-5-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA180R-C6-T30-6-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA180R-C6-T30-7-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA180R-C6-T30-8-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA180R-C6-T30-9-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA180R-C6-T30-10-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA180R-C6-T30-11-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA180R-C6-T30-12-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C6-T30-13-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA180R-C6-T30-14-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA180R-C6-T30-15-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA180R-C6-T30-16-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA180R-C6-T30-17-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA180R-C6-T30-18-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA180R-C6-T30-19-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA180R-C6-T30-20-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA180R-C6-T30-21-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA180R-C6-T30-22-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA180R-C6-T30-23-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA180R-C6-T30-24-3-P70 Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA210R-C4-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C4-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C4-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C4-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C4-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C4-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C4-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C4-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C4-T10-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C4-T10-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C4-T10-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C4-T10-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C4-T10-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C4-T10-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C4-T10-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C4-T10-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C4-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C4-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C4-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C4-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C4-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C4-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C4-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C4-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C4-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C4-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C4-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C4-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C4-T30-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C4-T30-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C4-T30-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C4-T30-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C4-T30-17-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C4-T30-18-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C4-T30-19-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C4-T30-20-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA210R-C6-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C6-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C6-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C6-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C6-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C6-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C6-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C6-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C6-T10-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C6-T10-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C6-T10-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C6-T10-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C6-T10-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C6-T10-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C6-T10-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C6-T10-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C6-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C6-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C6-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C6-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C6-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C6-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C6-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C6-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C6-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C6-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C6-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C6-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C6-T30-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C6-T30-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C6-T30-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C6-T30-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C6-T30-17-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C6-T30-18-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C6-T30-19-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C6-T30-20-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA210R-C8-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C8-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C8-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C8-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C8-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C8-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C8-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C8-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C8-T10-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C8-T10-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C8-T10-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C8-T10-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C8-T10-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C8-T10-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C8-T10-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C8-T10-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C8-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C8-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C8-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C8-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C8-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C8-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C8-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C8-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C8-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C8-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C8-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C8-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C8-T30-13-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C8-T30-14-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C8-T30-15-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C8-T30-16-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C8-T30-17-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C8-T30-18-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C8-T30-19-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C8-T30-20-3-P70 Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA220R-C4-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C4-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C4-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C4-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C4-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C4-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C4-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C4-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C4-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C4-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C4-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C4-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C4-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C4-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C4-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C4-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C4-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C4-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C4-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C4-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA220R-C6-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C6-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C6-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C6-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C6-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C6-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C6-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C6-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C6-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C6-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C6-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C6-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C6-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C6-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C6-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C6-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C6-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C6-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C6-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C6-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA220R-C8-T10-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C8-T10-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C8-T10-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C8-T10-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C8-T10-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C8-T10-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C8-T10-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C8-T10-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C8-T30-1-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C8-T30-2-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C8-T30-3-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C8-T30-4-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C8-T30-5-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C8-T30-6-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C8-T30-7-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C8-T30-8-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C8-T30-9-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C8-T30-10-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C8-T30-11-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C8-T30-12-3-P70 Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C4-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C4-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C4-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C4-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C4-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C4-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C4-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C4-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C4-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C4-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C4-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C4-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C4-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C4-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C4-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C4-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C4-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C4-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C4-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C4-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C6-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C6-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C6-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C6-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C6-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C6-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C6-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C6-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C6-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C6-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C6-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C6-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C6-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C6-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C6-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C6-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C6-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C6-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C6-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C6-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C8-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C8-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C8-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C8-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C8-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C8-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C8-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C8-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C8-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C8-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C8-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C8-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C8-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C8-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C8-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C8-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C8-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C8-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C8-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C8-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C4-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C4-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C4-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C4-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C4-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C4-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C4-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C4-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C4-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C4-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C4-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C4-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C4-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C4-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C4-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C4-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C4-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C4-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C4-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C4-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C6-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C6-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C6-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C6-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C6-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C6-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C6-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C6-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C6-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C6-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C6-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C6-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C6-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C6-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C6-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C6-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C6-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C6-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C6-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C6-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C8-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C8-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C8-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C8-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C8-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C8-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C8-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C8-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C8-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C8-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C8-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C8-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C8-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C8-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C8-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C8-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C8-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C8-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C8-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C8-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C4-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C4-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C4-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C4-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C4-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C4-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C4-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C4-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C4-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C4-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C4-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C4-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C4-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C4-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C4-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C4-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C4-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C4-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C4-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C4-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C6-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C6-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C6-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C6-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C6-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C6-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C6-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C6-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C6-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C6-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C6-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C6-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C6-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C6-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C6-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C6-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C6-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C6-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C6-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C6-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C8-T10-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C8-T10-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C8-T10-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C8-T10-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C8-T10-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C8-T10-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C8-T10-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C8-T10-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C8-T30-1-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C8-T30-2-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C8-T30-3-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C8-T30-4-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C8-T30-5-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C8-T30-6-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C8-T30-7-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C8-T30-8-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C8-T30-9-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C8-T30-10-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C8-T30-11-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C8-T30-12-3-P70 Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C4-T10-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C4-T10-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C4-T10-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C4-T10-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C4-T10-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C4-T10-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C4-T10-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C4-T10-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C4-T10-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C4-T10-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C4-T10-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C4-T10-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C4-T10-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C4-T10-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C4-T10-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C4-T10-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C4-T30-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C4-T30-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C4-T30-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C4-T30-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C4-T30-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C4-T30-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C4-T30-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C4-T30-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C4-T30-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C4-T30-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C4-T30-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C4-T30-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C4-T30-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C4-T30-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C4-T30-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C4-T30-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C4-T30-17-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C4-T30-18-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C4-T30-19-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C4-T30-20-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA280R-C6-T10-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C6-T10-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C6-T10-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C6-T10-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C6-T10-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C6-T10-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C6-T10-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C6-T10-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C6-T10-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C6-T10-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C6-T10-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C6-T10-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C6-T10-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C6-T10-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C6-T10-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C6-T10-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C6-T30-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C6-T30-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C6-T30-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C6-T30-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C6-T30-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C6-T30-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C6-T30-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C6-T30-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C6-T30-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C6-T30-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C6-T30-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C6-T30-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C6-T30-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C6-T30-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C6-T30-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C6-T30-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C6-T30-17-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C6-T30-18-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C6-T30-19-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C6-T30-20-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA280R-C8-T10-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C8-T10-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C8-T10-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C8-T10-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C8-T10-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C8-T10-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C8-T10-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C8-T10-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C8-T10-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C8-T10-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C8-T10-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C8-T10-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C8-T10-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C8-T10-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C8-T10-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C8-T10-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C8-T30-1-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C8-T30-2-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C8-T30-3-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C8-T30-4-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C8-T30-5-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C8-T30-6-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C8-T30-7-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C8-T30-8-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C8-T30-9-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C8-T30-10-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C8-T30-11-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C8-T30-12-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C8-T30-13-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C8-T30-14-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C8-T30-15-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C8-T30-16-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C8-T30-17-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C8-T30-18-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C8-T30-19-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C8-T30-20-3-P70 Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
Valve ManifoldsCKD
776 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GA1/2-T Wiring-Saving Block Manifold (Clean P70)

Brand CKD·Valve Manifolds

Available part numbers (776)

MN4GA110R-C4-T10-1-3-P70, MN4GA110R-C4-T10-2-3-P70, MN4GA110R-C4-T10-3-3-P70, MN4GA110R-C4-T10-4-3-P70, MN4GA110R-C4-T10-5-3-P70, MN4GA110R-C4-T10-6-3-P70, MN4GA110R-C4-T10-7-3-P70, MN4GA110R-C4-T10-8-3-P70, MN4GA110R-C4-T10-9-3-P70, MN4GA110R-C4-T10-10-3-P70 + 766 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MN4GA110R-C4-T10-1-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA110R-C4-T10-2-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA110R-C4-T10-3-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA110R-C4-T10-4-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA110R-C4-T10-5-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA110R-C4-T10-6-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA110R-C4-T10-7-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA110R-C4-T10-8-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA110R-C4-T10-9-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA110R-C4-T10-10-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA110R-C4-T10-11-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA110R-C4-T10-12-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA110R-C4-T10-13-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA110R-C4-T10-14-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA110R-C4-T10-15-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA110R-C4-T10-16-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA110R-C4-T30-1-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA110R-C4-T30-2-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA110R-C4-T30-3-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA110R-C4-T30-4-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA110R-C4-T30-5-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA110R-C4-T30-6-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA110R-C4-T30-7-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA110R-C4-T30-8-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA110R-C4-T30-9-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA110R-C4-T30-10-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA110R-C4-T30-11-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA110R-C4-T30-12-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA110R-C4-T30-13-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA110R-C4-T30-14-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA110R-C4-T30-15-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA110R-C4-T30-16-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA110R-C4-T30-17-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA110R-C4-T30-18-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA110R-C4-T30-19-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA110R-C4-T30-20-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA110R-C4-T30-21-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA110R-C4-T30-22-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA110R-C4-T30-23-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA110R-C4-T30-24-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA110R-C6-T10-1-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA110R-C6-T10-2-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA110R-C6-T10-3-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA110R-C6-T10-4-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA110R-C6-T10-5-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA110R-C6-T10-6-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA110R-C6-T10-7-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA110R-C6-T10-8-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA110R-C6-T10-9-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA110R-C6-T10-10-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA110R-C6-T10-11-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA110R-C6-T10-12-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA110R-C6-T10-13-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA110R-C6-T10-14-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA110R-C6-T10-15-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA110R-C6-T10-16-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA110R-C6-T30-1-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA110R-C6-T30-2-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA110R-C6-T30-3-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA110R-C6-T30-4-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA110R-C6-T30-5-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA110R-C6-T30-6-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA110R-C6-T30-7-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA110R-C6-T30-8-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA110R-C6-T30-9-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA110R-C6-T30-10-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA110R-C6-T30-11-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA110R-C6-T30-12-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA110R-C6-T30-13-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA110R-C6-T30-14-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA110R-C6-T30-15-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA110R-C6-T30-16-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA110R-C6-T30-17-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA110R-C6-T30-18-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA110R-C6-T30-19-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA110R-C6-T30-20-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA110R-C6-T30-21-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA110R-C6-T30-22-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA110R-C6-T30-23-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA110R-C6-T30-24-3-P70Model: MN4GA1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA120R-C4-T10-1-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA120R-C4-T10-2-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA120R-C4-T10-3-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA120R-C4-T10-4-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA120R-C4-T10-5-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA120R-C4-T10-6-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA120R-C4-T10-7-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA120R-C4-T10-8-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA120R-C4-T30-1-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA120R-C4-T30-2-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA120R-C4-T30-3-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA120R-C4-T30-4-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA120R-C4-T30-5-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA120R-C4-T30-6-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA120R-C4-T30-7-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA120R-C4-T30-8-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA120R-C4-T30-9-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA120R-C4-T30-10-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA120R-C4-T30-11-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA120R-C4-T30-12-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA120R-C6-T10-1-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA120R-C6-T10-2-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA120R-C6-T10-3-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA120R-C6-T10-4-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA120R-C6-T10-5-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA120R-C6-T10-6-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA120R-C6-T10-7-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA120R-C6-T10-8-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA120R-C6-T30-1-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA120R-C6-T30-2-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA120R-C6-T30-3-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA120R-C6-T30-4-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA120R-C6-T30-5-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA120R-C6-T30-6-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA120R-C6-T30-7-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA120R-C6-T30-8-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA120R-C6-T30-9-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA120R-C6-T30-10-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA120R-C6-T30-11-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA120R-C6-T30-12-3-P70Model: MN4GA1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA130R-C4-T10-1-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA130R-C4-T10-2-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA130R-C4-T10-3-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA130R-C4-T10-4-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA130R-C4-T10-5-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA130R-C4-T10-6-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA130R-C4-T10-7-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA130R-C4-T10-8-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA130R-C4-T30-1-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA130R-C4-T30-2-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA130R-C4-T30-3-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA130R-C4-T30-4-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA130R-C4-T30-5-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA130R-C4-T30-6-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA130R-C4-T30-7-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA130R-C4-T30-8-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA130R-C4-T30-9-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA130R-C4-T30-10-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA130R-C4-T30-11-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA130R-C4-T30-12-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA130R-C6-T10-1-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA130R-C6-T10-2-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA130R-C6-T10-3-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA130R-C6-T10-4-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA130R-C6-T10-5-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA130R-C6-T10-6-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA130R-C6-T10-7-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA130R-C6-T10-8-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA130R-C6-T30-1-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA130R-C6-T30-2-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA130R-C6-T30-3-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA130R-C6-T30-4-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA130R-C6-T30-5-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA130R-C6-T30-6-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA130R-C6-T30-7-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA130R-C6-T30-8-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA130R-C6-T30-9-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA130R-C6-T30-10-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA130R-C6-T30-11-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA130R-C6-T30-12-3-P70Model: MN4GA1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA140R-C4-T10-1-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA140R-C4-T10-2-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA140R-C4-T10-3-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA140R-C4-T10-4-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA140R-C4-T10-5-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA140R-C4-T10-6-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA140R-C4-T10-7-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA140R-C4-T10-8-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA140R-C4-T30-1-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA140R-C4-T30-2-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA140R-C4-T30-3-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA140R-C4-T30-4-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA140R-C4-T30-5-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA140R-C4-T30-6-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA140R-C4-T30-7-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA140R-C4-T30-8-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA140R-C4-T30-9-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA140R-C4-T30-10-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA140R-C4-T30-11-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA140R-C4-T30-12-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA140R-C6-T10-1-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA140R-C6-T10-2-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA140R-C6-T10-3-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA140R-C6-T10-4-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA140R-C6-T10-5-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA140R-C6-T10-6-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA140R-C6-T10-7-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA140R-C6-T10-8-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA140R-C6-T30-1-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA140R-C6-T30-2-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA140R-C6-T30-3-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA140R-C6-T30-4-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA140R-C6-T30-5-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA140R-C6-T30-6-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA140R-C6-T30-7-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA140R-C6-T30-8-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA140R-C6-T30-9-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA140R-C6-T30-10-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA140R-C6-T30-11-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA140R-C6-T30-12-3-P70Model: MN4GA1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA150R-C4-T10-1-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA150R-C4-T10-2-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA150R-C4-T10-3-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA150R-C4-T10-4-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA150R-C4-T10-5-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA150R-C4-T10-6-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA150R-C4-T10-7-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA150R-C4-T10-8-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA150R-C4-T30-1-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA150R-C4-T30-2-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA150R-C4-T30-3-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA150R-C4-T30-4-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA150R-C4-T30-5-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA150R-C4-T30-6-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA150R-C4-T30-7-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA150R-C4-T30-8-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA150R-C4-T30-9-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA150R-C4-T30-10-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA150R-C4-T30-11-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA150R-C4-T30-12-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA150R-C6-T10-1-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA150R-C6-T10-2-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA150R-C6-T10-3-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA150R-C6-T10-4-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA150R-C6-T10-5-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA150R-C6-T10-6-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA150R-C6-T10-7-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA150R-C6-T10-8-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA150R-C6-T30-1-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA150R-C6-T30-2-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA150R-C6-T30-3-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA150R-C6-T30-4-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA150R-C6-T30-5-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA150R-C6-T30-6-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA150R-C6-T30-7-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA150R-C6-T30-8-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA150R-C6-T30-9-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA150R-C6-T30-10-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA150R-C6-T30-11-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA150R-C6-T30-12-3-P70Model: MN4GA1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C4-T10-1-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA180R-C4-T10-2-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA180R-C4-T10-3-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA180R-C4-T10-4-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA180R-C4-T10-5-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA180R-C4-T10-6-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA180R-C4-T10-7-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA180R-C4-T10-8-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA180R-C4-T10-9-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA180R-C4-T10-10-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA180R-C4-T10-11-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA180R-C4-T10-12-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA180R-C4-T10-13-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA180R-C4-T10-14-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA180R-C4-T10-15-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA180R-C4-T10-16-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA180R-C4-T30-1-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA180R-C4-T30-2-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA180R-C4-T30-3-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA180R-C4-T30-4-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA180R-C4-T30-5-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA180R-C4-T30-6-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA180R-C4-T30-7-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA180R-C4-T30-8-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA180R-C4-T30-9-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA180R-C4-T30-10-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA180R-C4-T30-11-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA180R-C4-T30-12-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C4-T30-13-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA180R-C4-T30-14-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA180R-C4-T30-15-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA180R-C4-T30-16-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA180R-C4-T30-17-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA180R-C4-T30-18-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA180R-C4-T30-19-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA180R-C4-T30-20-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA180R-C4-T30-21-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA180R-C4-T30-22-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA180R-C4-T30-23-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA180R-C4-T30-24-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA180R-C6-T10-1-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA180R-C6-T10-2-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA180R-C6-T10-3-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA180R-C6-T10-4-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA180R-C6-T10-5-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA180R-C6-T10-6-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA180R-C6-T10-7-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA180R-C6-T10-8-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA180R-C6-T10-9-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA180R-C6-T10-10-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA180R-C6-T10-11-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA180R-C6-T10-12-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA180R-C6-T10-13-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA180R-C6-T10-14-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA180R-C6-T10-15-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA180R-C6-T10-16-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA180R-C6-T30-1-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA180R-C6-T30-2-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA180R-C6-T30-3-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA180R-C6-T30-4-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA180R-C6-T30-5-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA180R-C6-T30-6-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA180R-C6-T30-7-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA180R-C6-T30-8-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA180R-C6-T30-9-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA180R-C6-T30-10-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA180R-C6-T30-11-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA180R-C6-T30-12-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA180R-C6-T30-13-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA180R-C6-T30-14-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA180R-C6-T30-15-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA180R-C6-T30-16-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA180R-C6-T30-17-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA180R-C6-T30-18-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA180R-C6-T30-19-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA180R-C6-T30-20-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA180R-C6-T30-21-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GA180R-C6-T30-22-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GA180R-C6-T30-23-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GA180R-C6-T30-24-3-P70Model: MN4GA1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GA210R-C4-T10-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C4-T10-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C4-T10-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C4-T10-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C4-T10-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C4-T10-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C4-T10-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C4-T10-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C4-T10-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C4-T10-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C4-T10-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C4-T10-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C4-T10-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C4-T10-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C4-T10-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C4-T10-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C4-T30-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C4-T30-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C4-T30-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C4-T30-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C4-T30-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C4-T30-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C4-T30-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C4-T30-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C4-T30-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C4-T30-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C4-T30-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C4-T30-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C4-T30-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C4-T30-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C4-T30-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C4-T30-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C4-T30-17-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C4-T30-18-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C4-T30-19-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C4-T30-20-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA210R-C6-T10-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C6-T10-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C6-T10-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C6-T10-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C6-T10-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C6-T10-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C6-T10-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C6-T10-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C6-T10-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C6-T10-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C6-T10-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C6-T10-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C6-T10-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C6-T10-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C6-T10-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C6-T10-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C6-T30-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C6-T30-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C6-T30-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C6-T30-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C6-T30-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C6-T30-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C6-T30-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C6-T30-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C6-T30-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C6-T30-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C6-T30-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C6-T30-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C6-T30-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C6-T30-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C6-T30-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C6-T30-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C6-T30-17-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C6-T30-18-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C6-T30-19-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C6-T30-20-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA210R-C8-T10-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA210R-C8-T10-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA210R-C8-T10-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA210R-C8-T10-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA210R-C8-T10-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA210R-C8-T10-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA210R-C8-T10-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA210R-C8-T10-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA210R-C8-T10-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA210R-C8-T10-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA210R-C8-T10-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA210R-C8-T10-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA210R-C8-T10-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA210R-C8-T10-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA210R-C8-T10-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA210R-C8-T10-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA210R-C8-T30-1-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA210R-C8-T30-2-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA210R-C8-T30-3-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA210R-C8-T30-4-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA210R-C8-T30-5-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA210R-C8-T30-6-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA210R-C8-T30-7-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA210R-C8-T30-8-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA210R-C8-T30-9-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA210R-C8-T30-10-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA210R-C8-T30-11-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA210R-C8-T30-12-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA210R-C8-T30-13-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA210R-C8-T30-14-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA210R-C8-T30-15-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA210R-C8-T30-16-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA210R-C8-T30-17-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA210R-C8-T30-18-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA210R-C8-T30-19-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA210R-C8-T30-20-3-P70Model: MN4GA2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA220R-C4-T10-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C4-T10-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C4-T10-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C4-T10-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C4-T10-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C4-T10-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C4-T10-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C4-T10-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C4-T30-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C4-T30-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C4-T30-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C4-T30-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C4-T30-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C4-T30-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C4-T30-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C4-T30-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C4-T30-9-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C4-T30-10-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C4-T30-11-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C4-T30-12-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA220R-C6-T10-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C6-T10-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C6-T10-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C6-T10-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C6-T10-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C6-T10-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C6-T10-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C6-T10-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C6-T30-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C6-T30-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C6-T30-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C6-T30-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C6-T30-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C6-T30-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C6-T30-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C6-T30-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C6-T30-9-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C6-T30-10-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C6-T30-11-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C6-T30-12-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA220R-C8-T10-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA220R-C8-T10-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA220R-C8-T10-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA220R-C8-T10-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA220R-C8-T10-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA220R-C8-T10-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA220R-C8-T10-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA220R-C8-T10-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA220R-C8-T30-1-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA220R-C8-T30-2-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA220R-C8-T30-3-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA220R-C8-T30-4-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA220R-C8-T30-5-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA220R-C8-T30-6-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA220R-C8-T30-7-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA220R-C8-T30-8-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA220R-C8-T30-9-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA220R-C8-T30-10-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA220R-C8-T30-11-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA220R-C8-T30-12-3-P70Model: MN4GA2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C4-T10-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C4-T10-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C4-T10-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C4-T10-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C4-T10-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C4-T10-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C4-T10-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C4-T10-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C4-T30-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C4-T30-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C4-T30-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C4-T30-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C4-T30-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C4-T30-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C4-T30-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C4-T30-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C4-T30-9-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C4-T30-10-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C4-T30-11-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C4-T30-12-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C6-T10-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C6-T10-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C6-T10-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C6-T10-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C6-T10-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C6-T10-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C6-T10-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C6-T10-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C6-T30-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C6-T30-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C6-T30-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C6-T30-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C6-T30-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C6-T30-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C6-T30-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C6-T30-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C6-T30-9-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C6-T30-10-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C6-T30-11-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C6-T30-12-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA230R-C8-T10-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA230R-C8-T10-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA230R-C8-T10-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA230R-C8-T10-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA230R-C8-T10-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA230R-C8-T10-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA230R-C8-T10-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA230R-C8-T10-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA230R-C8-T30-1-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA230R-C8-T30-2-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA230R-C8-T30-3-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA230R-C8-T30-4-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA230R-C8-T30-5-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA230R-C8-T30-6-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA230R-C8-T30-7-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA230R-C8-T30-8-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA230R-C8-T30-9-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA230R-C8-T30-10-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA230R-C8-T30-11-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA230R-C8-T30-12-3-P70Model: MN4GA2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C4-T10-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C4-T10-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C4-T10-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C4-T10-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C4-T10-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C4-T10-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C4-T10-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C4-T10-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C4-T30-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C4-T30-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C4-T30-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C4-T30-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C4-T30-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C4-T30-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C4-T30-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C4-T30-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C4-T30-9-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C4-T30-10-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C4-T30-11-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C4-T30-12-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C6-T10-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C6-T10-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C6-T10-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C6-T10-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C6-T10-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C6-T10-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C6-T10-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C6-T10-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C6-T30-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C6-T30-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C6-T30-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C6-T30-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C6-T30-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C6-T30-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C6-T30-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C6-T30-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C6-T30-9-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C6-T30-10-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C6-T30-11-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C6-T30-12-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA240R-C8-T10-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA240R-C8-T10-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA240R-C8-T10-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA240R-C8-T10-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA240R-C8-T10-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA240R-C8-T10-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA240R-C8-T10-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA240R-C8-T10-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA240R-C8-T30-1-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA240R-C8-T30-2-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA240R-C8-T30-3-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA240R-C8-T30-4-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA240R-C8-T30-5-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA240R-C8-T30-6-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA240R-C8-T30-7-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA240R-C8-T30-8-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA240R-C8-T30-9-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA240R-C8-T30-10-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA240R-C8-T30-11-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA240R-C8-T30-12-3-P70Model: MN4GA2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C4-T10-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C4-T10-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C4-T10-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C4-T10-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C4-T10-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C4-T10-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C4-T10-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C4-T10-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C4-T30-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C4-T30-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C4-T30-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C4-T30-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C4-T30-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C4-T30-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C4-T30-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C4-T30-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C4-T30-9-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C4-T30-10-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C4-T30-11-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C4-T30-12-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C6-T10-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C6-T10-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C6-T10-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C6-T10-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C6-T10-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C6-T10-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C6-T10-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C6-T10-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C6-T30-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C6-T30-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C6-T30-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C6-T30-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C6-T30-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C6-T30-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C6-T30-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C6-T30-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C6-T30-9-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C6-T30-10-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C6-T30-11-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C6-T30-12-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA250R-C8-T10-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA250R-C8-T10-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA250R-C8-T10-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA250R-C8-T10-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA250R-C8-T10-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA250R-C8-T10-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA250R-C8-T10-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA250R-C8-T10-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA250R-C8-T30-1-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA250R-C8-T30-2-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA250R-C8-T30-3-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA250R-C8-T30-4-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA250R-C8-T30-5-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA250R-C8-T30-6-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA250R-C8-T30-7-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA250R-C8-T30-8-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA250R-C8-T30-9-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA250R-C8-T30-10-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA250R-C8-T30-11-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA250R-C8-T30-12-3-P70Model: MN4GA2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C4-T10-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C4-T10-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C4-T10-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C4-T10-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C4-T10-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C4-T10-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C4-T10-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C4-T10-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C4-T10-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C4-T10-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C4-T10-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C4-T10-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C4-T10-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C4-T10-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C4-T10-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C4-T10-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C4-T30-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C4-T30-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C4-T30-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C4-T30-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C4-T30-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C4-T30-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C4-T30-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C4-T30-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C4-T30-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C4-T30-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C4-T30-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C4-T30-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C4-T30-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C4-T30-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C4-T30-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C4-T30-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C4-T30-17-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C4-T30-18-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C4-T30-19-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C4-T30-20-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA280R-C6-T10-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C6-T10-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C6-T10-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C6-T10-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C6-T10-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C6-T10-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C6-T10-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C6-T10-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C6-T10-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C6-T10-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C6-T10-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C6-T10-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C6-T10-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C6-T10-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C6-T10-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C6-T10-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C6-T30-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C6-T30-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C6-T30-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C6-T30-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C6-T30-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C6-T30-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C6-T30-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C6-T30-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C6-T30-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C6-T30-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C6-T30-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C6-T30-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C6-T30-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C6-T30-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C6-T30-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C6-T30-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C6-T30-17-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C6-T30-18-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C6-T30-19-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C6-T30-20-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GA280R-C8-T10-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GA280R-C8-T10-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GA280R-C8-T10-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GA280R-C8-T10-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GA280R-C8-T10-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GA280R-C8-T10-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GA280R-C8-T10-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GA280R-C8-T10-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GA280R-C8-T10-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GA280R-C8-T10-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GA280R-C8-T10-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GA280R-C8-T10-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GA280R-C8-T10-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GA280R-C8-T10-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GA280R-C8-T10-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GA280R-C8-T10-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GA280R-C8-T30-1-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GA280R-C8-T30-2-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GA280R-C8-T30-3-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GA280R-C8-T30-4-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GA280R-C8-T30-5-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GA280R-C8-T30-6-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GA280R-C8-T30-7-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GA280R-C8-T30-8-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GA280R-C8-T30-9-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GA280R-C8-T30-10-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GA280R-C8-T30-11-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GA280R-C8-T30-12-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GA280R-C8-T30-13-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GA280R-C8-T30-14-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GA280R-C8-T30-15-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GA280R-C8-T30-16-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GA280R-C8-T30-17-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GA280R-C8-T30-18-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GA280R-C8-T30-19-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GA280R-C8-T30-20-3-P70Model: MN4GA2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
