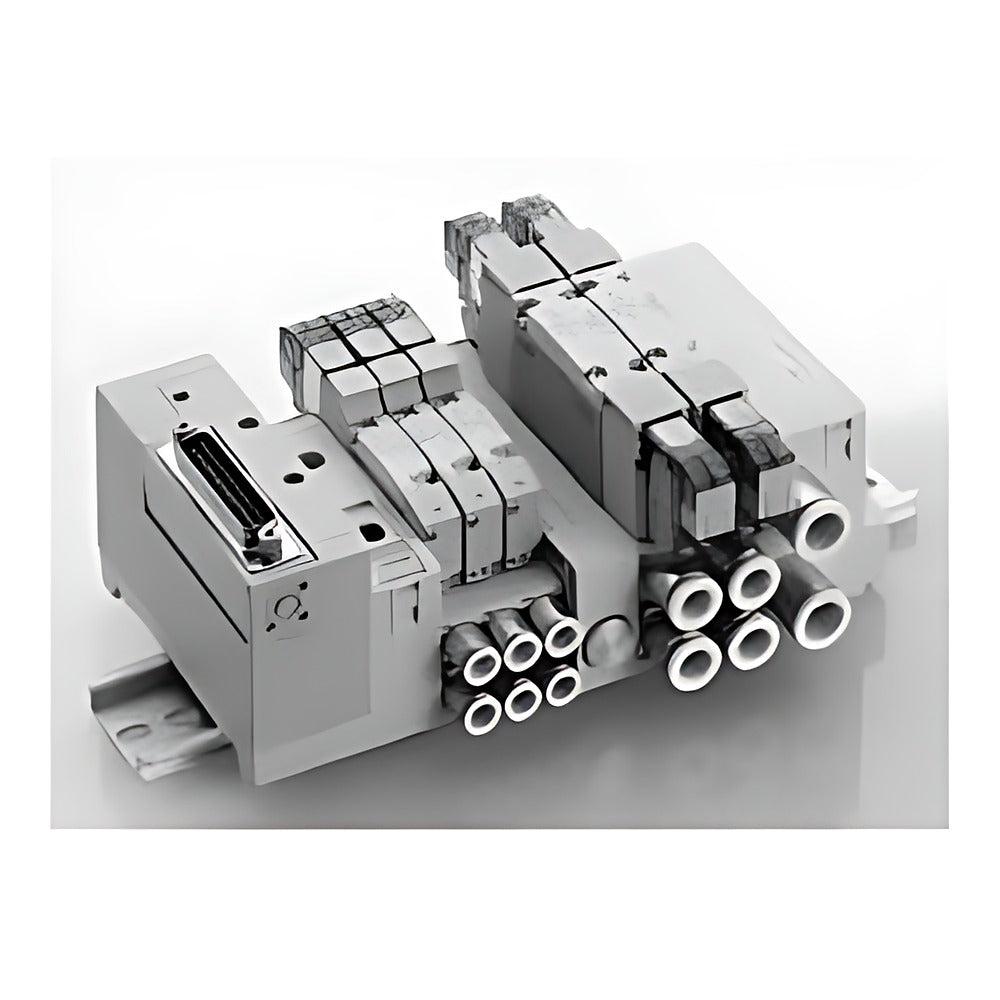

CKD MN3GAX12/MN4GAX12/MN4GBX12 4G1-4G2 Mix Block Manifold

CKD MN3GAX12/MN4GAX12/MN4GBX12 4G1-4G2 Mix Block Manifold

CKD 4G1/4G2 mix block manifold combining size 1 and size 2 4GA (direct) or 4GB (base) valve blocks on one DIN rail via the N4G12R-MIX block, up to 20 stations.

Key features

  • 4G1 valve blocks on the left of the mix block, 4G2 on the right (direction cannot be reversed)
  • MN3GX12R for 3-port valves, MN4GX12R for 5-port valves; A = direct piping, B = base piping
  • Listed codes: E2 individual wiring, DC24V; wiring-reduction (T) and other wiring/voltages use the MN4GA/MN4GB codes
  • Ports listed ø4, ø6 or fitting mix CX; other port codes as per MN4GA/MN4GB charts
  • Max. 20 stations; manifold length L1 from block widths (mix block 16 mm)
  • Uses the N4G12R-MIX mix block (49 g), listed with the block components

Specifications

Valve type Pilot-operated soft spool 4G1 + 4G2
Applicable cylinder ø20 to ø80
Fluid Compressed air
Operating pressure 0.2-0.7 MPa
Wiring (listed codes) E2: E connector 300 mm, surge/lamp
Coil voltage (listed codes) DC24V
Manifold Block manifold, DIN rail mount
Source CKD Korea catalog CB-023SK-9, p. 360-361
MN3GAX12R-C4-E2-2-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 2
MN3GAX12R-C4-E2-3-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 3
MN3GAX12R-C4-E2-4-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 4
MN3GAX12R-C4-E2-5-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 5
MN3GAX12R-C4-E2-6-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 6
MN3GAX12R-C4-E2-7-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 7
MN3GAX12R-C4-E2-8-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 8
MN3GAX12R-C4-E2-9-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 9
MN3GAX12R-C4-E2-10-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 10
MN3GAX12R-C4-E2-11-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 11
MN3GAX12R-C4-E2-12-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 12
MN3GAX12R-C4-E2-13-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 13
MN3GAX12R-C4-E2-14-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 14
MN3GAX12R-C4-E2-15-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 15
MN3GAX12R-C4-E2-16-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 16
MN3GAX12R-C4-E2-17-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 17
MN3GAX12R-C4-E2-18-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 18
MN3GAX12R-C4-E2-19-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 19
MN3GAX12R-C4-E2-20-3 Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 20
MN3GAX12R-C6-E2-2-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 2
MN3GAX12R-C6-E2-3-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 3
MN3GAX12R-C6-E2-4-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 4
MN3GAX12R-C6-E2-5-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 5
MN3GAX12R-C6-E2-6-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 6
MN3GAX12R-C6-E2-7-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 7
MN3GAX12R-C6-E2-8-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 8
MN3GAX12R-C6-E2-9-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 9
MN3GAX12R-C6-E2-10-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 10
MN3GAX12R-C6-E2-11-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 11
MN3GAX12R-C6-E2-12-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 12
MN3GAX12R-C6-E2-13-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 13
MN3GAX12R-C6-E2-14-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 14
MN3GAX12R-C6-E2-15-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 15
MN3GAX12R-C6-E2-16-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 16
MN3GAX12R-C6-E2-17-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 17
MN3GAX12R-C6-E2-18-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 18
MN3GAX12R-C6-E2-19-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 19
MN3GAX12R-C6-E2-20-3 Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 20
MN3GAX12R-CX-E2-2-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 2
MN3GAX12R-CX-E2-3-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 3
MN3GAX12R-CX-E2-4-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 4
MN3GAX12R-CX-E2-5-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 5
MN3GAX12R-CX-E2-6-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 6
MN3GAX12R-CX-E2-7-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 7
MN3GAX12R-CX-E2-8-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 8
MN3GAX12R-CX-E2-9-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 9
MN3GAX12R-CX-E2-10-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 10
MN3GAX12R-CX-E2-11-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 11
MN3GAX12R-CX-E2-12-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 12
MN3GAX12R-CX-E2-13-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 13
MN3GAX12R-CX-E2-14-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 14
MN3GAX12R-CX-E2-15-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 15
MN3GAX12R-CX-E2-16-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 16
MN3GAX12R-CX-E2-17-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 17
MN3GAX12R-CX-E2-18-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 18
MN3GAX12R-CX-E2-19-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 19
MN3GAX12R-CX-E2-20-3 Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 20
MN4GAX12R-C4-E2-2-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 2
MN4GAX12R-C4-E2-3-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 3
MN4GAX12R-C4-E2-4-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 4
MN4GAX12R-C4-E2-5-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 5
MN4GAX12R-C4-E2-6-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 6
MN4GAX12R-C4-E2-7-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 7
MN4GAX12R-C4-E2-8-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 8
MN4GAX12R-C4-E2-9-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 9
MN4GAX12R-C4-E2-10-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 10
MN4GAX12R-C4-E2-11-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 11
MN4GAX12R-C4-E2-12-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 12
MN4GAX12R-C4-E2-13-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 13
MN4GAX12R-C4-E2-14-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 14
MN4GAX12R-C4-E2-15-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 15
MN4GAX12R-C4-E2-16-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 16
MN4GAX12R-C4-E2-17-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 17
MN4GAX12R-C4-E2-18-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 18
MN4GAX12R-C4-E2-19-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 19
MN4GAX12R-C4-E2-20-3 Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 20
MN4GAX12R-C6-E2-2-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 2
MN4GAX12R-C6-E2-3-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 3
MN4GAX12R-C6-E2-4-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 4
MN4GAX12R-C6-E2-5-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 5
MN4GAX12R-C6-E2-6-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 6
MN4GAX12R-C6-E2-7-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 7
MN4GAX12R-C6-E2-8-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 8
MN4GAX12R-C6-E2-9-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 9
MN4GAX12R-C6-E2-10-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 10
MN4GAX12R-C6-E2-11-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 11
MN4GAX12R-C6-E2-12-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 12
MN4GAX12R-C6-E2-13-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 13
MN4GAX12R-C6-E2-14-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 14
MN4GAX12R-C6-E2-15-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 15
MN4GAX12R-C6-E2-16-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 16
MN4GAX12R-C6-E2-17-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 17
MN4GAX12R-C6-E2-18-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 18
MN4GAX12R-C6-E2-19-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 19
MN4GAX12R-C6-E2-20-3 Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 20
MN4GAX12R-CX-E2-2-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 2
MN4GAX12R-CX-E2-3-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 3
MN4GAX12R-CX-E2-4-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 4
MN4GAX12R-CX-E2-5-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 5
MN4GAX12R-CX-E2-6-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 6
MN4GAX12R-CX-E2-7-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 7
MN4GAX12R-CX-E2-8-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 8
MN4GAX12R-CX-E2-9-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 9
MN4GAX12R-CX-E2-10-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 10
MN4GAX12R-CX-E2-11-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 11
MN4GAX12R-CX-E2-12-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 12
MN4GAX12R-CX-E2-13-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 13
MN4GAX12R-CX-E2-14-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 14
MN4GAX12R-CX-E2-15-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 15
MN4GAX12R-CX-E2-16-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 16
MN4GAX12R-CX-E2-17-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 17
MN4GAX12R-CX-E2-18-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 18
MN4GAX12R-CX-E2-19-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 19
MN4GAX12R-CX-E2-20-3 Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 20
MN3GBX12R-C4-E2-2-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 2
MN3GBX12R-C4-E2-3-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 3
MN3GBX12R-C4-E2-4-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 4
MN3GBX12R-C4-E2-5-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 5
MN3GBX12R-C4-E2-6-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 6
MN3GBX12R-C4-E2-7-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 7
MN3GBX12R-C4-E2-8-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 8
MN3GBX12R-C4-E2-9-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 9
MN3GBX12R-C4-E2-10-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 10
MN3GBX12R-C4-E2-11-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 11
MN3GBX12R-C4-E2-12-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 12
MN3GBX12R-C4-E2-13-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 13
MN3GBX12R-C4-E2-14-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 14
MN3GBX12R-C4-E2-15-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 15
MN3GBX12R-C4-E2-16-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 16
MN3GBX12R-C4-E2-17-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 17
MN3GBX12R-C4-E2-18-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 18
MN3GBX12R-C4-E2-19-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 19
MN3GBX12R-C4-E2-20-3 Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 20
MN3GBX12R-C6-E2-2-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 2
MN3GBX12R-C6-E2-3-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 3
MN3GBX12R-C6-E2-4-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 4
MN3GBX12R-C6-E2-5-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 5
MN3GBX12R-C6-E2-6-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 6
MN3GBX12R-C6-E2-7-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 7
MN3GBX12R-C6-E2-8-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 8
MN3GBX12R-C6-E2-9-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 9
MN3GBX12R-C6-E2-10-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 10
MN3GBX12R-C6-E2-11-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 11
MN3GBX12R-C6-E2-12-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 12
MN3GBX12R-C6-E2-13-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 13
MN3GBX12R-C6-E2-14-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 14
MN3GBX12R-C6-E2-15-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 15
MN3GBX12R-C6-E2-16-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 16
MN3GBX12R-C6-E2-17-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 17
MN3GBX12R-C6-E2-18-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 18
MN3GBX12R-C6-E2-19-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 19
MN3GBX12R-C6-E2-20-3 Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 20
MN3GBX12R-CX-E2-2-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 2
MN3GBX12R-CX-E2-3-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 3
MN3GBX12R-CX-E2-4-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 4
MN3GBX12R-CX-E2-5-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 5
MN3GBX12R-CX-E2-6-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 6
MN3GBX12R-CX-E2-7-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 7
MN3GBX12R-CX-E2-8-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 8
MN3GBX12R-CX-E2-9-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 9
MN3GBX12R-CX-E2-10-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 10
MN3GBX12R-CX-E2-11-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 11
MN3GBX12R-CX-E2-12-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 12
MN3GBX12R-CX-E2-13-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 13
MN3GBX12R-CX-E2-14-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 14
MN3GBX12R-CX-E2-15-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 15
MN3GBX12R-CX-E2-16-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 16
MN3GBX12R-CX-E2-17-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 17
MN3GBX12R-CX-E2-18-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 18
MN3GBX12R-CX-E2-19-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 19
MN3GBX12R-CX-E2-20-3 Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 20
MN4GBX12R-C4-E2-2-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 2
MN4GBX12R-C4-E2-3-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 3
MN4GBX12R-C4-E2-4-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 4
MN4GBX12R-C4-E2-5-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 5
MN4GBX12R-C4-E2-6-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 6
MN4GBX12R-C4-E2-7-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 7
MN4GBX12R-C4-E2-8-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 8
MN4GBX12R-C4-E2-9-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 9
MN4GBX12R-C4-E2-10-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 10
MN4GBX12R-C4-E2-11-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 11
MN4GBX12R-C4-E2-12-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 12
MN4GBX12R-C4-E2-13-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 13
MN4GBX12R-C4-E2-14-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 14
MN4GBX12R-C4-E2-15-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 15
MN4GBX12R-C4-E2-16-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 16
MN4GBX12R-C4-E2-17-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 17
MN4GBX12R-C4-E2-18-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 18
MN4GBX12R-C4-E2-19-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 19
MN4GBX12R-C4-E2-20-3 Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 20
MN4GBX12R-C6-E2-2-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 2
MN4GBX12R-C6-E2-3-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 3
MN4GBX12R-C6-E2-4-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 4
MN4GBX12R-C6-E2-5-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 5
MN4GBX12R-C6-E2-6-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 6
MN4GBX12R-C6-E2-7-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 7
MN4GBX12R-C6-E2-8-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 8
MN4GBX12R-C6-E2-9-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 9
MN4GBX12R-C6-E2-10-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 10
MN4GBX12R-C6-E2-11-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 11
MN4GBX12R-C6-E2-12-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 12
MN4GBX12R-C6-E2-13-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 13
MN4GBX12R-C6-E2-14-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 14
MN4GBX12R-C6-E2-15-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 15
MN4GBX12R-C6-E2-16-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 16
MN4GBX12R-C6-E2-17-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 17
MN4GBX12R-C6-E2-18-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 18
MN4GBX12R-C6-E2-19-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 19
MN4GBX12R-C6-E2-20-3 Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 20
MN4GBX12R-CX-E2-2-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 2
MN4GBX12R-CX-E2-3-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 3
MN4GBX12R-CX-E2-4-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 4
MN4GBX12R-CX-E2-5-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 5
MN4GBX12R-CX-E2-6-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 6
MN4GBX12R-CX-E2-7-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 7
MN4GBX12R-CX-E2-8-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 8
MN4GBX12R-CX-E2-9-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 9
MN4GBX12R-CX-E2-10-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 10
MN4GBX12R-CX-E2-11-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 11
MN4GBX12R-CX-E2-12-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 12
MN4GBX12R-CX-E2-13-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 13
MN4GBX12R-CX-E2-14-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 14
MN4GBX12R-CX-E2-15-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 15
MN4GBX12R-CX-E2-16-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 16
MN4GBX12R-CX-E2-17-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 17
MN4GBX12R-CX-E2-18-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 18
MN4GBX12R-CX-E2-19-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 19
MN4GBX12R-CX-E2-20-3 Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 20
Valve ManifoldsCKD
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN3GAX12/MN4GAX12/MN4GBX12 4G1-4G2 Mix Block Manifold

Brand CKD·Valve Manifolds

Available part numbers (228)

MN3GAX12R-C4-E2-2-3, MN3GAX12R-C4-E2-3-3, MN3GAX12R-C4-E2-4-3, MN3GAX12R-C4-E2-5-3, MN3GAX12R-C4-E2-6-3, MN3GAX12R-C4-E2-7-3, MN3GAX12R-C4-E2-8-3, MN3GAX12R-C4-E2-9-3, MN3GAX12R-C4-E2-10-3, MN3GAX12R-C4-E2-11-3 + 218 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MN3GAX12R-C4-E2-2-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 2
MN3GAX12R-C4-E2-3-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 3
MN3GAX12R-C4-E2-4-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 4
MN3GAX12R-C4-E2-5-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 5
MN3GAX12R-C4-E2-6-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 6
MN3GAX12R-C4-E2-7-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 7
MN3GAX12R-C4-E2-8-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 8
MN3GAX12R-C4-E2-9-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 9
MN3GAX12R-C4-E2-10-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 10
MN3GAX12R-C4-E2-11-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 11
MN3GAX12R-C4-E2-12-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 12
MN3GAX12R-C4-E2-13-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 13
MN3GAX12R-C4-E2-14-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 14
MN3GAX12R-C4-E2-15-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 15
MN3GAX12R-C4-E2-16-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 16
MN3GAX12R-C4-E2-17-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 17
MN3GAX12R-C4-E2-18-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 18
MN3GAX12R-C4-E2-19-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 19
MN3GAX12R-C4-E2-20-3Manifold: MN3GAX12 | Port: ø4 one-touch | Stations: 20
MN3GAX12R-C6-E2-2-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 2
MN3GAX12R-C6-E2-3-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 3
MN3GAX12R-C6-E2-4-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 4
MN3GAX12R-C6-E2-5-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 5
MN3GAX12R-C6-E2-6-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 6
MN3GAX12R-C6-E2-7-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 7
MN3GAX12R-C6-E2-8-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 8
MN3GAX12R-C6-E2-9-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 9
MN3GAX12R-C6-E2-10-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 10
MN3GAX12R-C6-E2-11-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 11
MN3GAX12R-C6-E2-12-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 12
MN3GAX12R-C6-E2-13-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 13
MN3GAX12R-C6-E2-14-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 14
MN3GAX12R-C6-E2-15-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 15
MN3GAX12R-C6-E2-16-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 16
MN3GAX12R-C6-E2-17-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 17
MN3GAX12R-C6-E2-18-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 18
MN3GAX12R-C6-E2-19-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 19
MN3GAX12R-C6-E2-20-3Manifold: MN3GAX12 | Port: ø6 one-touch | Stations: 20
MN3GAX12R-CX-E2-2-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 2
MN3GAX12R-CX-E2-3-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 3
MN3GAX12R-CX-E2-4-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 4
MN3GAX12R-CX-E2-5-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 5
MN3GAX12R-CX-E2-6-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 6
MN3GAX12R-CX-E2-7-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 7
MN3GAX12R-CX-E2-8-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 8
MN3GAX12R-CX-E2-9-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 9
MN3GAX12R-CX-E2-10-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 10
MN3GAX12R-CX-E2-11-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 11
MN3GAX12R-CX-E2-12-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 12
MN3GAX12R-CX-E2-13-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 13
MN3GAX12R-CX-E2-14-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 14
MN3GAX12R-CX-E2-15-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 15
MN3GAX12R-CX-E2-16-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 16
MN3GAX12R-CX-E2-17-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 17
MN3GAX12R-CX-E2-18-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 18
MN3GAX12R-CX-E2-19-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 19
MN3GAX12R-CX-E2-20-3Manifold: MN3GAX12 | Port: One-touch fitting mix | Stations: 20
MN4GAX12R-C4-E2-2-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 2
MN4GAX12R-C4-E2-3-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 3
MN4GAX12R-C4-E2-4-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 4
MN4GAX12R-C4-E2-5-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 5
MN4GAX12R-C4-E2-6-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 6
MN4GAX12R-C4-E2-7-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 7
MN4GAX12R-C4-E2-8-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 8
MN4GAX12R-C4-E2-9-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 9
MN4GAX12R-C4-E2-10-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 10
MN4GAX12R-C4-E2-11-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 11
MN4GAX12R-C4-E2-12-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 12
MN4GAX12R-C4-E2-13-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 13
MN4GAX12R-C4-E2-14-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 14
MN4GAX12R-C4-E2-15-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 15
MN4GAX12R-C4-E2-16-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 16
MN4GAX12R-C4-E2-17-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 17
MN4GAX12R-C4-E2-18-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 18
MN4GAX12R-C4-E2-19-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 19
MN4GAX12R-C4-E2-20-3Manifold: MN4GAX12 | Port: ø4 one-touch | Stations: 20
MN4GAX12R-C6-E2-2-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 2
MN4GAX12R-C6-E2-3-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 3
MN4GAX12R-C6-E2-4-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 4
MN4GAX12R-C6-E2-5-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 5
MN4GAX12R-C6-E2-6-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 6
MN4GAX12R-C6-E2-7-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 7
MN4GAX12R-C6-E2-8-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 8
MN4GAX12R-C6-E2-9-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 9
MN4GAX12R-C6-E2-10-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 10
MN4GAX12R-C6-E2-11-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 11
MN4GAX12R-C6-E2-12-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 12
MN4GAX12R-C6-E2-13-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 13
MN4GAX12R-C6-E2-14-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 14
MN4GAX12R-C6-E2-15-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 15
MN4GAX12R-C6-E2-16-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 16
MN4GAX12R-C6-E2-17-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 17
MN4GAX12R-C6-E2-18-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 18
MN4GAX12R-C6-E2-19-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 19
MN4GAX12R-C6-E2-20-3Manifold: MN4GAX12 | Port: ø6 one-touch | Stations: 20
MN4GAX12R-CX-E2-2-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 2
MN4GAX12R-CX-E2-3-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 3
MN4GAX12R-CX-E2-4-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 4
MN4GAX12R-CX-E2-5-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 5
MN4GAX12R-CX-E2-6-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 6
MN4GAX12R-CX-E2-7-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 7
MN4GAX12R-CX-E2-8-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 8
MN4GAX12R-CX-E2-9-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 9
MN4GAX12R-CX-E2-10-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 10
MN4GAX12R-CX-E2-11-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 11
MN4GAX12R-CX-E2-12-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 12
MN4GAX12R-CX-E2-13-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 13
MN4GAX12R-CX-E2-14-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 14
MN4GAX12R-CX-E2-15-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 15
MN4GAX12R-CX-E2-16-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 16
MN4GAX12R-CX-E2-17-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 17
MN4GAX12R-CX-E2-18-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 18
MN4GAX12R-CX-E2-19-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 19
MN4GAX12R-CX-E2-20-3Manifold: MN4GAX12 | Port: One-touch fitting mix | Stations: 20
MN3GBX12R-C4-E2-2-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 2
MN3GBX12R-C4-E2-3-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 3
MN3GBX12R-C4-E2-4-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 4
MN3GBX12R-C4-E2-5-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 5
MN3GBX12R-C4-E2-6-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 6
MN3GBX12R-C4-E2-7-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 7
MN3GBX12R-C4-E2-8-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 8
MN3GBX12R-C4-E2-9-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 9
MN3GBX12R-C4-E2-10-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 10
MN3GBX12R-C4-E2-11-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 11
MN3GBX12R-C4-E2-12-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 12
MN3GBX12R-C4-E2-13-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 13
MN3GBX12R-C4-E2-14-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 14
MN3GBX12R-C4-E2-15-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 15
MN3GBX12R-C4-E2-16-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 16
MN3GBX12R-C4-E2-17-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 17
MN3GBX12R-C4-E2-18-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 18
MN3GBX12R-C4-E2-19-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 19
MN3GBX12R-C4-E2-20-3Manifold: MN3GBX12 | Port: ø4 one-touch | Stations: 20
MN3GBX12R-C6-E2-2-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 2
MN3GBX12R-C6-E2-3-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 3
MN3GBX12R-C6-E2-4-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 4
MN3GBX12R-C6-E2-5-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 5
MN3GBX12R-C6-E2-6-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 6
MN3GBX12R-C6-E2-7-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 7
MN3GBX12R-C6-E2-8-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 8
MN3GBX12R-C6-E2-9-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 9
MN3GBX12R-C6-E2-10-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 10
MN3GBX12R-C6-E2-11-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 11
MN3GBX12R-C6-E2-12-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 12
MN3GBX12R-C6-E2-13-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 13
MN3GBX12R-C6-E2-14-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 14
MN3GBX12R-C6-E2-15-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 15
MN3GBX12R-C6-E2-16-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 16
MN3GBX12R-C6-E2-17-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 17
MN3GBX12R-C6-E2-18-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 18
MN3GBX12R-C6-E2-19-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 19
MN3GBX12R-C6-E2-20-3Manifold: MN3GBX12 | Port: ø6 one-touch | Stations: 20
MN3GBX12R-CX-E2-2-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 2
MN3GBX12R-CX-E2-3-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 3
MN3GBX12R-CX-E2-4-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 4
MN3GBX12R-CX-E2-5-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 5
MN3GBX12R-CX-E2-6-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 6
MN3GBX12R-CX-E2-7-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 7
MN3GBX12R-CX-E2-8-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 8
MN3GBX12R-CX-E2-9-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 9
MN3GBX12R-CX-E2-10-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 10
MN3GBX12R-CX-E2-11-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 11
MN3GBX12R-CX-E2-12-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 12
MN3GBX12R-CX-E2-13-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 13
MN3GBX12R-CX-E2-14-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 14
MN3GBX12R-CX-E2-15-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 15
MN3GBX12R-CX-E2-16-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 16
MN3GBX12R-CX-E2-17-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 17
MN3GBX12R-CX-E2-18-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 18
MN3GBX12R-CX-E2-19-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 19
MN3GBX12R-CX-E2-20-3Manifold: MN3GBX12 | Port: One-touch fitting mix | Stations: 20
MN4GBX12R-C4-E2-2-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 2
MN4GBX12R-C4-E2-3-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 3
MN4GBX12R-C4-E2-4-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 4
MN4GBX12R-C4-E2-5-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 5
MN4GBX12R-C4-E2-6-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 6
MN4GBX12R-C4-E2-7-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 7
MN4GBX12R-C4-E2-8-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 8
MN4GBX12R-C4-E2-9-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 9
MN4GBX12R-C4-E2-10-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 10
MN4GBX12R-C4-E2-11-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 11
MN4GBX12R-C4-E2-12-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 12
MN4GBX12R-C4-E2-13-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 13
MN4GBX12R-C4-E2-14-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 14
MN4GBX12R-C4-E2-15-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 15
MN4GBX12R-C4-E2-16-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 16
MN4GBX12R-C4-E2-17-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 17
MN4GBX12R-C4-E2-18-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 18
MN4GBX12R-C4-E2-19-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 19
MN4GBX12R-C4-E2-20-3Manifold: MN4GBX12 | Port: ø4 one-touch | Stations: 20
MN4GBX12R-C6-E2-2-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 2
MN4GBX12R-C6-E2-3-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 3
MN4GBX12R-C6-E2-4-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 4
MN4GBX12R-C6-E2-5-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 5
MN4GBX12R-C6-E2-6-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 6
MN4GBX12R-C6-E2-7-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 7
MN4GBX12R-C6-E2-8-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 8
MN4GBX12R-C6-E2-9-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 9
MN4GBX12R-C6-E2-10-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 10
MN4GBX12R-C6-E2-11-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 11
MN4GBX12R-C6-E2-12-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 12
MN4GBX12R-C6-E2-13-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 13
MN4GBX12R-C6-E2-14-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 14
MN4GBX12R-C6-E2-15-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 15
MN4GBX12R-C6-E2-16-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 16
MN4GBX12R-C6-E2-17-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 17
MN4GBX12R-C6-E2-18-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 18
MN4GBX12R-C6-E2-19-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 19
MN4GBX12R-C6-E2-20-3Manifold: MN4GBX12 | Port: ø6 one-touch | Stations: 20
MN4GBX12R-CX-E2-2-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 2
MN4GBX12R-CX-E2-3-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 3
MN4GBX12R-CX-E2-4-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 4
MN4GBX12R-CX-E2-5-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 5
MN4GBX12R-CX-E2-6-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 6
MN4GBX12R-CX-E2-7-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 7
MN4GBX12R-CX-E2-8-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 8
MN4GBX12R-CX-E2-9-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 9
MN4GBX12R-CX-E2-10-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 10
MN4GBX12R-CX-E2-11-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 11
MN4GBX12R-CX-E2-12-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 12
MN4GBX12R-CX-E2-13-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 13
MN4GBX12R-CX-E2-14-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 14
MN4GBX12R-CX-E2-15-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 15
MN4GBX12R-CX-E2-16-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 16
MN4GBX12R-CX-E2-17-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 17
MN4GBX12R-CX-E2-18-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 18
MN4GBX12R-CX-E2-19-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 19
MN4GBX12R-CX-E2-20-3Manifold: MN4GBX12 | Port: One-touch fitting mix | Stations: 20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
