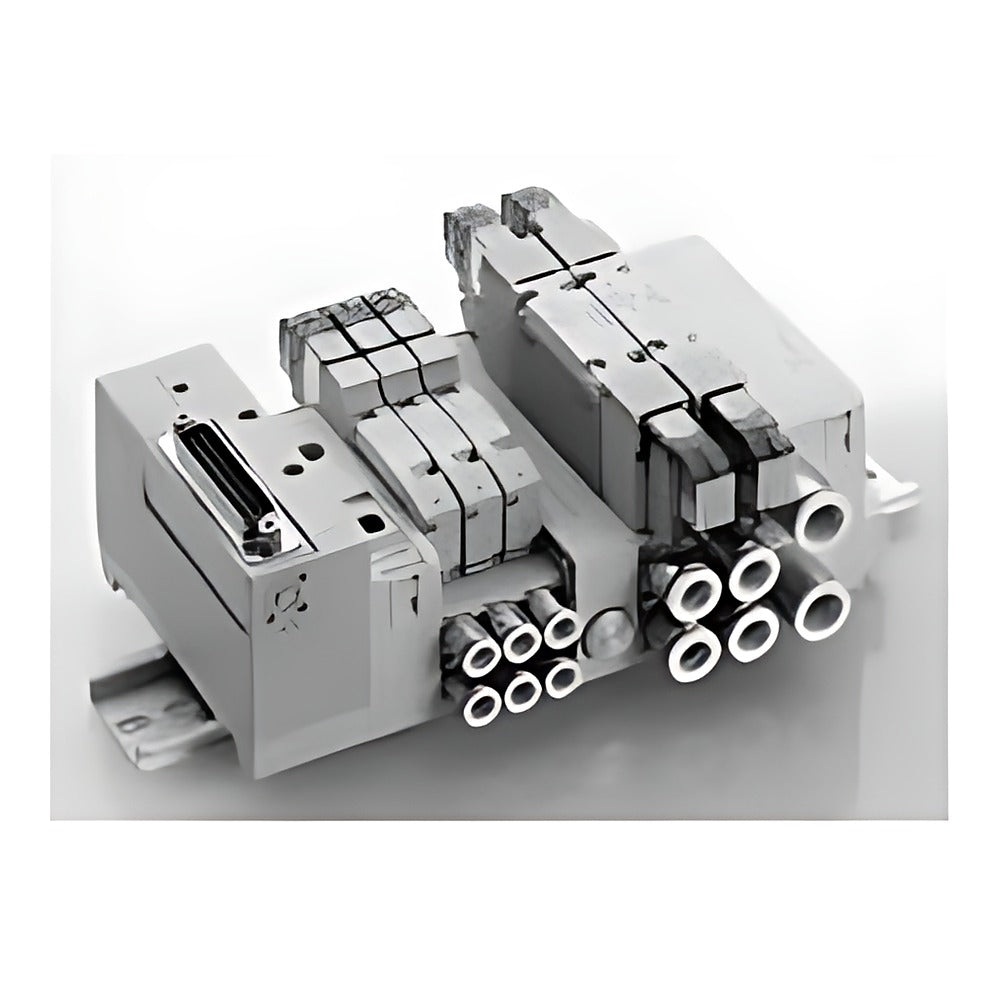

CKD MN4GAX12/MN4GBX12-FP1 4G1/4G2 Mix Block Manifold

CKD MN4GAX12/MN4GBX12-FP1 4G1/4G2 Mix Block Manifold

CKD MN3GAX12/MN4GAX12/MN4GBX12-FP1 block manifolds that combine 4G1 and 4G2 size valves on one DIN rail via a mix block.

Key features

  • 4G1 valves on the left of the mix block and 4G2 valves on the right (reverse not possible)
  • Direct piping (GA) or base piping (GB); individual wiring or wiring-saving
  • Uses the N4G12R-MIX-FP1 mix block; other components as for MN4GA/MN4GB-FP1
  • Specification per MN4GA/MN4GB-FP1 series; detail on the manifold specification sheet

Specifications

Manifold type Block manifold (split resin base)
Mounting DIN rail
Operating pressure 0.2-0.7 MPa (ext. pilot 0-0.7 MPa)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Applicable cylinder bore 20-80 mm
Lubricant NSF H1 food-grade grease
Code format MN<3/4>G<A/B>X12R-<port>-<wiring>-<stations>-3-FP1
Source CKD Korea catalog CC-1271K-5, p. 186-186
MN3GAX12R-C6-E2-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GAX12R-C6-E2-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GAX12R-C6-E2-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GAX12R-C6-E2-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GAX12R-C6-E2-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GAX12R-C6-E2-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GAX12R-C6-E2-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GAX12R-C6-T10-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GAX12R-C6-T10-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GAX12R-C6-T10-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GAX12R-C6-T10-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GAX12R-C6-T10-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GAX12R-C6-T10-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GAX12R-C6-T10-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GAX12R-C6-T30-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GAX12R-C6-T30-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GAX12R-C6-T30-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GAX12R-C6-T30-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GAX12R-C6-T30-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GAX12R-C6-T30-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GAX12R-C6-T30-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GAX12R-CX-E2-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GAX12R-CX-E2-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GAX12R-CX-E2-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GAX12R-CX-E2-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GAX12R-CX-E2-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GAX12R-CX-E2-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GAX12R-CX-E2-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GAX12R-CX-T10-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GAX12R-CX-T10-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GAX12R-CX-T10-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GAX12R-CX-T10-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GAX12R-CX-T10-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GAX12R-CX-T10-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GAX12R-CX-T10-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GAX12R-CX-T30-2-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GAX12R-CX-T30-3-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GAX12R-CX-T30-4-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GAX12R-CX-T30-5-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GAX12R-CX-T30-6-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GAX12R-CX-T30-7-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GAX12R-CX-T30-8-3-FP1 Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GAX12R-C6-E2-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GAX12R-C6-E2-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GAX12R-C6-E2-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GAX12R-C6-E2-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GAX12R-C6-E2-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GAX12R-C6-E2-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GAX12R-C6-E2-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GAX12R-C6-T10-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GAX12R-C6-T10-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GAX12R-C6-T10-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GAX12R-C6-T10-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GAX12R-C6-T10-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GAX12R-C6-T10-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GAX12R-C6-T10-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GAX12R-C6-T30-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GAX12R-C6-T30-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GAX12R-C6-T30-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GAX12R-C6-T30-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GAX12R-C6-T30-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GAX12R-C6-T30-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GAX12R-C6-T30-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GAX12R-CX-E2-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GAX12R-CX-E2-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GAX12R-CX-E2-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GAX12R-CX-E2-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GAX12R-CX-E2-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GAX12R-CX-E2-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GAX12R-CX-E2-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GAX12R-CX-T10-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GAX12R-CX-T10-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GAX12R-CX-T10-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GAX12R-CX-T10-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GAX12R-CX-T10-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GAX12R-CX-T10-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GAX12R-CX-T10-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GAX12R-CX-T30-2-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GAX12R-CX-T30-3-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GAX12R-CX-T30-4-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GAX12R-CX-T30-5-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GAX12R-CX-T30-6-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GAX12R-CX-T30-7-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GAX12R-CX-T30-8-3-FP1 Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GBX12R-C6-E2-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GBX12R-C6-E2-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GBX12R-C6-E2-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GBX12R-C6-E2-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GBX12R-C6-E2-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GBX12R-C6-E2-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GBX12R-C6-E2-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GBX12R-C6-T10-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GBX12R-C6-T10-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GBX12R-C6-T10-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GBX12R-C6-T10-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GBX12R-C6-T10-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GBX12R-C6-T10-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GBX12R-C6-T10-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GBX12R-C6-T30-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GBX12R-C6-T30-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GBX12R-C6-T30-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GBX12R-C6-T30-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GBX12R-C6-T30-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GBX12R-C6-T30-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GBX12R-C6-T30-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GBX12R-CX-E2-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GBX12R-CX-E2-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GBX12R-CX-E2-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GBX12R-CX-E2-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GBX12R-CX-E2-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GBX12R-CX-E2-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GBX12R-CX-E2-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GBX12R-CX-T10-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GBX12R-CX-T10-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GBX12R-CX-T10-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GBX12R-CX-T10-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GBX12R-CX-T10-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GBX12R-CX-T10-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GBX12R-CX-T10-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GBX12R-CX-T30-2-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GBX12R-CX-T30-3-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GBX12R-CX-T30-4-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GBX12R-CX-T30-5-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GBX12R-CX-T30-6-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GBX12R-CX-T30-7-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GBX12R-CX-T30-8-3-FP1 Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GBX12R-C6-E2-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GBX12R-C6-E2-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GBX12R-C6-E2-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GBX12R-C6-E2-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GBX12R-C6-E2-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GBX12R-C6-E2-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GBX12R-C6-E2-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GBX12R-C6-T10-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GBX12R-C6-T10-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GBX12R-C6-T10-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GBX12R-C6-T10-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GBX12R-C6-T10-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GBX12R-C6-T10-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GBX12R-C6-T10-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GBX12R-C6-T30-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GBX12R-C6-T30-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GBX12R-C6-T30-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GBX12R-C6-T30-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GBX12R-C6-T30-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GBX12R-C6-T30-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GBX12R-C6-T30-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GBX12R-CX-E2-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GBX12R-CX-E2-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GBX12R-CX-E2-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GBX12R-CX-E2-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GBX12R-CX-E2-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GBX12R-CX-E2-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GBX12R-CX-E2-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GBX12R-CX-T10-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GBX12R-CX-T10-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GBX12R-CX-T10-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GBX12R-CX-T10-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GBX12R-CX-T10-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GBX12R-CX-T10-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GBX12R-CX-T10-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GBX12R-CX-T30-2-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GBX12R-CX-T30-3-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GBX12R-CX-T30-4-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GBX12R-CX-T30-5-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GBX12R-CX-T30-6-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GBX12R-CX-T30-7-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GBX12R-CX-T30-8-3-FP1 Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
Valve ManifoldsCKD
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GAX12/MN4GBX12-FP1 4G1/4G2 Mix Block Manifold

Brand CKD·Valve Manifolds

Available part numbers (168)

MN3GAX12R-C6-E2-2-3-FP1, MN3GAX12R-C6-E2-3-3-FP1, MN3GAX12R-C6-E2-4-3-FP1, MN3GAX12R-C6-E2-5-3-FP1, MN3GAX12R-C6-E2-6-3-FP1, MN3GAX12R-C6-E2-7-3-FP1, MN3GAX12R-C6-E2-8-3-FP1, MN3GAX12R-C6-T10-2-3-FP1, MN3GAX12R-C6-T10-3-3-FP1, MN3GAX12R-C6-T10-4-3-FP1 + 158 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MN3GAX12R-C6-E2-2-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GAX12R-C6-E2-3-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GAX12R-C6-E2-4-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GAX12R-C6-E2-5-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GAX12R-C6-E2-6-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GAX12R-C6-E2-7-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GAX12R-C6-E2-8-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GAX12R-C6-T10-2-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GAX12R-C6-T10-3-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GAX12R-C6-T10-4-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GAX12R-C6-T10-5-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GAX12R-C6-T10-6-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GAX12R-C6-T10-7-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GAX12R-C6-T10-8-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GAX12R-C6-T30-2-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GAX12R-C6-T30-3-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GAX12R-C6-T30-4-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GAX12R-C6-T30-5-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GAX12R-C6-T30-6-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GAX12R-C6-T30-7-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GAX12R-C6-T30-8-3-FP1Model: MN3GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GAX12R-CX-E2-2-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GAX12R-CX-E2-3-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GAX12R-CX-E2-4-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GAX12R-CX-E2-5-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GAX12R-CX-E2-6-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GAX12R-CX-E2-7-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GAX12R-CX-E2-8-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GAX12R-CX-T10-2-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GAX12R-CX-T10-3-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GAX12R-CX-T10-4-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GAX12R-CX-T10-5-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GAX12R-CX-T10-6-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GAX12R-CX-T10-7-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GAX12R-CX-T10-8-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GAX12R-CX-T30-2-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GAX12R-CX-T30-3-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GAX12R-CX-T30-4-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GAX12R-CX-T30-5-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GAX12R-CX-T30-6-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GAX12R-CX-T30-7-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GAX12R-CX-T30-8-3-FP1Model: MN3GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GAX12R-C6-E2-2-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GAX12R-C6-E2-3-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GAX12R-C6-E2-4-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GAX12R-C6-E2-5-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GAX12R-C6-E2-6-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GAX12R-C6-E2-7-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GAX12R-C6-E2-8-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GAX12R-C6-T10-2-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GAX12R-C6-T10-3-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GAX12R-C6-T10-4-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GAX12R-C6-T10-5-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GAX12R-C6-T10-6-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GAX12R-C6-T10-7-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GAX12R-C6-T10-8-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GAX12R-C6-T30-2-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GAX12R-C6-T30-3-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GAX12R-C6-T30-4-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GAX12R-C6-T30-5-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GAX12R-C6-T30-6-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GAX12R-C6-T30-7-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GAX12R-C6-T30-8-3-FP1Model: MN4GAX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GAX12R-CX-E2-2-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GAX12R-CX-E2-3-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GAX12R-CX-E2-4-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GAX12R-CX-E2-5-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GAX12R-CX-E2-6-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GAX12R-CX-E2-7-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GAX12R-CX-E2-8-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GAX12R-CX-T10-2-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GAX12R-CX-T10-3-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GAX12R-CX-T10-4-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GAX12R-CX-T10-5-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GAX12R-CX-T10-6-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GAX12R-CX-T10-7-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GAX12R-CX-T10-8-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GAX12R-CX-T30-2-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GAX12R-CX-T30-3-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GAX12R-CX-T30-4-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GAX12R-CX-T30-5-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GAX12R-CX-T30-6-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GAX12R-CX-T30-7-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GAX12R-CX-T30-8-3-FP1Model: MN4GAX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GBX12R-C6-E2-2-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GBX12R-C6-E2-3-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GBX12R-C6-E2-4-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GBX12R-C6-E2-5-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GBX12R-C6-E2-6-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GBX12R-C6-E2-7-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GBX12R-C6-E2-8-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GBX12R-C6-T10-2-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GBX12R-C6-T10-3-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GBX12R-C6-T10-4-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GBX12R-C6-T10-5-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GBX12R-C6-T10-6-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GBX12R-C6-T10-7-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GBX12R-C6-T10-8-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GBX12R-C6-T30-2-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GBX12R-C6-T30-3-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GBX12R-C6-T30-4-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GBX12R-C6-T30-5-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GBX12R-C6-T30-6-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GBX12R-C6-T30-7-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GBX12R-C6-T30-8-3-FP1Model: MN3GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN3GBX12R-CX-E2-2-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN3GBX12R-CX-E2-3-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN3GBX12R-CX-E2-4-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN3GBX12R-CX-E2-5-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN3GBX12R-CX-E2-6-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN3GBX12R-CX-E2-7-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN3GBX12R-CX-E2-8-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN3GBX12R-CX-T10-2-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN3GBX12R-CX-T10-3-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN3GBX12R-CX-T10-4-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN3GBX12R-CX-T10-5-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN3GBX12R-CX-T10-6-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN3GBX12R-CX-T10-7-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN3GBX12R-CX-T10-8-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN3GBX12R-CX-T30-2-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN3GBX12R-CX-T30-3-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN3GBX12R-CX-T30-4-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN3GBX12R-CX-T30-5-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN3GBX12R-CX-T30-6-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN3GBX12R-CX-T30-7-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN3GBX12R-CX-T30-8-3-FP1Model: MN3GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GBX12R-C6-E2-2-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GBX12R-C6-E2-3-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GBX12R-C6-E2-4-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GBX12R-C6-E2-5-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GBX12R-C6-E2-6-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GBX12R-C6-E2-7-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GBX12R-C6-E2-8-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GBX12R-C6-T10-2-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GBX12R-C6-T10-3-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GBX12R-C6-T10-4-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GBX12R-C6-T10-5-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GBX12R-C6-T10-6-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GBX12R-C6-T10-7-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GBX12R-C6-T10-8-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GBX12R-C6-T30-2-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GBX12R-C6-T30-3-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GBX12R-C6-T30-4-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GBX12R-C6-T30-5-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GBX12R-C6-T30-6-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GBX12R-C6-T30-7-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GBX12R-C6-T30-8-3-FP1Model: MN4GBX12 | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GBX12R-CX-E2-2-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 2
MN4GBX12R-CX-E2-3-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 3
MN4GBX12R-CX-E2-4-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 4
MN4GBX12R-CX-E2-5-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 5
MN4GBX12R-CX-E2-6-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 6
MN4GBX12R-CX-E2-7-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 7
MN4GBX12R-CX-E2-8-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: E connector 300 mm, SK+lamp | Stations: 8
MN4GBX12R-CX-T10-2-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GBX12R-CX-T10-3-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GBX12R-CX-T10-4-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GBX12R-CX-T10-5-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GBX12R-CX-T10-6-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GBX12R-CX-T10-7-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GBX12R-CX-T10-8-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GBX12R-CX-T30-2-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GBX12R-CX-T30-3-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GBX12R-CX-T30-4-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GBX12R-CX-T30-5-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GBX12R-CX-T30-6-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GBX12R-CX-T30-7-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GBX12R-CX-T30-8-3-FP1Model: MN4GBX12 | A/B port: One-touch fitting mix | Wiring: D-sub 25-pin (T30) | Stations: 8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
