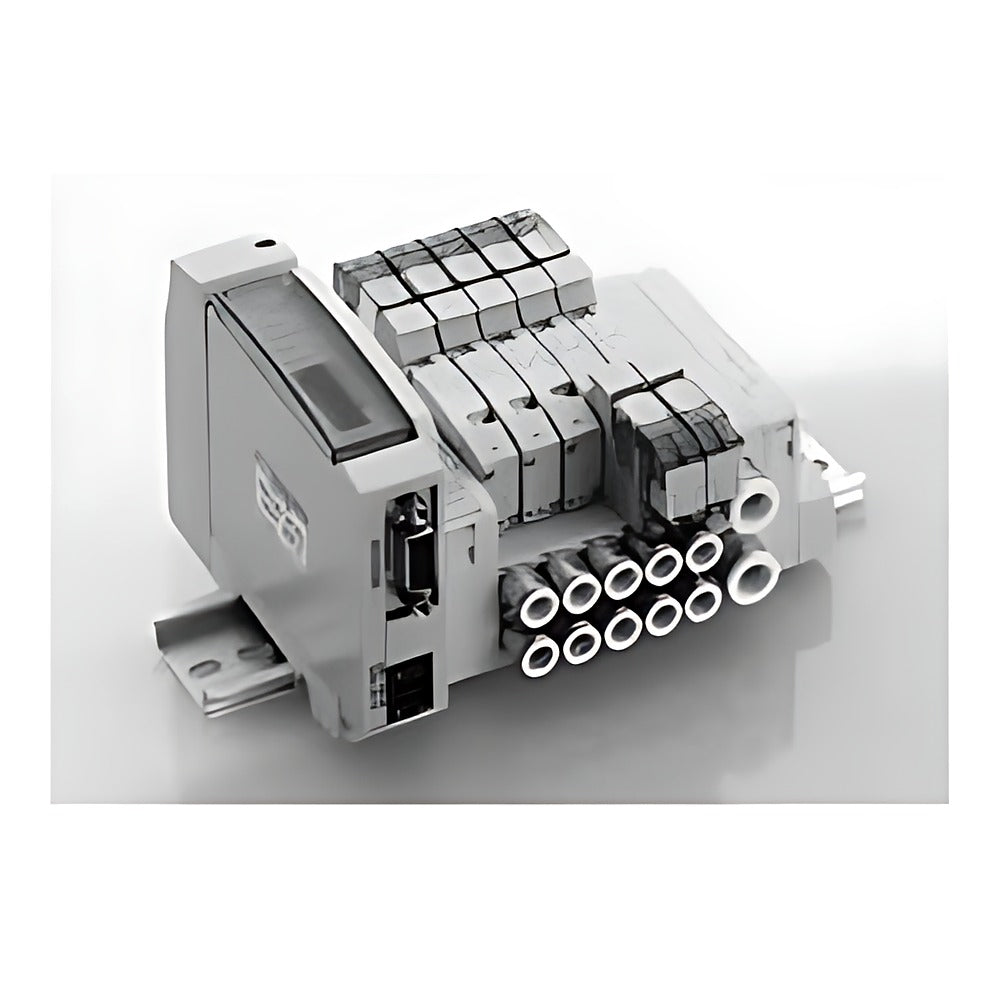

CKD MN4GB1/2-T Wiring-Saving Block Manifold, Base Piping

CKD MN4GB1/2-T Wiring-Saving Block Manifold, Base Piping

CKD MN4GB1/2-T wiring-saving block manifolds combine 4GB 5-port valve blocks with base-side A/B piping and a collective electrical block on a DIN rail.

Key features

  • A/B push-in fittings on the block side (base piping)
  • Terminal block, D-sub, flat cable or serial transmission electrical blocks
  • Optional wiring-saving cover (Q), residual-pressure exhaust (X/X1)
  • Up to 24 stations (4G1) or 20 stations (4G2) depending on wiring type
  • Valve blocks and single valves orderable separately for maintenance

Specifications

Manifold type Wiring-saving block manifold, DIN rail
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Solenoid points T10: 16, T30: 24
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 338-359
MN4GB110R-C4-T10-1-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB110R-C4-T10-2-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB110R-C4-T10-3-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB110R-C4-T10-4-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB110R-C4-T10-5-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB110R-C4-T10-6-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB110R-C4-T10-7-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB110R-C4-T10-8-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB110R-C4-T10-9-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB110R-C4-T10-10-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB110R-C4-T10-11-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB110R-C4-T10-12-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB110R-C4-T10-13-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB110R-C4-T10-14-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB110R-C4-T10-15-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB110R-C4-T10-16-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB110R-C4-T30-1-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB110R-C4-T30-2-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB110R-C4-T30-3-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB110R-C4-T30-4-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB110R-C4-T30-5-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB110R-C4-T30-6-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB110R-C4-T30-7-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB110R-C4-T30-8-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB110R-C4-T30-9-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB110R-C4-T30-10-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB110R-C4-T30-11-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB110R-C4-T30-12-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB110R-C4-T30-13-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB110R-C4-T30-14-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB110R-C4-T30-15-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB110R-C4-T30-16-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB110R-C4-T30-17-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB110R-C4-T30-18-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB110R-C4-T30-19-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB110R-C4-T30-20-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB110R-C4-T30-21-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB110R-C4-T30-22-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB110R-C4-T30-23-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB110R-C4-T30-24-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB110R-C6-T10-1-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB110R-C6-T10-2-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB110R-C6-T10-3-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB110R-C6-T10-4-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB110R-C6-T10-5-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB110R-C6-T10-6-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB110R-C6-T10-7-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB110R-C6-T10-8-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB110R-C6-T10-9-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB110R-C6-T10-10-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB110R-C6-T10-11-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB110R-C6-T10-12-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB110R-C6-T10-13-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB110R-C6-T10-14-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB110R-C6-T10-15-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB110R-C6-T10-16-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB110R-C6-T30-1-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB110R-C6-T30-2-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB110R-C6-T30-3-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB110R-C6-T30-4-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB110R-C6-T30-5-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB110R-C6-T30-6-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB110R-C6-T30-7-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB110R-C6-T30-8-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB110R-C6-T30-9-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB110R-C6-T30-10-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB110R-C6-T30-11-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB110R-C6-T30-12-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB110R-C6-T30-13-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB110R-C6-T30-14-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB110R-C6-T30-15-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB110R-C6-T30-16-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB110R-C6-T30-17-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB110R-C6-T30-18-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB110R-C6-T30-19-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB110R-C6-T30-20-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB110R-C6-T30-21-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB110R-C6-T30-22-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB110R-C6-T30-23-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB110R-C6-T30-24-3 Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB120R-C4-T10-1-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB120R-C4-T10-2-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB120R-C4-T10-3-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB120R-C4-T10-4-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB120R-C4-T10-5-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB120R-C4-T10-6-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB120R-C4-T10-7-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB120R-C4-T10-8-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB120R-C4-T30-1-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB120R-C4-T30-2-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB120R-C4-T30-3-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB120R-C4-T30-4-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB120R-C4-T30-5-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB120R-C4-T30-6-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB120R-C4-T30-7-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB120R-C4-T30-8-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB120R-C4-T30-9-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB120R-C4-T30-10-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB120R-C4-T30-11-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB120R-C4-T30-12-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB120R-C6-T10-1-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB120R-C6-T10-2-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB120R-C6-T10-3-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB120R-C6-T10-4-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB120R-C6-T10-5-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB120R-C6-T10-6-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB120R-C6-T10-7-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB120R-C6-T10-8-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB120R-C6-T30-1-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB120R-C6-T30-2-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB120R-C6-T30-3-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB120R-C6-T30-4-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB120R-C6-T30-5-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB120R-C6-T30-6-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB120R-C6-T30-7-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB120R-C6-T30-8-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB120R-C6-T30-9-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB120R-C6-T30-10-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB120R-C6-T30-11-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB120R-C6-T30-12-3 Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB130R-C4-T10-1-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB130R-C4-T10-2-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB130R-C4-T10-3-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB130R-C4-T10-4-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB130R-C4-T10-5-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB130R-C4-T10-6-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB130R-C4-T10-7-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB130R-C4-T10-8-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB130R-C4-T30-1-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB130R-C4-T30-2-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB130R-C4-T30-3-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB130R-C4-T30-4-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB130R-C4-T30-5-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB130R-C4-T30-6-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB130R-C4-T30-7-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB130R-C4-T30-8-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB130R-C4-T30-9-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB130R-C4-T30-10-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB130R-C4-T30-11-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB130R-C4-T30-12-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB130R-C6-T10-1-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB130R-C6-T10-2-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB130R-C6-T10-3-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB130R-C6-T10-4-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB130R-C6-T10-5-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB130R-C6-T10-6-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB130R-C6-T10-7-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB130R-C6-T10-8-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB130R-C6-T30-1-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB130R-C6-T30-2-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB130R-C6-T30-3-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB130R-C6-T30-4-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB130R-C6-T30-5-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB130R-C6-T30-6-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB130R-C6-T30-7-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB130R-C6-T30-8-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB130R-C6-T30-9-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB130R-C6-T30-10-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB130R-C6-T30-11-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB130R-C6-T30-12-3 Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB140R-C4-T10-1-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB140R-C4-T10-2-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB140R-C4-T10-3-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB140R-C4-T10-4-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB140R-C4-T10-5-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB140R-C4-T10-6-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB140R-C4-T10-7-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB140R-C4-T10-8-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB140R-C4-T30-1-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB140R-C4-T30-2-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB140R-C4-T30-3-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB140R-C4-T30-4-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB140R-C4-T30-5-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB140R-C4-T30-6-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB140R-C4-T30-7-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB140R-C4-T30-8-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB140R-C4-T30-9-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB140R-C4-T30-10-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB140R-C4-T30-11-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB140R-C4-T30-12-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB140R-C6-T10-1-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB140R-C6-T10-2-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB140R-C6-T10-3-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB140R-C6-T10-4-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB140R-C6-T10-5-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB140R-C6-T10-6-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB140R-C6-T10-7-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB140R-C6-T10-8-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB140R-C6-T30-1-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB140R-C6-T30-2-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB140R-C6-T30-3-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB140R-C6-T30-4-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB140R-C6-T30-5-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB140R-C6-T30-6-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB140R-C6-T30-7-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB140R-C6-T30-8-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB140R-C6-T30-9-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB140R-C6-T30-10-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB140R-C6-T30-11-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB140R-C6-T30-12-3 Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB150R-C4-T10-1-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB150R-C4-T10-2-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB150R-C4-T10-3-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB150R-C4-T10-4-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB150R-C4-T10-5-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB150R-C4-T10-6-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB150R-C4-T10-7-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB150R-C4-T10-8-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB150R-C4-T30-1-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB150R-C4-T30-2-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB150R-C4-T30-3-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB150R-C4-T30-4-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB150R-C4-T30-5-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB150R-C4-T30-6-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB150R-C4-T30-7-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB150R-C4-T30-8-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB150R-C4-T30-9-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB150R-C4-T30-10-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB150R-C4-T30-11-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB150R-C4-T30-12-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB150R-C6-T10-1-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB150R-C6-T10-2-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB150R-C6-T10-3-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB150R-C6-T10-4-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB150R-C6-T10-5-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB150R-C6-T10-6-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB150R-C6-T10-7-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB150R-C6-T10-8-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB150R-C6-T30-1-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB150R-C6-T30-2-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB150R-C6-T30-3-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB150R-C6-T30-4-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB150R-C6-T30-5-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB150R-C6-T30-6-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB150R-C6-T30-7-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB150R-C6-T30-8-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB150R-C6-T30-9-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB150R-C6-T30-10-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB150R-C6-T30-11-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB150R-C6-T30-12-3 Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C4-T10-1-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB180R-C4-T10-2-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB180R-C4-T10-3-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB180R-C4-T10-4-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB180R-C4-T10-5-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB180R-C4-T10-6-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB180R-C4-T10-7-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB180R-C4-T10-8-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB180R-C4-T10-9-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB180R-C4-T10-10-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB180R-C4-T10-11-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB180R-C4-T10-12-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB180R-C4-T10-13-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB180R-C4-T10-14-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB180R-C4-T10-15-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB180R-C4-T10-16-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB180R-C4-T30-1-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB180R-C4-T30-2-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB180R-C4-T30-3-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB180R-C4-T30-4-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB180R-C4-T30-5-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB180R-C4-T30-6-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB180R-C4-T30-7-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB180R-C4-T30-8-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB180R-C4-T30-9-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB180R-C4-T30-10-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB180R-C4-T30-11-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB180R-C4-T30-12-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C4-T30-13-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB180R-C4-T30-14-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB180R-C4-T30-15-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB180R-C4-T30-16-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB180R-C4-T30-17-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB180R-C4-T30-18-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB180R-C4-T30-19-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB180R-C4-T30-20-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB180R-C4-T30-21-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB180R-C4-T30-22-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB180R-C4-T30-23-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB180R-C4-T30-24-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB180R-C6-T10-1-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB180R-C6-T10-2-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB180R-C6-T10-3-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB180R-C6-T10-4-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB180R-C6-T10-5-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB180R-C6-T10-6-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB180R-C6-T10-7-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB180R-C6-T10-8-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB180R-C6-T10-9-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB180R-C6-T10-10-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB180R-C6-T10-11-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB180R-C6-T10-12-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB180R-C6-T10-13-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB180R-C6-T10-14-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB180R-C6-T10-15-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB180R-C6-T10-16-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB180R-C6-T30-1-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB180R-C6-T30-2-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB180R-C6-T30-3-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB180R-C6-T30-4-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB180R-C6-T30-5-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB180R-C6-T30-6-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB180R-C6-T30-7-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB180R-C6-T30-8-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB180R-C6-T30-9-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB180R-C6-T30-10-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB180R-C6-T30-11-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB180R-C6-T30-12-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C6-T30-13-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB180R-C6-T30-14-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB180R-C6-T30-15-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB180R-C6-T30-16-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB180R-C6-T30-17-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB180R-C6-T30-18-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB180R-C6-T30-19-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB180R-C6-T30-20-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB180R-C6-T30-21-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB180R-C6-T30-22-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB180R-C6-T30-23-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB180R-C6-T30-24-3 Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB210R-C4-T10-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C4-T10-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C4-T10-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C4-T10-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C4-T10-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C4-T10-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C4-T10-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C4-T10-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C4-T10-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C4-T10-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C4-T10-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C4-T10-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C4-T10-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C4-T10-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C4-T10-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C4-T10-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C4-T30-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C4-T30-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C4-T30-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C4-T30-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C4-T30-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C4-T30-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C4-T30-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C4-T30-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C4-T30-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C4-T30-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C4-T30-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C4-T30-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C4-T30-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C4-T30-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C4-T30-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C4-T30-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C4-T30-17-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C4-T30-18-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C4-T30-19-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C4-T30-20-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB210R-C6-T10-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C6-T10-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C6-T10-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C6-T10-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C6-T10-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C6-T10-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C6-T10-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C6-T10-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C6-T10-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C6-T10-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C6-T10-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C6-T10-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C6-T10-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C6-T10-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C6-T10-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C6-T10-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C6-T30-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C6-T30-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C6-T30-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C6-T30-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C6-T30-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C6-T30-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C6-T30-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C6-T30-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C6-T30-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C6-T30-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C6-T30-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C6-T30-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C6-T30-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C6-T30-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C6-T30-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C6-T30-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C6-T30-17-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C6-T30-18-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C6-T30-19-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C6-T30-20-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB210R-C8-T10-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C8-T10-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C8-T10-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C8-T10-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C8-T10-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C8-T10-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C8-T10-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C8-T10-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C8-T10-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C8-T10-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C8-T10-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C8-T10-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C8-T10-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C8-T10-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C8-T10-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C8-T10-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C8-T30-1-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C8-T30-2-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C8-T30-3-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C8-T30-4-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C8-T30-5-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C8-T30-6-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C8-T30-7-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C8-T30-8-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C8-T30-9-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C8-T30-10-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C8-T30-11-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C8-T30-12-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C8-T30-13-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C8-T30-14-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C8-T30-15-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C8-T30-16-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C8-T30-17-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C8-T30-18-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C8-T30-19-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C8-T30-20-3 Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB220R-C4-T10-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C4-T10-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C4-T10-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C4-T10-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C4-T10-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C4-T10-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C4-T10-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C4-T10-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C4-T30-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C4-T30-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C4-T30-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C4-T30-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C4-T30-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C4-T30-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C4-T30-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C4-T30-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C4-T30-9-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C4-T30-10-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C4-T30-11-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C4-T30-12-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB220R-C6-T10-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C6-T10-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C6-T10-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C6-T10-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C6-T10-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C6-T10-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C6-T10-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C6-T10-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C6-T30-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C6-T30-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C6-T30-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C6-T30-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C6-T30-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C6-T30-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C6-T30-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C6-T30-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C6-T30-9-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C6-T30-10-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C6-T30-11-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C6-T30-12-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB220R-C8-T10-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C8-T10-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C8-T10-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C8-T10-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C8-T10-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C8-T10-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C8-T10-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C8-T10-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C8-T30-1-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C8-T30-2-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C8-T30-3-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C8-T30-4-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C8-T30-5-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C8-T30-6-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C8-T30-7-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C8-T30-8-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C8-T30-9-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C8-T30-10-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C8-T30-11-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C8-T30-12-3 Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C4-T10-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C4-T10-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C4-T10-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C4-T10-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C4-T10-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C4-T10-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C4-T10-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C4-T10-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C4-T30-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C4-T30-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C4-T30-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C4-T30-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C4-T30-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C4-T30-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C4-T30-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C4-T30-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C4-T30-9-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C4-T30-10-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C4-T30-11-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C4-T30-12-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C6-T10-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C6-T10-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C6-T10-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C6-T10-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C6-T10-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C6-T10-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C6-T10-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C6-T10-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C6-T30-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C6-T30-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C6-T30-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C6-T30-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C6-T30-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C6-T30-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C6-T30-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C6-T30-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C6-T30-9-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C6-T30-10-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C6-T30-11-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C6-T30-12-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C8-T10-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C8-T10-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C8-T10-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C8-T10-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C8-T10-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C8-T10-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C8-T10-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C8-T10-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C8-T30-1-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C8-T30-2-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C8-T30-3-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C8-T30-4-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C8-T30-5-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C8-T30-6-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C8-T30-7-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C8-T30-8-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C8-T30-9-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C8-T30-10-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C8-T30-11-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C8-T30-12-3 Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C4-T10-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C4-T10-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C4-T10-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C4-T10-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C4-T10-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C4-T10-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C4-T10-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C4-T10-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C4-T30-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C4-T30-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C4-T30-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C4-T30-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C4-T30-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C4-T30-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C4-T30-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C4-T30-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C4-T30-9-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C4-T30-10-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C4-T30-11-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C4-T30-12-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C6-T10-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C6-T10-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C6-T10-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C6-T10-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C6-T10-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C6-T10-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C6-T10-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C6-T10-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C6-T30-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C6-T30-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C6-T30-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C6-T30-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C6-T30-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C6-T30-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C6-T30-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C6-T30-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C6-T30-9-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C6-T30-10-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C6-T30-11-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C6-T30-12-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C8-T10-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C8-T10-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C8-T10-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C8-T10-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C8-T10-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C8-T10-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C8-T10-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C8-T10-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C8-T30-1-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C8-T30-2-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C8-T30-3-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C8-T30-4-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C8-T30-5-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C8-T30-6-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C8-T30-7-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C8-T30-8-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C8-T30-9-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C8-T30-10-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C8-T30-11-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C8-T30-12-3 Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C4-T10-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C4-T10-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C4-T10-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C4-T10-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C4-T10-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C4-T10-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C4-T10-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C4-T10-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C4-T30-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C4-T30-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C4-T30-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C4-T30-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C4-T30-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C4-T30-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C4-T30-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C4-T30-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C4-T30-9-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C4-T30-10-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C4-T30-11-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C4-T30-12-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C6-T10-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C6-T10-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C6-T10-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C6-T10-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C6-T10-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C6-T10-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C6-T10-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C6-T10-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C6-T30-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C6-T30-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C6-T30-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C6-T30-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C6-T30-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C6-T30-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C6-T30-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C6-T30-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C6-T30-9-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C6-T30-10-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C6-T30-11-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C6-T30-12-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C8-T10-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C8-T10-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C8-T10-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C8-T10-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C8-T10-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C8-T10-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C8-T10-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C8-T10-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C8-T30-1-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C8-T30-2-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C8-T30-3-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C8-T30-4-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C8-T30-5-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C8-T30-6-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C8-T30-7-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C8-T30-8-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C8-T30-9-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C8-T30-10-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C8-T30-11-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C8-T30-12-3 Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C4-T10-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C4-T10-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C4-T10-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C4-T10-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C4-T10-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C4-T10-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C4-T10-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C4-T10-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C4-T10-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C4-T10-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C4-T10-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C4-T10-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C4-T10-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C4-T10-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C4-T10-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C4-T10-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C4-T30-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C4-T30-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C4-T30-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C4-T30-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C4-T30-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C4-T30-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C4-T30-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C4-T30-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C4-T30-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C4-T30-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C4-T30-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C4-T30-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C4-T30-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C4-T30-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C4-T30-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C4-T30-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C4-T30-17-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C4-T30-18-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C4-T30-19-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C4-T30-20-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB280R-C6-T10-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C6-T10-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C6-T10-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C6-T10-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C6-T10-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C6-T10-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C6-T10-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C6-T10-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C6-T10-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C6-T10-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C6-T10-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C6-T10-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C6-T10-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C6-T10-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C6-T10-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C6-T10-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C6-T30-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C6-T30-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C6-T30-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C6-T30-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C6-T30-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C6-T30-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C6-T30-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C6-T30-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C6-T30-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C6-T30-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C6-T30-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C6-T30-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C6-T30-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C6-T30-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C6-T30-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C6-T30-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C6-T30-17-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C6-T30-18-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C6-T30-19-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C6-T30-20-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB280R-C8-T10-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C8-T10-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C8-T10-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C8-T10-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C8-T10-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C8-T10-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C8-T10-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C8-T10-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C8-T10-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C8-T10-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C8-T10-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C8-T10-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C8-T10-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C8-T10-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C8-T10-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C8-T10-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C8-T30-1-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C8-T30-2-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C8-T30-3-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C8-T30-4-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C8-T30-5-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C8-T30-6-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C8-T30-7-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C8-T30-8-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C8-T30-9-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C8-T30-10-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C8-T30-11-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C8-T30-12-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C8-T30-13-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C8-T30-14-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C8-T30-15-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C8-T30-16-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C8-T30-17-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C8-T30-18-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C8-T30-19-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C8-T30-20-3 Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
Valve ManifoldsCKD
776 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GB1/2-T Wiring-Saving Block Manifold, Base Piping

Brand CKD·Valve Manifolds

Available part numbers (776)

MN4GB110R-C4-T10-1-3, MN4GB110R-C4-T10-2-3, MN4GB110R-C4-T10-3-3, MN4GB110R-C4-T10-4-3, MN4GB110R-C4-T10-5-3, MN4GB110R-C4-T10-6-3, MN4GB110R-C4-T10-7-3, MN4GB110R-C4-T10-8-3, MN4GB110R-C4-T10-9-3, MN4GB110R-C4-T10-10-3 + 766 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MN4GB110R-C4-T10-1-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB110R-C4-T10-2-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB110R-C4-T10-3-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB110R-C4-T10-4-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB110R-C4-T10-5-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB110R-C4-T10-6-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB110R-C4-T10-7-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB110R-C4-T10-8-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB110R-C4-T10-9-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB110R-C4-T10-10-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB110R-C4-T10-11-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB110R-C4-T10-12-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB110R-C4-T10-13-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB110R-C4-T10-14-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB110R-C4-T10-15-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB110R-C4-T10-16-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB110R-C4-T30-1-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB110R-C4-T30-2-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB110R-C4-T30-3-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB110R-C4-T30-4-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB110R-C4-T30-5-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB110R-C4-T30-6-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB110R-C4-T30-7-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB110R-C4-T30-8-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB110R-C4-T30-9-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB110R-C4-T30-10-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB110R-C4-T30-11-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB110R-C4-T30-12-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB110R-C4-T30-13-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB110R-C4-T30-14-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB110R-C4-T30-15-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB110R-C4-T30-16-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB110R-C4-T30-17-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB110R-C4-T30-18-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB110R-C4-T30-19-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB110R-C4-T30-20-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB110R-C4-T30-21-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB110R-C4-T30-22-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB110R-C4-T30-23-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB110R-C4-T30-24-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB110R-C6-T10-1-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB110R-C6-T10-2-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB110R-C6-T10-3-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB110R-C6-T10-4-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB110R-C6-T10-5-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB110R-C6-T10-6-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB110R-C6-T10-7-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB110R-C6-T10-8-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB110R-C6-T10-9-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB110R-C6-T10-10-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB110R-C6-T10-11-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB110R-C6-T10-12-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB110R-C6-T10-13-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB110R-C6-T10-14-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB110R-C6-T10-15-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB110R-C6-T10-16-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB110R-C6-T30-1-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB110R-C6-T30-2-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB110R-C6-T30-3-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB110R-C6-T30-4-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB110R-C6-T30-5-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB110R-C6-T30-6-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB110R-C6-T30-7-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB110R-C6-T30-8-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB110R-C6-T30-9-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB110R-C6-T30-10-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB110R-C6-T30-11-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB110R-C6-T30-12-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB110R-C6-T30-13-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB110R-C6-T30-14-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB110R-C6-T30-15-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB110R-C6-T30-16-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB110R-C6-T30-17-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB110R-C6-T30-18-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB110R-C6-T30-19-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB110R-C6-T30-20-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB110R-C6-T30-21-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB110R-C6-T30-22-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB110R-C6-T30-23-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB110R-C6-T30-24-3Model: MN4GB1 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB120R-C4-T10-1-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB120R-C4-T10-2-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB120R-C4-T10-3-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB120R-C4-T10-4-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB120R-C4-T10-5-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB120R-C4-T10-6-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB120R-C4-T10-7-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB120R-C4-T10-8-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB120R-C4-T30-1-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB120R-C4-T30-2-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB120R-C4-T30-3-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB120R-C4-T30-4-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB120R-C4-T30-5-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB120R-C4-T30-6-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB120R-C4-T30-7-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB120R-C4-T30-8-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB120R-C4-T30-9-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB120R-C4-T30-10-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB120R-C4-T30-11-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB120R-C4-T30-12-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB120R-C6-T10-1-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB120R-C6-T10-2-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB120R-C6-T10-3-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB120R-C6-T10-4-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB120R-C6-T10-5-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB120R-C6-T10-6-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB120R-C6-T10-7-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB120R-C6-T10-8-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB120R-C6-T30-1-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB120R-C6-T30-2-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB120R-C6-T30-3-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB120R-C6-T30-4-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB120R-C6-T30-5-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB120R-C6-T30-6-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB120R-C6-T30-7-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB120R-C6-T30-8-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB120R-C6-T30-9-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB120R-C6-T30-10-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB120R-C6-T30-11-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB120R-C6-T30-12-3Model: MN4GB1 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB130R-C4-T10-1-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB130R-C4-T10-2-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB130R-C4-T10-3-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB130R-C4-T10-4-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB130R-C4-T10-5-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB130R-C4-T10-6-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB130R-C4-T10-7-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB130R-C4-T10-8-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB130R-C4-T30-1-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB130R-C4-T30-2-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB130R-C4-T30-3-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB130R-C4-T30-4-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB130R-C4-T30-5-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB130R-C4-T30-6-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB130R-C4-T30-7-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB130R-C4-T30-8-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB130R-C4-T30-9-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB130R-C4-T30-10-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB130R-C4-T30-11-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB130R-C4-T30-12-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB130R-C6-T10-1-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB130R-C6-T10-2-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB130R-C6-T10-3-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB130R-C6-T10-4-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB130R-C6-T10-5-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB130R-C6-T10-6-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB130R-C6-T10-7-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB130R-C6-T10-8-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB130R-C6-T30-1-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB130R-C6-T30-2-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB130R-C6-T30-3-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB130R-C6-T30-4-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB130R-C6-T30-5-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB130R-C6-T30-6-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB130R-C6-T30-7-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB130R-C6-T30-8-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB130R-C6-T30-9-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB130R-C6-T30-10-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB130R-C6-T30-11-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB130R-C6-T30-12-3Model: MN4GB1 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB140R-C4-T10-1-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB140R-C4-T10-2-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB140R-C4-T10-3-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB140R-C4-T10-4-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB140R-C4-T10-5-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB140R-C4-T10-6-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB140R-C4-T10-7-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB140R-C4-T10-8-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB140R-C4-T30-1-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB140R-C4-T30-2-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB140R-C4-T30-3-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB140R-C4-T30-4-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB140R-C4-T30-5-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB140R-C4-T30-6-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB140R-C4-T30-7-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB140R-C4-T30-8-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB140R-C4-T30-9-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB140R-C4-T30-10-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB140R-C4-T30-11-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB140R-C4-T30-12-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB140R-C6-T10-1-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB140R-C6-T10-2-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB140R-C6-T10-3-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB140R-C6-T10-4-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB140R-C6-T10-5-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB140R-C6-T10-6-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB140R-C6-T10-7-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB140R-C6-T10-8-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB140R-C6-T30-1-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB140R-C6-T30-2-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB140R-C6-T30-3-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB140R-C6-T30-4-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB140R-C6-T30-5-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB140R-C6-T30-6-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB140R-C6-T30-7-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB140R-C6-T30-8-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB140R-C6-T30-9-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB140R-C6-T30-10-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB140R-C6-T30-11-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB140R-C6-T30-12-3Model: MN4GB1 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB150R-C4-T10-1-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB150R-C4-T10-2-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB150R-C4-T10-3-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB150R-C4-T10-4-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB150R-C4-T10-5-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB150R-C4-T10-6-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB150R-C4-T10-7-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB150R-C4-T10-8-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB150R-C4-T30-1-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB150R-C4-T30-2-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB150R-C4-T30-3-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB150R-C4-T30-4-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB150R-C4-T30-5-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB150R-C4-T30-6-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB150R-C4-T30-7-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB150R-C4-T30-8-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB150R-C4-T30-9-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB150R-C4-T30-10-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB150R-C4-T30-11-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB150R-C4-T30-12-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB150R-C6-T10-1-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB150R-C6-T10-2-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB150R-C6-T10-3-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB150R-C6-T10-4-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB150R-C6-T10-5-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB150R-C6-T10-6-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB150R-C6-T10-7-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB150R-C6-T10-8-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB150R-C6-T30-1-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB150R-C6-T30-2-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB150R-C6-T30-3-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB150R-C6-T30-4-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB150R-C6-T30-5-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB150R-C6-T30-6-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB150R-C6-T30-7-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB150R-C6-T30-8-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB150R-C6-T30-9-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB150R-C6-T30-10-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB150R-C6-T30-11-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB150R-C6-T30-12-3Model: MN4GB1 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C4-T10-1-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB180R-C4-T10-2-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB180R-C4-T10-3-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB180R-C4-T10-4-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB180R-C4-T10-5-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB180R-C4-T10-6-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB180R-C4-T10-7-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB180R-C4-T10-8-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB180R-C4-T10-9-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB180R-C4-T10-10-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB180R-C4-T10-11-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB180R-C4-T10-12-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB180R-C4-T10-13-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB180R-C4-T10-14-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB180R-C4-T10-15-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB180R-C4-T10-16-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB180R-C4-T30-1-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB180R-C4-T30-2-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB180R-C4-T30-3-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB180R-C4-T30-4-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB180R-C4-T30-5-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB180R-C4-T30-6-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB180R-C4-T30-7-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB180R-C4-T30-8-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB180R-C4-T30-9-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB180R-C4-T30-10-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB180R-C4-T30-11-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB180R-C4-T30-12-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C4-T30-13-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB180R-C4-T30-14-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB180R-C4-T30-15-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB180R-C4-T30-16-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB180R-C4-T30-17-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB180R-C4-T30-18-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB180R-C4-T30-19-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB180R-C4-T30-20-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB180R-C4-T30-21-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB180R-C4-T30-22-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB180R-C4-T30-23-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB180R-C4-T30-24-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB180R-C6-T10-1-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB180R-C6-T10-2-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB180R-C6-T10-3-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB180R-C6-T10-4-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB180R-C6-T10-5-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB180R-C6-T10-6-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB180R-C6-T10-7-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB180R-C6-T10-8-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB180R-C6-T10-9-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB180R-C6-T10-10-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB180R-C6-T10-11-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB180R-C6-T10-12-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB180R-C6-T10-13-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB180R-C6-T10-14-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB180R-C6-T10-15-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB180R-C6-T10-16-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB180R-C6-T30-1-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB180R-C6-T30-2-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB180R-C6-T30-3-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB180R-C6-T30-4-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB180R-C6-T30-5-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB180R-C6-T30-6-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB180R-C6-T30-7-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB180R-C6-T30-8-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB180R-C6-T30-9-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB180R-C6-T30-10-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB180R-C6-T30-11-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB180R-C6-T30-12-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB180R-C6-T30-13-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB180R-C6-T30-14-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB180R-C6-T30-15-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB180R-C6-T30-16-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB180R-C6-T30-17-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB180R-C6-T30-18-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB180R-C6-T30-19-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB180R-C6-T30-20-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB180R-C6-T30-21-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 21
MN4GB180R-C6-T30-22-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 22
MN4GB180R-C6-T30-23-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 23
MN4GB180R-C6-T30-24-3Model: MN4GB1 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 24
MN4GB210R-C4-T10-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C4-T10-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C4-T10-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C4-T10-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C4-T10-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C4-T10-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C4-T10-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C4-T10-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C4-T10-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C4-T10-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C4-T10-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C4-T10-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C4-T10-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C4-T10-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C4-T10-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C4-T10-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C4-T30-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C4-T30-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C4-T30-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C4-T30-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C4-T30-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C4-T30-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C4-T30-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C4-T30-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C4-T30-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C4-T30-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C4-T30-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C4-T30-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C4-T30-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C4-T30-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C4-T30-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C4-T30-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C4-T30-17-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C4-T30-18-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C4-T30-19-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C4-T30-20-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB210R-C6-T10-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C6-T10-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C6-T10-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C6-T10-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C6-T10-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C6-T10-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C6-T10-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C6-T10-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C6-T10-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C6-T10-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C6-T10-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C6-T10-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C6-T10-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C6-T10-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C6-T10-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C6-T10-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C6-T30-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C6-T30-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C6-T30-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C6-T30-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C6-T30-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C6-T30-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C6-T30-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C6-T30-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C6-T30-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C6-T30-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C6-T30-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C6-T30-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C6-T30-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C6-T30-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C6-T30-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C6-T30-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C6-T30-17-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C6-T30-18-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C6-T30-19-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C6-T30-20-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB210R-C8-T10-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB210R-C8-T10-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB210R-C8-T10-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB210R-C8-T10-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB210R-C8-T10-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB210R-C8-T10-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB210R-C8-T10-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB210R-C8-T10-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB210R-C8-T10-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB210R-C8-T10-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB210R-C8-T10-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB210R-C8-T10-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB210R-C8-T10-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB210R-C8-T10-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB210R-C8-T10-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB210R-C8-T10-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB210R-C8-T30-1-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB210R-C8-T30-2-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB210R-C8-T30-3-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB210R-C8-T30-4-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB210R-C8-T30-5-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB210R-C8-T30-6-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB210R-C8-T30-7-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB210R-C8-T30-8-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB210R-C8-T30-9-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB210R-C8-T30-10-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB210R-C8-T30-11-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB210R-C8-T30-12-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB210R-C8-T30-13-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB210R-C8-T30-14-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB210R-C8-T30-15-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB210R-C8-T30-16-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB210R-C8-T30-17-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB210R-C8-T30-18-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB210R-C8-T30-19-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB210R-C8-T30-20-3Model: MN4GB2 | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB220R-C4-T10-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C4-T10-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C4-T10-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C4-T10-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C4-T10-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C4-T10-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C4-T10-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C4-T10-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C4-T30-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C4-T30-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C4-T30-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C4-T30-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C4-T30-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C4-T30-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C4-T30-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C4-T30-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C4-T30-9-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C4-T30-10-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C4-T30-11-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C4-T30-12-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB220R-C6-T10-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C6-T10-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C6-T10-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C6-T10-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C6-T10-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C6-T10-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C6-T10-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C6-T10-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C6-T30-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C6-T30-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C6-T30-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C6-T30-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C6-T30-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C6-T30-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C6-T30-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C6-T30-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C6-T30-9-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C6-T30-10-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C6-T30-11-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C6-T30-12-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB220R-C8-T10-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB220R-C8-T10-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB220R-C8-T10-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB220R-C8-T10-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB220R-C8-T10-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB220R-C8-T10-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB220R-C8-T10-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB220R-C8-T10-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB220R-C8-T30-1-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB220R-C8-T30-2-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB220R-C8-T30-3-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB220R-C8-T30-4-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB220R-C8-T30-5-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB220R-C8-T30-6-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB220R-C8-T30-7-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB220R-C8-T30-8-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB220R-C8-T30-9-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB220R-C8-T30-10-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB220R-C8-T30-11-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB220R-C8-T30-12-3Model: MN4GB2 | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C4-T10-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C4-T10-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C4-T10-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C4-T10-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C4-T10-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C4-T10-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C4-T10-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C4-T10-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C4-T30-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C4-T30-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C4-T30-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C4-T30-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C4-T30-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C4-T30-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C4-T30-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C4-T30-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C4-T30-9-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C4-T30-10-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C4-T30-11-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C4-T30-12-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C6-T10-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C6-T10-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C6-T10-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C6-T10-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C6-T10-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C6-T10-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C6-T10-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C6-T10-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C6-T30-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C6-T30-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C6-T30-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C6-T30-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C6-T30-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C6-T30-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C6-T30-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C6-T30-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C6-T30-9-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C6-T30-10-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C6-T30-11-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C6-T30-12-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB230R-C8-T10-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB230R-C8-T10-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB230R-C8-T10-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB230R-C8-T10-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB230R-C8-T10-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB230R-C8-T10-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB230R-C8-T10-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB230R-C8-T10-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB230R-C8-T30-1-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB230R-C8-T30-2-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB230R-C8-T30-3-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB230R-C8-T30-4-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB230R-C8-T30-5-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB230R-C8-T30-6-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB230R-C8-T30-7-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB230R-C8-T30-8-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB230R-C8-T30-9-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB230R-C8-T30-10-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB230R-C8-T30-11-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB230R-C8-T30-12-3Model: MN4GB2 | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C4-T10-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C4-T10-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C4-T10-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C4-T10-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C4-T10-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C4-T10-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C4-T10-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C4-T10-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C4-T30-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C4-T30-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C4-T30-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C4-T30-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C4-T30-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C4-T30-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C4-T30-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C4-T30-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C4-T30-9-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C4-T30-10-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C4-T30-11-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C4-T30-12-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C6-T10-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C6-T10-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C6-T10-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C6-T10-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C6-T10-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C6-T10-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C6-T10-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C6-T10-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C6-T30-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C6-T30-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C6-T30-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C6-T30-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C6-T30-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C6-T30-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C6-T30-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C6-T30-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C6-T30-9-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C6-T30-10-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C6-T30-11-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C6-T30-12-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB240R-C8-T10-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB240R-C8-T10-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB240R-C8-T10-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB240R-C8-T10-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB240R-C8-T10-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB240R-C8-T10-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB240R-C8-T10-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB240R-C8-T10-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB240R-C8-T30-1-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB240R-C8-T30-2-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB240R-C8-T30-3-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB240R-C8-T30-4-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB240R-C8-T30-5-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB240R-C8-T30-6-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB240R-C8-T30-7-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB240R-C8-T30-8-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB240R-C8-T30-9-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB240R-C8-T30-10-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB240R-C8-T30-11-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB240R-C8-T30-12-3Model: MN4GB2 | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C4-T10-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C4-T10-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C4-T10-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C4-T10-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C4-T10-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C4-T10-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C4-T10-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C4-T10-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C4-T30-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C4-T30-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C4-T30-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C4-T30-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C4-T30-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C4-T30-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C4-T30-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C4-T30-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C4-T30-9-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C4-T30-10-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C4-T30-11-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C4-T30-12-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C6-T10-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C6-T10-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C6-T10-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C6-T10-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C6-T10-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C6-T10-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C6-T10-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C6-T10-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C6-T30-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C6-T30-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C6-T30-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C6-T30-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C6-T30-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C6-T30-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C6-T30-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C6-T30-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C6-T30-9-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C6-T30-10-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C6-T30-11-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C6-T30-12-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB250R-C8-T10-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB250R-C8-T10-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB250R-C8-T10-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB250R-C8-T10-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB250R-C8-T10-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB250R-C8-T10-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB250R-C8-T10-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB250R-C8-T10-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB250R-C8-T30-1-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB250R-C8-T30-2-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB250R-C8-T30-3-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB250R-C8-T30-4-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB250R-C8-T30-5-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB250R-C8-T30-6-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB250R-C8-T30-7-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB250R-C8-T30-8-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB250R-C8-T30-9-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB250R-C8-T30-10-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB250R-C8-T30-11-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB250R-C8-T30-12-3Model: MN4GB2 | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C4-T10-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C4-T10-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C4-T10-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C4-T10-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C4-T10-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C4-T10-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C4-T10-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C4-T10-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C4-T10-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C4-T10-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C4-T10-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C4-T10-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C4-T10-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C4-T10-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C4-T10-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C4-T10-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C4-T30-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C4-T30-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C4-T30-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C4-T30-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C4-T30-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C4-T30-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C4-T30-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C4-T30-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C4-T30-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C4-T30-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C4-T30-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C4-T30-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C4-T30-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C4-T30-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C4-T30-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C4-T30-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C4-T30-17-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C4-T30-18-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C4-T30-19-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C4-T30-20-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB280R-C6-T10-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C6-T10-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C6-T10-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C6-T10-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C6-T10-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C6-T10-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C6-T10-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C6-T10-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C6-T10-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C6-T10-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C6-T10-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C6-T10-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C6-T10-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C6-T10-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C6-T10-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C6-T10-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C6-T30-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C6-T30-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C6-T30-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C6-T30-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C6-T30-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C6-T30-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C6-T30-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C6-T30-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C6-T30-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C6-T30-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C6-T30-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C6-T30-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C6-T30-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C6-T30-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C6-T30-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C6-T30-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C6-T30-17-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C6-T30-18-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C6-T30-19-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C6-T30-20-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
MN4GB280R-C8-T10-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 1
MN4GB280R-C8-T10-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
MN4GB280R-C8-T10-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
MN4GB280R-C8-T10-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
MN4GB280R-C8-T10-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
MN4GB280R-C8-T10-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
MN4GB280R-C8-T10-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
MN4GB280R-C8-T10-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
MN4GB280R-C8-T10-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
MN4GB280R-C8-T10-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
MN4GB280R-C8-T10-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
MN4GB280R-C8-T10-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
MN4GB280R-C8-T10-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
MN4GB280R-C8-T10-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
MN4GB280R-C8-T10-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
MN4GB280R-C8-T10-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
MN4GB280R-C8-T30-1-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 1
MN4GB280R-C8-T30-2-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
MN4GB280R-C8-T30-3-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
MN4GB280R-C8-T30-4-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
MN4GB280R-C8-T30-5-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
MN4GB280R-C8-T30-6-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
MN4GB280R-C8-T30-7-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
MN4GB280R-C8-T30-8-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
MN4GB280R-C8-T30-9-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
MN4GB280R-C8-T30-10-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
MN4GB280R-C8-T30-11-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
MN4GB280R-C8-T30-12-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
MN4GB280R-C8-T30-13-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
MN4GB280R-C8-T30-14-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
MN4GB280R-C8-T30-15-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
MN4GB280R-C8-T30-16-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
MN4GB280R-C8-T30-17-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
MN4GB280R-C8-T30-18-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
MN4GB280R-C8-T30-19-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
MN4GB280R-C8-T30-20-3Model: MN4GB2 | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
