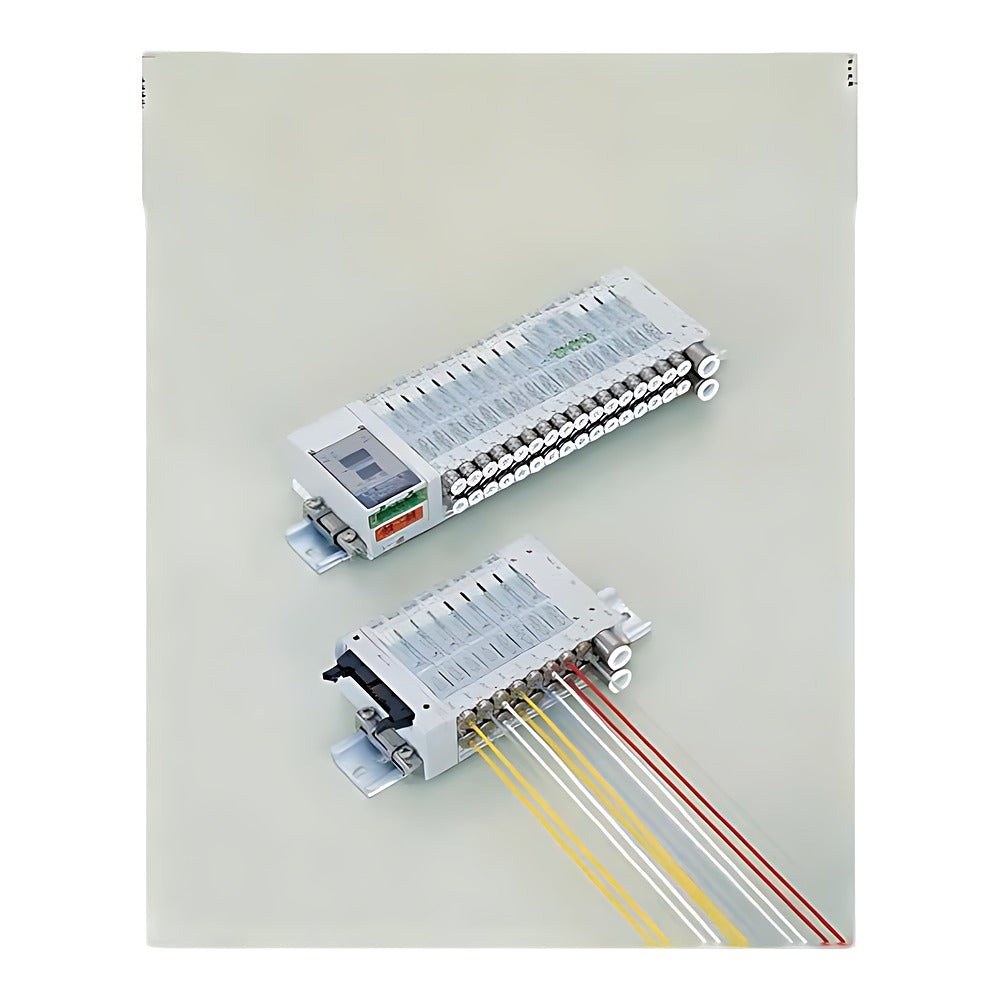

CKD MN4GBX12 4G1/4G2 Mix Block Manifold (Components)

CKD MN4GBX12 / MN3GBX12 block manifold that combines 4G1 and 4G2 size valve blocks on one DIN rail using a mix block.

Key features

Mix block N4G12R-MIX (49 g) joins 4G1 blocks (left) and 4G2 blocks (right, viewed from piping side); reverse order not possible
Manifold code MN4GBX12R- / MN3GBX12R- followed by port size, wiring, terminal layout, options, stations and voltage per MN4GB series charts
Individual wiring or wiring-reduced (T10/T11, T30, T5, T6G1, T7, T8 serial) versions
Maximum 20 stations; DIN rail N4GR-BAA(length) ordered by length
Suits cylinders 20 to 80 mm bore

Specifications

Series	MN4GBX12 / MN3GBX12
Valve sizes	4G1 and 4G2 mixed
Max. stations	20
Mounting	DIN rail
Mix block mass	49 g
Specifications	As MN4GB series
Source	CKD Korea catalog CB-023SK-9, p. 474-475

N4GB110R-C6-H-3		Component: Valve block, 4GB1 valve (example) \| Size: 4G1
N4GB210R-C8-H-3		Component: Valve block, 4GB2 valve (example) \| Size: 4G2

Valve ManifoldsCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GBX12 4G1/4G2 Mix Block Manifold (Components)

Brand CKD·Valve Manifolds

Available part numbers (2)

N4GB110R-C6-H-3, N4GB210R-C8-H-3
