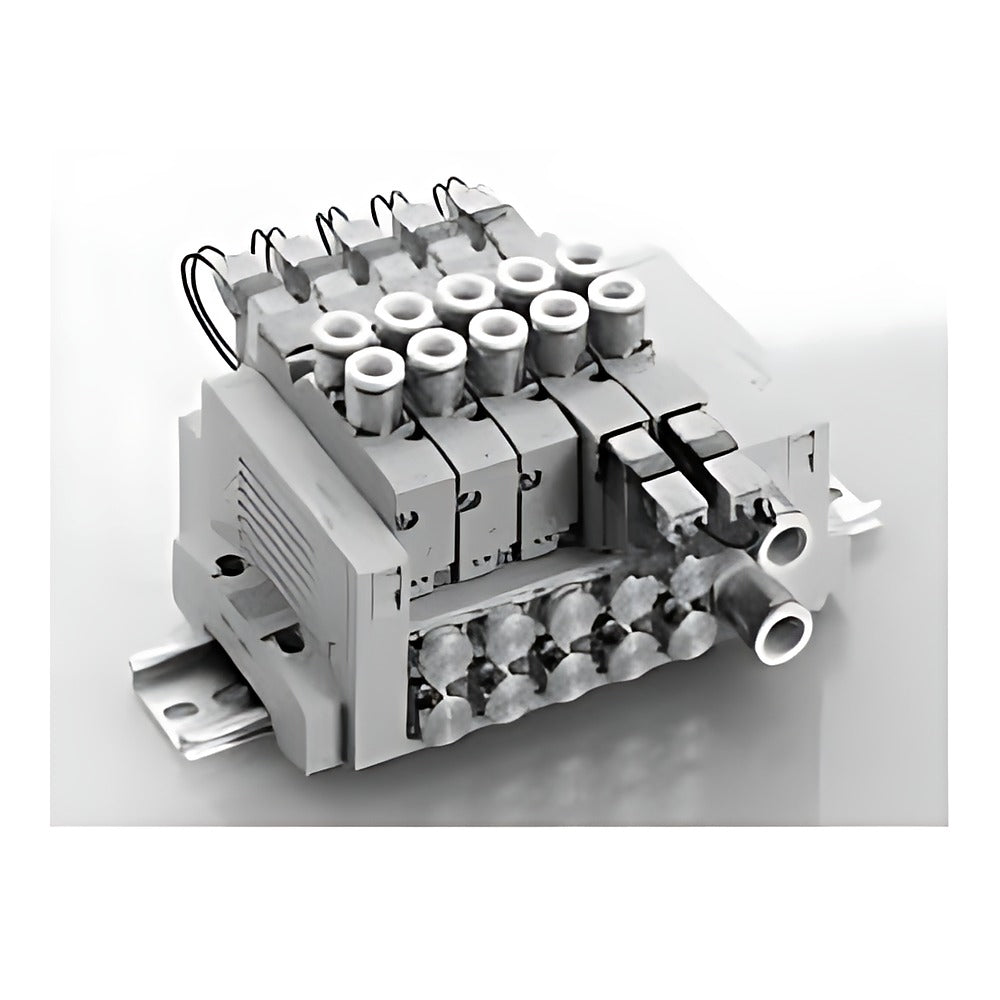

CKD MN4GD1 Block Manifold Valve Blocks (Individual Wiring, Direct)

CKD MN3GD1/MN4GD1 individual-wiring block manifold (direct piping) valve blocks with mounted valve (N-prefixed) and the matching solenoid valves, as full order codes.

Key features

Split resin block construction: stations can be added or removed freely; up to 24 stations (20 for size 2)
Valve block codes N4GD1... include valve, block and A/B port; solenoid valve only codes end in 9R
Wiring: grommet (DC only), E connector with or without lamp/surge killer, socket-less E connector
Options H (exhaust malfunction prevention), A (ozone/coolant resistant), F (A/B filter) and lead-wire lengths E00-E03/E20-E23, EJ connectors, E1/E3 are orderable but not listed
Manifold assembly codes MN4GD180R-[port]-[wiring]-[stations]-[voltage] are built from these blocks via the manifold specification sheet

Specifications

Manifold	Block manifold, individual wiring
Piping	Direct Piping
Operation	Pilot operated soft spool
Operating pressure	0.2 to 0.7 MPa
Fluid	Compressed air
Ambient temp.	-5 to 55 C
Source	CKD Korea catalog CB-023SK-9, p. 686-697, 738-739

N3GD110R-C4-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD110R-C4-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD110R-C4-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD110R-C4-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD110R-C4-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD110R-C4-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD110R-C4-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD110R-C4-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD110R-C4-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD110R-C4-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD110R-C4-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD110R-C4-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD110R-C4-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD110R-C4-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD110R-C6-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD110R-C6-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD110R-C6-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD110R-C6-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD110R-C6-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD110R-C6-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD110R-C6-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD110R-C6-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD110R-C6-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD110R-C6-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD110R-C6-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD110R-C6-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD110R-C6-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD110R-C6-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD110R-M5-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD110R-M5-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD110R-M5-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD110R-M5-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD110R-M5-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD110R-M5-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD110R-M5-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD110R-M5-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD110R-M5-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD110R-M5-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD110R-M5-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD110R-M5-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD110R-M5-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD110R-M5-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD119R-C4-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD119R-C4-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD119R-C4-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD119R-C4-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD119R-C4-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD119R-C4-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD119R-C4-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD119R-C4-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD119R-C4-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD119R-C4-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD119R-C4-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD119R-C4-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD119R-C4-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD119R-C4-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD119R-C6-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD119R-C6-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD119R-C6-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD119R-C6-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD119R-C6-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD119R-C6-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD119R-C6-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD119R-C6-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD119R-C6-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD119R-C6-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD119R-C6-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD119R-C6-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD119R-C6-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD119R-C6-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD119R-M5-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD119R-M5-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD119R-M5-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD119R-M5-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD119R-M5-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD119R-M5-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
3GD119R-M5-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
3GD119R-M5-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
3GD119R-M5-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD119R-M5-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD119R-M5-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD119R-M5-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD119R-M5-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD119R-M5-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1110R-C4-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1110R-C4-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1110R-C4-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1110R-C4-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1110R-C4-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1110R-C4-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1110R-C4-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1110R-C4-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1110R-C4-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1110R-C4-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1110R-C4-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1110R-C4-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1110R-C4-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1110R-C4-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1110R-C6-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1110R-C6-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1110R-C6-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1110R-C6-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1110R-C6-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1110R-C6-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1110R-C6-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1110R-C6-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1110R-C6-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1110R-C6-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1110R-C6-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1110R-C6-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1110R-C6-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1110R-C6-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1110R-M5-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1110R-M5-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1110R-M5-E0-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1110R-M5-E0-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1110R-M5-E0-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1110R-M5-E0N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1110R-M5-E0N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1110R-M5-E0N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1110R-M5-E2-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1110R-M5-E2-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1110R-M5-E2-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1110R-M5-E2N-1		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1110R-M5-E2N-3		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1110R-M5-E2N-4		Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1119R-C4-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1119R-C4-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1119R-C4-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1119R-C4-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1119R-C4-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1119R-C4-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1119R-C4-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1119R-C4-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1119R-C4-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1119R-C4-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1119R-C4-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1119R-C4-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1119R-C4-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1119R-C4-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1119R-C6-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1119R-C6-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1119R-C6-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1119R-C6-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1119R-C6-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1119R-C6-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1119R-C6-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1119R-C6-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1119R-C6-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1119R-C6-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1119R-C6-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1119R-C6-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1119R-C6-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1119R-C6-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1119R-M5-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1119R-M5-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1119R-M5-E0-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1119R-M5-E0-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1119R-M5-E0-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1119R-M5-E0N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1119R-M5-E0N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1119R-M5-E0N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1119R-M5-E2-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1119R-M5-E2-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1119R-M5-E2-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1119R-M5-E2N-1		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1119R-M5-E2N-3		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1119R-M5-E2N-4		Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1660R-C4-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1660R-C4-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1660R-C4-E0-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1660R-C4-E0-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1660R-C4-E0-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1660R-C4-E0N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1660R-C4-E0N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1660R-C4-E0N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1660R-C4-E2-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1660R-C4-E2-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1660R-C4-E2-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1660R-C4-E2N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1660R-C4-E2N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1660R-C4-E2N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1660R-C6-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1660R-C6-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1660R-C6-E0-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1660R-C6-E0-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1660R-C6-E0-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1660R-C6-E0N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1660R-C6-E0N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1660R-C6-E0N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1660R-C6-E2-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1660R-C6-E2-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1660R-C6-E2-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1660R-C6-E2N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1660R-C6-E2N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1660R-C6-E2N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N3GD1660R-M5-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N3GD1660R-M5-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N3GD1660R-M5-E0-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N3GD1660R-M5-E0-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N3GD1660R-M5-E0-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N3GD1660R-M5-E0N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N3GD1660R-M5-E0N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N3GD1660R-M5-E0N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N3GD1660R-M5-E2-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N3GD1660R-M5-E2-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N3GD1660R-M5-E2-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N3GD1660R-M5-E2N-1		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N3GD1660R-M5-E2N-3		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N3GD1660R-M5-E2N-4		Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1669R-C4-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1669R-C4-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1669R-C4-E0-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1669R-C4-E0-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1669R-C4-E0-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1669R-C4-E0N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1669R-C4-E0N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1669R-C4-E0N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1669R-C4-E2-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1669R-C4-E2-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1669R-C4-E2-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1669R-C4-E2N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1669R-C4-E2N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1669R-C4-E2N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1669R-C6-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1669R-C6-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1669R-C6-E0-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1669R-C6-E0-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1669R-C6-E0-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1669R-C6-E0N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1669R-C6-E0N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1669R-C6-E0N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1669R-C6-E2-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1669R-C6-E2-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1669R-C6-E2-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1669R-C6-E2N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1669R-C6-E2N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1669R-C6-E2N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
3GD1669R-M5-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GD1669R-M5-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GD1669R-M5-E0-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
3GD1669R-M5-E0-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
3GD1669R-M5-E0-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
3GD1669R-M5-E0N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
3GD1669R-M5-E0N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
3GD1669R-M5-E0N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
3GD1669R-M5-E2-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
3GD1669R-M5-E2-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
3GD1669R-M5-E2-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
3GD1669R-M5-E2N-1		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
3GD1669R-M5-E2N-3		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
3GD1669R-M5-E2N-4		Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD110R-C4-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD110R-C4-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD110R-C4-E0-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD110R-C4-E0-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD110R-C4-E0-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD110R-C4-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD110R-C4-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD110R-C4-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD110R-C4-E2-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD110R-C4-E2-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD110R-C4-E2-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD110R-C4-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD110R-C4-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD110R-C4-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD110R-C6-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD110R-C6-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD110R-C6-E0-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD110R-C6-E0-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD110R-C6-E0-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD110R-C6-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD110R-C6-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD110R-C6-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD110R-C6-E2-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD110R-C6-E2-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD110R-C6-E2-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD110R-C6-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD110R-C6-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD110R-C6-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD110R-M5-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD110R-M5-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD110R-M5-E0-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD110R-M5-E0-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD110R-M5-E0-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD110R-M5-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD110R-M5-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD110R-M5-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD110R-M5-E2-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD110R-M5-E2-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD110R-M5-E2-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD110R-M5-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD110R-M5-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD110R-M5-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD119R-C4-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD119R-C4-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD119R-C4-E0-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD119R-C4-E0-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD119R-C4-E0-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD119R-C4-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD119R-C4-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD119R-C4-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD119R-C4-E2-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD119R-C4-E2-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD119R-C4-E2-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD119R-C4-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD119R-C4-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD119R-C4-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD119R-C6-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD119R-C6-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD119R-C6-E0-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD119R-C6-E0-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD119R-C6-E0-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD119R-C6-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD119R-C6-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD119R-C6-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD119R-C6-E2-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD119R-C6-E2-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD119R-C6-E2-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD119R-C6-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD119R-C6-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD119R-C6-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD119R-M5-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD119R-M5-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD119R-M5-E0-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD119R-M5-E0-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD119R-M5-E0-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD119R-M5-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
4GD119R-M5-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
4GD119R-M5-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
4GD119R-M5-E2-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD119R-M5-E2-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD119R-M5-E2-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD119R-M5-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD119R-M5-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD119R-M5-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD120R-C4-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD120R-C4-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD120R-C4-E0-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD120R-C4-E0-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD120R-C4-E0-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD120R-C4-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD120R-C4-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD120R-C4-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD120R-C4-E2-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD120R-C4-E2-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD120R-C4-E2-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD120R-C4-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD120R-C4-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD120R-C4-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD120R-C6-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD120R-C6-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD120R-C6-E0-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD120R-C6-E0-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD120R-C6-E0-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD120R-C6-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD120R-C6-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD120R-C6-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD120R-C6-E2-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD120R-C6-E2-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD120R-C6-E2-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD120R-C6-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD120R-C6-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD120R-C6-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD120R-M5-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD120R-M5-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD120R-M5-E0-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD120R-M5-E0-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD120R-M5-E0-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD120R-M5-E0N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD120R-M5-E0N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD120R-M5-E0N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD120R-M5-E2-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD120R-M5-E2-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD120R-M5-E2-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD120R-M5-E2N-1		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD120R-M5-E2N-3		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD120R-M5-E2N-4		Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD129R-C4-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD129R-C4-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD129R-C4-E0-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD129R-C4-E0-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD129R-C4-E0-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD129R-C4-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD129R-C4-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD129R-C4-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD129R-C4-E2-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD129R-C4-E2-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD129R-C4-E2-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD129R-C4-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD129R-C4-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD129R-C4-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD129R-C6-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD129R-C6-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD129R-C6-E0-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD129R-C6-E0-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD129R-C6-E0-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD129R-C6-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD129R-C6-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD129R-C6-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD129R-C6-E2-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD129R-C6-E2-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD129R-C6-E2-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD129R-C6-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD129R-C6-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD129R-C6-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD129R-M5-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD129R-M5-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD129R-M5-E0-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD129R-M5-E0-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD129R-M5-E0-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD129R-M5-E0N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
4GD129R-M5-E0N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
4GD129R-M5-E0N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
4GD129R-M5-E2-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD129R-M5-E2-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD129R-M5-E2-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD129R-M5-E2N-1		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD129R-M5-E2N-3		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD129R-M5-E2N-4		Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD130R-C4-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD130R-C4-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD130R-C4-E0-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD130R-C4-E0-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD130R-C4-E0-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD130R-C4-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD130R-C4-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD130R-C4-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD130R-C4-E2-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD130R-C4-E2-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD130R-C4-E2-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD130R-C4-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD130R-C4-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD130R-C4-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD130R-C6-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD130R-C6-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD130R-C6-E0-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD130R-C6-E0-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD130R-C6-E0-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD130R-C6-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD130R-C6-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD130R-C6-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD130R-C6-E2-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD130R-C6-E2-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD130R-C6-E2-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD130R-C6-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD130R-C6-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD130R-C6-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD130R-M5-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD130R-M5-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD130R-M5-E0-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD130R-M5-E0-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD130R-M5-E0-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD130R-M5-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD130R-M5-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD130R-M5-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD130R-M5-E2-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD130R-M5-E2-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD130R-M5-E2-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD130R-M5-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD130R-M5-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD130R-M5-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD139R-C4-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD139R-C4-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD139R-C4-E0-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD139R-C4-E0-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD139R-C4-E0-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD139R-C4-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD139R-C4-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD139R-C4-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD139R-C4-E2-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD139R-C4-E2-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD139R-C4-E2-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD139R-C4-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD139R-C4-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD139R-C4-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD139R-C6-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD139R-C6-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD139R-C6-E0-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD139R-C6-E0-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD139R-C6-E0-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD139R-C6-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD139R-C6-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD139R-C6-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD139R-C6-E2-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD139R-C6-E2-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD139R-C6-E2-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD139R-C6-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD139R-C6-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD139R-C6-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD139R-M5-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD139R-M5-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD139R-M5-E0-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD139R-M5-E0-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD139R-M5-E0-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD139R-M5-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
4GD139R-M5-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
4GD139R-M5-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
4GD139R-M5-E2-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD139R-M5-E2-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD139R-M5-E2-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD139R-M5-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD139R-M5-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD139R-M5-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD140R-C4-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD140R-C4-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD140R-C4-E0-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD140R-C4-E0-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD140R-C4-E0-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD140R-C4-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD140R-C4-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD140R-C4-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD140R-C4-E2-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD140R-C4-E2-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD140R-C4-E2-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD140R-C4-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD140R-C4-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD140R-C4-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD140R-C6-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD140R-C6-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD140R-C6-E0-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD140R-C6-E0-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD140R-C6-E0-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD140R-C6-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD140R-C6-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD140R-C6-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD140R-C6-E2-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD140R-C6-E2-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD140R-C6-E2-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD140R-C6-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD140R-C6-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD140R-C6-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD140R-M5-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD140R-M5-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD140R-M5-E0-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD140R-M5-E0-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD140R-M5-E0-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD140R-M5-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD140R-M5-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD140R-M5-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD140R-M5-E2-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD140R-M5-E2-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD140R-M5-E2-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD140R-M5-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD140R-M5-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD140R-M5-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD149R-C4-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD149R-C4-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD149R-C4-E0-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD149R-C4-E0-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD149R-C4-E0-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD149R-C4-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD149R-C4-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD149R-C4-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD149R-C4-E2-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD149R-C4-E2-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD149R-C4-E2-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD149R-C4-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD149R-C4-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD149R-C4-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD149R-C6-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD149R-C6-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD149R-C6-E0-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD149R-C6-E0-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD149R-C6-E0-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD149R-C6-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD149R-C6-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD149R-C6-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD149R-C6-E2-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD149R-C6-E2-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD149R-C6-E2-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD149R-C6-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD149R-C6-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD149R-C6-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD149R-M5-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD149R-M5-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD149R-M5-E0-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD149R-M5-E0-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD149R-M5-E0-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD149R-M5-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
4GD149R-M5-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
4GD149R-M5-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
4GD149R-M5-E2-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD149R-M5-E2-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD149R-M5-E2-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD149R-M5-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD149R-M5-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD149R-M5-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD150R-C4-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD150R-C4-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD150R-C4-E0-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD150R-C4-E0-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD150R-C4-E0-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD150R-C4-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD150R-C4-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD150R-C4-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD150R-C4-E2-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD150R-C4-E2-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD150R-C4-E2-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD150R-C4-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD150R-C4-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD150R-C4-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD150R-C6-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD150R-C6-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD150R-C6-E0-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD150R-C6-E0-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD150R-C6-E0-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD150R-C6-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD150R-C6-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD150R-C6-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD150R-C6-E2-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD150R-C6-E2-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD150R-C6-E2-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD150R-C6-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD150R-C6-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD150R-C6-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD150R-M5-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
N4GD150R-M5-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
N4GD150R-M5-E0-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
N4GD150R-M5-E0-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
N4GD150R-M5-E0-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
N4GD150R-M5-E0N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
N4GD150R-M5-E0N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
N4GD150R-M5-E0N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
N4GD150R-M5-E2-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
N4GD150R-M5-E2-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
N4GD150R-M5-E2-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
N4GD150R-M5-E2N-1		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
N4GD150R-M5-E2N-3		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
N4GD150R-M5-E2N-4		Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD159R-C4-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD159R-C4-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD159R-C4-E0-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD159R-C4-E0-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD159R-C4-E0-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD159R-C4-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD159R-C4-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD159R-C4-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD159R-C4-E2-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD159R-C4-E2-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD159R-C4-E2-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD159R-C4-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD159R-C4-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD159R-C4-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD159R-C6-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD159R-C6-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD159R-C6-E0-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD159R-C6-E0-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD159R-C6-E0-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD159R-C6-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
4GD159R-C6-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
4GD159R-C6-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
4GD159R-C6-E2-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD159R-C6-E2-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD159R-C6-E2-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD159R-C6-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD159R-C6-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD159R-C6-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
4GD159R-M5-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GD159R-M5-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GD159R-M5-E0-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
4GD159R-M5-E0-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
4GD159R-M5-E0-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
4GD159R-M5-E0N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
4GD159R-M5-E0N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
4GD159R-M5-E0N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
4GD159R-M5-E2-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
4GD159R-M5-E2-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
4GD159R-M5-E2-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
4GD159R-M5-E2N-1		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
4GD159R-M5-E2N-3		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
4GD159R-M5-E2N-4		Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
N4GD110R-M5-H-3		Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet + option H \| Voltage: DC24V
4GD119R-M5-H-3		Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet + option H \| Voltage: DC24V

Solenoid ValvesCKD

674 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GD1 Block Manifold Valve Blocks (Individual Wiring, Direct)

Brand CKD·Solenoid Valves

Available part numbers (674)

N3GD110R-C4-3, N3GD110R-C4-4, N3GD110R-C4-E0-1, N3GD110R-C4-E0-3, N3GD110R-C4-E0-4, N3GD110R-C4-E0N-1, N3GD110R-C4-E0N-3, N3GD110R-C4-E0N-4, N3GD110R-C4-E2-1, N3GD110R-C4-E2-3 + 664 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	N3GD110R-C4-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD110R-C4-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD110R-C4-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD110R-C4-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD110R-C4-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD110R-C4-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD110R-C4-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD110R-C4-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD110R-C4-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD110R-C4-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD110R-C4-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD110R-C4-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD110R-C4-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD110R-C4-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD110R-C6-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD110R-C6-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD110R-C6-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD110R-C6-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD110R-C6-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD110R-C6-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD110R-C6-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD110R-C6-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD110R-C6-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD110R-C6-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD110R-C6-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD110R-C6-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD110R-C6-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD110R-C6-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD110R-M5-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD110R-M5-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD110R-M5-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD110R-M5-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD110R-M5-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD110R-M5-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD110R-M5-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD110R-M5-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD110R-M5-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD110R-M5-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD110R-M5-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD110R-M5-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD110R-M5-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD110R-M5-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD119R-C4-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD119R-C4-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD119R-C4-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD119R-C4-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD119R-C4-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD119R-C4-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD119R-C4-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD119R-C4-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD119R-C4-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD119R-C4-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD119R-C4-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD119R-C4-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD119R-C4-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD119R-C4-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD119R-C6-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD119R-C6-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD119R-C6-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD119R-C6-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD119R-C6-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD119R-C6-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD119R-C6-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD119R-C6-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD119R-C6-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD119R-C6-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD119R-C6-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD119R-C6-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD119R-C6-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD119R-C6-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD119R-M5-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD119R-M5-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD119R-M5-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD119R-M5-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD119R-M5-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD119R-M5-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD119R-M5-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD119R-M5-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD119R-M5-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD119R-M5-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD119R-M5-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD119R-M5-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD119R-M5-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD119R-M5-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1110R-C4-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1110R-C4-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1110R-C4-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1110R-C4-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1110R-C4-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1110R-C4-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1110R-C4-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1110R-C4-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1110R-C4-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1110R-C4-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1110R-C4-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1110R-C4-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1110R-C4-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1110R-C4-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1110R-C6-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1110R-C6-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1110R-C6-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1110R-C6-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1110R-C6-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1110R-C6-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1110R-C6-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1110R-C6-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1110R-C6-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1110R-C6-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1110R-C6-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1110R-C6-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1110R-C6-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1110R-C6-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1110R-M5-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1110R-M5-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1110R-M5-E0-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1110R-M5-E0-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1110R-M5-E0-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1110R-M5-E0N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1110R-M5-E0N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1110R-M5-E0N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1110R-M5-E2-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1110R-M5-E2-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1110R-M5-E2-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1110R-M5-E2N-1	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1110R-M5-E2N-3	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1110R-M5-E2N-4	Model: N3GD1 valve block \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1119R-C4-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1119R-C4-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1119R-C4-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1119R-C4-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1119R-C4-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1119R-C4-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1119R-C4-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1119R-C4-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1119R-C4-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1119R-C4-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1119R-C4-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1119R-C4-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1119R-C4-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1119R-C4-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1119R-C6-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1119R-C6-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1119R-C6-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1119R-C6-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1119R-C6-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1119R-C6-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1119R-C6-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1119R-C6-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1119R-C6-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1119R-C6-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1119R-C6-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1119R-C6-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1119R-C6-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1119R-C6-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1119R-M5-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1119R-M5-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1119R-M5-E0-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1119R-M5-E0-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1119R-M5-E0-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1119R-M5-E0N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1119R-M5-E0N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1119R-M5-E0N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1119R-M5-E2-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1119R-M5-E2-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1119R-M5-E2-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1119R-M5-E2N-1	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1119R-M5-E2N-3	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1119R-M5-E2N-4	Model: 3GD1 valve only \| Switching: 2-pos single N.O. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1660R-C4-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1660R-C4-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1660R-C4-E0-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1660R-C4-E0-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1660R-C4-E0-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1660R-C4-E0N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1660R-C4-E0N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1660R-C4-E0N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1660R-C4-E2-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1660R-C4-E2-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1660R-C4-E2-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1660R-C4-E2N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1660R-C4-E2N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1660R-C4-E2N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1660R-C6-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1660R-C6-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1660R-C6-E0-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1660R-C6-E0-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1660R-C6-E0-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1660R-C6-E0N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1660R-C6-E0N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1660R-C6-E0N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1660R-C6-E2-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1660R-C6-E2-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1660R-C6-E2-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1660R-C6-E2N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1660R-C6-E2N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1660R-C6-E2N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N3GD1660R-M5-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N3GD1660R-M5-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N3GD1660R-M5-E0-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N3GD1660R-M5-E0-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N3GD1660R-M5-E0-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N3GD1660R-M5-E0N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N3GD1660R-M5-E0N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N3GD1660R-M5-E0N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N3GD1660R-M5-E2-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N3GD1660R-M5-E2-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N3GD1660R-M5-E2-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N3GD1660R-M5-E2N-1	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N3GD1660R-M5-E2N-3	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N3GD1660R-M5-E2N-4	Model: N3GD1 valve block \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1669R-C4-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1669R-C4-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1669R-C4-E0-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1669R-C4-E0-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1669R-C4-E0-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1669R-C4-E0N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1669R-C4-E0N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1669R-C4-E0N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1669R-C4-E2-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1669R-C4-E2-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1669R-C4-E2-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1669R-C4-E2N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1669R-C4-E2N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1669R-C4-E2N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1669R-C6-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1669R-C6-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1669R-C6-E0-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1669R-C6-E0-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1669R-C6-E0-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1669R-C6-E0N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1669R-C6-E0N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1669R-C6-E0N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1669R-C6-E2-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1669R-C6-E2-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1669R-C6-E2-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1669R-C6-E2N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1669R-C6-E2N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1669R-C6-E2N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	3GD1669R-M5-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GD1669R-M5-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GD1669R-M5-E0-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	3GD1669R-M5-E0-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	3GD1669R-M5-E0-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	3GD1669R-M5-E0N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	3GD1669R-M5-E0N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	3GD1669R-M5-E0N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	3GD1669R-M5-E2-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	3GD1669R-M5-E2-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	3GD1669R-M5-E2-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	3GD1669R-M5-E2N-1	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	3GD1669R-M5-E2N-3	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	3GD1669R-M5-E2N-4	Model: 3GD1 valve only \| Switching: Dual 3-port N.C./N.C. \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD110R-C4-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD110R-C4-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD110R-C4-E0-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD110R-C4-E0-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD110R-C4-E0-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD110R-C4-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD110R-C4-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD110R-C4-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD110R-C4-E2-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD110R-C4-E2-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD110R-C4-E2-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD110R-C4-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD110R-C4-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD110R-C4-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD110R-C6-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD110R-C6-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD110R-C6-E0-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD110R-C6-E0-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD110R-C6-E0-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD110R-C6-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD110R-C6-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD110R-C6-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD110R-C6-E2-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD110R-C6-E2-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD110R-C6-E2-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD110R-C6-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD110R-C6-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD110R-C6-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD110R-M5-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD110R-M5-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD110R-M5-E0-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD110R-M5-E0-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD110R-M5-E0-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD110R-M5-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD110R-M5-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD110R-M5-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD110R-M5-E2-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD110R-M5-E2-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD110R-M5-E2-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD110R-M5-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD110R-M5-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD110R-M5-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD119R-C4-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD119R-C4-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD119R-C4-E0-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD119R-C4-E0-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD119R-C4-E0-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD119R-C4-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD119R-C4-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD119R-C4-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD119R-C4-E2-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD119R-C4-E2-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD119R-C4-E2-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD119R-C4-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD119R-C4-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD119R-C4-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD119R-C6-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD119R-C6-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD119R-C6-E0-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD119R-C6-E0-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD119R-C6-E0-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD119R-C6-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD119R-C6-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD119R-C6-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD119R-C6-E2-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD119R-C6-E2-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD119R-C6-E2-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD119R-C6-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD119R-C6-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD119R-C6-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD119R-M5-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD119R-M5-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD119R-M5-E0-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD119R-M5-E0-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD119R-M5-E0-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD119R-M5-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD119R-M5-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD119R-M5-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD119R-M5-E2-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD119R-M5-E2-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD119R-M5-E2-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD119R-M5-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD119R-M5-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD119R-M5-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD120R-C4-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD120R-C4-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD120R-C4-E0-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD120R-C4-E0-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD120R-C4-E0-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD120R-C4-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD120R-C4-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD120R-C4-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD120R-C4-E2-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD120R-C4-E2-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD120R-C4-E2-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD120R-C4-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD120R-C4-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD120R-C4-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD120R-C6-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD120R-C6-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD120R-C6-E0-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD120R-C6-E0-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD120R-C6-E0-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD120R-C6-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD120R-C6-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD120R-C6-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD120R-C6-E2-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD120R-C6-E2-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD120R-C6-E2-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD120R-C6-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD120R-C6-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD120R-C6-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD120R-M5-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD120R-M5-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD120R-M5-E0-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD120R-M5-E0-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD120R-M5-E0-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD120R-M5-E0N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD120R-M5-E0N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD120R-M5-E0N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD120R-M5-E2-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD120R-M5-E2-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD120R-M5-E2-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD120R-M5-E2N-1	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD120R-M5-E2N-3	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD120R-M5-E2N-4	Model: N4GD1 valve block \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD129R-C4-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD129R-C4-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD129R-C4-E0-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD129R-C4-E0-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD129R-C4-E0-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD129R-C4-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD129R-C4-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD129R-C4-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD129R-C4-E2-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD129R-C4-E2-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD129R-C4-E2-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD129R-C4-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD129R-C4-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD129R-C4-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD129R-C6-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD129R-C6-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD129R-C6-E0-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD129R-C6-E0-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD129R-C6-E0-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD129R-C6-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD129R-C6-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD129R-C6-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD129R-C6-E2-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD129R-C6-E2-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD129R-C6-E2-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD129R-C6-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD129R-C6-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD129R-C6-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD129R-M5-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD129R-M5-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD129R-M5-E0-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD129R-M5-E0-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD129R-M5-E0-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD129R-M5-E0N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD129R-M5-E0N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD129R-M5-E0N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD129R-M5-E2-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD129R-M5-E2-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD129R-M5-E2-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD129R-M5-E2N-1	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD129R-M5-E2N-3	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD129R-M5-E2N-4	Model: 4GD1 valve only \| Switching: 2-pos double \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD130R-C4-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD130R-C4-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD130R-C4-E0-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD130R-C4-E0-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD130R-C4-E0-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD130R-C4-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD130R-C4-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD130R-C4-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD130R-C4-E2-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD130R-C4-E2-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD130R-C4-E2-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD130R-C4-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD130R-C4-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD130R-C4-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD130R-C6-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD130R-C6-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD130R-C6-E0-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD130R-C6-E0-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD130R-C6-E0-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD130R-C6-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD130R-C6-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD130R-C6-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD130R-C6-E2-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD130R-C6-E2-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD130R-C6-E2-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD130R-C6-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD130R-C6-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD130R-C6-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD130R-M5-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD130R-M5-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD130R-M5-E0-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD130R-M5-E0-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD130R-M5-E0-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD130R-M5-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD130R-M5-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD130R-M5-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD130R-M5-E2-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD130R-M5-E2-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD130R-M5-E2-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD130R-M5-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD130R-M5-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD130R-M5-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD139R-C4-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD139R-C4-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD139R-C4-E0-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD139R-C4-E0-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD139R-C4-E0-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD139R-C4-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD139R-C4-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD139R-C4-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD139R-C4-E2-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD139R-C4-E2-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD139R-C4-E2-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD139R-C4-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD139R-C4-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD139R-C4-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD139R-C6-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD139R-C6-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD139R-C6-E0-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD139R-C6-E0-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD139R-C6-E0-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD139R-C6-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD139R-C6-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD139R-C6-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD139R-C6-E2-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD139R-C6-E2-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD139R-C6-E2-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD139R-C6-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD139R-C6-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD139R-C6-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD139R-M5-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD139R-M5-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD139R-M5-E0-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD139R-M5-E0-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD139R-M5-E0-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD139R-M5-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD139R-M5-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD139R-M5-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD139R-M5-E2-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD139R-M5-E2-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD139R-M5-E2-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD139R-M5-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD139R-M5-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD139R-M5-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos all ports blocked \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD140R-C4-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD140R-C4-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD140R-C4-E0-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD140R-C4-E0-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD140R-C4-E0-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD140R-C4-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD140R-C4-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD140R-C4-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD140R-C4-E2-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD140R-C4-E2-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD140R-C4-E2-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD140R-C4-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD140R-C4-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD140R-C4-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD140R-C6-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD140R-C6-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD140R-C6-E0-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD140R-C6-E0-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD140R-C6-E0-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD140R-C6-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD140R-C6-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD140R-C6-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD140R-C6-E2-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD140R-C6-E2-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD140R-C6-E2-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD140R-C6-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD140R-C6-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD140R-C6-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD140R-M5-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD140R-M5-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD140R-M5-E0-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD140R-M5-E0-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD140R-M5-E0-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD140R-M5-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD140R-M5-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD140R-M5-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD140R-M5-E2-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD140R-M5-E2-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD140R-M5-E2-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD140R-M5-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD140R-M5-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD140R-M5-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD149R-C4-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD149R-C4-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD149R-C4-E0-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD149R-C4-E0-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD149R-C4-E0-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD149R-C4-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD149R-C4-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD149R-C4-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD149R-C4-E2-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD149R-C4-E2-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD149R-C4-E2-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD149R-C4-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD149R-C4-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD149R-C4-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD149R-C6-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD149R-C6-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD149R-C6-E0-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD149R-C6-E0-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD149R-C6-E0-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD149R-C6-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD149R-C6-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD149R-C6-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD149R-C6-E2-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD149R-C6-E2-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD149R-C6-E2-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD149R-C6-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD149R-C6-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD149R-C6-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD149R-M5-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD149R-M5-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD149R-M5-E0-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD149R-M5-E0-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD149R-M5-E0-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD149R-M5-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD149R-M5-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD149R-M5-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD149R-M5-E2-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD149R-M5-E2-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD149R-M5-E2-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD149R-M5-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD149R-M5-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD149R-M5-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos A/B/R connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD150R-C4-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD150R-C4-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD150R-C4-E0-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD150R-C4-E0-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD150R-C4-E0-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD150R-C4-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD150R-C4-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD150R-C4-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD150R-C4-E2-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD150R-C4-E2-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD150R-C4-E2-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD150R-C4-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD150R-C4-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD150R-C4-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD150R-C6-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD150R-C6-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD150R-C6-E0-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD150R-C6-E0-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD150R-C6-E0-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD150R-C6-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD150R-C6-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD150R-C6-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD150R-C6-E2-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD150R-C6-E2-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD150R-C6-E2-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD150R-C6-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD150R-C6-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD150R-C6-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD150R-M5-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	N4GD150R-M5-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	N4GD150R-M5-E0-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	N4GD150R-M5-E0-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	N4GD150R-M5-E0-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	N4GD150R-M5-E0N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	N4GD150R-M5-E0N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	N4GD150R-M5-E0N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	N4GD150R-M5-E2-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	N4GD150R-M5-E2-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	N4GD150R-M5-E2-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	N4GD150R-M5-E2N-1	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	N4GD150R-M5-E2N-3	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	N4GD150R-M5-E2N-4	Model: N4GD1 valve block \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD159R-C4-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD159R-C4-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD159R-C4-E0-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD159R-C4-E0-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD159R-C4-E0-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD159R-C4-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD159R-C4-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD159R-C4-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD159R-C4-E2-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD159R-C4-E2-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD159R-C4-E2-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD159R-C4-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD159R-C4-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD159R-C4-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø4 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD159R-C6-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD159R-C6-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD159R-C6-E0-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD159R-C6-E0-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD159R-C6-E0-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD159R-C6-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD159R-C6-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD159R-C6-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD159R-C6-E2-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD159R-C6-E2-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD159R-C6-E2-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD159R-C6-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD159R-C6-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD159R-C6-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: ø6 push-in \| Port form: Straight \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	4GD159R-M5-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GD159R-M5-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GD159R-M5-E0-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: AC100V
	4GD159R-M5-E0-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC24V
	4GD159R-M5-E0-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, 300 mm lead \| Voltage: DC12V
	4GD159R-M5-E0N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: AC100V
	4GD159R-M5-E0N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC24V
	4GD159R-M5-E0N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E connector, no socket \| Voltage: DC12V
	4GD159R-M5-E2-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: AC100V
	4GD159R-M5-E2-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC24V
	4GD159R-M5-E2-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, 300 mm \| Voltage: DC12V
	4GD159R-M5-E2N-1	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: AC100V
	4GD159R-M5-E2N-3	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC24V
	4GD159R-M5-E2N-4	Model: 4GD1 valve only \| Switching: 3-pos P/A/B connection \| A/B fitting: M5 \| Port form: Female thread \| Wiring: E conn., lamp+surge, no socket \| Voltage: DC12V
	N4GD110R-M5-H-3	Model: N4GD1 valve block \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet + option H \| Voltage: DC24V
	4GD119R-M5-H-3	Model: 4GD1 valve only \| Switching: 2-pos single \| A/B fitting: M5 \| Port form: Female thread \| Wiring: Grommet + option H \| Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MN4GD1 Block Manifold Valve Blocks (Individual Wiring, Direct)
