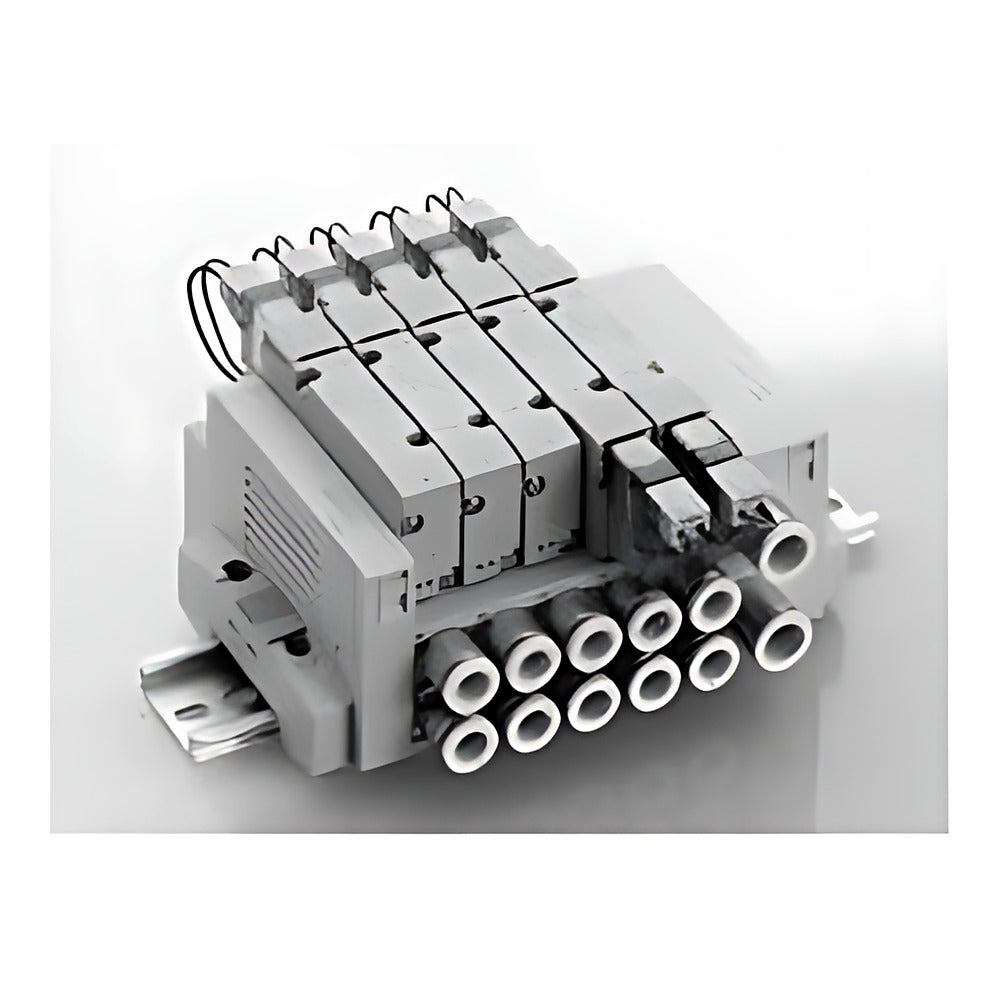

CKD MN4GE1 Block Manifold Valve Blocks (Individual Wiring, Base)

CKD MN4GE1 Block Manifold Valve Blocks (Individual Wiring, Base)

CKD MN3GE1/MN4GE1 individual-wiring block manifold (base piping) valve blocks with mounted valve (N-prefixed) and the matching solenoid valves, as full order codes.

Key features

  • Split resin block construction: stations can be added or removed freely; up to 24 stations (20 for size 2)
  • Valve block codes N4GE1... include valve, block and A/B port; solenoid valve only codes end in 9R
  • Wiring: grommet (DC only), E connector with or without lamp/surge killer, socket-less E connector
  • Options H (exhaust malfunction prevention), A (ozone/coolant resistant), F (A/B filter) and lead-wire lengths E00-E03/E20-E23, EJ connectors, E1/E3 are orderable but not listed
  • Manifold assembly codes MN4GE180R-[port]-[wiring]-[stations]-[voltage] are built from these blocks via the manifold specification sheet

Specifications

Manifold Block manifold, individual wiring
Piping Base Piping
Operation Pilot operated soft spool
Operating pressure 0.2 to 0.7 MPa
Fluid Compressed air
Ambient temp. -5 to 55 C
Source CKD Korea catalog CB-023SK-9, p. 686-689, 698-705, 740-741
N3GE1660R-C4-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-C4-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-C4-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-C4-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-C4-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-C4-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-C4-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-C4-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-C4-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-C4-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-C4-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-C4-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-C4-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-C4-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-C6-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-C6-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-C6-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-C6-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-C6-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-C6-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-C6-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-C6-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-C6-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-C6-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-C6-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-C6-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-C6-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-C6-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CL4-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CL4-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CL4-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CL4-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CL4-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CL4-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CL4-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CL4-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CL4-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CL4-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CL4-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CL4-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CL4-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CL4-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CL6-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CL6-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CL6-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CL6-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CL6-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CL6-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CL6-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CL6-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CL6-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CL6-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CL6-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CL6-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CL6-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CL6-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CD4-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CD4-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CD4-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CD4-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CD4-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CD4-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CD4-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CD4-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CD4-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CD4-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CD4-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CD4-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CD4-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CD4-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CD6-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CD6-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CD6-E0-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CD6-E0-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CD6-E0-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CD6-E0N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CD6-E0N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CD6-E0N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CD6-E2-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CD6-E2-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CD6-E2-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CD6-E2N-1 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CD6-E2N-3 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CD6-E2N-4 Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
3GE1669R-00-E0N-1 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
3GE1669R-00-E0N-3 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
3GE1669R-00-E0N-4 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
3GE1669R-00-E2N-1 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
3GE1669R-00-E2N-3 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
3GE1669R-00-E2N-4 Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6NC-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6NC-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6NC-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6NC-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6NC-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6NC-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6NC-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6NC-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6NC-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6NC-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6NC-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6NC-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6NC-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6NC-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6NO-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6NO-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6NO-E0-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6NO-E0-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6NO-E0-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6NO-E0N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6NO-E0N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6NO-E0N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6NO-E2-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6NO-E2-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6NO-E2-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6NO-E2N-1 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6NO-E2N-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6NO-E2N-4 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE119R-00-E0N-1 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE119R-00-E0N-3 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE119R-00-E0N-4 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE119R-00-E2N-1 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE119R-00-E2N-3 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE119R-00-E2N-4 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-C4-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-C4-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-C4-E0-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-C4-E0-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-C4-E0-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-C4-E0N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-C4-E0N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-C4-E0N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-C4-E2-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-C4-E2-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-C4-E2-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-C4-E2N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-C4-E2N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-C4-E2N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-C6-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-C6-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-C6-E0-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-C6-E0-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-C6-E0-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-C6-E0N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-C6-E0N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-C6-E0N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-C6-E2-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-C6-E2-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-C6-E2-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-C6-E2N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-C6-E2N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-C6-E2N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-CD4-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-CD4-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-CD4-E0-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-CD4-E0-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-CD4-E0-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-CD4-E0N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-CD4-E0N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-CD4-E0N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-CD4-E2-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-CD4-E2-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-CD4-E2-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-CD4-E2N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-CD4-E2N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-CD4-E2N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-CD6-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-CD6-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-CD6-E0-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-CD6-E0-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-CD6-E0-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-CD6-E0N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-CD6-E0N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-CD6-E0N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-CD6-E2-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-CD6-E2-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-CD6-E2-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-CD6-E2N-1 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-CD6-E2N-3 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-CD6-E2N-4 Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE129R-00-E0N-1 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE129R-00-E0N-3 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE129R-00-E0N-4 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE129R-00-E2N-1 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE129R-00-E2N-3 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE129R-00-E2N-4 Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-C4-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-C4-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-C4-E0-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-C4-E0-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-C4-E0-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-C4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-C4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-C4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-C4-E2-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-C4-E2-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-C4-E2-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-C4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-C4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-C4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-C6-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-C6-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-C6-E0-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-C6-E0-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-C6-E0-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-C6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-C6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-C6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-C6-E2-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-C6-E2-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-C6-E2-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-C6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-C6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-C6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-CD4-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-CD4-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-CD4-E0-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-CD4-E0-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-CD4-E0-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-CD4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-CD4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-CD4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-CD4-E2-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-CD4-E2-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-CD4-E2-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-CD4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-CD4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-CD4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-CD6-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-CD6-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-CD6-E0-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-CD6-E0-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-CD6-E0-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-CD6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-CD6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-CD6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-CD6-E2-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-CD6-E2-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-CD6-E2-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-CD6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-CD6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-CD6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE139R-00-E0N-1 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE139R-00-E0N-3 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE139R-00-E0N-4 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE139R-00-E2N-1 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE139R-00-E2N-3 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE139R-00-E2N-4 Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-C4-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-C4-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-C4-E0-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-C4-E0-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-C4-E0-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-C4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-C4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-C4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-C4-E2-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-C4-E2-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-C4-E2-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-C4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-C4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-C4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-C6-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-C6-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-C6-E0-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-C6-E0-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-C6-E0-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-C6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-C6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-C6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-C6-E2-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-C6-E2-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-C6-E2-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-C6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-C6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-C6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-CD4-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-CD4-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-CD4-E0-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-CD4-E0-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-CD4-E0-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-CD4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-CD4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-CD4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-CD4-E2-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-CD4-E2-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-CD4-E2-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-CD4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-CD4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-CD4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-CD6-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-CD6-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-CD6-E0-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-CD6-E0-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-CD6-E0-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-CD6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-CD6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-CD6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-CD6-E2-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-CD6-E2-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-CD6-E2-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-CD6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-CD6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-CD6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE149R-00-E0N-1 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE149R-00-E0N-3 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE149R-00-E0N-4 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE149R-00-E2N-1 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE149R-00-E2N-3 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE149R-00-E2N-4 Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-C4-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-C4-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-C4-E0-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-C4-E0-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-C4-E0-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-C4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-C4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-C4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-C4-E2-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-C4-E2-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-C4-E2-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-C4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-C4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-C4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-C6-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-C6-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-C6-E0-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-C6-E0-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-C6-E0-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-C6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-C6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-C6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-C6-E2-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-C6-E2-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-C6-E2-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-C6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-C6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-C6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-CD4-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-CD4-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-CD4-E0-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-CD4-E0-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-CD4-E0-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-CD4-E0N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-CD4-E0N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-CD4-E0N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-CD4-E2-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-CD4-E2-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-CD4-E2-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-CD4-E2N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-CD4-E2N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-CD4-E2N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-CD6-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-CD6-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-CD6-E0-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-CD6-E0-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-CD6-E0-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-CD6-E0N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-CD6-E0N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-CD6-E0N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-CD6-E2-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-CD6-E2-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-CD6-E2-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-CD6-E2N-1 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-CD6-E2N-3 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-CD6-E2N-4 Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE159R-00-E0N-1 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE159R-00-E0N-3 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE159R-00-E0N-4 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE159R-00-E2N-1 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE159R-00-E2N-3 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE159R-00-E2N-4 Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6-H-3 Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet + option H | Voltage: DC24V
4GE119R-00-H-3 Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: Grommet + option H | Voltage: DC24V
Solenoid ValvesCKD
598 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MN4GE1 Block Manifold Valve Blocks (Individual Wiring, Base)

Brand CKD·Solenoid Valves

Available part numbers (598)

N3GE1660R-C4-3, N3GE1660R-C4-4, N3GE1660R-C4-E0-1, N3GE1660R-C4-E0-3, N3GE1660R-C4-E0-4, N3GE1660R-C4-E0N-1, N3GE1660R-C4-E0N-3, N3GE1660R-C4-E0N-4, N3GE1660R-C4-E2-1, N3GE1660R-C4-E2-3 + 588 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N3GE1660R-C4-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-C4-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-C4-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-C4-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-C4-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-C4-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-C4-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-C4-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-C4-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-C4-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-C4-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-C4-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-C4-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-C4-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-C6-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-C6-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-C6-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-C6-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-C6-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-C6-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-C6-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-C6-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-C6-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-C6-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-C6-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-C6-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-C6-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-C6-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CL4-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CL4-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CL4-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CL4-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CL4-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CL4-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CL4-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CL4-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CL4-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CL4-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CL4-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CL4-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CL4-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CL4-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CL6-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CL6-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CL6-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CL6-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CL6-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CL6-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CL6-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CL6-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CL6-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CL6-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CL6-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CL6-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CL6-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CL6-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CD4-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CD4-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CD4-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CD4-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CD4-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CD4-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CD4-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CD4-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CD4-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CD4-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CD4-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CD4-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CD4-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CD4-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N3GE1660R-CD6-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N3GE1660R-CD6-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N3GE1660R-CD6-E0-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N3GE1660R-CD6-E0-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N3GE1660R-CD6-E0-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N3GE1660R-CD6-E0N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N3GE1660R-CD6-E0N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N3GE1660R-CD6-E0N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N3GE1660R-CD6-E2-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N3GE1660R-CD6-E2-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N3GE1660R-CD6-E2-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N3GE1660R-CD6-E2N-1Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N3GE1660R-CD6-E2N-3Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N3GE1660R-CD6-E2N-4Model: N3GE1 valve block | Switching: Dual 3-port N.C./N.C. | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
3GE1669R-00-E0N-1Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
3GE1669R-00-E0N-3Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
3GE1669R-00-E0N-4Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
3GE1669R-00-E2N-1Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
3GE1669R-00-E2N-3Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
3GE1669R-00-E2N-4Model: 3GE1 valve only | Switching: Dual 3-port N.C./N.C. | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C4NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C4NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C4NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C4NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C4NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C4NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C4NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C4NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C4NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C4NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C4NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C4NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C4NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C4NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-C6NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-C6NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-C6NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-C6NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-C6NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-C6NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-C6NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-C6NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-C6NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-C6NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-C6NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-C6NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-C6NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL4NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL4NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL4NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL4NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL4NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL4NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL4NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL4NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL4NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL4NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL4NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL4NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL4NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL4NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CL6NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CL6NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CL6NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CL6NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CL6NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CL6NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CL6NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CL6NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CL6NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CL6NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CL6NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CL6NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CL6NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CL6NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow up, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD4NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD4NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD4NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD4NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD4NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD4NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD4NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD4NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD4NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD4NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD4NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD4NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD4NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD4NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø4 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6NC-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6NC-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6NC-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6NC-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6NC-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6NC-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6NC-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6NC-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6NC-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6NC-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6NC-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6NC-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6NC-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6NC-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, B plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-CD6NO-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE110R-CD6NO-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE110R-CD6NO-E0-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE110R-CD6NO-E0-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE110R-CD6NO-E0-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE110R-CD6NO-E0N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: AC100V
N4GE110R-CD6NO-E0N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC24V
N4GE110R-CD6NO-E0N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E connector, no socket | Voltage: DC12V
N4GE110R-CD6NO-E2-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE110R-CD6NO-E2-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE110R-CD6NO-E2-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE110R-CD6NO-E2N-1Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE110R-CD6NO-E2N-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE110R-CD6NO-E2N-4Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Elbow down, A plugged | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE119R-00-E0N-1Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE119R-00-E0N-3Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE119R-00-E0N-4Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE119R-00-E2N-1Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE119R-00-E2N-3Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE119R-00-E2N-4Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-C4-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-C4-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-C4-E0-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-C4-E0-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-C4-E0-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-C4-E0N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-C4-E0N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-C4-E0N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-C4-E2-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-C4-E2-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-C4-E2-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-C4-E2N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-C4-E2N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-C4-E2N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-C6-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-C6-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-C6-E0-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-C6-E0-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-C6-E0-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-C6-E0N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-C6-E0N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-C6-E0N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-C6-E2-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-C6-E2-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-C6-E2-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-C6-E2N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-C6-E2N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-C6-E2N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-CD4-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-CD4-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-CD4-E0-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-CD4-E0-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-CD4-E0-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-CD4-E0N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-CD4-E0N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-CD4-E0N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-CD4-E2-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-CD4-E2-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-CD4-E2-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-CD4-E2N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-CD4-E2N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-CD4-E2N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE120R-CD6-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE120R-CD6-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE120R-CD6-E0-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE120R-CD6-E0-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE120R-CD6-E0-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE120R-CD6-E0N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE120R-CD6-E0N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE120R-CD6-E0N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE120R-CD6-E2-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE120R-CD6-E2-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE120R-CD6-E2-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE120R-CD6-E2N-1Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE120R-CD6-E2N-3Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE120R-CD6-E2N-4Model: N4GE1 valve block | Switching: 2-pos double | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE129R-00-E0N-1Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE129R-00-E0N-3Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE129R-00-E0N-4Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE129R-00-E2N-1Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE129R-00-E2N-3Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE129R-00-E2N-4Model: 4GE1 valve only | Switching: 2-pos double | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-C4-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-C4-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-C4-E0-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-C4-E0-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-C4-E0-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-C4-E0N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-C4-E0N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-C4-E0N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-C4-E2-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-C4-E2-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-C4-E2-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-C4-E2N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-C4-E2N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-C4-E2N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-C6-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-C6-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-C6-E0-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-C6-E0-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-C6-E0-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-C6-E0N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-C6-E0N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-C6-E0N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-C6-E2-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-C6-E2-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-C6-E2-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-C6-E2N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-C6-E2N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-C6-E2N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-CD4-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-CD4-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-CD4-E0-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-CD4-E0-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-CD4-E0-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-CD4-E0N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-CD4-E0N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-CD4-E0N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-CD4-E2-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-CD4-E2-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-CD4-E2-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-CD4-E2N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-CD4-E2N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-CD4-E2N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE130R-CD6-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE130R-CD6-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE130R-CD6-E0-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE130R-CD6-E0-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE130R-CD6-E0-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE130R-CD6-E0N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE130R-CD6-E0N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE130R-CD6-E0N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE130R-CD6-E2-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE130R-CD6-E2-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE130R-CD6-E2-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE130R-CD6-E2N-1Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE130R-CD6-E2N-3Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE130R-CD6-E2N-4Model: N4GE1 valve block | Switching: 3-pos all ports blocked | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE139R-00-E0N-1Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE139R-00-E0N-3Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE139R-00-E0N-4Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE139R-00-E2N-1Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE139R-00-E2N-3Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE139R-00-E2N-4Model: 4GE1 valve only | Switching: 3-pos all ports blocked | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-C4-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-C4-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-C4-E0-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-C4-E0-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-C4-E0-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-C4-E0N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-C4-E0N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-C4-E0N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-C4-E2-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-C4-E2-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-C4-E2-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-C4-E2N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-C4-E2N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-C4-E2N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-C6-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-C6-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-C6-E0-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-C6-E0-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-C6-E0-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-C6-E0N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-C6-E0N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-C6-E0N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-C6-E2-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-C6-E2-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-C6-E2-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-C6-E2N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-C6-E2N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-C6-E2N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-CD4-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-CD4-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-CD4-E0-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-CD4-E0-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-CD4-E0-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-CD4-E0N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-CD4-E0N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-CD4-E0N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-CD4-E2-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-CD4-E2-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-CD4-E2-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-CD4-E2N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-CD4-E2N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-CD4-E2N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE140R-CD6-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE140R-CD6-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE140R-CD6-E0-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE140R-CD6-E0-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE140R-CD6-E0-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE140R-CD6-E0N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE140R-CD6-E0N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE140R-CD6-E0N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE140R-CD6-E2-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE140R-CD6-E2-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE140R-CD6-E2-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE140R-CD6-E2N-1Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE140R-CD6-E2N-3Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE140R-CD6-E2N-4Model: N4GE1 valve block | Switching: 3-pos A/B/R connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE149R-00-E0N-1Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE149R-00-E0N-3Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE149R-00-E0N-4Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE149R-00-E2N-1Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE149R-00-E2N-3Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE149R-00-E2N-4Model: 4GE1 valve only | Switching: 3-pos A/B/R connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-C4-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-C4-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-C4-E0-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-C4-E0-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-C4-E0-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-C4-E0N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-C4-E0N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-C4-E0N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-C4-E2-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-C4-E2-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-C4-E2-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-C4-E2N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-C4-E2N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-C4-E2N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-C6-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-C6-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-C6-E0-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-C6-E0-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-C6-E0-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-C6-E0N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-C6-E0N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-C6-E0N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-C6-E2-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-C6-E2-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-C6-E2-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-C6-E2N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-C6-E2N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-C6-E2N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Straight | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-CD4-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-CD4-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-CD4-E0-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-CD4-E0-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-CD4-E0-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-CD4-E0N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-CD4-E0N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-CD4-E0N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-CD4-E2-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-CD4-E2-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-CD4-E2-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-CD4-E2N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-CD4-E2N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-CD4-E2N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø4 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE150R-CD6-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC24V
N4GE150R-CD6-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: Grommet lead wire 300 mm | Voltage: DC12V
N4GE150R-CD6-E0-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: AC100V
N4GE150R-CD6-E0-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC24V
N4GE150R-CD6-E0-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, 300 mm lead | Voltage: DC12V
N4GE150R-CD6-E0N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: AC100V
N4GE150R-CD6-E0N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC24V
N4GE150R-CD6-E0N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E connector, no socket | Voltage: DC12V
N4GE150R-CD6-E2-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: AC100V
N4GE150R-CD6-E2-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC24V
N4GE150R-CD6-E2-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, 300 mm | Voltage: DC12V
N4GE150R-CD6-E2N-1Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
N4GE150R-CD6-E2N-3Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
N4GE150R-CD6-E2N-4Model: N4GE1 valve block | Switching: 3-pos P/A/B connection | A/B fitting: ø6 push-in | Port form: Elbow down | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
4GE159R-00-E0N-1Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: AC100V
4GE159R-00-E0N-3Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC24V
4GE159R-00-E0N-4Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E connector, no socket | Voltage: DC12V
4GE159R-00-E2N-1Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: AC100V
4GE159R-00-E2N-3Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC24V
4GE159R-00-E2N-4Model: 4GE1 valve only | Switching: 3-pos P/A/B connection | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: E conn., lamp+surge, no socket | Voltage: DC12V
N4GE110R-C6-H-3Model: N4GE1 valve block | Switching: 2-pos single | A/B fitting: ø6 push-in | Port form: Straight | Wiring: Grommet + option H | Voltage: DC24V
4GE119R-00-H-3Model: 4GE1 valve only | Switching: 2-pos single | A/B fitting: None (on base) | Port form: Base-mount valve | Wiring: Grommet + option H | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
