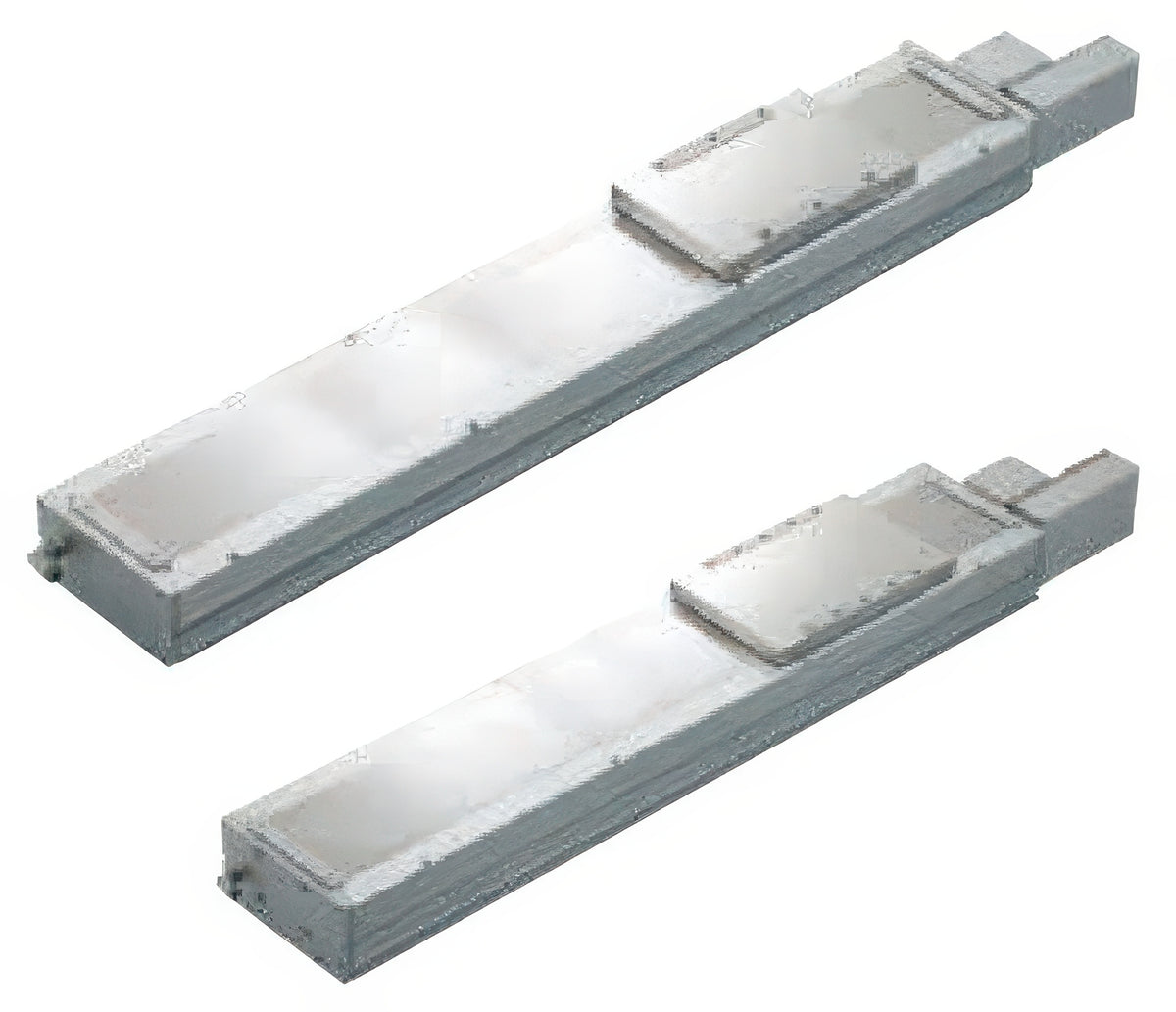

CKD Motorless Electric Actuator ECV Series, Slider Type (Belt Drive, Low Dust Generation)

CKD Motorless Electric Actuator ECV Series, Slider Type (Belt Drive, Low Dust Generation)

Motorless low-dust-generation belt-driven slider actuator based on the ETV series, for customer-supplied servo motors.

Key features

  • A fully covered structure with a suction port suppresses particle emission for clean environments such as LCD panel and food production lines
  • Strokes up to 3500 mm, speeds up to 2000 mm/s and horizontal payloads from 3 to 85 kg in six body sizes (50-220 mm wide)

Specifications

Max payload vertical not applicable (horizontal use)
ECV-05 Compatible servo motor (W): 100 | Body width (mm): 50 | Drive: Timing belt, width 9 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 551.1 | Static allowable moment (N·m): MP 20 / MY 16 / MR 19
ECV-06 Compatible servo motor (W): 100 | Body width (mm): 65 | Drive: Timing belt, width 12 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 1209.1 | Static allowable moment (N·m): MP 80 / MY 70 / MR 75
ECV-10 Compatible servo motor (W): 100 | Body width (mm): 102 | Drive: Timing belt, width 15 mm | Lead equivalent (mm): 32 | Stroke (mm): 100-2550 | Max payload horizontal (kg): 10 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 1600 | Dynamic allowable load (N): 2651.4 | Static allowable moment (N·m): MP 110 / MY 110 / MR 120
ECV-14 Compatible servo motor (W): 200 | Body width (mm): 135 | Drive: Timing belt, width 22 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3050 | Max payload horizontal (kg): 25 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 6566.9 | Static allowable moment (N·m): MP 552 / MY 551 / MR 485
ECV-17 Compatible servo motor (W): 400 | Body width (mm): 170 | Drive: Timing belt, width 30 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 45 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 10102.1 | Static allowable moment (N·m): MP 1034 / MY 1032 / MR 908
ECV-22 Compatible servo motor (W): 750 | Body width (mm): 220 | Drive: Timing belt, width 50 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3400 | Max payload horizontal (kg): 85 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 14174.2 | Static allowable moment (N·m): MP 2052 / MY 2052 / MR 1810
Electric ActuatorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Motorless Electric Actuator ECV Series, Slider Type (Belt Drive, Low Dust Generation)

Brand CKD·Electric Actuators

Available part numbers (6)

ECV-05, ECV-06, ECV-10, ECV-14, ECV-17, ECV-22

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ECV-05Compatible servo motor (W): 100 | Body width (mm): 50 | Drive: Timing belt, width 9 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 551.1 | Static allowable moment (N·m): MP 20 / MY 16 / MR 19
ECV-06Compatible servo motor (W): 100 | Body width (mm): 65 | Drive: Timing belt, width 12 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 1209.1 | Static allowable moment (N·m): MP 80 / MY 70 / MR 75
ECV-10Compatible servo motor (W): 100 | Body width (mm): 102 | Drive: Timing belt, width 15 mm | Lead equivalent (mm): 32 | Stroke (mm): 100-2550 | Max payload horizontal (kg): 10 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 1600 | Dynamic allowable load (N): 2651.4 | Static allowable moment (N·m): MP 110 / MY 110 / MR 120
ECV-14Compatible servo motor (W): 200 | Body width (mm): 135 | Drive: Timing belt, width 22 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3050 | Max payload horizontal (kg): 25 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 6566.9 | Static allowable moment (N·m): MP 552 / MY 551 / MR 485
ECV-17Compatible servo motor (W): 400 | Body width (mm): 170 | Drive: Timing belt, width 30 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 45 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 10102.1 | Static allowable moment (N·m): MP 1034 / MY 1032 / MR 908
ECV-22Compatible servo motor (W): 750 | Body width (mm): 220 | Drive: Timing belt, width 50 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3400 | Max payload horizontal (kg): 85 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 14174.2 | Static allowable moment (N·m): MP 2052 / MY 2052 / MR 1810
