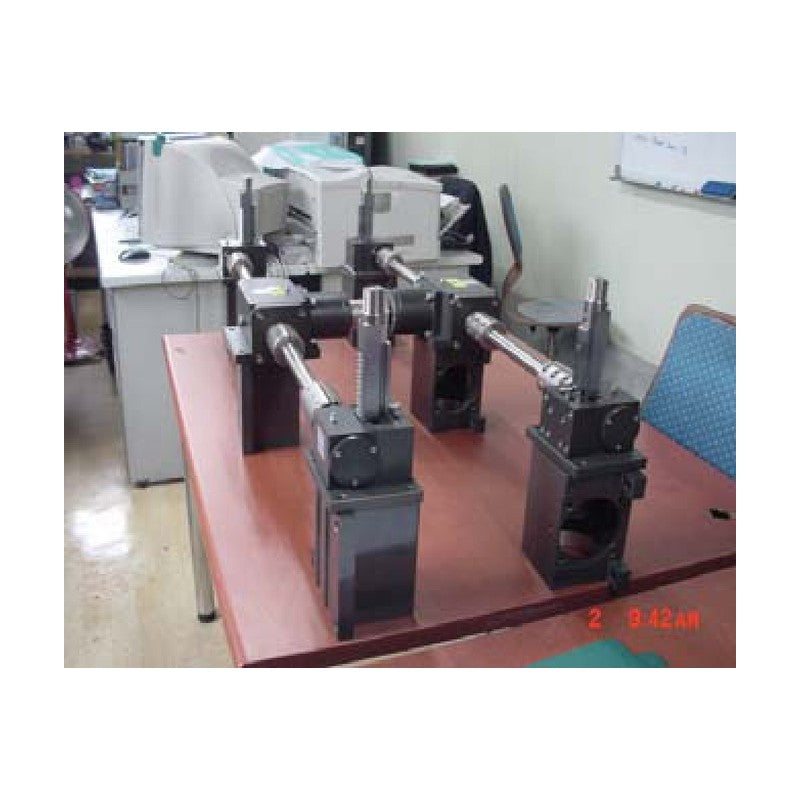

Myung Shin IRJL Series Rack Jack Lift Unit (LM Guide Type, 4-Unit Set)

Myung Shin IRJL Series Rack Jack Lift Unit (LM Guide Type, 4-Unit Set)

LM-guided rack jack set with square rack gears for clean room, inspection and high-precision equipment.

Key features

  • LM guide instead of bush guide for smooth operation and durability
  • Suitable for clean rooms and inspection equipment
  • Driven via bevel gearboxes and servo motor with worm reducer
  • Basic height agreed at order

Specifications

Drive Motor
Units per set 4
IRJL600-4S Rack: square rack gear x M2 | Pinion teeth: 18 | Input shaft: Ø25 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 113.04 mm | Basic height: on request
Rack JacksMyung Shin
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Myung Shin IRJL Series Rack Jack Lift Unit (LM Guide Type, 4-Unit Set)

Brand Myung Shin·Rack Jacks

Available part numbers (1)

IRJL600-4S

How to order

Send the Myung Shin part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IRJL600-4SRack: square rack gear x M2 | Pinion teeth: 18 | Input shaft: Ø25 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 113.04 mm | Basic height: on request
