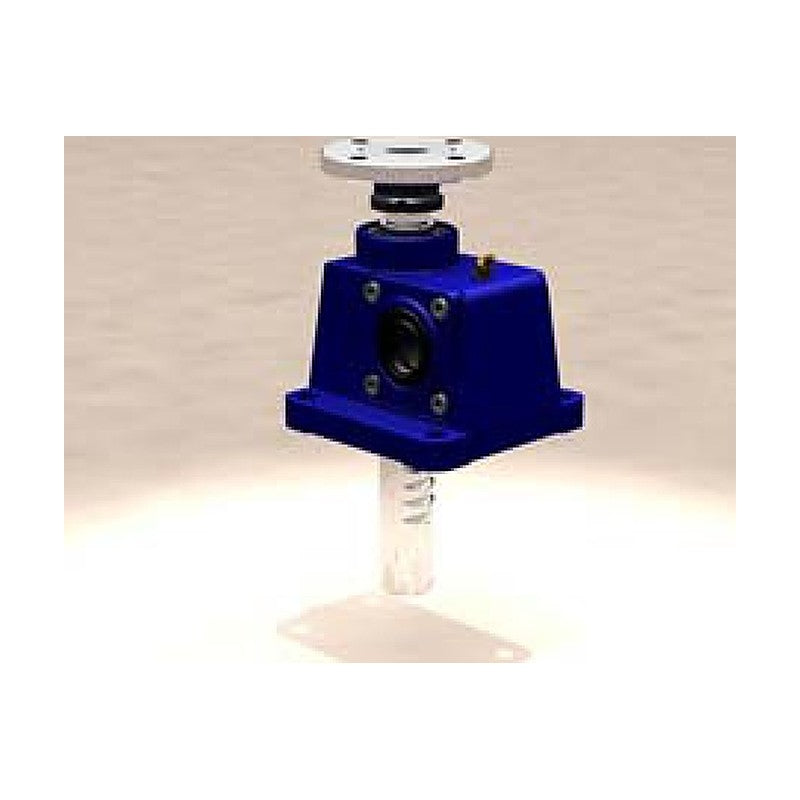

Myung Shin IRJ Series Rack Jack Self-Driven Rack-and-Pinion Lift Unit (Single Unit)
Myung Shin IRJ Series Rack Jack Self-Driven Rack-and-Pinion Lift Unit (Single Unit)
Rack-and-pinion jack derived from the power base: rotating the drive shaft moves the rack gear linearly, giving fast motor-driven lifting.
Key features
- Rack gear directly engaged with pinion for high-speed linear motion
- Low power loss and high mechanical efficiency
- Simple structure with easy maintenance
- Precise intermediate positioning possible with a low-speed brake motor
- More economical than a screw jack
- Clean room version (IRJC) with plating, bellows and lower cover
Specifications
| Drive | Motor |
|---|
| IRJ10R | Capacity: 1000 kg | Shaft direction: Right | Rack dia. x module: Ø30 x M3 | Pinion teeth: 15 | Input shaft: Ø40 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 141.3 mm | Basic height: 140 mm | |
| IRJ10L | Capacity: 1000 kg | Shaft direction: Left | Rack dia. x module: Ø30 x M3 | Pinion teeth: 15 | Input shaft: Ø40 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 141.3 mm | Basic height: 140 mm | |
| IRJ10D | Capacity: 1000 kg | Shaft direction: Double | Rack dia. x module: Ø30 x M3 | Pinion teeth: 15 | Input shaft: Ø40 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 141.3 mm | Basic height: 140 mm | |
| IRJ20R | Capacity: 2000 kg | Shaft direction: Right | Rack dia. x module: Ø40 x M3 | Pinion teeth: 19 | Input shaft: Ø45 | Output shaft: Ø35 | Spiral bevel gear: M4x20z | Efficiency: 0.8 | Max linear speed: 8 m/min | Rack travel per input rev: 178.98 mm | Basic height: 150 mm | |
| IRJ20L | Capacity: 2000 kg | Shaft direction: Left | Rack dia. x module: Ø40 x M3 | Pinion teeth: 19 | Input shaft: Ø45 | Output shaft: Ø35 | Spiral bevel gear: M4x20z | Efficiency: 0.8 | Max linear speed: 8 m/min | Rack travel per input rev: 178.98 mm | Basic height: 150 mm | |
| IRJ20D | Capacity: 2000 kg | Shaft direction: Double | Rack dia. x module: Ø40 x M3 | Pinion teeth: 19 | Input shaft: Ø45 | Output shaft: Ø35 | Spiral bevel gear: M4x20z | Efficiency: 0.8 | Max linear speed: 8 m/min | Rack travel per input rev: 178.98 mm | Basic height: 150 mm | |
| IRJ30R | Capacity: 3000 kg | Shaft direction: Right | Rack dia. x module: Ø50 x M4 | Pinion teeth: 17 | Input shaft: Ø50 | Output shaft: Ø40 | Spiral bevel gear: M5x20z | Efficiency: 0.7 | Max linear speed: 7 m/min | Rack travel per input rev: 213.52 mm | Basic height: 195 mm | |
| IRJ30L | Capacity: 3000 kg | Shaft direction: Left | Rack dia. x module: Ø50 x M4 | Pinion teeth: 17 | Input shaft: Ø50 | Output shaft: Ø40 | Spiral bevel gear: M5x20z | Efficiency: 0.7 | Max linear speed: 7 m/min | Rack travel per input rev: 213.52 mm | Basic height: 195 mm | |
| IRJ30D | Capacity: 3000 kg | Shaft direction: Double | Rack dia. x module: Ø50 x M4 | Pinion teeth: 17 | Input shaft: Ø50 | Output shaft: Ø40 | Spiral bevel gear: M5x20z | Efficiency: 0.7 | Max linear speed: 7 m/min | Rack travel per input rev: 213.52 mm | Basic height: 195 mm |
