Myung Shin IRJ Series Rack Jack Lift Unit (4-Unit Set with Bevel Gearboxes)
Myung Shin IRJ Series Rack Jack Lift Unit (4-Unit Set with Bevel Gearboxes)

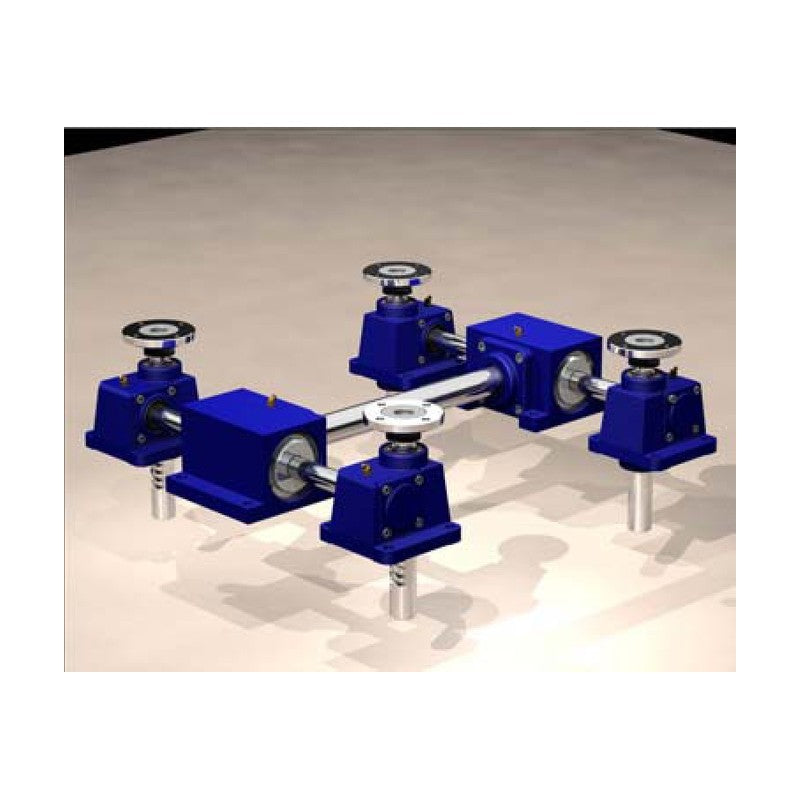

Set of four rack jacks linked by shafts and spiral bevel gearboxes for motor-driven synchronized lifting of tables and conveyors.
Key features
- Four rack jacks driven synchronously from one input shaft
- Spiral bevel gearboxes distribute drive to the jacks
- Shaft center distances and stroke specified at order
- Capacities 1000 to 3000 kg class
Specifications
| Drive | Motor |
|---|---|
| Units per set | 4 |
| IRJ10-4S | Rack dia. x module: Ø30 x M3 | Pinion teeth: 15 | Input shaft: Ø40 | Output shaft: Ø25 | Spiral bevel gear: M3.5x20z | Efficiency: 0.9 | Max linear speed: 8 m/min | Rack travel per input rev: 141.3 mm | Basic height: 140 mm | |
| IRJ20-4S | Rack dia. x module: Ø40 x M3 | Pinion teeth: 19 | Input shaft: Ø45 | Output shaft: Ø35 | Spiral bevel gear: M4x20z | Efficiency: 0.8 | Max linear speed: 8 m/min | Rack travel per input rev: 178.98 mm | Basic height: 150 mm | |
| IRJ30-4S | Rack dia. x module: Ø50 x M4 | Pinion teeth: 17 | Input shaft: Ø50 | Output shaft: Ø40 | Spiral bevel gear: M5x20z | Efficiency: 0.7 | Max linear speed: 7 m/min | Rack travel per input rev: 213.52 mm | Basic height: 195 mm |
