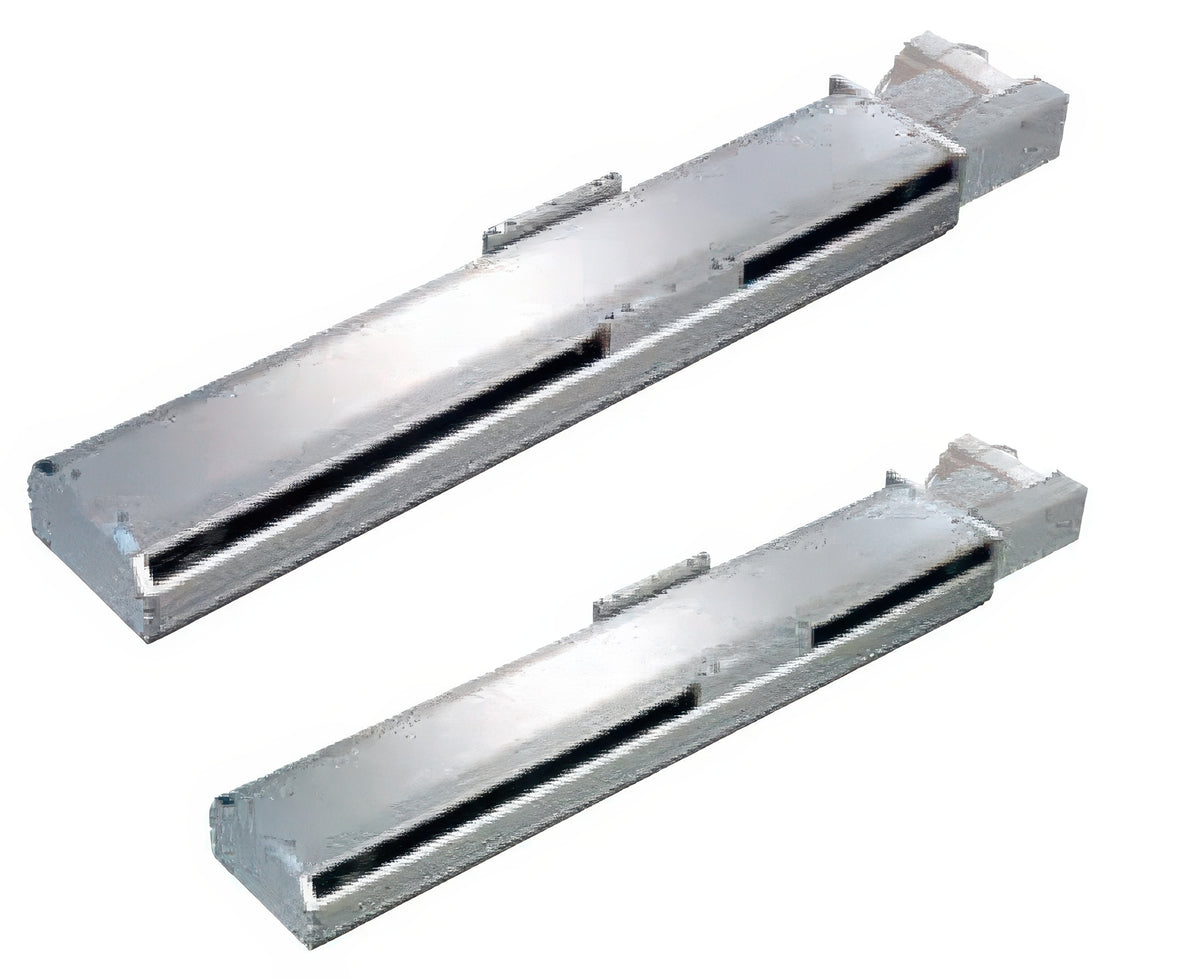

CKD Motorless Electric Actuator ETV Series, Slider Type (Belt Drive)

CKD Motorless Electric Actuator ETV Series, Slider Type (Belt Drive)

Motorless belt-driven slider-type electric actuator for customer-supplied servo motors, designed for long-stroke transfer.

Key features

  • Strokes reach 3500 mm and speeds 2000 mm/s, with horizontal payloads from 3 to 85 kg
  • Six body sizes from 50 to 220 mm wide; motor mounting is selectable in up to six folded directions depending on size
  • Intended for horizontal installation

Specifications

Max payload vertical not applicable (horizontal use)
ETV-05 Compatible servo motor (W): 100 | Body width (mm): 50 | Drive: Timing belt, width 9 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 551.1 | Static allowable moment (N·m): MP 20 / MY 16 / MR 19
ETV-06 Compatible servo motor (W): 100 | Body width (mm): 65 | Drive: Timing belt, width 12 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 1209.1 | Static allowable moment (N·m): MP 80 / MY 70 / MR 75
ETV-10 Compatible servo motor (W): 100 | Body width (mm): 102 | Drive: Timing belt, width 15 mm | Lead equivalent (mm): 32 | Stroke (mm): 100-2550 | Max payload horizontal (kg): 10 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 1600 | Dynamic allowable load (N): 2651.4 | Static allowable moment (N·m): MP 110 / MY 110 / MR 120
ETV-14 Compatible servo motor (W): 200 | Body width (mm): 135 | Drive: Timing belt, width 22 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3050 | Max payload horizontal (kg): 25 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 6566.9 | Static allowable moment (N·m): MP 552 / MY 551 / MR 485
ETV-17 Compatible servo motor (W): 400 | Body width (mm): 170 | Drive: Timing belt, width 30 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 45 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 10102.1 | Static allowable moment (N·m): MP 1034 / MY 1032 / MR 908
ETV-22 Compatible servo motor (W): 750 | Body width (mm): 220 | Drive: Timing belt, width 50 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 85 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 14174.2 | Static allowable moment (N·m): MP 2052 / MY 2052 / MR 1810
Electric ActuatorsCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Motorless Electric Actuator ETV Series, Slider Type (Belt Drive)

Brand CKD·Electric Actuators

Available part numbers (6)

ETV-05, ETV-06, ETV-10, ETV-14, ETV-17, ETV-22

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ETV-05Compatible servo motor (W): 100 | Body width (mm): 50 | Drive: Timing belt, width 9 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 551.1 | Static allowable moment (N·m): MP 20 / MY 16 / MR 19
ETV-06Compatible servo motor (W): 100 | Body width (mm): 65 | Drive: Timing belt, width 12 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-800 | Max payload horizontal (kg): 3 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 1209.1 | Static allowable moment (N·m): MP 80 / MY 70 / MR 75
ETV-10Compatible servo motor (W): 100 | Body width (mm): 102 | Drive: Timing belt, width 15 mm | Lead equivalent (mm): 32 | Stroke (mm): 100-2550 | Max payload horizontal (kg): 10 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 1600 | Dynamic allowable load (N): 2651.4 | Static allowable moment (N·m): MP 110 / MY 110 / MR 120
ETV-14Compatible servo motor (W): 200 | Body width (mm): 135 | Drive: Timing belt, width 22 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3050 | Max payload horizontal (kg): 25 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 6566.9 | Static allowable moment (N·m): MP 552 / MY 551 / MR 485
ETV-17Compatible servo motor (W): 400 | Body width (mm): 170 | Drive: Timing belt, width 30 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 45 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 10102.1 | Static allowable moment (N·m): MP 1034 / MY 1032 / MR 908
ETV-22Compatible servo motor (W): 750 | Body width (mm): 220 | Drive: Timing belt, width 50 mm | Lead equivalent (mm): 40 | Stroke (mm): 100-3500 | Max payload horizontal (kg): 85 | Max payload vertical: not applicable (horizontal use) | Max speed (mm/s): 2000 | Dynamic allowable load (N): 14174.2 | Static allowable moment (N·m): MP 2052 / MY 2052 / MR 1810
