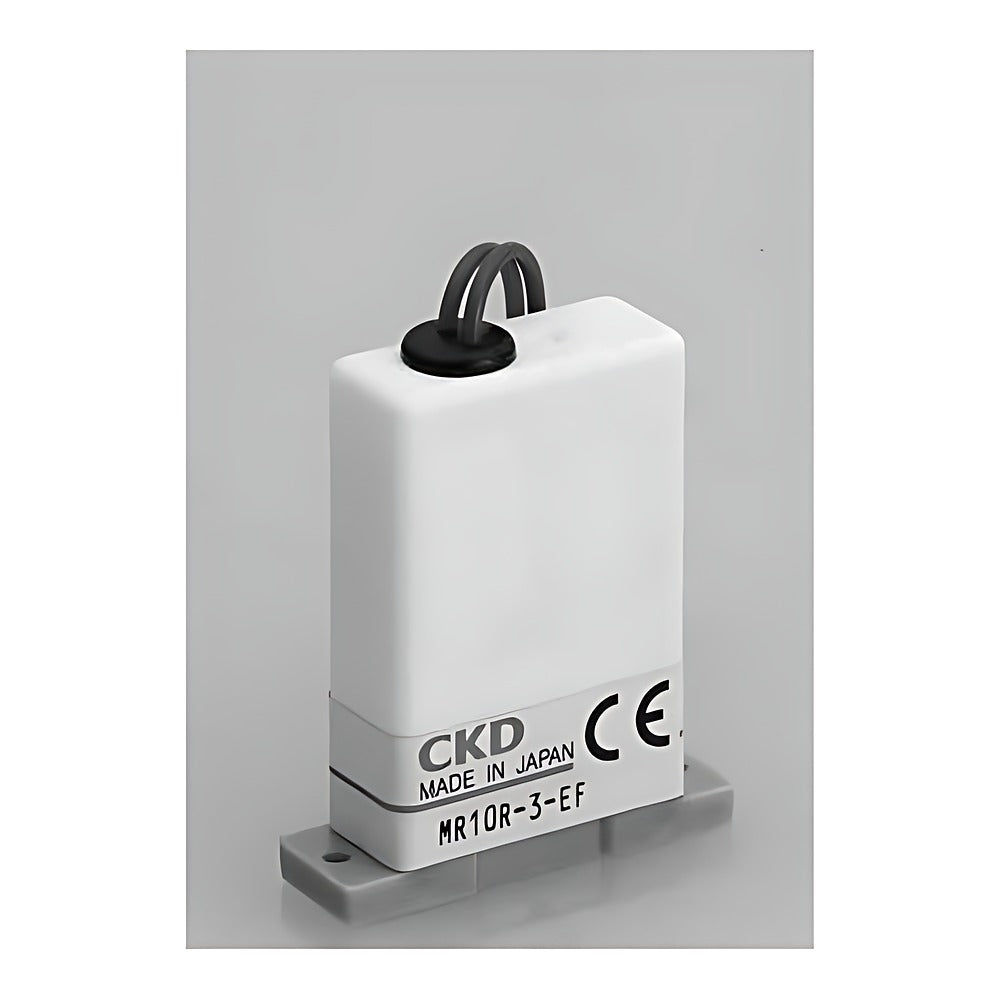

CKD MR10R Metal-Free 2/3-Port Solenoid Valve (10 mm Width, Rocker)

CKD MR10R Metal-Free 2/3-Port Solenoid Valve (10 mm Width, Rocker)

Metal-free 10 mm wide rocker-type diaphragm direct-acting 2/3-port solenoid valve for precise control of small volumes of chemical liquids.

Key features

  • 10 mm wide slim body with same-direction piping
  • PEEK body with FKM diaphragm and seals; no metal in the wetted path
  • NC, NO and universal 3-port functions
  • Actuator (manifold-mount) type or direct piping M5, M6, 1/4-28UNF
  • Internal volume 19 uL; Cv 0.03; CE marked

Specifications

Media Water, pure water, chemical liquids
Operating pressure -0.08 to 0.2 MPa
Proof pressure 0.4 MPa (water)
Fluid / ambient temp. 5 to 50 C
Valve structure Diaphragm direct-acting (rocker)
Material EF: PEEK body / FKM seal
Power consumption 3.6 W start (DC24V), 4.2 W (DC12V)
Mass 18 g actuator type / 22 g direct piping
Source CKD Korea catalog CB-03-1SK-9, p. 996-999
MR10R-2NC-EF-DC24V Function: 2-port NC | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-2NC-EF-DC12V Function: 2-port NC | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-2NC-M5-EF-DC24V Function: 2-port NC | Connection: M5 direct piping | Voltage: DC24V
MR10R-2NC-M5-EF-DC12V Function: 2-port NC | Connection: M5 direct piping | Voltage: DC12V
MR10R-2NC-M6-EF-DC24V Function: 2-port NC | Connection: M6 direct piping | Voltage: DC24V
MR10R-2NC-M6-EF-DC12V Function: 2-port NC | Connection: M6 direct piping | Voltage: DC12V
MR10R-2NC-4U-EF-DC24V Function: 2-port NC | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-2NC-4U-EF-DC12V Function: 2-port NC | Connection: 1/4-28UNF direct piping | Voltage: DC12V
MR10R-2NO-EF-DC24V Function: 2-port NO | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-2NO-EF-DC12V Function: 2-port NO | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-2NO-M5-EF-DC24V Function: 2-port NO | Connection: M5 direct piping | Voltage: DC24V
MR10R-2NO-M5-EF-DC12V Function: 2-port NO | Connection: M5 direct piping | Voltage: DC12V
MR10R-2NO-M6-EF-DC24V Function: 2-port NO | Connection: M6 direct piping | Voltage: DC24V
MR10R-2NO-M6-EF-DC12V Function: 2-port NO | Connection: M6 direct piping | Voltage: DC12V
MR10R-2NO-4U-EF-DC24V Function: 2-port NO | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-2NO-4U-EF-DC12V Function: 2-port NO | Connection: 1/4-28UNF direct piping | Voltage: DC12V
MR10R-3-EF-DC24V Function: 3-port universal | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-3-EF-DC12V Function: 3-port universal | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-3-M5-EF-DC24V Function: 3-port universal | Connection: M5 direct piping | Voltage: DC24V
MR10R-3-M5-EF-DC12V Function: 3-port universal | Connection: M5 direct piping | Voltage: DC12V
MR10R-3-M6-EF-DC24V Function: 3-port universal | Connection: M6 direct piping | Voltage: DC24V
MR10R-3-M6-EF-DC12V Function: 3-port universal | Connection: M6 direct piping | Voltage: DC12V
MR10R-3-4U-EF-DC24V Function: 3-port universal | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-3-4U-EF-DC12V Function: 3-port universal | Connection: 1/4-28UNF direct piping | Voltage: DC12V
Solenoid ValvesCKD
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MR10R Metal-Free 2/3-Port Solenoid Valve (10 mm Width, Rocker)

Brand CKD·Solenoid Valves

Available part numbers (24)

MR10R-2NC-EF-DC24V, MR10R-2NC-EF-DC12V, MR10R-2NC-M5-EF-DC24V, MR10R-2NC-M5-EF-DC12V, MR10R-2NC-M6-EF-DC24V, MR10R-2NC-M6-EF-DC12V, MR10R-2NC-4U-EF-DC24V, MR10R-2NC-4U-EF-DC12V, MR10R-2NO-EF-DC24V, MR10R-2NO-EF-DC12V + 14 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MR10R-2NC-EF-DC24VFunction: 2-port NC | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-2NC-EF-DC12VFunction: 2-port NC | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-2NC-M5-EF-DC24VFunction: 2-port NC | Connection: M5 direct piping | Voltage: DC24V
MR10R-2NC-M5-EF-DC12VFunction: 2-port NC | Connection: M5 direct piping | Voltage: DC12V
MR10R-2NC-M6-EF-DC24VFunction: 2-port NC | Connection: M6 direct piping | Voltage: DC24V
MR10R-2NC-M6-EF-DC12VFunction: 2-port NC | Connection: M6 direct piping | Voltage: DC12V
MR10R-2NC-4U-EF-DC24VFunction: 2-port NC | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-2NC-4U-EF-DC12VFunction: 2-port NC | Connection: 1/4-28UNF direct piping | Voltage: DC12V
MR10R-2NO-EF-DC24VFunction: 2-port NO | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-2NO-EF-DC12VFunction: 2-port NO | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-2NO-M5-EF-DC24VFunction: 2-port NO | Connection: M5 direct piping | Voltage: DC24V
MR10R-2NO-M5-EF-DC12VFunction: 2-port NO | Connection: M5 direct piping | Voltage: DC12V
MR10R-2NO-M6-EF-DC24VFunction: 2-port NO | Connection: M6 direct piping | Voltage: DC24V
MR10R-2NO-M6-EF-DC12VFunction: 2-port NO | Connection: M6 direct piping | Voltage: DC12V
MR10R-2NO-4U-EF-DC24VFunction: 2-port NO | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-2NO-4U-EF-DC12VFunction: 2-port NO | Connection: 1/4-28UNF direct piping | Voltage: DC12V
MR10R-3-EF-DC24VFunction: 3-port universal | Connection: Actuator type (manifold) | Voltage: DC24V
MR10R-3-EF-DC12VFunction: 3-port universal | Connection: Actuator type (manifold) | Voltage: DC12V
MR10R-3-M5-EF-DC24VFunction: 3-port universal | Connection: M5 direct piping | Voltage: DC24V
MR10R-3-M5-EF-DC12VFunction: 3-port universal | Connection: M5 direct piping | Voltage: DC12V
MR10R-3-M6-EF-DC24VFunction: 3-port universal | Connection: M6 direct piping | Voltage: DC24V
MR10R-3-M6-EF-DC12VFunction: 3-port universal | Connection: M6 direct piping | Voltage: DC12V
MR10R-3-4U-EF-DC24VFunction: 3-port universal | Connection: 1/4-28UNF direct piping | Voltage: DC24V
MR10R-3-4U-EF-DC12VFunction: 3-port universal | Connection: 1/4-28UNF direct piping | Voltage: DC12V
