CKD MRG2 Magnet Type Super Rodless Cylinder (High-Precision Guide)

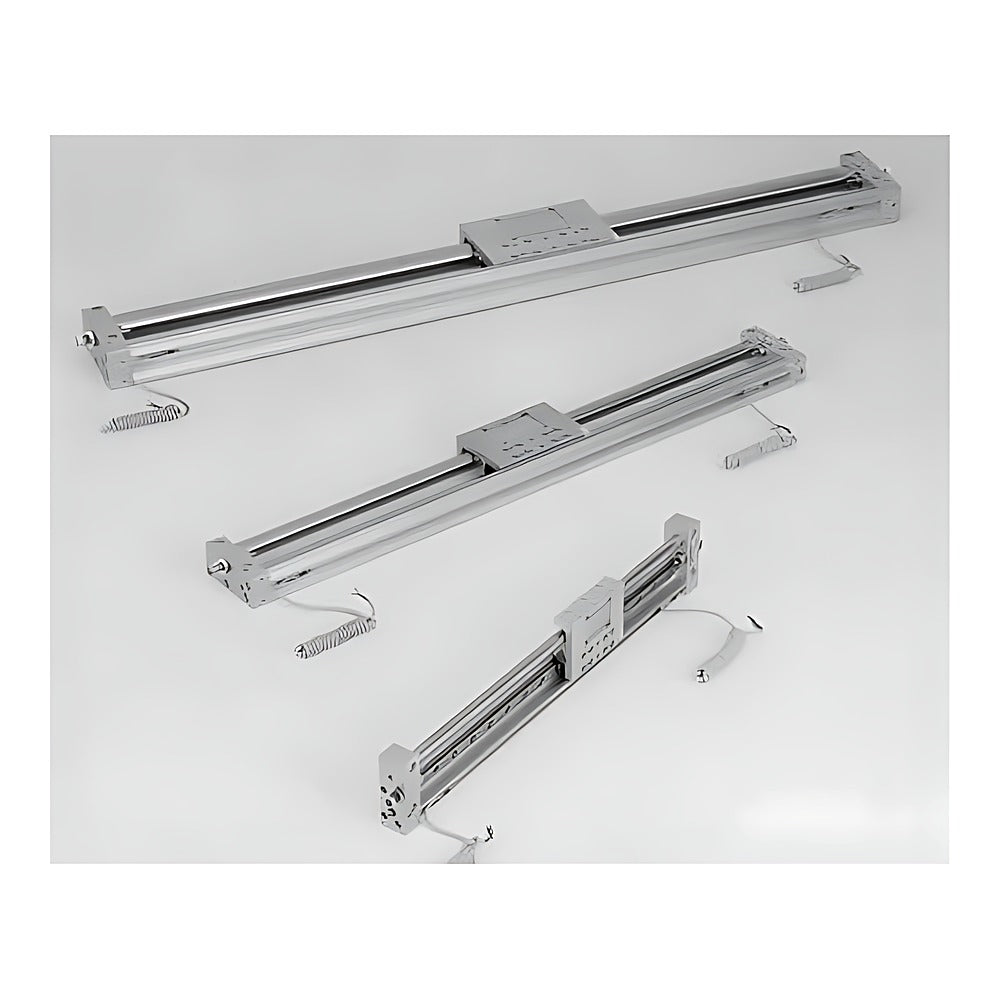

CKD MRG2 magnet-coupled super rodless cylinder with an integrated high-precision linear guide for accurate, rigid slide-table transfer in bores ø10, ø16 and ø25.

Key features

High-precision, high-rigidity guide with approx. 1.5x rated load of comparable ø16 products
Lubrication mechanism improves both life and operating stability; slim design
Shock absorbers fitted as standard cushioning; single replacement shock absorber MRG2-<bore>-C
Options: full-stroke adjustment brackets on both ends (A), R side (A1) or L side (A2)
Switches T0H/V, T5H/V, T1H/V, T2H/V, T3H/V, T3PH/V, T2WH/V, T2YH/V, T3WH/V, T3YH/V with quantity R/L/D/T/4
Switch magnet built in; non-standard strokes made to order

Specifications

Operation	Double acting
Fluid	Compressed air
Max. operating pressure	0.7 MPa
Min. operating pressure	0.3 MPa (ø10), 0.2 MPa (ø16/25)
Proof pressure	1.05 MPa
Ambient temperature	5 to 60°C
Port size	M5 (ø10/16), Rc1/8 (ø25)
Piston speed	50 to 1000 mm/s
Cushion	Shock absorber
Magnetic holding force	63 / 166 / 350 N
Source	CKD Korea catalog CB-029SK-9, p. 1851-1869

MRG2-10-50		Item: Cylinder \| Bore: ø10 \| Stroke: 50 mm
MRG2-10-100		Item: Cylinder \| Bore: ø10 \| Stroke: 100 mm
MRG2-10-150		Item: Cylinder \| Bore: ø10 \| Stroke: 150 mm
MRG2-10-200		Item: Cylinder \| Bore: ø10 \| Stroke: 200 mm
MRG2-10-300		Item: Cylinder \| Bore: ø10 \| Stroke: 300 mm
MRG2-16-50		Item: Cylinder \| Bore: ø16 \| Stroke: 50 mm
MRG2-16-100		Item: Cylinder \| Bore: ø16 \| Stroke: 100 mm
MRG2-16-150		Item: Cylinder \| Bore: ø16 \| Stroke: 150 mm
MRG2-16-200		Item: Cylinder \| Bore: ø16 \| Stroke: 200 mm
MRG2-16-300		Item: Cylinder \| Bore: ø16 \| Stroke: 300 mm
MRG2-16-400		Item: Cylinder \| Bore: ø16 \| Stroke: 400 mm
MRG2-16-500		Item: Cylinder \| Bore: ø16 \| Stroke: 500 mm
MRG2-25-50		Item: Cylinder \| Bore: ø25 \| Stroke: 50 mm
MRG2-25-100		Item: Cylinder \| Bore: ø25 \| Stroke: 100 mm
MRG2-25-150		Item: Cylinder \| Bore: ø25 \| Stroke: 150 mm
MRG2-25-200		Item: Cylinder \| Bore: ø25 \| Stroke: 200 mm
MRG2-25-300		Item: Cylinder \| Bore: ø25 \| Stroke: 300 mm
MRG2-25-400		Item: Cylinder \| Bore: ø25 \| Stroke: 400 mm
MRG2-25-500		Item: Cylinder \| Bore: ø25 \| Stroke: 500 mm
MRG2-25-600		Item: Cylinder \| Bore: ø25 \| Stroke: 600 mm
MRG2-25-700		Item: Cylinder \| Bore: ø25 \| Stroke: 700 mm
MRG2-10-C		Item: Shock absorber (single) \| Bore: ø10 \| Stroke: -
MRG2-16-C		Item: Shock absorber (single) \| Bore: ø16 \| Stroke: -
MRG2-25-C		Item: Shock absorber (single) \| Bore: ø25 \| Stroke: -
