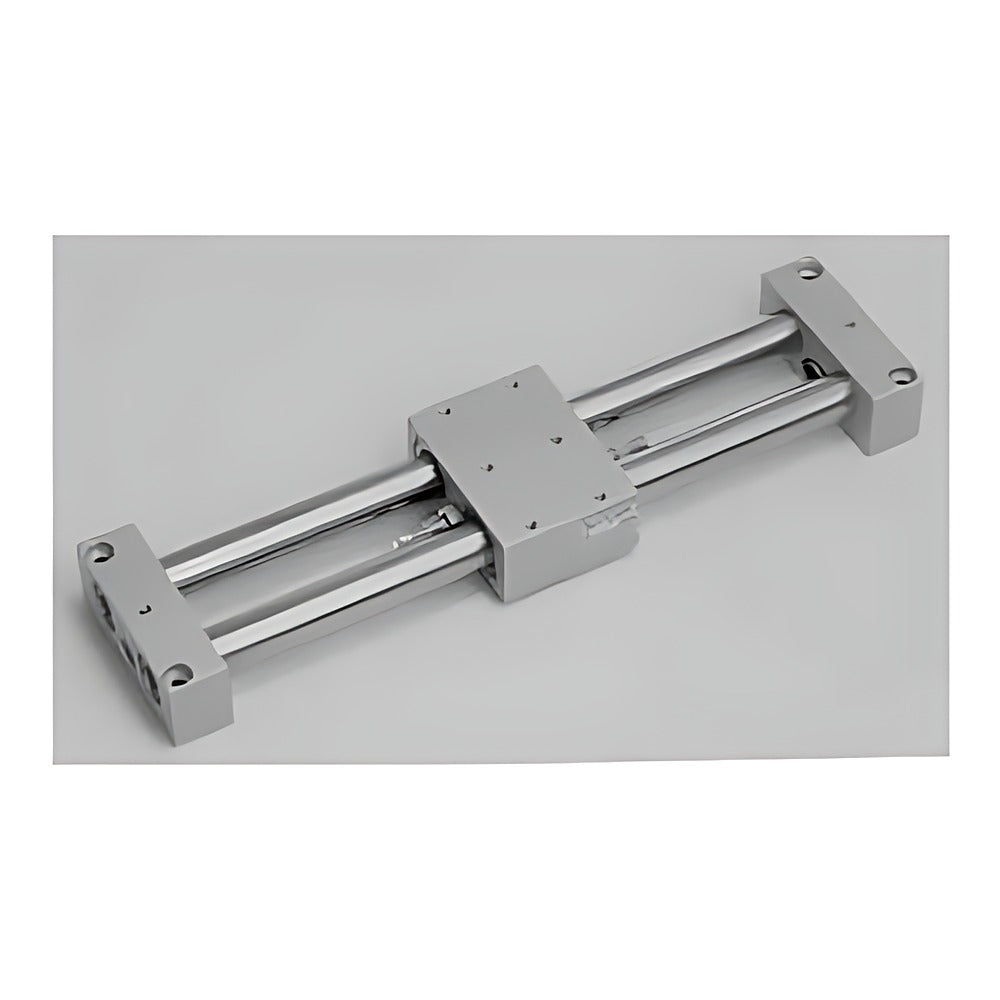

CKD MRL2-G Magnet Type Rodless Cylinder (Simple Guide, 1 Piston)

CKD MRL2-G Magnet Type Rodless Cylinder (Simple Guide, 1 Piston)

CKD MRL2-G magnet-coupled super rodless cylinder (simple guide, 1 piston) with Lube-keeper lubrication for long life, bores ø6 to ø32.

Key features

  • Simple guide type with one cylinder and one guide rod; stroke adjustable
  • Lube-keeper (grease-impregnated fibre) on sliding parts for long, stable lubrication
  • Variants: standard or low-speed (F, 1-200 mm/s), with or without switch magnet (L); rubber cushion or semi-standard rubber air cushion (C)
  • Options: C shock absorber, S scraper, R switch-side centralized piping (with L); NPT (N) / G (G) ports for ø25/32 made to order
  • Switches T1H/V, T2H/V, T3H/V, T2WH/V, T2YH/V, T3WH/V, T3YH/V, T3PH/V ordered as suffix with quantity R/L/D/T/4
  • Intermediate strokes in 1 mm steps; clean room (P72/P52) and secondary-battery (P4) specs available

Specifications

Operation Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.3 MPa (ø6), 0.2 MPa (ø10-ø32)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60°C (low speed: 5 to 60°C)
Port size M5 (ø6-ø20), Rc1/8 (ø25/32)
Piston speed 50 to 500 mm/s (low speed: 1 to 200)
Magnetic holding force 19 N (ø6) to 574 N (ø32)
Source CKD Korea catalog CB-029SK-9, p. 1819-1850
MRL2-G-6-50 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-G-6-100 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-6-150 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-6-200 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-6C-50 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-G-6C-100 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-6C-150 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-6C-200 Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-10-50 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-G-10-100 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-10-150 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-10-200 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-10-250 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-10-300 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-10C-50 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-G-10C-100 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-10C-150 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-10C-200 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-10C-250 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-10C-300 Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-16-100 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-16-150 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-16-200 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-16-250 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-16-300 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-16-400 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-16-500 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-16C-100 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-16C-150 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-16C-200 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-16C-250 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-16C-300 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-16C-400 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-16C-500 Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-20-200 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-20-250 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-20-300 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-20-350 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-20-400 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-20-500 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-20-600 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-20-700 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-20C-200 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-20C-250 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-20C-300 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-20C-350 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-20C-400 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-20C-500 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-20C-600 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-20C-700 Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-G-25-200 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-25-250 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-25-300 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-25-350 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-25-400 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-25-500 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-25-600 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-25-700 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-25C-200 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-25C-250 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-25C-300 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-25C-350 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-25C-400 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-25C-500 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-25C-600 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-25C-700 Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-G-32-200 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-32-250 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-32-300 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-32-350 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-32-400 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-32-500 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-32-600 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-32-700 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-32C-200 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-32C-250 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-32C-300 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-32C-350 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-32C-400 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-32C-500 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-32C-600 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-32C-700 Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-6-50 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GL-6-100 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-6-150 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-6-200 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-6C-50 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GL-6C-100 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-6C-150 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-6C-200 Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-10-50 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GL-10-100 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-10-150 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-10-200 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-10-250 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-10-300 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-10C-50 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GL-10C-100 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-10C-150 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-10C-200 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-10C-250 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-10C-300 Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-16-100 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-16-150 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-16-200 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-16-250 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-16-300 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-16-400 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-16-500 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-16C-100 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-16C-150 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-16C-200 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-16C-250 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-16C-300 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-16C-400 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-16C-500 Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-20-200 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-20-250 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-20-300 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-20-350 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-20-400 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-20-500 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-20-600 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-20-700 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-20C-200 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-20C-250 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-20C-300 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-20C-350 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-20C-400 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-20C-500 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-20C-600 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-20C-700 Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-25-200 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-25-250 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-25-300 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-25-350 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-25-400 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-25-500 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-25-600 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-25-700 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-25C-200 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-25C-250 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-25C-300 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-25C-350 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-25C-400 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-25C-500 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-25C-600 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-25C-700 Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-32-200 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-32-250 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-32-300 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-32-350 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-32-400 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-32-500 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-32-600 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-32-700 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-32C-200 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-32C-250 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-32C-300 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-32C-350 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-32C-400 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-32C-500 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-32C-600 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-32C-700 Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-6-50 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GF-6-100 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-6-150 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-6-200 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-6C-50 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GF-6C-100 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-6C-150 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-6C-200 Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-10-50 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GF-10-100 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-10-150 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-10-200 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-10-250 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-10-300 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-10C-50 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GF-10C-100 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-10C-150 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-10C-200 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-10C-250 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-10C-300 Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-16-100 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-16-150 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-16-200 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-16-250 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-16-300 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-16-400 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-16-500 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-16C-100 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-16C-150 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-16C-200 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-16C-250 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-16C-300 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-16C-400 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-16C-500 Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-20-200 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-20-250 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-20-300 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-20-350 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-20-400 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-20-500 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-20-600 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-20-700 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-20C-200 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-20C-250 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-20C-300 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-20C-350 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-20C-400 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-20C-500 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-20C-600 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-20C-700 Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-25-200 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-25-250 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-25-300 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-25-350 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-25-400 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-25-500 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-25-600 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-25-700 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-25C-200 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-25C-250 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-25C-300 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-25C-350 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-25C-400 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-25C-500 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-25C-600 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-25C-700 Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-32-200 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-32-250 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-32-300 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-32-350 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-32-400 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-32-500 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-32-600 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-32-700 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-32C-200 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-32C-250 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-32C-300 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-32C-350 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-32C-400 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-32C-500 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-32C-600 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-32C-700 Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-6-50 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GLF-6-100 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-6-150 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-6-200 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-6C-50 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GLF-6C-100 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-6C-150 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-6C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-10-50 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GLF-10-100 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-10-150 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-10-200 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-10-250 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-10-300 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-10C-50 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GLF-10C-100 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-10C-150 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-10C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-10C-250 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-10C-300 Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-16-100 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-16-150 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-16-200 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-16-250 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-16-300 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-16-400 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-16-500 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-16C-100 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-16C-150 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-16C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-16C-250 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-16C-300 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-16C-400 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-16C-500 Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-20-200 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-20-250 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-20-300 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-20-350 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-20-400 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-20-500 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-20-600 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-20-700 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-20C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-20C-250 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-20C-300 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-20C-350 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-20C-400 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-20C-500 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-20C-600 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-20C-700 Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-25-200 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-25-250 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-25-300 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-25-350 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-25-400 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-25-500 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-25-600 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-25-700 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-25C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-25C-250 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-25C-300 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-25C-350 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-25C-400 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-25C-500 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-25C-600 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-25C-700 Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-32-200 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-32-250 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-32-300 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-32-350 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-32-400 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-32-500 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-32-600 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-32-700 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-32C-200 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-32C-250 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-32C-300 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-32C-350 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-32C-400 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-32C-500 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-32C-600 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-32C-700 Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
Rodless CylindersCKD
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MRL2-G Magnet Type Rodless Cylinder (Simple Guide, 1 Piston)

Brand CKD·Rodless Cylinders

Available part numbers (328)

MRL2-G-6-50, MRL2-G-6-100, MRL2-G-6-150, MRL2-G-6-200, MRL2-G-6C-50, MRL2-G-6C-100, MRL2-G-6C-150, MRL2-G-6C-200, MRL2-G-10-50, MRL2-G-10-100 + 318 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MRL2-G-6-50Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-G-6-100Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-6-150Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-6-200Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-6C-50Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-G-6C-100Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-6C-150Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-6C-200Speed: Standard | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-10-50Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-G-10-100Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-10-150Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-10-200Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-10-250Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-10-300Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-10C-50Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-G-10C-100Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-10C-150Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-10C-200Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-10C-250Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-10C-300Speed: Standard | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-16-100Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-G-16-150Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-G-16-200Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-16-250Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-16-300Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-16-400Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-16-500Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-16C-100Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-G-16C-150Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-G-16C-200Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-16C-250Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-16C-300Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-16C-400Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-16C-500Speed: Standard | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-20-200Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-20-250Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-20-300Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-20-350Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-20-400Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-20-500Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-20-600Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-20-700Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-20C-200Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-20C-250Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-20C-300Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-20C-350Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-20C-400Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-20C-500Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-20C-600Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-20C-700Speed: Standard | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-G-25-200Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-25-250Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-25-300Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-25-350Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-25-400Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-25-500Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-25-600Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-25-700Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-25C-200Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-25C-250Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-25C-300Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-25C-350Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-25C-400Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-25C-500Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-25C-600Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-25C-700Speed: Standard | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-G-32-200Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-G-32-250Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-G-32-300Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-G-32-350Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-G-32-400Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-G-32-500Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-G-32-600Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-G-32-700Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-G-32C-200Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-G-32C-250Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-G-32C-300Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-G-32C-350Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-G-32C-400Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-G-32C-500Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-G-32C-600Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-G-32C-700Speed: Standard | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-6-50Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GL-6-100Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-6-150Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-6-200Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-6C-50Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GL-6C-100Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-6C-150Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-6C-200Speed: Standard | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-10-50Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GL-10-100Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-10-150Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-10-200Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-10-250Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-10-300Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-10C-50Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GL-10C-100Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-10C-150Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-10C-200Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-10C-250Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-10C-300Speed: Standard | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-16-100Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GL-16-150Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GL-16-200Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-16-250Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-16-300Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-16-400Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-16-500Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-16C-100Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GL-16C-150Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GL-16C-200Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-16C-250Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-16C-300Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-16C-400Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-16C-500Speed: Standard | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-20-200Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-20-250Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-20-300Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-20-350Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-20-400Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-20-500Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-20-600Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-20-700Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-20C-200Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-20C-250Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-20C-300Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-20C-350Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-20C-400Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-20C-500Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-20C-600Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-20C-700Speed: Standard | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-25-200Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-25-250Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-25-300Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-25-350Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-25-400Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-25-500Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-25-600Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-25-700Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-25C-200Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-25C-250Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-25C-300Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-25C-350Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-25C-400Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-25C-500Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-25C-600Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-25C-700Speed: Standard | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GL-32-200Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GL-32-250Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GL-32-300Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GL-32-350Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GL-32-400Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GL-32-500Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GL-32-600Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GL-32-700Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GL-32C-200Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GL-32C-250Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GL-32C-300Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GL-32C-350Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GL-32C-400Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GL-32C-500Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GL-32C-600Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GL-32C-700Speed: Standard | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-6-50Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GF-6-100Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-6-150Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-6-200Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-6C-50Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GF-6C-100Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-6C-150Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-6C-200Speed: Low speed | Switch magnet: No | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-10-50Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GF-10-100Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-10-150Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-10-200Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-10-250Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-10-300Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-10C-50Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GF-10C-100Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-10C-150Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-10C-200Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-10C-250Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-10C-300Speed: Low speed | Switch magnet: No | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-16-100Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GF-16-150Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GF-16-200Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-16-250Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-16-300Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-16-400Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-16-500Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-16C-100Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GF-16C-150Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GF-16C-200Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-16C-250Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-16C-300Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-16C-400Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-16C-500Speed: Low speed | Switch magnet: No | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-20-200Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-20-250Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-20-300Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-20-350Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-20-400Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-20-500Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-20-600Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-20-700Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-20C-200Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-20C-250Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-20C-300Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-20C-350Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-20C-400Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-20C-500Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-20C-600Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-20C-700Speed: Low speed | Switch magnet: No | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-25-200Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-25-250Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-25-300Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-25-350Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-25-400Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-25-500Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-25-600Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-25-700Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-25C-200Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-25C-250Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-25C-300Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-25C-350Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-25C-400Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-25C-500Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-25C-600Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-25C-700Speed: Low speed | Switch magnet: No | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GF-32-200Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GF-32-250Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GF-32-300Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GF-32-350Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GF-32-400Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GF-32-500Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GF-32-600Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GF-32-700Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GF-32C-200Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GF-32C-250Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GF-32C-300Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GF-32C-350Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GF-32C-400Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GF-32C-500Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GF-32C-600Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GF-32C-700Speed: Low speed | Switch magnet: No | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-6-50Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GLF-6-100Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-6-150Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-6-200Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-6C-50Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GLF-6C-100Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-6C-150Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-6C-200Speed: Low speed | Switch magnet: Yes | Bore: ø6 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-10-50Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 50 mm
MRL2-GLF-10-100Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-10-150Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-10-200Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-10-250Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-10-300Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-10C-50Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 50 mm
MRL2-GLF-10C-100Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-10C-150Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-10C-200Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-10C-250Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-10C-300Speed: Low speed | Switch magnet: Yes | Bore: ø10 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-16-100Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 100 mm
MRL2-GLF-16-150Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 150 mm
MRL2-GLF-16-200Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-16-250Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-16-300Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-16-400Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-16-500Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-16C-100Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 100 mm
MRL2-GLF-16C-150Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 150 mm
MRL2-GLF-16C-200Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-16C-250Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-16C-300Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-16C-400Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-16C-500Speed: Low speed | Switch magnet: Yes | Bore: ø16 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-20-200Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-20-250Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-20-300Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-20-350Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-20-400Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-20-500Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-20-600Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-20-700Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-20C-200Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-20C-250Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-20C-300Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-20C-350Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-20C-400Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-20C-500Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-20C-600Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-20C-700Speed: Low speed | Switch magnet: Yes | Bore: ø20 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-25-200Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-25-250Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-25-300Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-25-350Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-25-400Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-25-500Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-25-600Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-25-700Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-25C-200Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-25C-250Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-25C-300Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-25C-350Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-25C-400Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-25C-500Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-25C-600Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-25C-700Speed: Low speed | Switch magnet: Yes | Bore: ø25 | Cushion: Rubber air cushion | Stroke: 700 mm
MRL2-GLF-32-200Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 200 mm
MRL2-GLF-32-250Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 250 mm
MRL2-GLF-32-300Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 300 mm
MRL2-GLF-32-350Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 350 mm
MRL2-GLF-32-400Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 400 mm
MRL2-GLF-32-500Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 500 mm
MRL2-GLF-32-600Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 600 mm
MRL2-GLF-32-700Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber cushion | Stroke: 700 mm
MRL2-GLF-32C-200Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 200 mm
MRL2-GLF-32C-250Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 250 mm
MRL2-GLF-32C-300Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 300 mm
MRL2-GLF-32C-350Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 350 mm
MRL2-GLF-32C-400Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 400 mm
MRL2-GLF-32C-500Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 500 mm
MRL2-GLF-32C-600Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 600 mm
MRL2-GLF-32C-700Speed: Low speed | Switch magnet: Yes | Bore: ø32 | Cushion: Rubber air cushion | Stroke: 700 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
