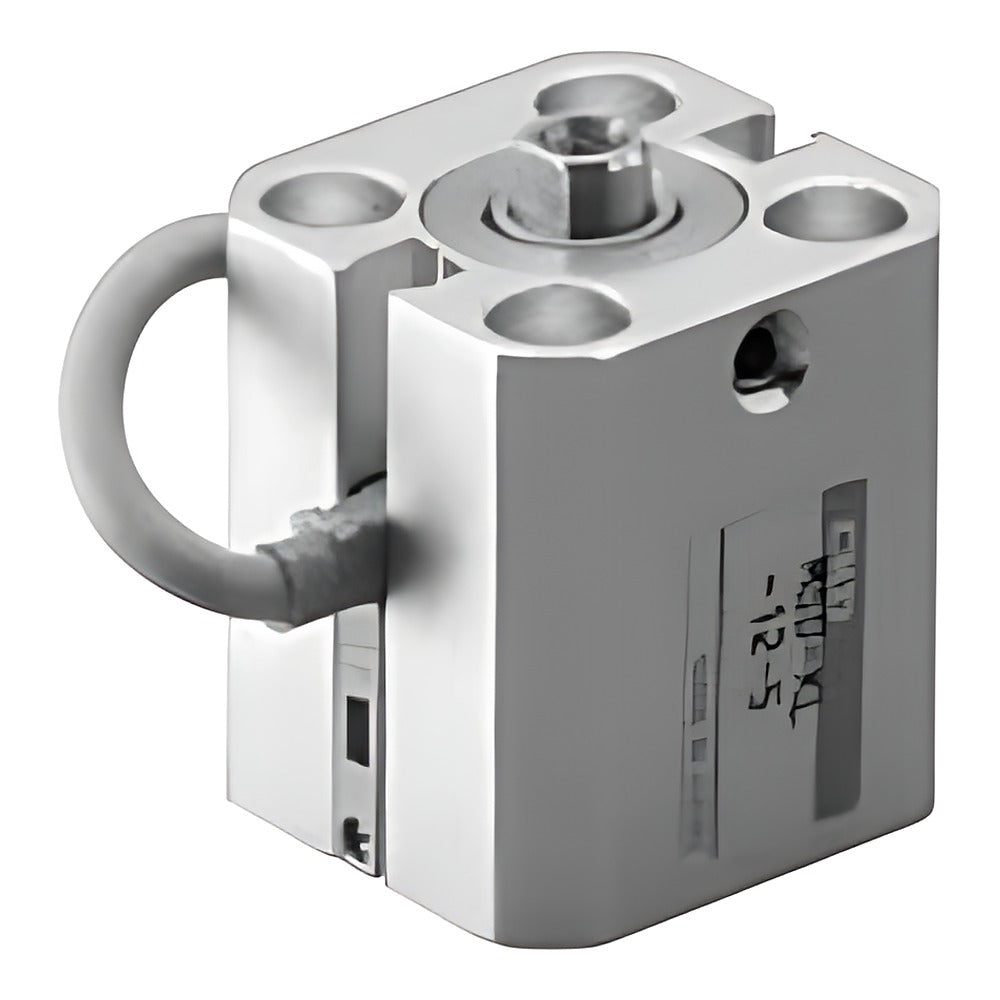

CKD MSD-K Small Compact Cylinder (Double Acting, High Load)

CKD MSD-K Small Compact Cylinder (Double Acting, High Load)

CKD MSD-K double acting high-load small compact cylinder with rubber cushion, bore 6 to 16 mm.

Key features

  • High-load type with rubber cushion; allowable energy 0.004 J (6) to 0.110 J (16)
  • Standard strokes 5-30 mm in 5 mm steps (non-standard strokes not available)
  • Front (standard) or rear (R) piping; front port M3 (6/8) or M5 (12/16), rear port M3
  • Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D
  • Secondary battery (P4*) specification available

Specifications

Fluid Compressed air
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Action Double acting
Min. working pressure 0.15 MPa (6/8), 0.1 MPa (12/16)
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
