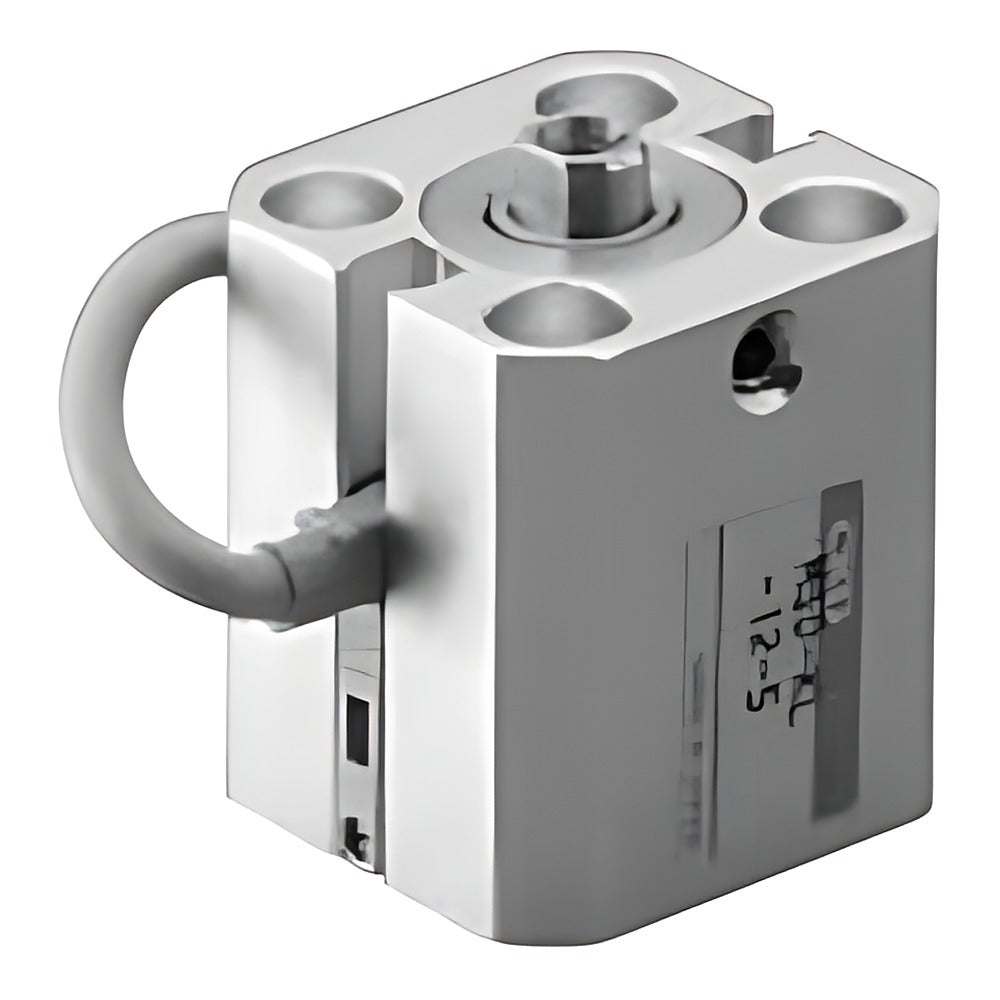

CKD MSD-KF Small Compact Cylinder (High Load, Low Speed)

CKD MSD-KF Small Compact Cylinder (High Load, Low Speed)

CKD MSD-KF double acting high-load low-speed small compact cylinder with rubber cushion, bore 6 to 16 mm.

Key features

  • Low-speed high-load type: piston speed 1 to 200 mm/s, rubber cushion, lubrication not allowed
  • Standard strokes 5-30 mm in 5 mm steps (non-standard strokes not available)
  • Rear centralised port (R) available for bore 12 and 16
  • Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D
  • Dimensions identical to the MSD-K high-load type

Specifications

Fluid Compressed air
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Action Double acting, low speed
Min. working pressure 0.15 MPa (6/8), 0.1 MPa (12/16)
Port size M3 (6/8), M5 side / M3 rear (12/16)
Ambient temperature 5 to 60°C
Piston speed 1 to 200 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 1538-1539
MSD-KF-6-5 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KF-6-10 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KF-6-15 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KF-6-20 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KF-6-25 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KF-6-30 Model: MSD-KF (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KF-8-5 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KF-8-10 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KF-8-15 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KF-8-20 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KF-8-25 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KF-8-30 Model: MSD-KF (no switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KF-12-5 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KF-12-5-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 5 mm | Piping: Rear
MSD-KF-12-10 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KF-12-10-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 10 mm | Piping: Rear
MSD-KF-12-15 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KF-12-15-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 15 mm | Piping: Rear
MSD-KF-12-20 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KF-12-20-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 20 mm | Piping: Rear
MSD-KF-12-25 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KF-12-25-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 25 mm | Piping: Rear
MSD-KF-12-30 Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KF-12-30-R Model: MSD-KF (no switch magnet) | Bore: 12 mm | Stroke: 30 mm | Piping: Rear
MSD-KF-16-5 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KF-16-5-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Piping: Rear
MSD-KF-16-10 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KF-16-10-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Piping: Rear
MSD-KF-16-15 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KF-16-15-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Piping: Rear
MSD-KF-16-20 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KF-16-20-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Piping: Rear
MSD-KF-16-25 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KF-16-25-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Piping: Rear
MSD-KF-16-30 Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KF-16-30-R Model: MSD-KF (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Piping: Rear
MSD-KLF-6-5 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KLF-6-10 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KLF-6-15 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KLF-6-20 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KLF-6-25 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KLF-6-30 Model: MSD-KLF (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KLF-8-5 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KLF-8-10 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KLF-8-15 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KLF-8-20 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KLF-8-25 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KLF-8-30 Model: MSD-KLF (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KLF-12-5 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KLF-12-5-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Piping: Rear
MSD-KLF-12-10 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KLF-12-10-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Piping: Rear
MSD-KLF-12-15 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KLF-12-15-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Piping: Rear
MSD-KLF-12-20 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KLF-12-20-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Piping: Rear
MSD-KLF-12-25 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KLF-12-25-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Piping: Rear
MSD-KLF-12-30 Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KLF-12-30-R Model: MSD-KLF (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Piping: Rear
MSD-KLF-16-5 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-KLF-16-5-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Piping: Rear
MSD-KLF-16-10 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-KLF-16-10-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Piping: Rear
MSD-KLF-16-15 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-KLF-16-15-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Piping: Rear
MSD-KLF-16-20 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-KLF-16-20-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Piping: Rear
MSD-KLF-16-25 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-KLF-16-25-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Piping: Rear
MSD-KLF-16-30 Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-KLF-16-30-R Model: MSD-KLF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Piping: Rear
