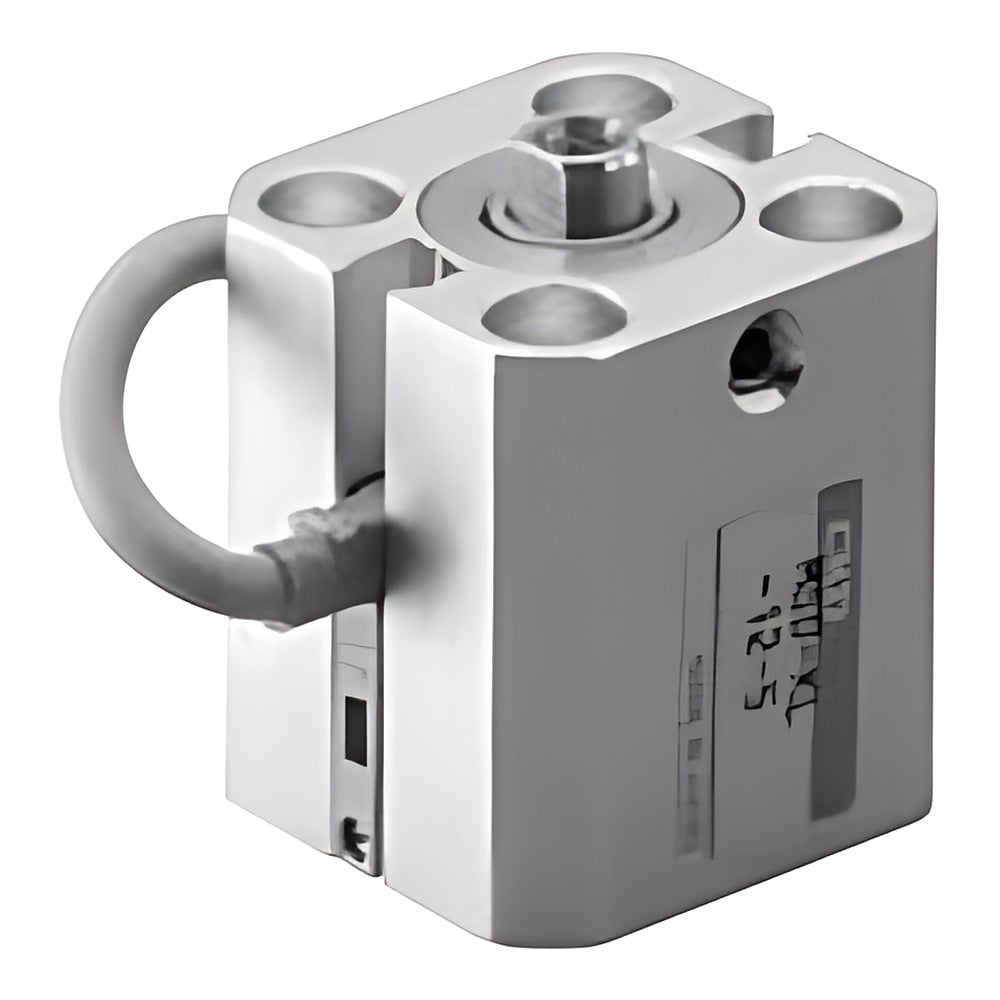

CKD MSD-P4/P40-HP1 Small Compact Cylinder (Secondary Battery)

CKD MSD-P4/P40-HP1 Small Compact Cylinder (Secondary Battery)

CKD MSD-P4/P40-HP1 miniature double-acting compact cylinder, bore ø6 and ø8, for secondary-battery production equipment.

Key features

  • Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
  • Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
  • Standard strokes 5 to 30 mm only (other strokes not available)
  • Front or rear (R) piping; rear-piped body can be side mounted
  • MSD-L with switch magnet; use non-magnetic mounting bolts with switches
  • No cushion: use external stopper for load energy; speed controller SC3W-M3--P4

Specifications

Specification Secondary-battery P4/P40, long-life HP1
Action Double acting, single rod
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa
Port size M3
Piston speed 50 to 500 mm/s
Source CKD Korea catalog CC-1421KR-7, p. 200-201
MSD-6-5-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front | Version: P4
MSD-6-5-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front | Version: P40
MSD-6-5-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear | Version: P4
MSD-6-5-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear | Version: P40
MSD-6-10-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front | Version: P4
MSD-6-10-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front | Version: P40
MSD-6-10-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear | Version: P4
MSD-6-10-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear | Version: P40
MSD-6-15-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front | Version: P4
MSD-6-15-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front | Version: P40
MSD-6-15-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear | Version: P4
MSD-6-15-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear | Version: P40
MSD-6-20-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front | Version: P4
MSD-6-20-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front | Version: P40
MSD-6-20-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear | Version: P4
MSD-6-20-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear | Version: P40
MSD-6-25-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front | Version: P4
MSD-6-25-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front | Version: P40
MSD-6-25-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear | Version: P4
MSD-6-25-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear | Version: P40
MSD-6-30-P4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front | Version: P4
MSD-6-30-P40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front | Version: P40
MSD-6-30-RP4-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear | Version: P4
MSD-6-30-RP40-HP1 Model: MSD (no magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear | Version: P40
MSD-8-5-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front | Version: P4
MSD-8-5-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front | Version: P40
MSD-8-5-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear | Version: P4
MSD-8-5-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear | Version: P40
MSD-8-10-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front | Version: P4
MSD-8-10-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front | Version: P40
MSD-8-10-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear | Version: P4
MSD-8-10-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear | Version: P40
MSD-8-15-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front | Version: P4
MSD-8-15-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front | Version: P40
MSD-8-15-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear | Version: P4
MSD-8-15-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear | Version: P40
MSD-8-20-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front | Version: P4
MSD-8-20-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front | Version: P40
MSD-8-20-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear | Version: P4
MSD-8-20-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear | Version: P40
MSD-8-25-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front | Version: P4
MSD-8-25-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front | Version: P40
MSD-8-25-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear | Version: P4
MSD-8-25-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear | Version: P40
MSD-8-30-P4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front | Version: P4
MSD-8-30-P40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front | Version: P40
MSD-8-30-RP4-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear | Version: P4
MSD-8-30-RP40-HP1 Model: MSD (no magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear | Version: P40
MSD-L-6-5-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front | Version: P4
MSD-L-6-5-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front | Version: P40
MSD-L-6-5-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear | Version: P4
MSD-L-6-5-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear | Version: P40
MSD-L-6-10-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front | Version: P4
MSD-L-6-10-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front | Version: P40
MSD-L-6-10-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear | Version: P4
MSD-L-6-10-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear | Version: P40
MSD-L-6-15-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front | Version: P4
MSD-L-6-15-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front | Version: P40
MSD-L-6-15-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear | Version: P4
MSD-L-6-15-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear | Version: P40
MSD-L-6-20-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front | Version: P4
MSD-L-6-20-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front | Version: P40
MSD-L-6-20-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear | Version: P4
MSD-L-6-20-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear | Version: P40
MSD-L-6-25-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front | Version: P4
MSD-L-6-25-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front | Version: P40
MSD-L-6-25-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear | Version: P4
MSD-L-6-25-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear | Version: P40
MSD-L-6-30-P4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front | Version: P4
MSD-L-6-30-P40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front | Version: P40
MSD-L-6-30-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear | Version: P4
MSD-L-6-30-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear | Version: P40
MSD-L-8-5-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front | Version: P4
MSD-L-8-5-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front | Version: P40
MSD-L-8-5-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear | Version: P4
MSD-L-8-5-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear | Version: P40
MSD-L-8-10-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front | Version: P4
MSD-L-8-10-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front | Version: P40
MSD-L-8-10-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear | Version: P4
MSD-L-8-10-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear | Version: P40
MSD-L-8-15-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front | Version: P4
MSD-L-8-15-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front | Version: P40
MSD-L-8-15-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear | Version: P4
MSD-L-8-15-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear | Version: P40
MSD-L-8-20-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front | Version: P4
MSD-L-8-20-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front | Version: P40
MSD-L-8-20-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear | Version: P4
MSD-L-8-20-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear | Version: P40
MSD-L-8-25-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front | Version: P4
MSD-L-8-25-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front | Version: P40
MSD-L-8-25-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear | Version: P4
MSD-L-8-25-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear | Version: P40
MSD-L-8-30-P4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front | Version: P4
MSD-L-8-30-P40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front | Version: P40
MSD-L-8-30-RP4-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear | Version: P4
MSD-L-8-30-RP40-HP1 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear | Version: P40
Compact CylindersCKD
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MSD-P4/P40-HP1 Small Compact Cylinder (Secondary Battery)

Brand CKD·Compact Cylinders

Available part numbers (96)

MSD-6-5-P4-HP1, MSD-6-5-P40-HP1, MSD-6-5-RP4-HP1, MSD-6-5-RP40-HP1, MSD-6-10-P4-HP1, MSD-6-10-P40-HP1, MSD-6-10-RP4-HP1, MSD-6-10-RP40-HP1, MSD-6-15-P4-HP1, MSD-6-15-P40-HP1 + 86 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
