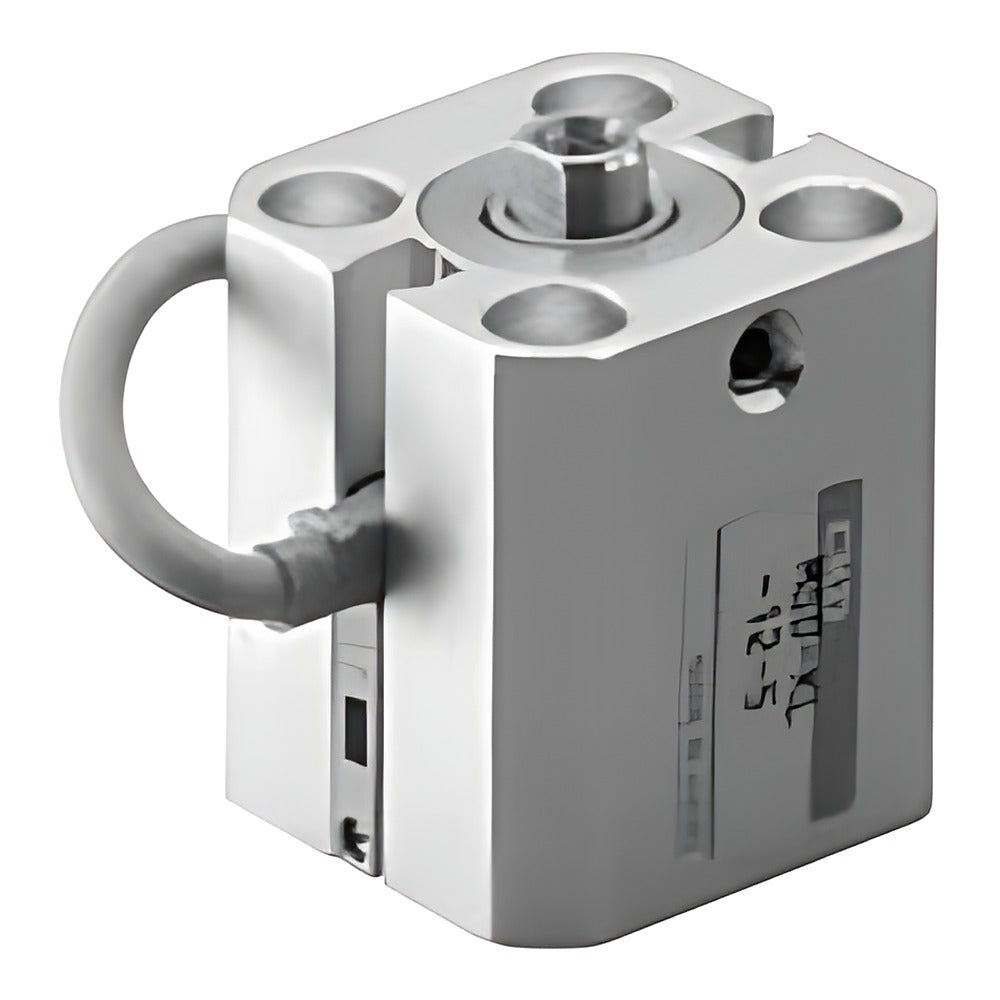

CKD MSD Small Compact Cylinder (Double Acting, Bore 6-8)

CKD MSD Small Compact Cylinder (Double Acting, Bore 6-8)

CKD MSD double acting single rod small compact cylinder with very short axial length, bore 6 and 8 mm.

Key features

  • Axial space saving compact body, bore 6 and 8 mm added below the SSD range
  • Standard strokes 5-30 mm in 5 mm steps (non-standard strokes not available)
  • Front (standard) or rear (R) piping port; M3 ports
  • Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D
  • No cushion: use external stopper/buffer when absorbing load energy
  • Secondary battery (P4*) specification available

Specifications

Fluid Compressed air
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Action Double acting
Min. working pressure 0.15 MPa
Port size M3
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Stroke tolerance +0.5/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1510-1516
MSD-6-5 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-6-5-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear
MSD-6-10 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-6-10-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear
MSD-6-15 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-6-15-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear
MSD-6-20 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-6-20-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear
MSD-6-25 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-6-25-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear
MSD-6-30 Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-6-30-R Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear
MSD-8-5 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-8-5-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear
MSD-8-10 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-8-10-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear
MSD-8-15 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-8-15-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear
MSD-8-20 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-8-20-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear
MSD-8-25 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-8-25-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear
MSD-8-30 Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-8-30-R Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear
MSD-L-6-5 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-L-6-5-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear
MSD-L-6-10 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-L-6-10-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear
MSD-L-6-15 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-L-6-15-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear
MSD-L-6-20 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-L-6-20-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear
MSD-L-6-25 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-L-6-25-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear
MSD-L-6-30 Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-L-6-30-R Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear
MSD-L-8-5 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-L-8-5-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear
MSD-L-8-10 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-L-8-10-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear
MSD-L-8-15 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-L-8-15-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear
MSD-L-8-20 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-L-8-20-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear
MSD-L-8-25 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-L-8-25-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear
MSD-L-8-30 Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-L-8-30-R Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear
Compact CylindersCKD
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MSD Small Compact Cylinder (Double Acting, Bore 6-8)

Brand CKD·Compact Cylinders

Available part numbers (48)

MSD-6-5, MSD-6-5-R, MSD-6-10, MSD-6-10-R, MSD-6-15, MSD-6-15-R, MSD-6-20, MSD-6-20-R, MSD-6-25, MSD-6-25-R + 38 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSD-6-5Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-6-5-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear
MSD-6-10Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-6-10-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear
MSD-6-15Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-6-15-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear
MSD-6-20Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-6-20-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear
MSD-6-25Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-6-25-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear
MSD-6-30Model: MSD (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-6-30-RModel: MSD (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear
MSD-8-5Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-8-5-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear
MSD-8-10Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-8-10-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear
MSD-8-15Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-8-15-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear
MSD-8-20Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-8-20-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear
MSD-8-25Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-8-25-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear
MSD-8-30Model: MSD (no switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-8-30-RModel: MSD (no switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear
MSD-L-6-5Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-L-6-5-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Piping: Rear
MSD-L-6-10Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-L-6-10-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Piping: Rear
MSD-L-6-15Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-L-6-15-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Piping: Rear
MSD-L-6-20Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-L-6-20-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Piping: Rear
MSD-L-6-25Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-L-6-25-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Piping: Rear
MSD-L-6-30Model: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-L-6-30-RModel: MSD-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Piping: Rear
MSD-L-8-5Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSD-L-8-5-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 5 mm | Piping: Rear
MSD-L-8-10Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSD-L-8-10-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 10 mm | Piping: Rear
MSD-L-8-15Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSD-L-8-15-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 15 mm | Piping: Rear
MSD-L-8-20Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSD-L-8-20-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 20 mm | Piping: Rear
MSD-L-8-25Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSD-L-8-25-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 25 mm | Piping: Rear
MSD-L-8-30Model: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSD-L-8-30-RModel: MSD-L (switch magnet) | Bore: 8 mm | Stroke: 30 mm | Piping: Rear
