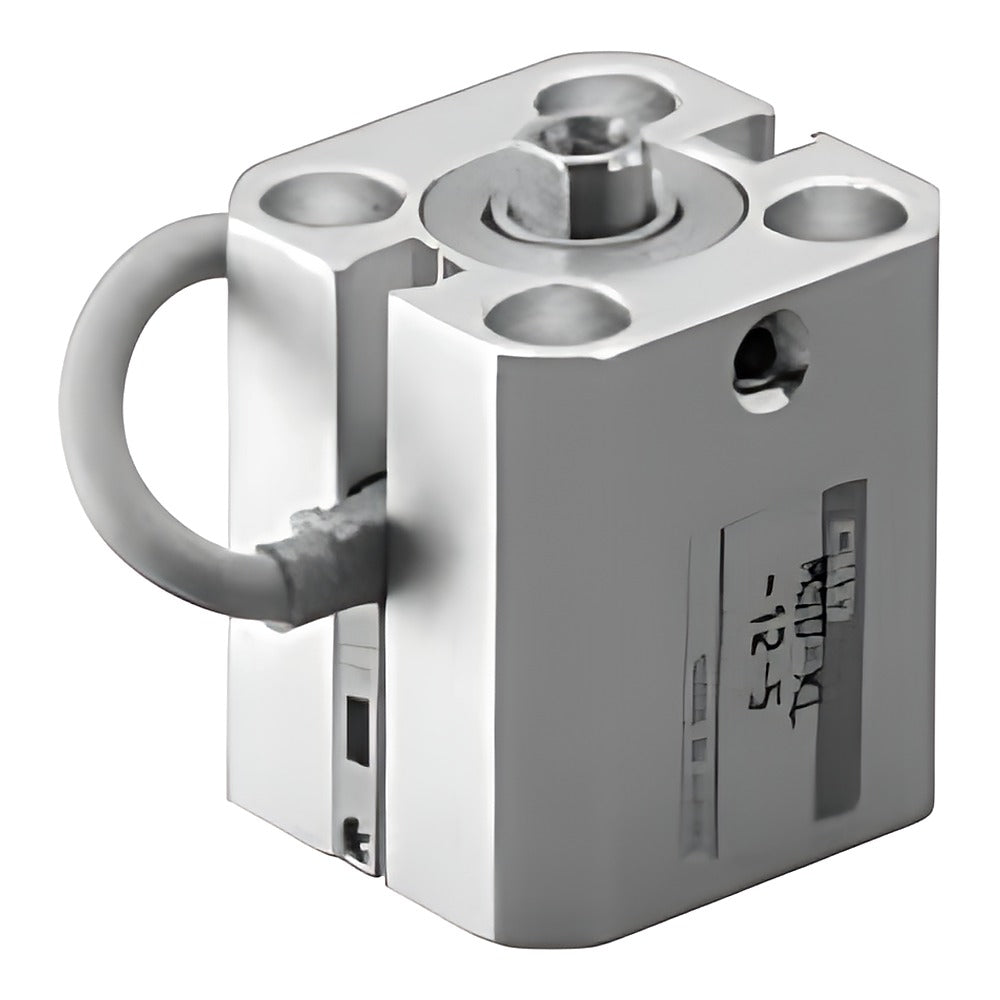

CKD MSD-X/MSD-Y Small Compact Cylinder (Single Acting)

CKD MSD-X (push) and MSD-Y (pull) single acting spring return small compact cylinders, bore 6 and 8 mm.

Key features

Single acting push (X) or pull (Y); XL/YL with built-in switch magnet
Standard strokes 5 and 10 mm (non-standard strokes not available)
Front (standard) or rear (R) piping port; M3 ports
Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D
No cushion: use external stopper/buffer when absorbing load energy

Specifications

Fluid	Compressed air
Max. working pressure	1.0 MPa
Proof pressure	1.6 MPa
Action	Single acting (spring return)
Min. working pressure	X: 0.3 MPa; Y: 0.4 MPa (6), 0.3 MPa (8)
Port size	M3
Ambient temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Stroke tolerance	+0.5/0 mm
Source	CKD Korea catalog CB-029SK-9, p. 1518-1527
