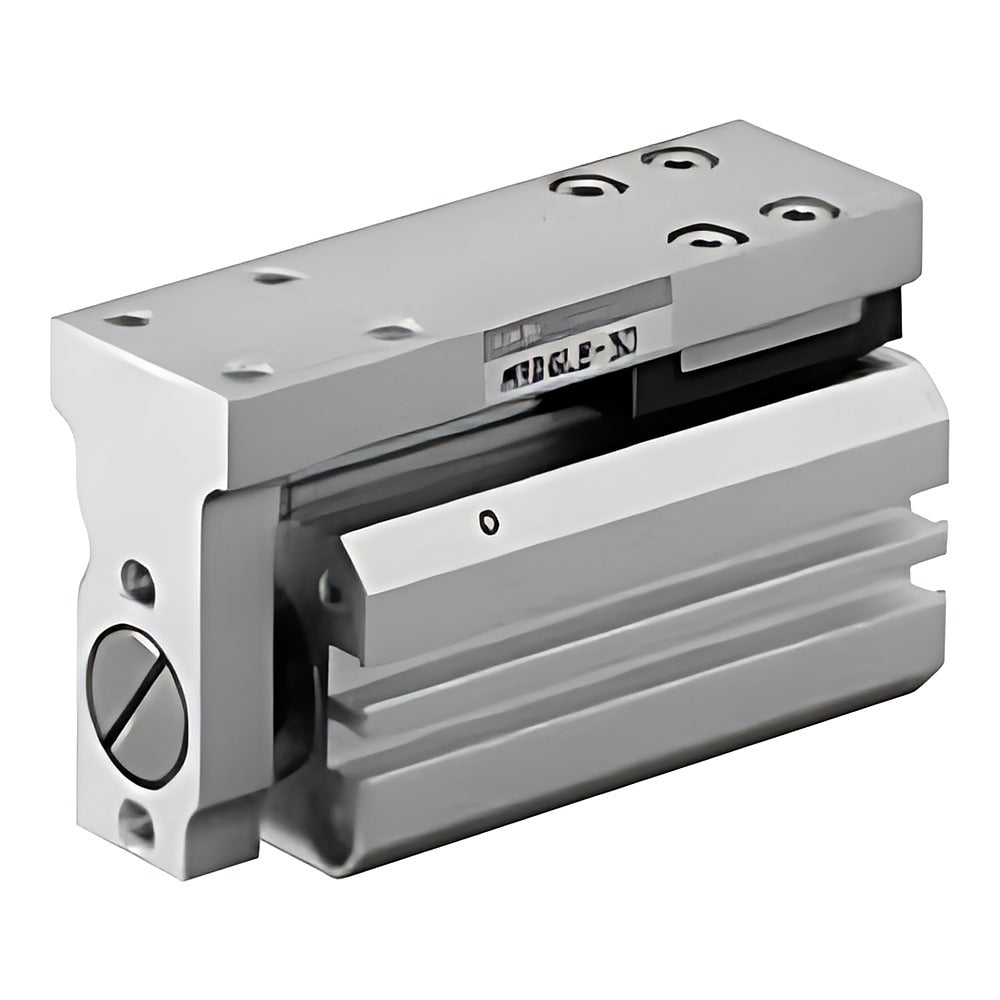

CKD MSDG-L Small Guided Compact Cylinder (Bore 6-16)

CKD MSDG-L Small Guided Compact Cylinder (Bore 6-16)

CKD MSDG-L double acting small compact cylinder with built-in high precision guide and switch magnet, bore 6 to 16 mm.

Key features

  • High precision guide built into the axially short MSD body for high accuracy and rigidity
  • Switch magnet built in as standard
  • Standard strokes 5-30 mm in 5 mm steps (non-standard strokes not available)
  • Front (standard) or rear (R) piping; front port M3 (6/8) or M5 (12/16), rear M3
  • Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D
  • Secondary battery (P4*) specification available

Specifications

Fluid Compressed air
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Action Double acting, guided
Min. working pressure 0.2 MPa (6), 0.15 MPa (8), 0.1 MPa (12/16)
Ambient temperature 5 to 60°C
Piston speed 50 to 500 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 1540-1549
MSDG-L-6-5 Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-6-5-R Bore: 6 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-6-10 Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-6-10-R Bore: 6 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-6-15 Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-6-15-R Bore: 6 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-6-20 Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-6-20-R Bore: 6 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-6-25 Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-6-25-R Bore: 6 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-6-30 Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-6-30-R Bore: 6 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-8-5 Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-8-5-R Bore: 8 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-8-10 Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-8-10-R Bore: 8 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-8-15 Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-8-15-R Bore: 8 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-8-20 Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-8-20-R Bore: 8 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-8-25 Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-8-25-R Bore: 8 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-8-30 Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-8-30-R Bore: 8 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-12-5 Bore: 12 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-12-5-R Bore: 12 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-12-10 Bore: 12 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-12-10-R Bore: 12 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-12-15 Bore: 12 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-12-15-R Bore: 12 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-12-20 Bore: 12 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-12-20-R Bore: 12 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-12-25 Bore: 12 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-12-25-R Bore: 12 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-12-30 Bore: 12 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-12-30-R Bore: 12 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-16-5 Bore: 16 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-16-5-R Bore: 16 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-16-10 Bore: 16 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-16-10-R Bore: 16 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-16-15 Bore: 16 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-16-15-R Bore: 16 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-16-20 Bore: 16 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-16-20-R Bore: 16 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-16-25 Bore: 16 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-16-25-R Bore: 16 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-16-30 Bore: 16 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-16-30-R Bore: 16 mm | Stroke: 30 mm | Piping: Rear
Guided CylindersCKD
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MSDG-L Small Guided Compact Cylinder (Bore 6-16)

Brand CKD·Guided Cylinders

Available part numbers (48)

MSDG-L-6-5, MSDG-L-6-5-R, MSDG-L-6-10, MSDG-L-6-10-R, MSDG-L-6-15, MSDG-L-6-15-R, MSDG-L-6-20, MSDG-L-6-20-R, MSDG-L-6-25, MSDG-L-6-25-R + 38 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSDG-L-6-5Bore: 6 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-6-5-RBore: 6 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-6-10Bore: 6 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-6-10-RBore: 6 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-6-15Bore: 6 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-6-15-RBore: 6 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-6-20Bore: 6 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-6-20-RBore: 6 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-6-25Bore: 6 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-6-25-RBore: 6 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-6-30Bore: 6 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-6-30-RBore: 6 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-8-5Bore: 8 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-8-5-RBore: 8 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-8-10Bore: 8 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-8-10-RBore: 8 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-8-15Bore: 8 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-8-15-RBore: 8 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-8-20Bore: 8 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-8-20-RBore: 8 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-8-25Bore: 8 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-8-25-RBore: 8 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-8-30Bore: 8 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-8-30-RBore: 8 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-12-5Bore: 12 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-12-5-RBore: 12 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-12-10Bore: 12 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-12-10-RBore: 12 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-12-15Bore: 12 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-12-15-RBore: 12 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-12-20Bore: 12 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-12-20-RBore: 12 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-12-25Bore: 12 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-12-25-RBore: 12 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-12-30Bore: 12 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-12-30-RBore: 12 mm | Stroke: 30 mm | Piping: Rear
MSDG-L-16-5Bore: 16 mm | Stroke: 5 mm | Piping: Front (body side)
MSDG-L-16-5-RBore: 16 mm | Stroke: 5 mm | Piping: Rear
MSDG-L-16-10Bore: 16 mm | Stroke: 10 mm | Piping: Front (body side)
MSDG-L-16-10-RBore: 16 mm | Stroke: 10 mm | Piping: Rear
MSDG-L-16-15Bore: 16 mm | Stroke: 15 mm | Piping: Front (body side)
MSDG-L-16-15-RBore: 16 mm | Stroke: 15 mm | Piping: Rear
MSDG-L-16-20Bore: 16 mm | Stroke: 20 mm | Piping: Front (body side)
MSDG-L-16-20-RBore: 16 mm | Stroke: 20 mm | Piping: Rear
MSDG-L-16-25Bore: 16 mm | Stroke: 25 mm | Piping: Front (body side)
MSDG-L-16-25-RBore: 16 mm | Stroke: 25 mm | Piping: Rear
MSDG-L-16-30Bore: 16 mm | Stroke: 30 mm | Piping: Front (body side)
MSDG-L-16-30-RBore: 16 mm | Stroke: 30 mm | Piping: Rear
