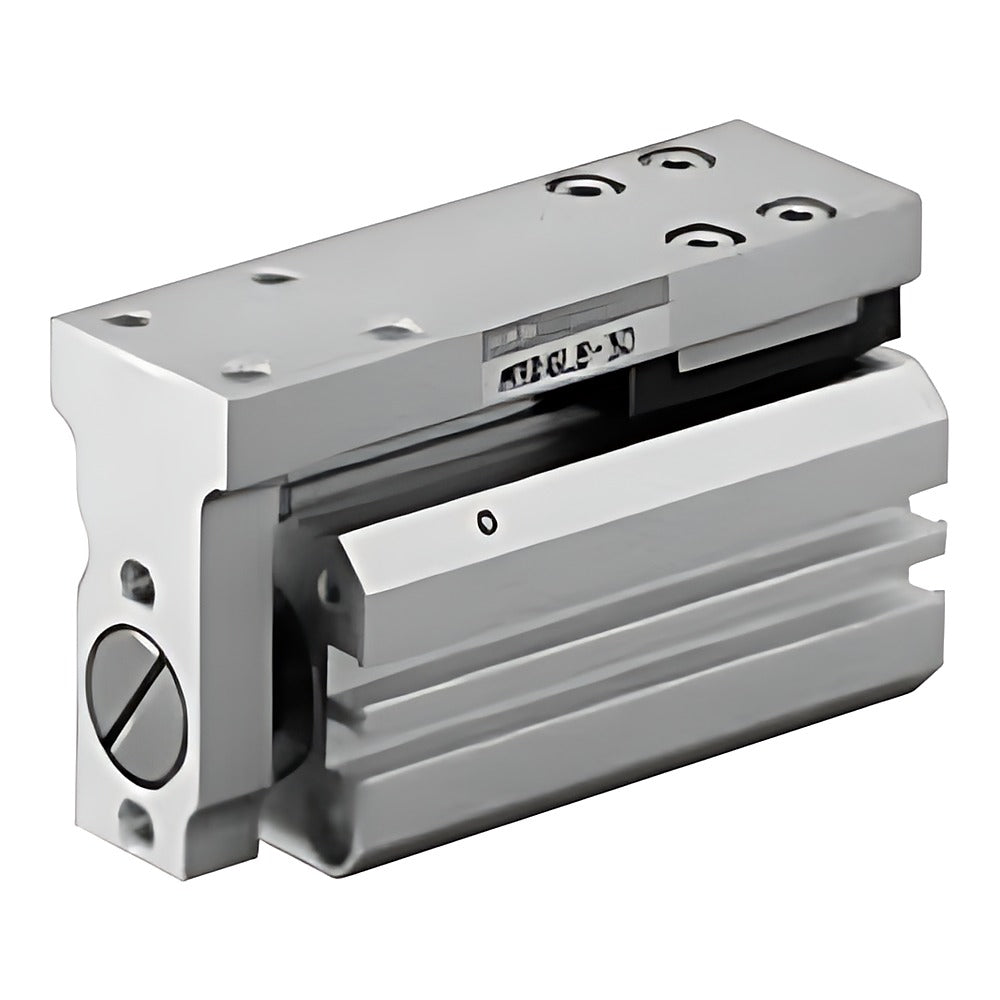

CKD MSDG-LF Small Guided Compact Cylinder (Low Speed, Bore 12-16)

CKD MSDG-LF double acting low-speed small guided compact cylinder with switch magnet, bore 12 and 16 mm.

Key features

Guided MSDG-L body with low-speed sealing: piston speed 1 to 200 mm/s
Switch magnet built in as standard; lubrication not allowed
Standard strokes 5-30 mm in 5 mm steps (non-standard strokes not available)
Front M5 port (standard) or rear M3 centralised port (R)
Auto switches (not multiplied): reed F0H/F0V; solid state F2H/F2V, F2S, F3H/F3V, F3S, F3PH/F3PV, F2YH/F2YV, F3YH/F3YV (2-colour); lead 1/3 m; switch qty R/H/D

Specifications

Fluid	Compressed air
Max. working pressure	1.0 MPa
Proof pressure	1.6 MPa
Action	Double acting, guided, low speed
Min. working pressure	0.1 MPa
Ambient temperature	5 to 60°C
Piston speed	1 to 200 mm/s
Stroke tolerance	+2.0/0 mm
Cushion	Rubber cushion
Source	CKD Korea catalog CB-029SK-9, p. 1550-1551

MSDG-LF-12-5		Bore: 12 mm \| Stroke: 5 mm \| Piping: Front (body side)
MSDG-LF-12-5-R		Bore: 12 mm \| Stroke: 5 mm \| Piping: Rear
MSDG-LF-12-10		Bore: 12 mm \| Stroke: 10 mm \| Piping: Front (body side)
MSDG-LF-12-10-R		Bore: 12 mm \| Stroke: 10 mm \| Piping: Rear
MSDG-LF-12-15		Bore: 12 mm \| Stroke: 15 mm \| Piping: Front (body side)
MSDG-LF-12-15-R		Bore: 12 mm \| Stroke: 15 mm \| Piping: Rear
MSDG-LF-12-20		Bore: 12 mm \| Stroke: 20 mm \| Piping: Front (body side)
MSDG-LF-12-20-R		Bore: 12 mm \| Stroke: 20 mm \| Piping: Rear
MSDG-LF-12-25		Bore: 12 mm \| Stroke: 25 mm \| Piping: Front (body side)
MSDG-LF-12-25-R		Bore: 12 mm \| Stroke: 25 mm \| Piping: Rear
MSDG-LF-12-30		Bore: 12 mm \| Stroke: 30 mm \| Piping: Front (body side)
MSDG-LF-12-30-R		Bore: 12 mm \| Stroke: 30 mm \| Piping: Rear
MSDG-LF-16-5		Bore: 16 mm \| Stroke: 5 mm \| Piping: Front (body side)
MSDG-LF-16-5-R		Bore: 16 mm \| Stroke: 5 mm \| Piping: Rear
MSDG-LF-16-10		Bore: 16 mm \| Stroke: 10 mm \| Piping: Front (body side)
MSDG-LF-16-10-R		Bore: 16 mm \| Stroke: 10 mm \| Piping: Rear
MSDG-LF-16-15		Bore: 16 mm \| Stroke: 15 mm \| Piping: Front (body side)
MSDG-LF-16-15-R		Bore: 16 mm \| Stroke: 15 mm \| Piping: Rear
MSDG-LF-16-20		Bore: 16 mm \| Stroke: 20 mm \| Piping: Front (body side)
MSDG-LF-16-20-R		Bore: 16 mm \| Stroke: 20 mm \| Piping: Rear
MSDG-LF-16-25		Bore: 16 mm \| Stroke: 25 mm \| Piping: Front (body side)
MSDG-LF-16-25-R		Bore: 16 mm \| Stroke: 25 mm \| Piping: Rear
MSDG-LF-16-30		Bore: 16 mm \| Stroke: 30 mm \| Piping: Front (body side)
MSDG-LF-16-30-R		Bore: 16 mm \| Stroke: 30 mm \| Piping: Rear

Guided CylindersCKD

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MSDG-LF Small Guided Compact Cylinder (Low Speed, Bore 12-16)

Brand CKD·Guided Cylinders

Available part numbers (24)

MSDG-LF-12-5, MSDG-LF-12-5-R, MSDG-LF-12-10, MSDG-LF-12-10-R, MSDG-LF-12-15, MSDG-LF-12-15-R, MSDG-LF-12-20, MSDG-LF-12-20-R, MSDG-LF-12-25, MSDG-LF-12-25-R + 14 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
