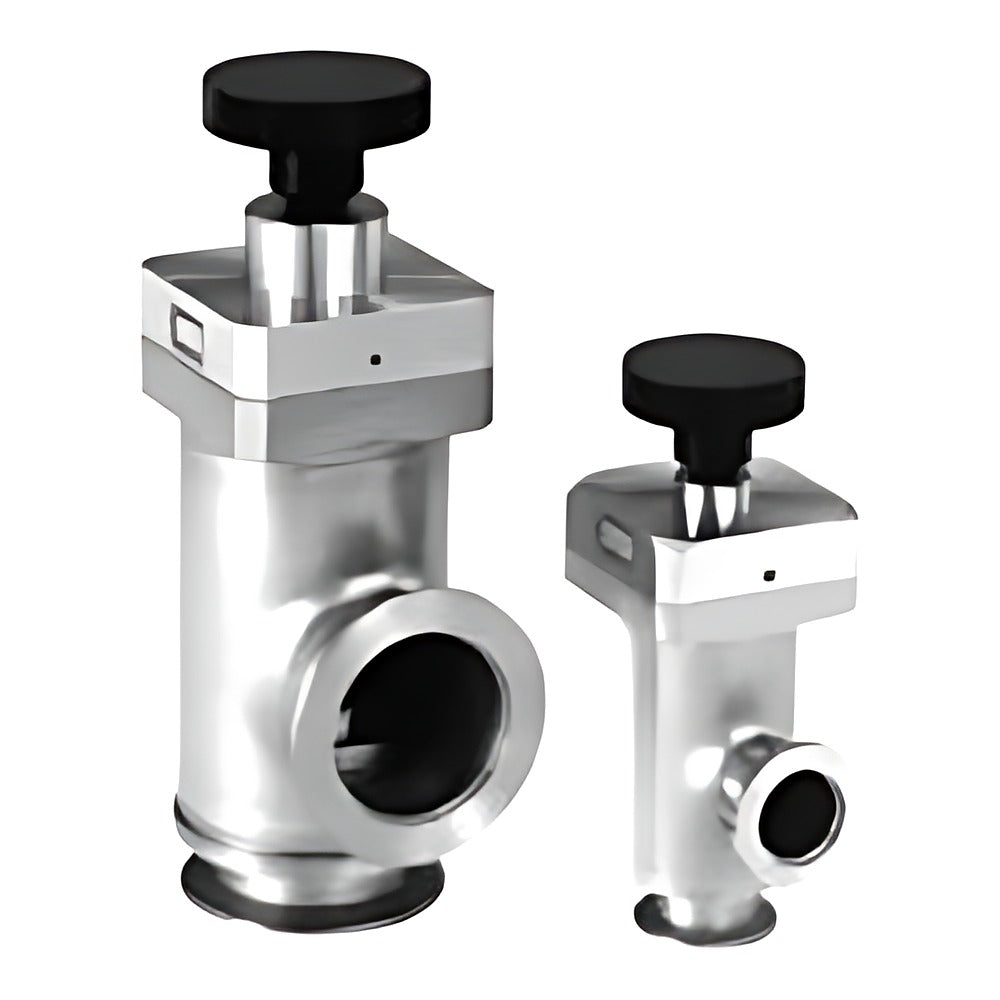

CKD MVP*0 High Vacuum Manual Valve (Double O-Ring, Made to Order)

CKD MVP*0 High Vacuum Manual Valve (Double O-Ring, Made to Order)

Made-to-order handle-rotation high-vacuum manual valve with double o-ring shaft seal seal, NW25 to NW50.

Key features

  • Double O-ring shaft seal valve structure, handle rotation operation
  • Seat and external leak 1.3x10^-8 Pa m3/s (He)
  • Orifice 24/40/50 mm with NW25/NW40/NW50 flanges
  • Order example: MVP60-40K
  • Made-to-order product; contact CKD for lead time

Specifications

Operation Manual (handle rotation)
Seal Double O-ring shaft seal
Fluid Vacuum and inert gas
Operating pressure 1.3x10^-6 to 2x10^5 Pa (abs)
Max differential pressure 0.2 MPa
Proof pressure 0.3 MPa
Fluid temperature 5-60 C
Source CKD Korea catalog CB-035K, p. 134-135
MVP50-25K Orifice: 24 mm | Connection: NW25 | Stroke: 15 mm
MVP60-40K Orifice: 40 mm | Connection: NW40 | Stroke: 20 mm
MVP70-50K Orifice: 50 mm | Connection: NW50 | Stroke: 22 mm
MVP50 Legacy code: base of MVP50-25K | Orifice: 24 mm | Connection: NW25 | Stroke: 15 mm
MVP60 Legacy code: base of MVP60-40K | Orifice: 40 mm | Connection: NW40 | Stroke: 20 mm
MVP70 Legacy code: base of MVP70-50K | Orifice: 50 mm | Connection: NW50 | Stroke: 22 mm
Vacuum ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MVP*0 High Vacuum Manual Valve (Double O-Ring, Made to Order)

Brand CKD·Vacuum Valves

Available part numbers (6)

MVP50-25K, MVP60-40K, MVP70-50K, MVP50, MVP60, MVP70

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MVP50-25KOrifice: 24 mm | Connection: NW25 | Stroke: 15 mm
MVP60-40KOrifice: 40 mm | Connection: NW40 | Stroke: 20 mm
MVP70-50KOrifice: 50 mm | Connection: NW50 | Stroke: 22 mm
MVP50Legacy code: base of MVP50-25K | Orifice: 24 mm | Connection: NW25 | Stroke: 15 mm
MVP60Legacy code: base of MVP60-40K | Orifice: 40 mm | Connection: NW40 | Stroke: 20 mm
MVP70Legacy code: base of MVP70-50K | Orifice: 50 mm | Connection: NW50 | Stroke: 22 mm
