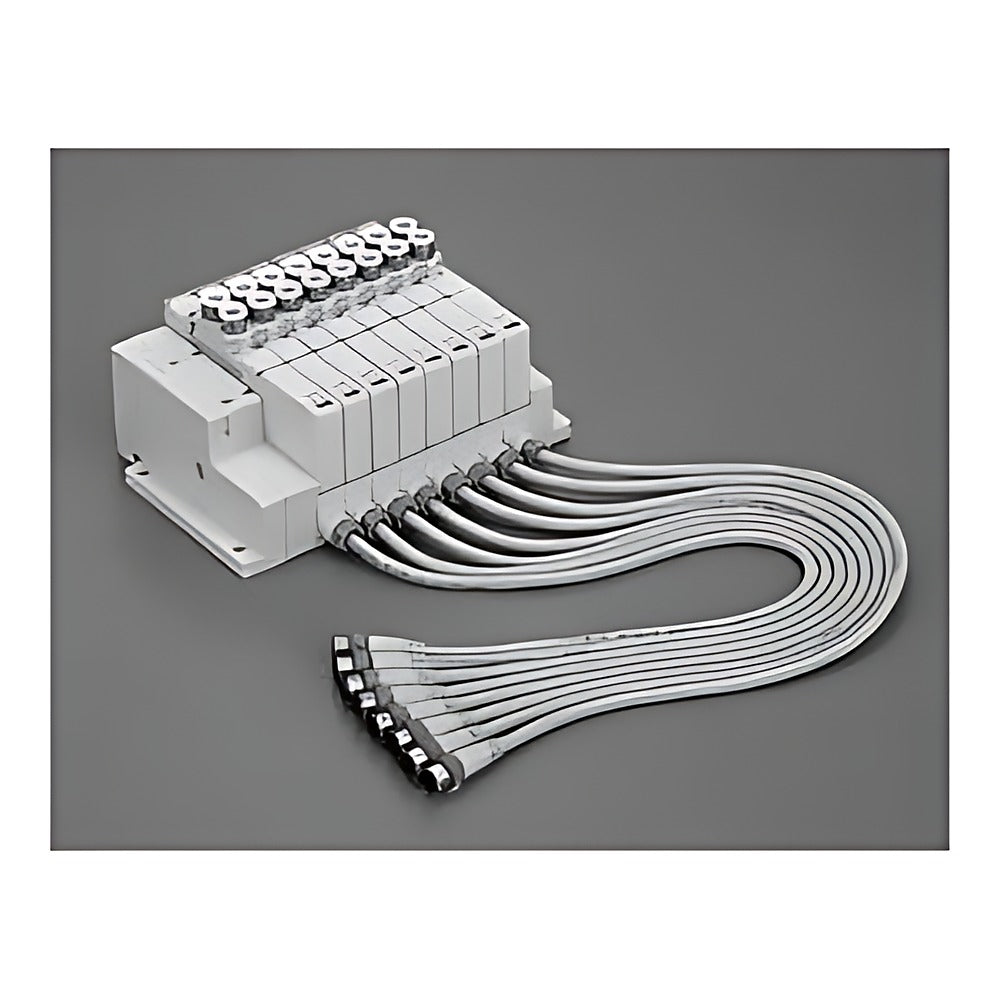

CKD MW3GA2/MW4GA2-R1 Manifold (Individual Wiring, Direct Piping)

CKD MW3GA2/MW4GA2-R1 Manifold (Individual Wiring, Direct Piping)

CKD W4G2-series MW4GA2/MW3GA2 plug-in block manifold with M12 I/O connector individual wiring (R1) and direct A/B piping on the valve, 2 to 16 stations.

Key features

  • Each valve wired individually through a 500 mm M12 I/O connector lead (R1)
  • Functions: 2-position single/double, 3-position (blocked, ABR, PAB), 3-port N.C./N.O., dual 3-port, or mix manifold (8)
  • A/B ports: push-in ø4/ø6/ø8, mixed (CX) or Rc1/8; P/R via supply/exhaust block ø8/ø10
  • Also listed: solenoid-valve-mounted valve blocks (NW4GA2/NW3GA2) and valves for base mounting (W4GA2/W3GA2)
  • Options (not multiplied): M, M7, H, external pilot K, A, A/B filter F, spacers Z1/Z3/Z8, DIN rail mount D

Specifications

Fluid Compressed air
Valve type Pilot-operated soft spool valve
Operating pressure 0.2 to 0.7 MPa (ext. pilot 0 to 0.7 MPa)
Proof pressure 1.05 MPa
Ambient / fluid temperature -5 to 55 / 5 to 55 °C (no freezing)
Manual override Non-locking / locking (standard)
Applicable cylinder bore ø20 to ø80
P/R port (supply/exhaust block) Push-in ø8, ø10
Max. stations 16
Protection IP65 equivalent
Manifold voltage DC24V (-3) listed; DC12V (-4) available
Source CKD Korea catalog CB-023SK-9, p. 1052-1055
MW4GA210-C4-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA210-C4-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA210-C4-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA210-C4-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA210-C4-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA210-C4-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA210-C4-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA210-C4-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA210-C4-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA210-C4-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA210-C4-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA210-C4-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA210-C4-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA210-C4-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA210-C4-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA210-C6-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA210-C6-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA210-C6-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA210-C6-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA210-C6-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA210-C6-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA210-C6-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA210-C6-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA210-C6-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA210-C6-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA210-C6-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA210-C6-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA210-C6-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA210-C6-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA210-C6-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA210-C8-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA210-C8-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA210-C8-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA210-C8-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA210-C8-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA210-C8-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA210-C8-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA210-C8-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA210-C8-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA210-C8-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA210-C8-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA210-C8-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA210-C8-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA210-C8-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA210-C8-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA210-CX-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA210-CX-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA210-CX-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA210-CX-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA210-CX-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA210-CX-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA210-CX-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA210-CX-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA210-CX-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA210-CX-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA210-CX-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA210-CX-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA210-CX-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA210-CX-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA210-CX-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA210-06-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA210-06-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA210-06-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA210-06-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA210-06-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA210-06-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA210-06-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA210-06-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA210-06-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA210-06-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA210-06-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA210-06-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA210-06-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA210-06-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA210-06-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA220-C4-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA220-C4-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA220-C4-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA220-C4-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA220-C4-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA220-C4-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA220-C4-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA220-C4-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA220-C4-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA220-C4-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA220-C4-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA220-C4-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA220-C4-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA220-C4-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA220-C4-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA220-C6-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA220-C6-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA220-C6-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA220-C6-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA220-C6-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA220-C6-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA220-C6-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA220-C6-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA220-C6-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA220-C6-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA220-C6-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA220-C6-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA220-C6-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA220-C6-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA220-C6-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA220-C8-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA220-C8-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA220-C8-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA220-C8-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA220-C8-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA220-C8-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA220-C8-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA220-C8-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA220-C8-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA220-C8-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA220-C8-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA220-C8-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA220-C8-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA220-C8-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA220-C8-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA220-CX-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA220-CX-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA220-CX-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA220-CX-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA220-CX-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA220-CX-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA220-CX-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA220-CX-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA220-CX-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA220-CX-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA220-CX-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA220-CX-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA220-CX-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA220-CX-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA220-CX-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA220-06-R1-2-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA220-06-R1-3-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA220-06-R1-4-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA220-06-R1-5-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA220-06-R1-6-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA220-06-R1-7-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA220-06-R1-8-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA220-06-R1-9-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA220-06-R1-10-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA220-06-R1-11-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA220-06-R1-12-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA220-06-R1-13-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA220-06-R1-14-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA220-06-R1-15-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA220-06-R1-16-3 Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA230-C4-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA230-C4-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA230-C4-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA230-C4-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA230-C4-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA230-C4-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA230-C4-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA230-C4-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA230-C4-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA230-C4-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA230-C4-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA230-C4-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA230-C4-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA230-C4-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA230-C4-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA230-C6-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA230-C6-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA230-C6-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA230-C6-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA230-C6-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA230-C6-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA230-C6-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA230-C6-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA230-C6-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA230-C6-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA230-C6-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA230-C6-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA230-C6-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA230-C6-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA230-C6-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA230-C8-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA230-C8-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA230-C8-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA230-C8-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA230-C8-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA230-C8-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA230-C8-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA230-C8-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA230-C8-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA230-C8-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA230-C8-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA230-C8-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA230-C8-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA230-C8-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA230-C8-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA230-CX-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA230-CX-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA230-CX-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA230-CX-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA230-CX-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA230-CX-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA230-CX-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA230-CX-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA230-CX-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA230-CX-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA230-CX-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA230-CX-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA230-CX-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA230-CX-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA230-CX-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA230-06-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA230-06-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA230-06-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA230-06-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA230-06-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA230-06-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA230-06-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA230-06-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA230-06-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA230-06-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA230-06-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA230-06-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA230-06-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA230-06-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA230-06-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA240-C4-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA240-C4-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA240-C4-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA240-C4-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA240-C4-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA240-C4-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA240-C4-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA240-C4-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA240-C4-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA240-C4-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA240-C4-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA240-C4-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA240-C4-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA240-C4-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA240-C4-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA240-C6-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA240-C6-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA240-C6-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA240-C6-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA240-C6-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA240-C6-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA240-C6-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA240-C6-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA240-C6-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA240-C6-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA240-C6-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA240-C6-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA240-C6-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA240-C6-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA240-C6-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA240-C8-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA240-C8-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA240-C8-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA240-C8-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA240-C8-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA240-C8-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA240-C8-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA240-C8-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA240-C8-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA240-C8-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA240-C8-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA240-C8-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA240-C8-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA240-C8-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA240-C8-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA240-CX-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA240-CX-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA240-CX-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA240-CX-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA240-CX-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA240-CX-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA240-CX-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA240-CX-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA240-CX-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA240-CX-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA240-CX-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA240-CX-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA240-CX-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA240-CX-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA240-CX-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA240-06-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA240-06-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA240-06-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA240-06-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA240-06-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA240-06-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA240-06-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA240-06-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA240-06-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA240-06-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA240-06-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA240-06-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA240-06-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA240-06-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA240-06-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA250-C4-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA250-C4-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA250-C4-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA250-C4-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA250-C4-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA250-C4-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA250-C4-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA250-C4-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA250-C4-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA250-C4-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA250-C4-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA250-C4-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA250-C4-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA250-C4-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA250-C4-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA250-C6-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA250-C6-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA250-C6-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA250-C6-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA250-C6-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA250-C6-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA250-C6-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA250-C6-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA250-C6-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA250-C6-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA250-C6-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA250-C6-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA250-C6-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA250-C6-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA250-C6-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA250-C8-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA250-C8-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA250-C8-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA250-C8-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA250-C8-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA250-C8-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA250-C8-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA250-C8-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA250-C8-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA250-C8-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA250-C8-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA250-C8-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA250-C8-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA250-C8-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA250-C8-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA250-CX-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA250-CX-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA250-CX-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA250-CX-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA250-CX-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA250-CX-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA250-CX-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA250-CX-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA250-CX-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA250-CX-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA250-CX-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA250-CX-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA250-CX-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA250-CX-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA250-CX-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA250-06-R1-2-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA250-06-R1-3-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA250-06-R1-4-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA250-06-R1-5-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA250-06-R1-6-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA250-06-R1-7-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA250-06-R1-8-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA250-06-R1-9-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA250-06-R1-10-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA250-06-R1-11-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA250-06-R1-12-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA250-06-R1-13-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA250-06-R1-14-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA250-06-R1-15-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA250-06-R1-16-3 Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA280-C4-R1-2-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA280-C4-R1-3-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA280-C4-R1-4-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA280-C4-R1-5-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA280-C4-R1-6-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA280-C4-R1-7-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA280-C4-R1-8-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA280-C4-R1-9-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA280-C4-R1-10-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA280-C4-R1-11-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA280-C4-R1-12-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA280-C4-R1-13-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA280-C4-R1-14-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA280-C4-R1-15-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA280-C4-R1-16-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA280-C6-R1-2-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA280-C6-R1-3-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA280-C6-R1-4-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA280-C6-R1-5-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA280-C6-R1-6-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA280-C6-R1-7-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA280-C6-R1-8-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA280-C6-R1-9-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA280-C6-R1-10-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA280-C6-R1-11-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA280-C6-R1-12-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA280-C6-R1-13-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA280-C6-R1-14-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA280-C6-R1-15-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA280-C6-R1-16-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA280-C8-R1-2-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA280-C8-R1-3-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA280-C8-R1-4-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA280-C8-R1-5-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA280-C8-R1-6-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA280-C8-R1-7-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA280-C8-R1-8-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA280-C8-R1-9-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA280-C8-R1-10-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA280-C8-R1-11-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA280-C8-R1-12-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA280-C8-R1-13-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA280-C8-R1-14-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA280-C8-R1-15-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA280-C8-R1-16-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA280-CX-R1-2-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA280-CX-R1-3-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA280-CX-R1-4-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA280-CX-R1-5-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA280-CX-R1-6-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA280-CX-R1-7-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA280-CX-R1-8-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA280-CX-R1-9-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA280-CX-R1-10-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA280-CX-R1-11-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA280-CX-R1-12-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA280-CX-R1-13-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA280-CX-R1-14-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA280-CX-R1-15-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA280-CX-R1-16-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA280-06-R1-2-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA280-06-R1-3-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA280-06-R1-4-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA280-06-R1-5-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA280-06-R1-6-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA280-06-R1-7-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA280-06-R1-8-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA280-06-R1-9-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA280-06-R1-10-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA280-06-R1-11-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA280-06-R1-12-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA280-06-R1-13-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA280-06-R1-14-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA280-06-R1-15-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA280-06-R1-16-3 Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA210-C4-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA210-C4-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA210-C4-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA210-C4-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA210-C4-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA210-C4-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA210-C4-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA210-C4-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA210-C4-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA210-C4-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA210-C4-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA210-C4-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA210-C4-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA210-C4-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA210-C4-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA210-C6-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA210-C6-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA210-C6-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA210-C6-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA210-C6-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA210-C6-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA210-C6-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA210-C6-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA210-C6-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA210-C6-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA210-C6-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA210-C6-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA210-C6-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA210-C6-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA210-C6-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA210-C8-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA210-C8-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA210-C8-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA210-C8-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA210-C8-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA210-C8-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA210-C8-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA210-C8-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA210-C8-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA210-C8-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA210-C8-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA210-C8-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA210-C8-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA210-C8-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA210-C8-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA210-CX-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA210-CX-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA210-CX-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA210-CX-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA210-CX-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA210-CX-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA210-CX-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA210-CX-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA210-CX-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA210-CX-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA210-CX-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA210-CX-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA210-CX-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA210-CX-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA210-CX-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA210-06-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA210-06-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA210-06-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA210-06-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA210-06-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA210-06-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA210-06-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA210-06-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA210-06-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA210-06-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA210-06-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA210-06-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA210-06-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA210-06-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA210-06-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA2110-C4-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA2110-C4-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA2110-C4-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA2110-C4-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA2110-C4-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA2110-C4-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA2110-C4-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA2110-C4-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA2110-C4-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA2110-C4-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA2110-C4-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA2110-C4-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA2110-C4-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA2110-C4-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA2110-C4-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA2110-C6-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA2110-C6-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA2110-C6-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA2110-C6-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA2110-C6-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA2110-C6-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA2110-C6-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA2110-C6-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA2110-C6-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA2110-C6-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA2110-C6-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA2110-C6-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA2110-C6-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA2110-C6-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA2110-C6-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA2110-C8-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA2110-C8-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA2110-C8-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA2110-C8-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA2110-C8-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA2110-C8-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA2110-C8-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA2110-C8-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA2110-C8-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA2110-C8-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA2110-C8-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA2110-C8-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA2110-C8-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA2110-C8-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA2110-C8-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA2110-CX-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA2110-CX-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA2110-CX-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA2110-CX-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA2110-CX-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA2110-CX-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA2110-CX-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA2110-CX-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA2110-CX-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA2110-CX-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA2110-CX-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA2110-CX-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA2110-CX-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA2110-CX-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA2110-CX-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA2110-06-R1-2-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA2110-06-R1-3-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA2110-06-R1-4-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA2110-06-R1-5-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA2110-06-R1-6-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA2110-06-R1-7-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA2110-06-R1-8-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA2110-06-R1-9-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA2110-06-R1-10-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA2110-06-R1-11-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA2110-06-R1-12-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA2110-06-R1-13-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA2110-06-R1-14-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA2110-06-R1-15-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA2110-06-R1-16-3 Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA2660-C4-R1-2-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA2660-C4-R1-3-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA2660-C4-R1-4-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA2660-C4-R1-5-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA2660-C4-R1-6-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA2660-C4-R1-7-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA2660-C4-R1-8-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA2660-C4-R1-9-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA2660-C4-R1-10-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA2660-C4-R1-11-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA2660-C4-R1-12-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA2660-C4-R1-13-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA2660-C4-R1-14-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA2660-C4-R1-15-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA2660-C4-R1-16-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA2660-C6-R1-2-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA2660-C6-R1-3-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA2660-C6-R1-4-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA2660-C6-R1-5-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA2660-C6-R1-6-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA2660-C6-R1-7-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA2660-C6-R1-8-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA2660-C6-R1-9-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA2660-C6-R1-10-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA2660-C6-R1-11-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA2660-C6-R1-12-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA2660-C6-R1-13-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA2660-C6-R1-14-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA2660-C6-R1-15-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA2660-C6-R1-16-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA2660-C8-R1-2-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA2660-C8-R1-3-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA2660-C8-R1-4-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA2660-C8-R1-5-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA2660-C8-R1-6-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA2660-C8-R1-7-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA2660-C8-R1-8-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA2660-C8-R1-9-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA2660-C8-R1-10-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA2660-C8-R1-11-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA2660-C8-R1-12-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA2660-C8-R1-13-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA2660-C8-R1-14-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA2660-C8-R1-15-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA2660-C8-R1-16-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA2660-CX-R1-2-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA2660-CX-R1-3-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA2660-CX-R1-4-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA2660-CX-R1-5-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA2660-CX-R1-6-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA2660-CX-R1-7-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA2660-CX-R1-8-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA2660-CX-R1-9-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA2660-CX-R1-10-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA2660-CX-R1-11-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA2660-CX-R1-12-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA2660-CX-R1-13-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA2660-CX-R1-14-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA2660-CX-R1-15-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA2660-CX-R1-16-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA2660-06-R1-2-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA2660-06-R1-3-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA2660-06-R1-4-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA2660-06-R1-5-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA2660-06-R1-6-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA2660-06-R1-7-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA2660-06-R1-8-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA2660-06-R1-9-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA2660-06-R1-10-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA2660-06-R1-11-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA2660-06-R1-12-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA2660-06-R1-13-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA2660-06-R1-14-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA2660-06-R1-15-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA2660-06-R1-16-3 Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA280-C4-R1-2-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA280-C4-R1-3-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA280-C4-R1-4-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA280-C4-R1-5-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA280-C4-R1-6-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA280-C4-R1-7-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA280-C4-R1-8-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA280-C4-R1-9-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA280-C4-R1-10-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA280-C4-R1-11-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA280-C4-R1-12-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA280-C4-R1-13-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA280-C4-R1-14-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA280-C4-R1-15-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA280-C4-R1-16-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA280-C6-R1-2-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA280-C6-R1-3-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA280-C6-R1-4-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA280-C6-R1-5-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA280-C6-R1-6-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA280-C6-R1-7-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA280-C6-R1-8-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA280-C6-R1-9-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA280-C6-R1-10-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA280-C6-R1-11-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA280-C6-R1-12-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA280-C6-R1-13-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA280-C6-R1-14-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA280-C6-R1-15-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA280-C6-R1-16-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA280-C8-R1-2-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA280-C8-R1-3-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA280-C8-R1-4-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA280-C8-R1-5-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA280-C8-R1-6-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA280-C8-R1-7-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA280-C8-R1-8-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA280-C8-R1-9-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA280-C8-R1-10-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA280-C8-R1-11-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA280-C8-R1-12-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA280-C8-R1-13-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA280-C8-R1-14-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA280-C8-R1-15-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA280-C8-R1-16-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA280-CX-R1-2-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA280-CX-R1-3-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA280-CX-R1-4-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA280-CX-R1-5-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA280-CX-R1-6-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA280-CX-R1-7-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA280-CX-R1-8-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA280-CX-R1-9-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA280-CX-R1-10-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA280-CX-R1-11-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA280-CX-R1-12-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA280-CX-R1-13-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA280-CX-R1-14-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA280-CX-R1-15-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA280-CX-R1-16-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA280-06-R1-2-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA280-06-R1-3-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA280-06-R1-4-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA280-06-R1-5-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA280-06-R1-6-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA280-06-R1-7-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA280-06-R1-8-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA280-06-R1-9-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA280-06-R1-10-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA280-06-R1-11-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA280-06-R1-12-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA280-06-R1-13-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA280-06-R1-14-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA280-06-R1-15-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA280-06-R1-16-3 Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
NW4GA210-C4-R1-3 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA210-C4-R1-4 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA210-C6-R1-3 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA210-C6-R1-4 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA210-C8-R1-3 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA210-C8-R1-4 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA210-06-R1-3 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA210-06-R1-4 Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA220-C4-R1-3 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA220-C4-R1-4 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA220-C6-R1-3 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA220-C6-R1-4 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA220-C8-R1-3 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA220-C8-R1-4 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA220-06-R1-3 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA220-06-R1-4 Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA230-C4-R1-3 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA230-C4-R1-4 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA230-C6-R1-3 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA230-C6-R1-4 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA230-C8-R1-3 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA230-C8-R1-4 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA230-06-R1-3 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA230-06-R1-4 Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA240-C4-R1-3 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA240-C4-R1-4 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA240-C6-R1-3 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA240-C6-R1-4 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA240-C8-R1-3 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA240-C8-R1-4 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA240-06-R1-3 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA240-06-R1-4 Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA250-C4-R1-3 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA250-C4-R1-4 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA250-C6-R1-3 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA250-C6-R1-4 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA250-C8-R1-3 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA250-C8-R1-4 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA250-06-R1-3 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA250-06-R1-4 Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA210-C4-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA210-C4-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA210-C6-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA210-C6-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA210-C8-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA210-C8-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA210-06-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA210-06-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA2110-C4-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA2110-C4-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA2110-C6-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA2110-C6-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA2110-C8-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA2110-C8-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA2110-06-R1-3 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA2110-06-R1-4 Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA2660-C4-R1-3 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA2660-C4-R1-4 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA2660-C6-R1-3 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA2660-C6-R1-4 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA2660-C8-R1-3 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA2660-C8-R1-4 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA2660-06-R1-3 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA2660-06-R1-4 Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
W4GA219-C4-3 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA219-C4-4 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA219-C6-3 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA219-C6-4 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA219-C8-3 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA219-C8-4 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA219-06-3 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA219-06-4 Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA229-C4-3 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA229-C4-4 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA229-C6-3 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA229-C6-4 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA229-C8-3 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA229-C8-4 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA229-06-3 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA229-06-4 Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA239-C4-3 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA239-C4-4 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA239-C6-3 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA239-C6-4 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA239-C8-3 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA239-C8-4 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA239-06-3 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA239-06-4 Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA249-C4-3 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA249-C4-4 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA249-C6-3 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA249-C6-4 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA249-C8-3 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA249-C8-4 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA249-06-3 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA249-06-4 Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA259-C4-3 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA259-C4-4 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA259-C6-3 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA259-C6-4 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA259-C8-3 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA259-C8-4 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA259-06-3 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA259-06-4 Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA219-C4-3 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA219-C4-4 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA219-C6-3 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA219-C6-4 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA219-C8-3 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA219-C8-4 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA219-06-3 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA219-06-4 Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA2119-C4-3 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA2119-C4-4 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA2119-C6-3 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA2119-C6-4 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA2119-C8-3 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA2119-C8-4 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA2119-06-3 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA2119-06-4 Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA2669-C4-3 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA2669-C4-4 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA2669-C6-3 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA2669-C6-4 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA2669-C8-3 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA2669-C8-4 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA2669-06-3 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA2669-06-4 Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
Valve ManifoldsCKD
878 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW3GA2/MW4GA2-R1 Manifold (Individual Wiring, Direct Piping)

Brand CKD·Valve Manifolds

Available part numbers (878)

MW4GA210-C4-R1-2-3, MW4GA210-C4-R1-3-3, MW4GA210-C4-R1-4-3, MW4GA210-C4-R1-5-3, MW4GA210-C4-R1-6-3, MW4GA210-C4-R1-7-3, MW4GA210-C4-R1-8-3, MW4GA210-C4-R1-9-3, MW4GA210-C4-R1-10-3, MW4GA210-C4-R1-11-3 + 868 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MW4GA210-C4-R1-2-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA210-C4-R1-3-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA210-C4-R1-4-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA210-C4-R1-5-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA210-C4-R1-6-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA210-C4-R1-7-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA210-C4-R1-8-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA210-C4-R1-9-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA210-C4-R1-10-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA210-C4-R1-11-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA210-C4-R1-12-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA210-C4-R1-13-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA210-C4-R1-14-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA210-C4-R1-15-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA210-C4-R1-16-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA210-C6-R1-2-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA210-C6-R1-3-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA210-C6-R1-4-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA210-C6-R1-5-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA210-C6-R1-6-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA210-C6-R1-7-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA210-C6-R1-8-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA210-C6-R1-9-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA210-C6-R1-10-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA210-C6-R1-11-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA210-C6-R1-12-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA210-C6-R1-13-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA210-C6-R1-14-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA210-C6-R1-15-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA210-C6-R1-16-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA210-C8-R1-2-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA210-C8-R1-3-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA210-C8-R1-4-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA210-C8-R1-5-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA210-C8-R1-6-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA210-C8-R1-7-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA210-C8-R1-8-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA210-C8-R1-9-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA210-C8-R1-10-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA210-C8-R1-11-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA210-C8-R1-12-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA210-C8-R1-13-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA210-C8-R1-14-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA210-C8-R1-15-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA210-C8-R1-16-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA210-CX-R1-2-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA210-CX-R1-3-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA210-CX-R1-4-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA210-CX-R1-5-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA210-CX-R1-6-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA210-CX-R1-7-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA210-CX-R1-8-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA210-CX-R1-9-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA210-CX-R1-10-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA210-CX-R1-11-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA210-CX-R1-12-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA210-CX-R1-13-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA210-CX-R1-14-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA210-CX-R1-15-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA210-CX-R1-16-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA210-06-R1-2-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA210-06-R1-3-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA210-06-R1-4-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA210-06-R1-5-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA210-06-R1-6-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA210-06-R1-7-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA210-06-R1-8-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA210-06-R1-9-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA210-06-R1-10-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA210-06-R1-11-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA210-06-R1-12-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA210-06-R1-13-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA210-06-R1-14-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA210-06-R1-15-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA210-06-R1-16-3Item: Manifold MW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA220-C4-R1-2-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA220-C4-R1-3-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA220-C4-R1-4-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA220-C4-R1-5-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA220-C4-R1-6-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA220-C4-R1-7-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA220-C4-R1-8-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA220-C4-R1-9-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA220-C4-R1-10-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA220-C4-R1-11-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA220-C4-R1-12-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA220-C4-R1-13-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA220-C4-R1-14-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA220-C4-R1-15-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA220-C4-R1-16-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA220-C6-R1-2-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA220-C6-R1-3-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA220-C6-R1-4-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA220-C6-R1-5-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA220-C6-R1-6-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA220-C6-R1-7-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA220-C6-R1-8-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA220-C6-R1-9-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA220-C6-R1-10-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA220-C6-R1-11-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA220-C6-R1-12-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA220-C6-R1-13-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA220-C6-R1-14-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA220-C6-R1-15-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA220-C6-R1-16-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA220-C8-R1-2-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA220-C8-R1-3-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA220-C8-R1-4-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA220-C8-R1-5-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA220-C8-R1-6-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA220-C8-R1-7-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA220-C8-R1-8-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA220-C8-R1-9-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA220-C8-R1-10-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA220-C8-R1-11-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA220-C8-R1-12-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA220-C8-R1-13-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA220-C8-R1-14-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA220-C8-R1-15-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA220-C8-R1-16-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA220-CX-R1-2-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA220-CX-R1-3-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA220-CX-R1-4-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA220-CX-R1-5-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA220-CX-R1-6-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA220-CX-R1-7-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA220-CX-R1-8-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA220-CX-R1-9-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA220-CX-R1-10-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA220-CX-R1-11-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA220-CX-R1-12-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA220-CX-R1-13-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA220-CX-R1-14-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA220-CX-R1-15-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA220-CX-R1-16-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA220-06-R1-2-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA220-06-R1-3-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA220-06-R1-4-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA220-06-R1-5-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA220-06-R1-6-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA220-06-R1-7-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA220-06-R1-8-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA220-06-R1-9-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA220-06-R1-10-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA220-06-R1-11-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA220-06-R1-12-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA220-06-R1-13-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA220-06-R1-14-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA220-06-R1-15-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA220-06-R1-16-3Item: Manifold MW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA230-C4-R1-2-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA230-C4-R1-3-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA230-C4-R1-4-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA230-C4-R1-5-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA230-C4-R1-6-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA230-C4-R1-7-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA230-C4-R1-8-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA230-C4-R1-9-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA230-C4-R1-10-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA230-C4-R1-11-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA230-C4-R1-12-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA230-C4-R1-13-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA230-C4-R1-14-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA230-C4-R1-15-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA230-C4-R1-16-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA230-C6-R1-2-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA230-C6-R1-3-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA230-C6-R1-4-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA230-C6-R1-5-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA230-C6-R1-6-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA230-C6-R1-7-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA230-C6-R1-8-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA230-C6-R1-9-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA230-C6-R1-10-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA230-C6-R1-11-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA230-C6-R1-12-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA230-C6-R1-13-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA230-C6-R1-14-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA230-C6-R1-15-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA230-C6-R1-16-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA230-C8-R1-2-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA230-C8-R1-3-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA230-C8-R1-4-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA230-C8-R1-5-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA230-C8-R1-6-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA230-C8-R1-7-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA230-C8-R1-8-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA230-C8-R1-9-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA230-C8-R1-10-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA230-C8-R1-11-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA230-C8-R1-12-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA230-C8-R1-13-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA230-C8-R1-14-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA230-C8-R1-15-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA230-C8-R1-16-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA230-CX-R1-2-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA230-CX-R1-3-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA230-CX-R1-4-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA230-CX-R1-5-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA230-CX-R1-6-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA230-CX-R1-7-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA230-CX-R1-8-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA230-CX-R1-9-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA230-CX-R1-10-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA230-CX-R1-11-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA230-CX-R1-12-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA230-CX-R1-13-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA230-CX-R1-14-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA230-CX-R1-15-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA230-CX-R1-16-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA230-06-R1-2-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA230-06-R1-3-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA230-06-R1-4-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA230-06-R1-5-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA230-06-R1-6-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA230-06-R1-7-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA230-06-R1-8-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA230-06-R1-9-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA230-06-R1-10-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA230-06-R1-11-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA230-06-R1-12-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA230-06-R1-13-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA230-06-R1-14-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA230-06-R1-15-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA230-06-R1-16-3Item: Manifold MW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA240-C4-R1-2-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA240-C4-R1-3-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA240-C4-R1-4-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA240-C4-R1-5-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA240-C4-R1-6-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA240-C4-R1-7-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA240-C4-R1-8-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA240-C4-R1-9-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA240-C4-R1-10-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA240-C4-R1-11-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA240-C4-R1-12-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA240-C4-R1-13-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA240-C4-R1-14-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA240-C4-R1-15-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA240-C4-R1-16-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA240-C6-R1-2-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA240-C6-R1-3-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA240-C6-R1-4-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA240-C6-R1-5-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA240-C6-R1-6-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA240-C6-R1-7-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA240-C6-R1-8-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA240-C6-R1-9-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA240-C6-R1-10-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA240-C6-R1-11-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA240-C6-R1-12-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA240-C6-R1-13-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA240-C6-R1-14-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA240-C6-R1-15-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA240-C6-R1-16-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA240-C8-R1-2-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA240-C8-R1-3-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA240-C8-R1-4-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA240-C8-R1-5-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA240-C8-R1-6-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA240-C8-R1-7-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA240-C8-R1-8-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA240-C8-R1-9-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA240-C8-R1-10-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA240-C8-R1-11-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA240-C8-R1-12-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA240-C8-R1-13-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA240-C8-R1-14-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA240-C8-R1-15-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA240-C8-R1-16-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA240-CX-R1-2-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA240-CX-R1-3-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA240-CX-R1-4-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA240-CX-R1-5-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA240-CX-R1-6-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA240-CX-R1-7-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA240-CX-R1-8-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA240-CX-R1-9-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA240-CX-R1-10-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA240-CX-R1-11-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA240-CX-R1-12-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA240-CX-R1-13-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA240-CX-R1-14-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA240-CX-R1-15-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA240-CX-R1-16-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA240-06-R1-2-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA240-06-R1-3-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA240-06-R1-4-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA240-06-R1-5-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA240-06-R1-6-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA240-06-R1-7-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA240-06-R1-8-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA240-06-R1-9-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA240-06-R1-10-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA240-06-R1-11-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA240-06-R1-12-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA240-06-R1-13-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA240-06-R1-14-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA240-06-R1-15-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA240-06-R1-16-3Item: Manifold MW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA250-C4-R1-2-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA250-C4-R1-3-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA250-C4-R1-4-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA250-C4-R1-5-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA250-C4-R1-6-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA250-C4-R1-7-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA250-C4-R1-8-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA250-C4-R1-9-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA250-C4-R1-10-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA250-C4-R1-11-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA250-C4-R1-12-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA250-C4-R1-13-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA250-C4-R1-14-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA250-C4-R1-15-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA250-C4-R1-16-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA250-C6-R1-2-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA250-C6-R1-3-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA250-C6-R1-4-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA250-C6-R1-5-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA250-C6-R1-6-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA250-C6-R1-7-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA250-C6-R1-8-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA250-C6-R1-9-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA250-C6-R1-10-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA250-C6-R1-11-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA250-C6-R1-12-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA250-C6-R1-13-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA250-C6-R1-14-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA250-C6-R1-15-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA250-C6-R1-16-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA250-C8-R1-2-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA250-C8-R1-3-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA250-C8-R1-4-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA250-C8-R1-5-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA250-C8-R1-6-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA250-C8-R1-7-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA250-C8-R1-8-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA250-C8-R1-9-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA250-C8-R1-10-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA250-C8-R1-11-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA250-C8-R1-12-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA250-C8-R1-13-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA250-C8-R1-14-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA250-C8-R1-15-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA250-C8-R1-16-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA250-CX-R1-2-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA250-CX-R1-3-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA250-CX-R1-4-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA250-CX-R1-5-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA250-CX-R1-6-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA250-CX-R1-7-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA250-CX-R1-8-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA250-CX-R1-9-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA250-CX-R1-10-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA250-CX-R1-11-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA250-CX-R1-12-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA250-CX-R1-13-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA250-CX-R1-14-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA250-CX-R1-15-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA250-CX-R1-16-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA250-06-R1-2-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA250-06-R1-3-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA250-06-R1-4-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA250-06-R1-5-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA250-06-R1-6-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA250-06-R1-7-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA250-06-R1-8-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA250-06-R1-9-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA250-06-R1-10-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA250-06-R1-11-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA250-06-R1-12-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA250-06-R1-13-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA250-06-R1-14-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA250-06-R1-15-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA250-06-R1-16-3Item: Manifold MW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW4GA280-C4-R1-2-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW4GA280-C4-R1-3-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW4GA280-C4-R1-4-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW4GA280-C4-R1-5-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW4GA280-C4-R1-6-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW4GA280-C4-R1-7-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW4GA280-C4-R1-8-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW4GA280-C4-R1-9-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW4GA280-C4-R1-10-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW4GA280-C4-R1-11-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW4GA280-C4-R1-12-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW4GA280-C4-R1-13-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW4GA280-C4-R1-14-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW4GA280-C4-R1-15-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW4GA280-C4-R1-16-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW4GA280-C6-R1-2-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW4GA280-C6-R1-3-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW4GA280-C6-R1-4-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW4GA280-C6-R1-5-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW4GA280-C6-R1-6-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW4GA280-C6-R1-7-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW4GA280-C6-R1-8-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW4GA280-C6-R1-9-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW4GA280-C6-R1-10-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW4GA280-C6-R1-11-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW4GA280-C6-R1-12-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW4GA280-C6-R1-13-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW4GA280-C6-R1-14-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW4GA280-C6-R1-15-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW4GA280-C6-R1-16-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW4GA280-C8-R1-2-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW4GA280-C8-R1-3-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW4GA280-C8-R1-4-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW4GA280-C8-R1-5-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW4GA280-C8-R1-6-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW4GA280-C8-R1-7-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW4GA280-C8-R1-8-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW4GA280-C8-R1-9-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW4GA280-C8-R1-10-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW4GA280-C8-R1-11-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW4GA280-C8-R1-12-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW4GA280-C8-R1-13-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW4GA280-C8-R1-14-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW4GA280-C8-R1-15-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW4GA280-C8-R1-16-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW4GA280-CX-R1-2-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW4GA280-CX-R1-3-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW4GA280-CX-R1-4-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW4GA280-CX-R1-5-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW4GA280-CX-R1-6-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW4GA280-CX-R1-7-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW4GA280-CX-R1-8-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW4GA280-CX-R1-9-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW4GA280-CX-R1-10-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW4GA280-CX-R1-11-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW4GA280-CX-R1-12-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW4GA280-CX-R1-13-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW4GA280-CX-R1-14-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW4GA280-CX-R1-15-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW4GA280-CX-R1-16-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW4GA280-06-R1-2-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW4GA280-06-R1-3-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW4GA280-06-R1-4-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW4GA280-06-R1-5-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW4GA280-06-R1-6-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW4GA280-06-R1-7-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW4GA280-06-R1-8-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW4GA280-06-R1-9-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW4GA280-06-R1-10-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW4GA280-06-R1-11-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW4GA280-06-R1-12-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW4GA280-06-R1-13-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW4GA280-06-R1-14-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW4GA280-06-R1-15-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW4GA280-06-R1-16-3Item: Manifold MW4GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA210-C4-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA210-C4-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA210-C4-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA210-C4-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA210-C4-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA210-C4-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA210-C4-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA210-C4-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA210-C4-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA210-C4-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA210-C4-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA210-C4-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA210-C4-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA210-C4-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA210-C4-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA210-C6-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA210-C6-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA210-C6-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA210-C6-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA210-C6-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA210-C6-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA210-C6-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA210-C6-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA210-C6-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA210-C6-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA210-C6-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA210-C6-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA210-C6-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA210-C6-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA210-C6-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA210-C8-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA210-C8-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA210-C8-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA210-C8-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA210-C8-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA210-C8-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA210-C8-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA210-C8-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA210-C8-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA210-C8-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA210-C8-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA210-C8-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA210-C8-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA210-C8-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA210-C8-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA210-CX-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA210-CX-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA210-CX-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA210-CX-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA210-CX-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA210-CX-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA210-CX-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA210-CX-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA210-CX-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA210-CX-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA210-CX-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA210-CX-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA210-CX-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA210-CX-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA210-CX-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA210-06-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA210-06-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA210-06-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA210-06-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA210-06-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA210-06-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA210-06-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA210-06-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA210-06-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA210-06-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA210-06-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA210-06-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA210-06-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA210-06-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA210-06-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA2110-C4-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA2110-C4-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA2110-C4-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA2110-C4-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA2110-C4-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA2110-C4-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA2110-C4-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA2110-C4-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA2110-C4-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA2110-C4-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA2110-C4-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA2110-C4-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA2110-C4-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA2110-C4-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA2110-C4-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA2110-C6-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA2110-C6-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA2110-C6-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA2110-C6-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA2110-C6-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA2110-C6-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA2110-C6-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA2110-C6-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA2110-C6-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA2110-C6-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA2110-C6-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA2110-C6-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA2110-C6-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA2110-C6-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA2110-C6-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA2110-C8-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA2110-C8-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA2110-C8-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA2110-C8-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA2110-C8-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA2110-C8-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA2110-C8-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA2110-C8-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA2110-C8-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA2110-C8-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA2110-C8-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA2110-C8-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA2110-C8-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA2110-C8-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA2110-C8-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA2110-CX-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA2110-CX-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA2110-CX-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA2110-CX-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA2110-CX-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA2110-CX-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA2110-CX-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA2110-CX-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA2110-CX-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA2110-CX-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA2110-CX-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA2110-CX-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA2110-CX-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA2110-CX-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA2110-CX-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA2110-06-R1-2-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA2110-06-R1-3-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA2110-06-R1-4-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA2110-06-R1-5-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA2110-06-R1-6-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA2110-06-R1-7-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA2110-06-R1-8-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA2110-06-R1-9-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA2110-06-R1-10-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA2110-06-R1-11-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA2110-06-R1-12-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA2110-06-R1-13-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA2110-06-R1-14-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA2110-06-R1-15-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA2110-06-R1-16-3Item: Manifold MW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA2660-C4-R1-2-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA2660-C4-R1-3-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA2660-C4-R1-4-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA2660-C4-R1-5-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA2660-C4-R1-6-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA2660-C4-R1-7-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA2660-C4-R1-8-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA2660-C4-R1-9-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA2660-C4-R1-10-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA2660-C4-R1-11-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA2660-C4-R1-12-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA2660-C4-R1-13-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA2660-C4-R1-14-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA2660-C4-R1-15-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA2660-C4-R1-16-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA2660-C6-R1-2-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA2660-C6-R1-3-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA2660-C6-R1-4-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA2660-C6-R1-5-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA2660-C6-R1-6-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA2660-C6-R1-7-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA2660-C6-R1-8-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA2660-C6-R1-9-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA2660-C6-R1-10-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA2660-C6-R1-11-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA2660-C6-R1-12-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA2660-C6-R1-13-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA2660-C6-R1-14-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA2660-C6-R1-15-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA2660-C6-R1-16-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA2660-C8-R1-2-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA2660-C8-R1-3-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA2660-C8-R1-4-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA2660-C8-R1-5-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA2660-C8-R1-6-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA2660-C8-R1-7-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA2660-C8-R1-8-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA2660-C8-R1-9-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA2660-C8-R1-10-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA2660-C8-R1-11-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA2660-C8-R1-12-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA2660-C8-R1-13-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA2660-C8-R1-14-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA2660-C8-R1-15-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA2660-C8-R1-16-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA2660-CX-R1-2-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA2660-CX-R1-3-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA2660-CX-R1-4-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA2660-CX-R1-5-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA2660-CX-R1-6-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA2660-CX-R1-7-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA2660-CX-R1-8-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA2660-CX-R1-9-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA2660-CX-R1-10-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA2660-CX-R1-11-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA2660-CX-R1-12-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA2660-CX-R1-13-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA2660-CX-R1-14-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA2660-CX-R1-15-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA2660-CX-R1-16-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA2660-06-R1-2-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA2660-06-R1-3-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA2660-06-R1-4-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA2660-06-R1-5-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA2660-06-R1-6-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA2660-06-R1-7-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA2660-06-R1-8-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA2660-06-R1-9-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA2660-06-R1-10-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA2660-06-R1-11-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA2660-06-R1-12-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA2660-06-R1-13-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA2660-06-R1-14-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA2660-06-R1-15-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA2660-06-R1-16-3Item: Manifold MW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
MW3GA280-C4-R1-2-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 2 | Voltage: DC24V
MW3GA280-C4-R1-3-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 3 | Voltage: DC24V
MW3GA280-C4-R1-4-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 4 | Voltage: DC24V
MW3GA280-C4-R1-5-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 5 | Voltage: DC24V
MW3GA280-C4-R1-6-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 6 | Voltage: DC24V
MW3GA280-C4-R1-7-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 7 | Voltage: DC24V
MW3GA280-C4-R1-8-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 8 | Voltage: DC24V
MW3GA280-C4-R1-9-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 9 | Voltage: DC24V
MW3GA280-C4-R1-10-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 10 | Voltage: DC24V
MW3GA280-C4-R1-11-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 11 | Voltage: DC24V
MW3GA280-C4-R1-12-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 12 | Voltage: DC24V
MW3GA280-C4-R1-13-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 13 | Voltage: DC24V
MW3GA280-C4-R1-14-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 14 | Voltage: DC24V
MW3GA280-C4-R1-15-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 15 | Voltage: DC24V
MW3GA280-C4-R1-16-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø4 | Stations: 16 | Voltage: DC24V
MW3GA280-C6-R1-2-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 2 | Voltage: DC24V
MW3GA280-C6-R1-3-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 3 | Voltage: DC24V
MW3GA280-C6-R1-4-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 4 | Voltage: DC24V
MW3GA280-C6-R1-5-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 5 | Voltage: DC24V
MW3GA280-C6-R1-6-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 6 | Voltage: DC24V
MW3GA280-C6-R1-7-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 7 | Voltage: DC24V
MW3GA280-C6-R1-8-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 8 | Voltage: DC24V
MW3GA280-C6-R1-9-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 9 | Voltage: DC24V
MW3GA280-C6-R1-10-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 10 | Voltage: DC24V
MW3GA280-C6-R1-11-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 11 | Voltage: DC24V
MW3GA280-C6-R1-12-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 12 | Voltage: DC24V
MW3GA280-C6-R1-13-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 13 | Voltage: DC24V
MW3GA280-C6-R1-14-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 14 | Voltage: DC24V
MW3GA280-C6-R1-15-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 15 | Voltage: DC24V
MW3GA280-C6-R1-16-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø6 | Stations: 16 | Voltage: DC24V
MW3GA280-C8-R1-2-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 2 | Voltage: DC24V
MW3GA280-C8-R1-3-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 3 | Voltage: DC24V
MW3GA280-C8-R1-4-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 4 | Voltage: DC24V
MW3GA280-C8-R1-5-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 5 | Voltage: DC24V
MW3GA280-C8-R1-6-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 6 | Voltage: DC24V
MW3GA280-C8-R1-7-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 7 | Voltage: DC24V
MW3GA280-C8-R1-8-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 8 | Voltage: DC24V
MW3GA280-C8-R1-9-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 9 | Voltage: DC24V
MW3GA280-C8-R1-10-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 10 | Voltage: DC24V
MW3GA280-C8-R1-11-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 11 | Voltage: DC24V
MW3GA280-C8-R1-12-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 12 | Voltage: DC24V
MW3GA280-C8-R1-13-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 13 | Voltage: DC24V
MW3GA280-C8-R1-14-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 14 | Voltage: DC24V
MW3GA280-C8-R1-15-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 15 | Voltage: DC24V
MW3GA280-C8-R1-16-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in ø8 | Stations: 16 | Voltage: DC24V
MW3GA280-CX-R1-2-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 2 | Voltage: DC24V
MW3GA280-CX-R1-3-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 3 | Voltage: DC24V
MW3GA280-CX-R1-4-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 4 | Voltage: DC24V
MW3GA280-CX-R1-5-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 5 | Voltage: DC24V
MW3GA280-CX-R1-6-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 6 | Voltage: DC24V
MW3GA280-CX-R1-7-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 7 | Voltage: DC24V
MW3GA280-CX-R1-8-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 8 | Voltage: DC24V
MW3GA280-CX-R1-9-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 9 | Voltage: DC24V
MW3GA280-CX-R1-10-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 10 | Voltage: DC24V
MW3GA280-CX-R1-11-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 11 | Voltage: DC24V
MW3GA280-CX-R1-12-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 12 | Voltage: DC24V
MW3GA280-CX-R1-13-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 13 | Voltage: DC24V
MW3GA280-CX-R1-14-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 14 | Voltage: DC24V
MW3GA280-CX-R1-15-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 15 | Voltage: DC24V
MW3GA280-CX-R1-16-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Push-in mixed | Stations: 16 | Voltage: DC24V
MW3GA280-06-R1-2-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 2 | Voltage: DC24V
MW3GA280-06-R1-3-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 3 | Voltage: DC24V
MW3GA280-06-R1-4-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 4 | Voltage: DC24V
MW3GA280-06-R1-5-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 5 | Voltage: DC24V
MW3GA280-06-R1-6-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 6 | Voltage: DC24V
MW3GA280-06-R1-7-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 7 | Voltage: DC24V
MW3GA280-06-R1-8-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 8 | Voltage: DC24V
MW3GA280-06-R1-9-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 9 | Voltage: DC24V
MW3GA280-06-R1-10-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 10 | Voltage: DC24V
MW3GA280-06-R1-11-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 11 | Voltage: DC24V
MW3GA280-06-R1-12-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 12 | Voltage: DC24V
MW3GA280-06-R1-13-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 13 | Voltage: DC24V
MW3GA280-06-R1-14-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 14 | Voltage: DC24V
MW3GA280-06-R1-15-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 15 | Voltage: DC24V
MW3GA280-06-R1-16-3Item: Manifold MW3GA2 | Function: Mix manifold | A/B port: Rc1/8 | Stations: 16 | Voltage: DC24V
NW4GA210-C4-R1-3Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA210-C4-R1-4Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA210-C6-R1-3Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA210-C6-R1-4Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA210-C8-R1-3Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA210-C8-R1-4Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA210-06-R1-3Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA210-06-R1-4Item: Valve block NW4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA220-C4-R1-3Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA220-C4-R1-4Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA220-C6-R1-3Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA220-C6-R1-4Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA220-C8-R1-3Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA220-C8-R1-4Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA220-06-R1-3Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA220-06-R1-4Item: Valve block NW4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA230-C4-R1-3Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA230-C4-R1-4Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA230-C6-R1-3Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA230-C6-R1-4Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA230-C8-R1-3Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA230-C8-R1-4Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA230-06-R1-3Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA230-06-R1-4Item: Valve block NW4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA240-C4-R1-3Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA240-C4-R1-4Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA240-C6-R1-3Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA240-C6-R1-4Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA240-C8-R1-3Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA240-C8-R1-4Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA240-06-R1-3Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA240-06-R1-4Item: Valve block NW4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW4GA250-C4-R1-3Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW4GA250-C4-R1-4Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW4GA250-C6-R1-3Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW4GA250-C6-R1-4Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW4GA250-C8-R1-3Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW4GA250-C8-R1-4Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW4GA250-06-R1-3Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW4GA250-06-R1-4Item: Valve block NW4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA210-C4-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA210-C4-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA210-C6-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA210-C6-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA210-C8-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA210-C8-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA210-06-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA210-06-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA2110-C4-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA2110-C4-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA2110-C6-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA2110-C6-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA2110-C8-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA2110-C8-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA2110-06-R1-3Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA2110-06-R1-4Item: Valve block NW3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
NW3GA2660-C4-R1-3Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC24V
NW3GA2660-C4-R1-4Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single block | Voltage: DC12V
NW3GA2660-C6-R1-3Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC24V
NW3GA2660-C6-R1-4Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single block | Voltage: DC12V
NW3GA2660-C8-R1-3Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC24V
NW3GA2660-C8-R1-4Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single block | Voltage: DC12V
NW3GA2660-06-R1-3Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single block | Voltage: DC24V
NW3GA2660-06-R1-4Item: Valve block NW3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single block | Voltage: DC12V
W4GA219-C4-3Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA219-C4-4Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA219-C6-3Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA219-C6-4Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA219-C8-3Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA219-C8-4Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA219-06-3Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA219-06-4Item: Valve for base W4GA2 | Function: 2-position single | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA229-C4-3Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA229-C4-4Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA229-C6-3Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA229-C6-4Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA229-C8-3Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA229-C8-4Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA229-06-3Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA229-06-4Item: Valve for base W4GA2 | Function: 2-position double | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA239-C4-3Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA239-C4-4Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA239-C6-3Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA239-C6-4Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA239-C8-3Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA239-C8-4Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA239-06-3Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA239-06-4Item: Valve for base W4GA2 | Function: 3-position all ports blocked | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA249-C4-3Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA249-C4-4Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA249-C6-3Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA249-C6-4Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA249-C8-3Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA249-C8-4Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA249-06-3Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA249-06-4Item: Valve for base W4GA2 | Function: 3-position A/B/R connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W4GA259-C4-3Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W4GA259-C4-4Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W4GA259-C6-3Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W4GA259-C6-4Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W4GA259-C8-3Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W4GA259-C8-4Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W4GA259-06-3Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W4GA259-06-4Item: Valve for base W4GA2 | Function: 3-position P/A/B connection | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA219-C4-3Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA219-C4-4Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA219-C6-3Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA219-C6-4Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA219-C8-3Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA219-C8-4Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA219-06-3Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA219-06-4Item: Valve for base W3GA2 | Function: 2-position single N.C. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA2119-C4-3Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA2119-C4-4Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA2119-C6-3Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA2119-C6-4Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA2119-C8-3Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA2119-C8-4Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA2119-06-3Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA2119-06-4Item: Valve for base W3GA2 | Function: 2-position single N.O. | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V
W3GA2669-C4-3Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC24V
W3GA2669-C4-4Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Stations: Single valve | Voltage: DC12V
W3GA2669-C6-3Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC24V
W3GA2669-C6-4Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Stations: Single valve | Voltage: DC12V
W3GA2669-C8-3Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC24V
W3GA2669-C8-4Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Stations: Single valve | Voltage: DC12V
W3GA2669-06-3Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC24V
W3GA2669-06-4Item: Valve for base W3GA2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Rc1/8 | Stations: Single valve | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
