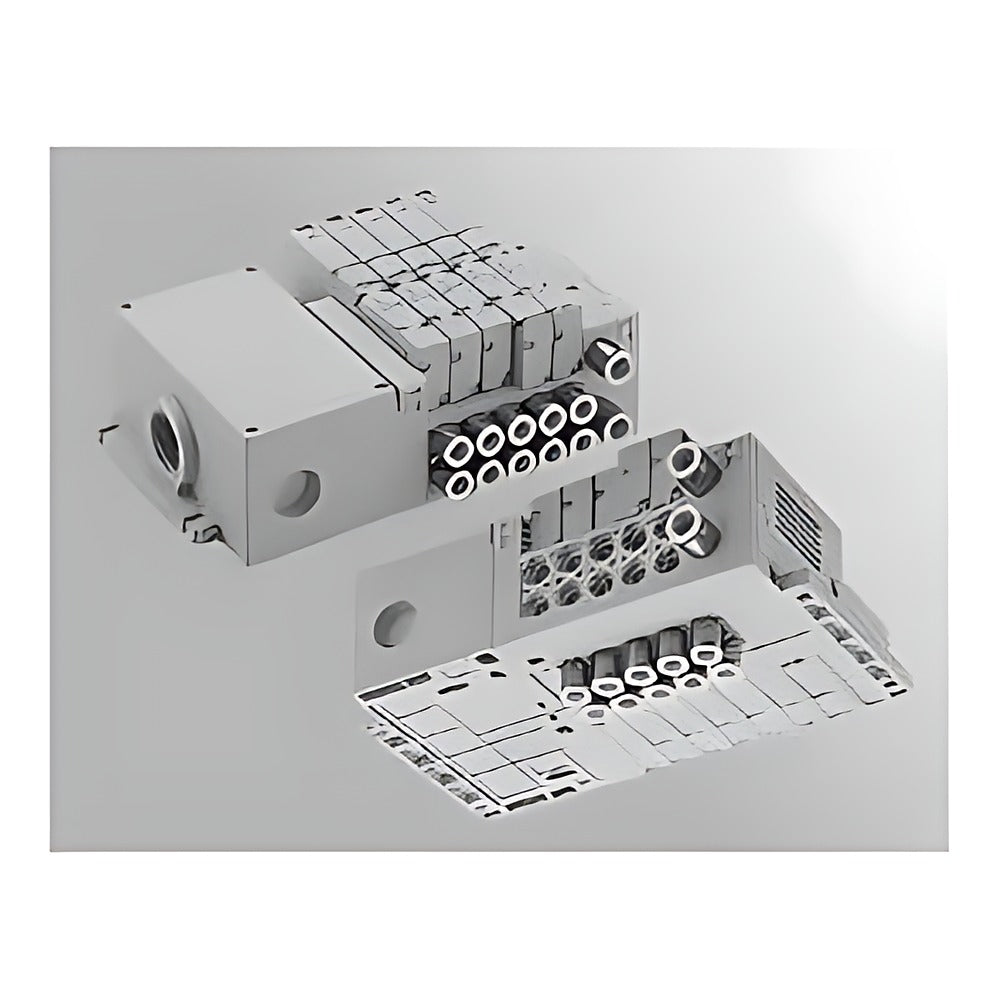

CKD MW4GZ2-T1/T2/T3/T5 Wire-Saving Manifold (Bottom-Ported Base)

CKD W4G2-series MW4GZ2/MW3GZ2 wire-saving plug-in block manifold (bottom-ported base piping) with terminal block, multi-connector, D-sub or flat cable connection.

Key features

Wiring T10 terminal block, T20 multi-connector 20P, T30 D-sub 25P, T51/T53 flat cable 20P/26P
A/B ports on the base bottom: push-in ø4/ø6/ø8 or mixed CX
A- or B-port plug variants (C4NC, C4NO ...) for 2-position single available by the same format (not listed)
DC valve blocks NW4GZ2/NW3GZ2 listed for extension; base valves W4GB2/W3GB2 -9-00 in the W3GB2/W4GB2 product
Options (not multiplied): W, M, M7, H, K, A, F, spacers Z1/Z3/Z6/Z8, DIN rail D; AC100V (T10 only)

Specifications

Fluid	Compressed air
Valve type	Pilot-operated soft spool valve
Operating pressure	0.2 to 0.7 MPa (ext. pilot 0 to 0.7 MPa)
Proof pressure	1.05 MPa
Ambient / fluid temperature	-5 to 55 / 5 to 55 °C (no freezing)
Manual override	Non-locking / locking (standard)
Applicable cylinder bore	ø20 to ø80
P/R port (supply/exhaust block)	Push-in ø8, ø10
Max. stations (std wiring)	T10/T30/T51/T53 18, T20 8
Protection	IP65 (T30/T5x IP40)
Manifold voltage	DC24V (-3) listed; DC12V/AC100V available
Source	CKD Korea catalog CB-023SK-9, p. 1086-1087, 1092-1093, 1098-1123

MW4GZ210-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ210-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ210-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ210-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ210-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ210-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ210-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ210-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ210-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ220-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ220-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ220-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ220-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ220-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ220-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ220-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ220-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ230-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ230-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ230-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ230-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ230-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ230-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ230-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ230-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ240-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ240-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ240-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ240-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ240-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ240-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ240-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ240-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ250-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ250-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ250-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ250-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ250-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ250-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ250-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ250-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C4-T10-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C4-T10-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C4-T10-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C4-T10-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C4-T20-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C4-T20-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C4-T30-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C4-T30-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C4-T30-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C4-T30-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C4-T51-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C4-T51-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C4-T51-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C4-T51-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C4-T53-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C4-T53-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C4-T53-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C4-T53-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C6-T10-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C6-T10-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C6-T10-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C6-T10-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C6-T20-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C6-T20-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C6-T30-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C6-T30-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C6-T30-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C6-T30-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C6-T51-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C6-T51-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C6-T51-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C6-T51-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C6-T53-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C6-T53-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C6-T53-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C6-T53-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C8-T10-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C8-T10-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C8-T10-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C8-T10-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C8-T20-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C8-T20-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C8-T30-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C8-T30-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C8-T30-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C8-T30-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C8-T51-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C8-T51-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C8-T51-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C8-T51-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-C8-T53-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-C8-T53-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-C8-T53-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-C8-T53-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-CX-T10-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW4GZ280-CX-T10-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW4GZ280-CX-T10-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW4GZ280-CX-T10-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW4GZ280-CX-T20-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-CX-T20-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-CX-T30-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-CX-T30-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-CX-T30-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-CX-T30-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-CX-T51-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-CX-T51-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-CX-T51-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-CX-T51-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW4GZ280-CX-T53-4-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW4GZ280-CX-T53-8-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW4GZ280-CX-T53-12-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW4GZ280-CX-T53-16-3		Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C4-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C4-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C4-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C4-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C4-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C4-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C4-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C4-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C4-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C4-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C4-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C4-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C4-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C4-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C4-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C4-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C4-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C4-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C6-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C6-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C6-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C6-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C6-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C6-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C6-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C6-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C6-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C6-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C6-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C6-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C6-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C6-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C6-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C6-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C6-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C6-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C8-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C8-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C8-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C8-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C8-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C8-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C8-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C8-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C8-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C8-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C8-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C8-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C8-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C8-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-C8-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-C8-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-C8-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-C8-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-CX-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ210-CX-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ210-CX-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ210-CX-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ210-CX-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-CX-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-CX-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-CX-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-CX-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-CX-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-CX-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-CX-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-CX-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-CX-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ210-CX-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ210-CX-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ210-CX-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ210-CX-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C4-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C4-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C4-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C4-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C4-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C4-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C4-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C4-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C4-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C4-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C4-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C4-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C4-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C4-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C4-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C4-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C4-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C4-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C6-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C6-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C6-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C6-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C6-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C6-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C6-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C6-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C6-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C6-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C6-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C6-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C6-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C6-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C6-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C6-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C6-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C6-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C8-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C8-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C8-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C8-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C8-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C8-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C8-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C8-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C8-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C8-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C8-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C8-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C8-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C8-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-C8-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-C8-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-C8-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-C8-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-CX-T10-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-CX-T10-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-CX-T10-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-CX-T10-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-CX-T20-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-CX-T20-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-CX-T30-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-CX-T30-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-CX-T30-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-CX-T30-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-CX-T51-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-CX-T51-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-CX-T51-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-CX-T51-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2110-CX-T53-4-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2110-CX-T53-8-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2110-CX-T53-12-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2110-CX-T53-16-3		Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C4-T10-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C4-T10-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C4-T10-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C4-T10-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C4-T20-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C4-T20-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C4-T30-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C4-T30-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C4-T30-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C4-T30-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C4-T51-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C4-T51-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C4-T51-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C4-T51-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C4-T53-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C4-T53-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C4-T53-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C4-T53-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C6-T10-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C6-T10-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C6-T10-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C6-T10-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C6-T20-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C6-T20-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C6-T30-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C6-T30-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C6-T30-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C6-T30-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C6-T51-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C6-T51-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C6-T51-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C6-T51-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C6-T53-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C6-T53-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C6-T53-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C6-T53-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C8-T10-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C8-T10-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C8-T10-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C8-T10-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C8-T20-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C8-T20-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C8-T30-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C8-T30-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C8-T30-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C8-T30-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C8-T51-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C8-T51-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C8-T51-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C8-T51-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-C8-T53-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-C8-T53-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-C8-T53-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-C8-T53-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-CX-T10-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-CX-T10-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-CX-T10-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-CX-T10-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-CX-T20-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-CX-T20-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-CX-T30-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-CX-T30-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-CX-T30-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-CX-T30-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-CX-T51-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-CX-T51-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-CX-T51-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-CX-T51-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ2660-CX-T53-4-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ2660-CX-T53-8-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ2660-CX-T53-12-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ2660-CX-T53-16-3		Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C4-T10-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C4-T10-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C4-T10-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C4-T10-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C4-T20-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C4-T20-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C4-T30-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C4-T30-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C4-T30-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C4-T30-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C4-T51-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C4-T51-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C4-T51-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C4-T51-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C4-T53-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C4-T53-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C4-T53-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C4-T53-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C6-T10-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C6-T10-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C6-T10-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C6-T10-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C6-T20-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C6-T20-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C6-T30-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C6-T30-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C6-T30-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C6-T30-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C6-T51-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C6-T51-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C6-T51-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C6-T51-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C6-T53-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C6-T53-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C6-T53-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C6-T53-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C8-T10-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C8-T10-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C8-T10-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C8-T10-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C8-T20-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C8-T20-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C8-T30-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C8-T30-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C8-T30-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C8-T30-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C8-T51-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C8-T51-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C8-T51-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C8-T51-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-C8-T53-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-C8-T53-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-C8-T53-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-C8-T53-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-CX-T10-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
MW3GZ280-CX-T10-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
MW3GZ280-CX-T10-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
MW3GZ280-CX-T10-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
MW3GZ280-CX-T20-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-CX-T20-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-CX-T30-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-CX-T30-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-CX-T30-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-CX-T30-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-CX-T51-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-CX-T51-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-CX-T51-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-CX-T51-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
MW3GZ280-CX-T53-4-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
MW3GZ280-CX-T53-8-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
MW3GZ280-CX-T53-12-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
MW3GZ280-CX-T53-16-3		Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
NW4GZ210-C4-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ210-C4-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ210-C6-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ210-C6-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ210-C8-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ210-C8-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ220-C4-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ220-C4-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ220-C6-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ220-C6-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ220-C8-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ220-C8-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ230-C4-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ230-C4-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ230-C6-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ230-C6-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ230-C8-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ230-C8-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ240-C4-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ240-C4-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ240-C6-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ240-C6-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ240-C8-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ240-C8-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ250-C4-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ250-C4-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ250-C6-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ250-C6-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW4GZ250-C8-3		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW4GZ250-C8-4		Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ210-C4-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ210-C4-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ210-C6-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ210-C6-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ210-C8-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ210-C8-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2110-C4-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2110-C4-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2110-C6-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2110-C6-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2110-C8-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2110-C8-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2660-C4-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2660-C4-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2660-C6-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2660-C6-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
NW3GZ2660-C8-3		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
NW3GZ2660-C8-4		Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V

Valve ManifoldsCKD

768 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW4GZ2-T1/T2/T3/T5 Wire-Saving Manifold (Bottom-Ported Base)

Brand CKD·Valve Manifolds

Available part numbers (768)

MW4GZ210-C4-T10-4-3, MW4GZ210-C4-T10-8-3, MW4GZ210-C4-T10-12-3, MW4GZ210-C4-T10-16-3, MW4GZ210-C4-T20-4-3, MW4GZ210-C4-T20-8-3, MW4GZ210-C4-T30-4-3, MW4GZ210-C4-T30-8-3, MW4GZ210-C4-T30-12-3, MW4GZ210-C4-T30-16-3 + 758 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MW4GZ210-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ210-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ210-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ210-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ210-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position single \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ220-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ220-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ220-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ220-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: 2-position double \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ230-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ230-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ230-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ230-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position all ports blocked \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ240-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ240-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ240-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ240-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position A/B/R connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ250-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ250-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ250-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ250-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: 3-position P/A/B connection \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C4-T10-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C4-T10-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C4-T10-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C4-T10-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C4-T20-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C4-T20-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C4-T30-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C4-T30-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C4-T30-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C4-T30-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C4-T51-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C4-T51-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C4-T51-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C4-T51-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C4-T53-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C4-T53-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C4-T53-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C4-T53-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C6-T10-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C6-T10-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C6-T10-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C6-T10-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C6-T20-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C6-T20-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C6-T30-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C6-T30-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C6-T30-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C6-T30-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C6-T51-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C6-T51-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C6-T51-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C6-T51-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C6-T53-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C6-T53-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C6-T53-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C6-T53-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C8-T10-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C8-T10-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C8-T10-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C8-T10-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C8-T20-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C8-T20-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C8-T30-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C8-T30-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C8-T30-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C8-T30-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C8-T51-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C8-T51-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C8-T51-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C8-T51-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-C8-T53-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-C8-T53-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-C8-T53-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-C8-T53-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-CX-T10-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-CX-T10-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-CX-T10-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-CX-T10-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-CX-T20-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-CX-T20-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-CX-T30-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-CX-T30-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-CX-T30-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-CX-T30-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-CX-T51-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-CX-T51-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-CX-T51-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-CX-T51-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW4GZ280-CX-T53-4-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW4GZ280-CX-T53-8-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW4GZ280-CX-T53-12-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW4GZ280-CX-T53-16-3	Item: Manifold MW4GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C4-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C4-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C4-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C4-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C4-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C4-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C4-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C4-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C4-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C4-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C4-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C4-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C4-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C4-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C4-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C4-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C4-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C4-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C6-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C6-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C6-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C6-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C6-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C6-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C6-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C6-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C6-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C6-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C6-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C6-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C6-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C6-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C6-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C6-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C6-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C6-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C8-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C8-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C8-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C8-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C8-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C8-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C8-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C8-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C8-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C8-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C8-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C8-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C8-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C8-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-C8-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-C8-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-C8-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-C8-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-CX-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-CX-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-CX-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-CX-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-CX-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-CX-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-CX-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-CX-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-CX-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-CX-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-CX-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-CX-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-CX-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-CX-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ210-CX-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ210-CX-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ210-CX-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ210-CX-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.C. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C4-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C4-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C4-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C4-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C4-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C4-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C4-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C4-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C4-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C4-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C4-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C4-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C4-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C4-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C4-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C4-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C4-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C4-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C6-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C6-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C6-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C6-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C6-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C6-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C6-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C6-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C6-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C6-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C6-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C6-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C6-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C6-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C6-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C6-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C6-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C6-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C8-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C8-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C8-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C8-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C8-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C8-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C8-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C8-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C8-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C8-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C8-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C8-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C8-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C8-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-C8-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-C8-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-C8-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-C8-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-CX-T10-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-CX-T10-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-CX-T10-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-CX-T10-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-CX-T20-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-CX-T20-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-CX-T30-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-CX-T30-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-CX-T30-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-CX-T30-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-CX-T51-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-CX-T51-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-CX-T51-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-CX-T51-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2110-CX-T53-4-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2110-CX-T53-8-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2110-CX-T53-12-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2110-CX-T53-16-3	Item: Manifold MW3GZ2 \| Function: 2-position single N.O. \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C4-T10-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C4-T10-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C4-T10-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C4-T10-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C4-T20-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C4-T20-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C4-T30-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C4-T30-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C4-T30-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C4-T30-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C4-T51-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C4-T51-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C4-T51-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C4-T51-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C4-T53-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C4-T53-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C4-T53-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C4-T53-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C6-T10-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C6-T10-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C6-T10-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C6-T10-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C6-T20-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C6-T20-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C6-T30-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C6-T30-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C6-T30-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C6-T30-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C6-T51-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C6-T51-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C6-T51-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C6-T51-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C6-T53-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C6-T53-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C6-T53-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C6-T53-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C8-T10-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C8-T10-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C8-T10-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C8-T10-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C8-T20-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C8-T20-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C8-T30-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C8-T30-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C8-T30-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C8-T30-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C8-T51-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C8-T51-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C8-T51-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C8-T51-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-C8-T53-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-C8-T53-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-C8-T53-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-C8-T53-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-CX-T10-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-CX-T10-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-CX-T10-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-CX-T10-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-CX-T20-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-CX-T20-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-CX-T30-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-CX-T30-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-CX-T30-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-CX-T30-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-CX-T51-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-CX-T51-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-CX-T51-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-CX-T51-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ2660-CX-T53-4-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ2660-CX-T53-8-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ2660-CX-T53-12-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ2660-CX-T53-16-3	Item: Manifold MW3GZ2 \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C4-T10-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C4-T10-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C4-T10-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C4-T10-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C4-T20-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C4-T20-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C4-T30-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C4-T30-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C4-T30-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C4-T30-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C4-T51-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C4-T51-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C4-T51-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C4-T51-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C4-T53-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C4-T53-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C4-T53-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C4-T53-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø4 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C6-T10-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C6-T10-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C6-T10-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C6-T10-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C6-T20-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C6-T20-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C6-T30-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C6-T30-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C6-T30-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C6-T30-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C6-T51-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C6-T51-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C6-T51-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C6-T51-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C6-T53-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C6-T53-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C6-T53-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C6-T53-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø6 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C8-T10-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C8-T10-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C8-T10-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C8-T10-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C8-T20-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C8-T20-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C8-T30-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C8-T30-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C8-T30-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C8-T30-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C8-T51-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C8-T51-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C8-T51-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C8-T51-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-C8-T53-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-C8-T53-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-C8-T53-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-C8-T53-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in ø8 \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-CX-T10-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-CX-T10-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-CX-T10-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-CX-T10-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T10 Terminal block (M3) \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-CX-T20-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-CX-T20-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T20 Multi-connector 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-CX-T30-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-CX-T30-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-CX-T30-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-CX-T30-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T30 D-sub connector 25P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-CX-T51-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-CX-T51-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-CX-T51-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-CX-T51-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T51 Flat cable 20P \| Stations: 16 \| Voltage: DC24V
	MW3GZ280-CX-T53-4-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 4 \| Voltage: DC24V
	MW3GZ280-CX-T53-8-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 8 \| Voltage: DC24V
	MW3GZ280-CX-T53-12-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 12 \| Voltage: DC24V
	MW3GZ280-CX-T53-16-3	Item: Manifold MW3GZ2 \| Function: Mix manifold \| A/B port: Push-in mixed \| Wiring: T53 Flat cable 26P \| Stations: 16 \| Voltage: DC24V
	NW4GZ210-C4-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ210-C4-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ210-C6-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ210-C6-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ210-C8-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ210-C8-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position single \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ220-C4-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ220-C4-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ220-C6-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ220-C6-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ220-C8-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ220-C8-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 2-position double \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ230-C4-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ230-C4-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ230-C6-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ230-C6-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ230-C8-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ230-C8-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position all ports blocked \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ240-C4-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ240-C4-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ240-C6-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ240-C6-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ240-C8-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ240-C8-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position A/B/R connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ250-C4-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ250-C4-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ250-C6-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ250-C6-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW4GZ250-C8-3	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW4GZ250-C8-4	Item: Valve block NW4GZ2 (DC relay board) \| Function: 3-position P/A/B connection \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ210-C4-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ210-C4-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ210-C6-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ210-C6-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ210-C8-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ210-C8-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.C. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2110-C4-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2110-C4-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2110-C6-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2110-C6-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2110-C8-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2110-C8-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: 2-position single N.O. \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2660-C4-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2660-C4-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø4 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2660-C6-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2660-C6-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø6 \| Wiring: - \| Stations: Single block \| Voltage: DC12V
	NW3GZ2660-C8-3	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC24V
	NW3GZ2660-C8-4	Item: Valve block NW3GZ2 (DC relay board) \| Function: Dual 3-port (N.C./N.C.) \| A/B port: Push-in ø8 \| Wiring: - \| Stations: Single block \| Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MW4GZ2-T1/T2/T3/T5 Wire-Saving Manifold (Bottom-Ported Base)
