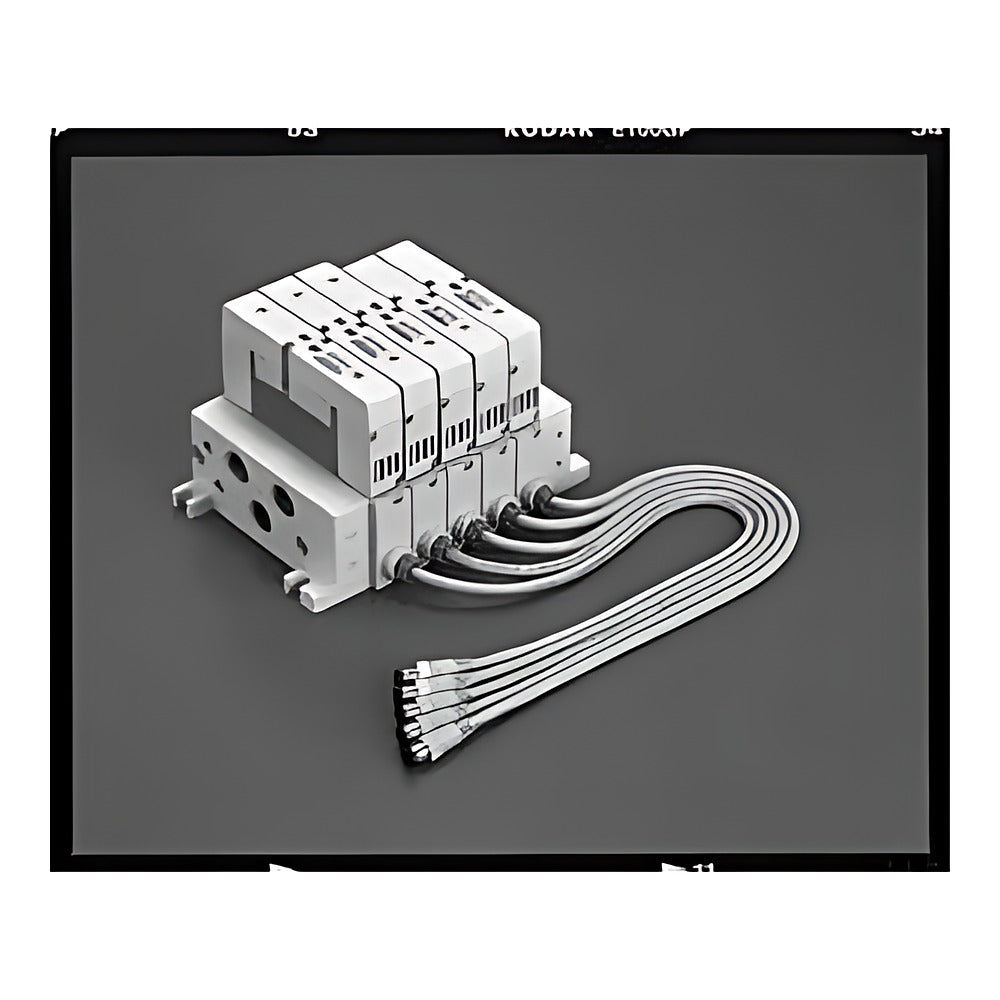

CKD MW4G4-R1 Manifold Valve Block (Individual Wiring, R1)

CKD MW4G4-R1 Manifold Valve Block (Individual Wiring, R1)

Solenoid-valve-mounted valve blocks NW4GB4/NW4GZ4 for the CKD MW4GB4-R1 / MW4GZ4-R1 individual-wiring plug-in block manifold with M12 I/O connector per station.

Key features

  • Plug-in block manifold, 1 to 16 stations; common supply and exhaust, side (MW4GB4) or bottom (MW4GZ4) A/B piping
  • Each valve block wired individually through an M12 I/O connector (R1, 500 mm), DC12V/DC24V, lamp and surge suppressor standard
  • Manifold code format MW4GB4[switch]0-[port]-R1[option]-[stations]-[voltage], e.g. MW4GB480-10-R1M-6-3; ordered with manifold specification sheet
  • A/B ports Rc/G/NPT 1/4 and 3/8 or push-in 8/10/12 mm (NW4GB4); Rc/G/NPT 1/4, Rc 3/8 (NW4GZ4)
  • Options not expanded: M7 pilot-air OFF lock, Z1/Z3 supply/exhaust spacer, K external pilot, A coolant-resistant, F A/B filter
  • Flow C = 7.4 dm3/(s.bar) 2-position; P port Rc/G/NPT 1/2, R port Rc/G/NPT 1/2

Specifications

Valve type Pilot-operated soft spool, 5-port
Media Compressed air
Operating pressure 0.2 to 1.0 MPa (ext. pilot 0 to 1.0)
Proof pressure 1.5 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Lubrication Not required (ISO VG32 if used)
Protection IP65 dust/jet-proof
Applicable cylinder bore 63 to 125 mm
Wiring Individual, M12 I/O connector (R1), DC
Max stations 16
Source CKD Korea catalog CB-023SK-9, p. 1200-1203
NW4GB410-08-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08G-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08G-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08G-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08G-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10G-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10G-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10G-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10G-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08N-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08N-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08N-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08N-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10N-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10N-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10N-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10N-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C8-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C8-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C8-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C8-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C10-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C10-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C10-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C10-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C12-R1-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C12-R1-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C12-R1M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C12-R1M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08G-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08G-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08G-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08G-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10G-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10G-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10G-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10G-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08N-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08N-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08N-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08N-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10N-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10N-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10N-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10N-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C8-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C8-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C8-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C8-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C10-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C10-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C10-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C10-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C12-R1-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C12-R1-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C12-R1M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C12-R1M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08G-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08G-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10G-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10G-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08N-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08N-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10N-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10N-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C8-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C8-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C8-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C8-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C10-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C10-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C12-R1-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C12-R1-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C12-R1M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C12-R1M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08G-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08G-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10G-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10G-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08N-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08N-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10N-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10N-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C8-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C8-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C8-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C8-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C10-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C10-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C12-R1-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C12-R1-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C12-R1M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C12-R1M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08G-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08G-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10G-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10G-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10G-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10G-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08N-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08N-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10N-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10N-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10N-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10N-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C8-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C8-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C8-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C8-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C10-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C10-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C10-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C10-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C12-R1-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C12-R1-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C12-R1M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C12-R1M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-10-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-10-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-10-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-10-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08G-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08G-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08G-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08G-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08N-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08N-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08N-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08N-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-10-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-10-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-10-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-10-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08G-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08G-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08G-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08G-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08N-R1-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08N-R1-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08N-R1M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08N-R1M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-10-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-10-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-10-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-10-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08G-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08G-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08G-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08G-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08N-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08N-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08N-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08N-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-10-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-10-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-10-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-10-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08G-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08G-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08G-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08G-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08N-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08N-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08N-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08N-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-10-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-10-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-10-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-10-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08G-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08G-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08G-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08G-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08N-R1-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08N-R1-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08N-R1M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08N-R1M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
Valve ManifoldsCKD
260 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW4G4-R1 Manifold Valve Block (Individual Wiring, R1)

Brand CKD·Valve Manifolds

Available part numbers (260)

NW4GB410-08-R1-3, NW4GB410-08-R1-4, NW4GB410-08-R1M-3, NW4GB410-08-R1M-4, NW4GB410-10-R1-3, NW4GB410-10-R1-4, NW4GB410-10-R1M-3, NW4GB410-10-R1M-4, NW4GB410-08G-R1-3, NW4GB410-08G-R1-4 + 250 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NW4GB410-08-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08G-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08G-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08G-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08G-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10G-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10G-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10G-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10G-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08N-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08N-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08N-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08N-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10N-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10N-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10N-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10N-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C8-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C8-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C8-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C8-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C10-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C10-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C10-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C10-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C12-R1-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C12-R1-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C12-R1M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C12-R1M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08G-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08G-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08G-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08G-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10G-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10G-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10G-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10G-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08N-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08N-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08N-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08N-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10N-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10N-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10N-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10N-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C8-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C8-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C8-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C8-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C10-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C10-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C10-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C10-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C12-R1-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C12-R1-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C12-R1M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C12-R1M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08G-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08G-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08G-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08G-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10G-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10G-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10G-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10G-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08N-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08N-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08N-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08N-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10N-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10N-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10N-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10N-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C8-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C8-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C8-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C8-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C10-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C10-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C10-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C10-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C12-R1-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C12-R1-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C12-R1M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C12-R1M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08G-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08G-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08G-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08G-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10G-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10G-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10G-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10G-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08N-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08N-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08N-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08N-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10N-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10N-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10N-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10N-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C8-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C8-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C8-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C8-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C10-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C10-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C10-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C10-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C12-R1-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C12-R1-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C12-R1M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C12-R1M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08G-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08G-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08G-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08G-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10G-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10G-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10G-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10G-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08N-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08N-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08N-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08N-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10N-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10N-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10N-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10N-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C8-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C8-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C8-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C8-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C10-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C10-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C10-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C10-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C12-R1-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C12-R1-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C12-R1M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C12-R1M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-10-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-10-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-10-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-10-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08G-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08G-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08G-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08G-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08N-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08N-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08N-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08N-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-10-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-10-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-10-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-10-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08G-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08G-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08G-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08G-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08N-R1-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08N-R1-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08N-R1M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08N-R1M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-10-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-10-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-10-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-10-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08G-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08G-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08G-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08G-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08N-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08N-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08N-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08N-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-10-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-10-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-10-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-10-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08G-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08G-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08G-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08G-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08N-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08N-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08N-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08N-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-10-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-10-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-10-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-10-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08G-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08G-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08G-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08G-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08N-R1-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08N-R1-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08N-R1M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08N-R1M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Manual override: Non-lock (M) | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
