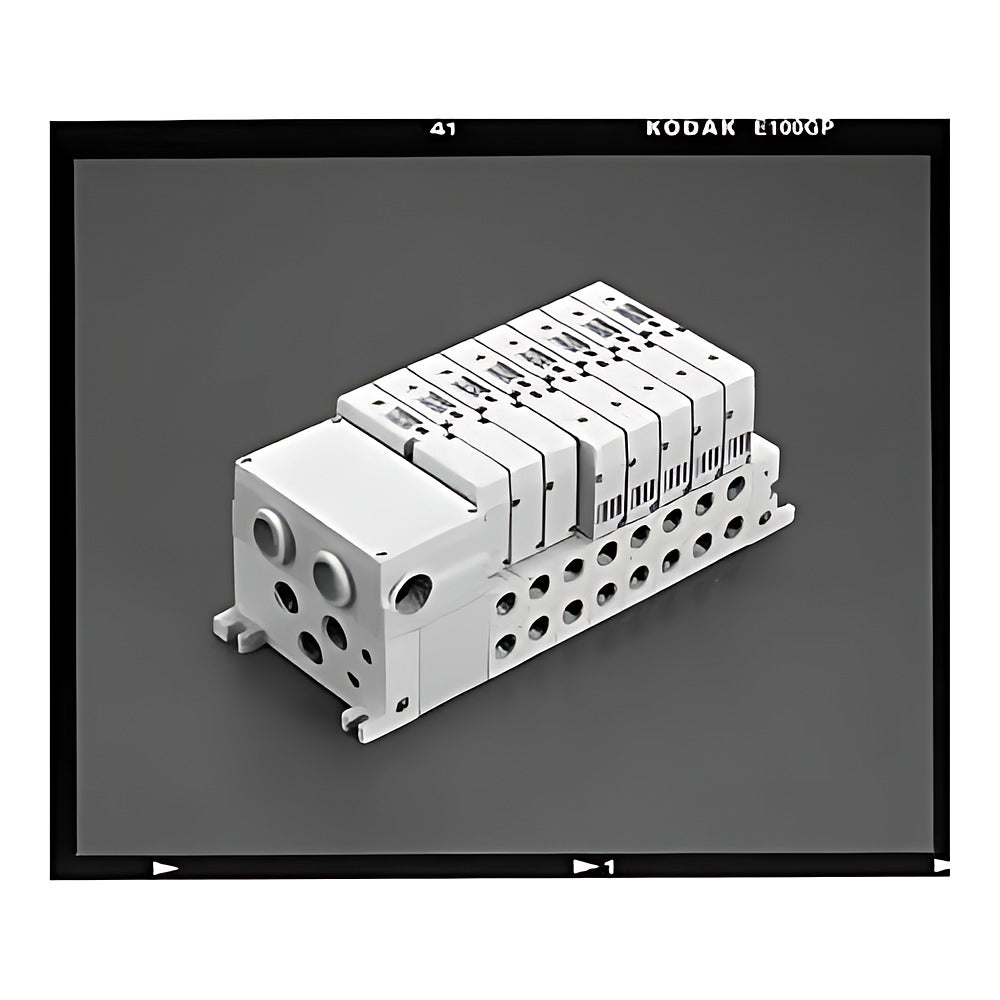

CKD MW4G4-T Manifold Valve Block (Wiring-Reduced T1/T3/T6/T7)

CKD MW4G4-T Manifold Valve Block (Wiring-Reduced T1/T3/T6/T7)

Solenoid-valve-mounted valve blocks NW4GB4/NW4GZ4 for the CKD MW4GB4/MW4GZ4 wiring-reduced plug-in block manifolds (terminal block, D-sub, CC-Link, DeviceNet, EtherCAT, EtherNet/IP, CC-Link IE Field Basic, PROFINET).

Key features

  • Wiring-reduced manifolds: T10/T10R terminal block, T30/T30R D-sub, T6G1/T6D1 CC-Link/DeviceNet, T7 slim EtherCAT, EtherNet/IP, CC-Link IEF Basic, PROFINET
  • Up to 16 stations standard wiring, 8 stations double wiring (W); electrical block left or right (R)
  • DC valve blocks (no wiring symbol) serve T1/T3/T6/T7; AC100/110V terminal-block blocks coded 1/2/3 by station range 1-6/7-12/13-16
  • Manifold code format e.g. MW4GB480-10-T10WM-6-3, MW4GB480-10-T6G1WM-6-3; ordered with manifold specification sheet
  • Options not expanded: M7 pilot-air OFF lock, Z1/Z3/Z7 spacers, K external pilot, A coolant-resistant, F A/B filter
  • Serial transmission (T6/T7) is DC24V only

Specifications

Valve type Pilot-operated soft spool, 5-port
Media Compressed air
Operating pressure 0.2 to 1.0 MPa (ext. pilot 0 to 1.0)
Proof pressure 1.5 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Lubrication Not required (ISO VG32 if used)
Protection IP65 dust/jet-proof
Applicable cylinder bore 63 to 125 mm
Wiring Wiring-reduced (T10/T30/T6/T7)
Max stations 16 (double wiring 8)
Source CKD Korea catalog CB-023SK-9, p. 1204-1220
NW4GB410-08-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08G-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08G-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08G-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08G-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10G-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10G-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10G-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10G-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08N-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08N-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08N-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08N-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10N-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10N-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10N-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10N-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C8-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C8-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C8-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C8-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C10-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C10-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C10-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C10-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C12-M-3 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C12-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C12-M-4 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C12-1-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-1M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-1-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-1M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-2-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-2M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-2-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-2M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-3-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-3M-1 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-3-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-3M-5 Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08G-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08G-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08G-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08G-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10G-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10G-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10G-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10G-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08N-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08N-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08N-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08N-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10N-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10N-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10N-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10N-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C8-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C8-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C8-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C8-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C10-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C10-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C10-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C10-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C12-M-3 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C12-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C12-M-4 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C12-1-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-1M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-1-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-1M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-2-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-2M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-2-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-2M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-3-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-3M-1 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-3-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-3M-5 Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08G-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08G-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08G-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08G-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10G-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10G-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10G-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10G-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08N-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08N-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08N-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08N-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10N-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10N-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10N-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10N-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C8-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C8-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C8-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C8-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C10-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C10-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C10-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C10-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C12-M-3 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C12-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C12-M-4 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C12-1-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-1M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-1-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-1M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-2-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-2M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-2-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-2M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-3-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-3M-1 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-3-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-3M-5 Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08G-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08G-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08G-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08G-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10G-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10G-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10G-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10G-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08N-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08N-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08N-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08N-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10N-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10N-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10N-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10N-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C8-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C8-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C8-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C8-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C10-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C10-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C10-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C10-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C12-M-3 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C12-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C12-M-4 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C12-1-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-1M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-1-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-1M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-2-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-2M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-2-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-2M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-3-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-3M-1 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-3-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-3M-5 Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08G-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08G-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08G-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08G-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10G-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10G-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10G-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10G-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08N-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08N-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08N-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08N-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10N-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10N-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10N-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10N-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C8-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C8-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C8-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C8-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C10-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C10-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C10-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C10-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C12-M-3 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C12-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C12-M-4 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C12-1-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-1M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-1-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-1M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-2-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-2M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-2-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-2M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-3-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-3M-1 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-3-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-3M-5 Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-10-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-10-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-10-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-10-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08G-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08G-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08G-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08G-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08N-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08N-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08N-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08N-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-10-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-10-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-10-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-10-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08G-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08G-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08G-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08G-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08N-M-3 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08N-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08N-M-4 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08N-1-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-1M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-1-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-1M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-2-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-2M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-2-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-2M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-3-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-3M-1 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-3-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-3M-5 Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-10-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-10-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-10-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-10-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08G-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08G-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08G-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08G-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08N-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08N-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08N-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08N-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-10-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-10-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-10-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-10-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08G-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08G-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08G-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08G-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08N-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08N-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08N-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08N-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-10-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-10-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-10-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-10-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08G-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08G-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08G-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08G-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08N-M-3 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08N-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08N-M-4 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08N-1-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-1M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-1-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-1M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-2-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-2M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-2-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-2M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-3-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-3M-1 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-3-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-3M-5 Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
Valve ManifoldsCKD
1040 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW4G4-T Manifold Valve Block (Wiring-Reduced T1/T3/T6/T7)

Brand CKD·Valve Manifolds

Available part numbers (1040)

NW4GB410-08-3, NW4GB410-08-M-3, NW4GB410-08-4, NW4GB410-08-M-4, NW4GB410-08-1-1, NW4GB410-08-1M-1, NW4GB410-08-1-5, NW4GB410-08-1M-5, NW4GB410-08-2-1, NW4GB410-08-2M-1 + 1030 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NW4GB410-08-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08G-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08G-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08G-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08G-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08G-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08G-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08G-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08G-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10G-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10G-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10G-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10G-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10G-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10G-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10G-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10G-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-08N-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-08N-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-08N-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-08N-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-08N-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-08N-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-08N-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-08N-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-10N-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-10N-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-10N-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-10N-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-10N-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-10N-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-10N-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-10N-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C8-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C8-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C8-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C8-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C8-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C8-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C8-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C8-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C10-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C10-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C10-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C10-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C10-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C10-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C10-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C10-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB410-C12-M-3Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB410-C12-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB410-C12-M-4Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB410-C12-1-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-1M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-1-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-1M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-2-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-2M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-2-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-2M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB410-C12-3-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB410-C12-3M-1Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB410-C12-3-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB410-C12-3M-5Block: NW4GB4 Side ported | Function: 2-position single | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08G-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08G-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08G-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08G-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08G-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08G-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08G-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08G-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10G-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10G-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10G-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10G-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10G-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10G-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10G-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10G-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-08N-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-08N-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-08N-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-08N-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-08N-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-08N-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-08N-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-08N-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-10N-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-10N-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-10N-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-10N-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-10N-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-10N-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-10N-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-10N-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C8-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C8-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C8-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C8-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C8-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C8-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C8-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C8-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C10-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C10-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C10-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C10-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C10-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C10-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C10-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C10-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB420-C12-M-3Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB420-C12-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB420-C12-M-4Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB420-C12-1-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-1M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-1-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-1M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-2-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-2M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-2-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-2M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB420-C12-3-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB420-C12-3M-1Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB420-C12-3-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB420-C12-3M-5Block: NW4GB4 Side ported | Function: 2-position double | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08G-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08G-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08G-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08G-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08G-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08G-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08G-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08G-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10G-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10G-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10G-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10G-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10G-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10G-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10G-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10G-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-08N-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-08N-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-08N-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-08N-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-08N-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-08N-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-08N-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-08N-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-10N-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-10N-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-10N-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-10N-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-10N-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-10N-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-10N-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-10N-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C8-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C8-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C8-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C8-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C8-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C8-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C8-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C8-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C10-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C10-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C10-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C10-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C10-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C10-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C10-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C10-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB430-C12-M-3Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB430-C12-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB430-C12-M-4Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB430-C12-1-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-1M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-1-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-1M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-2-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-2M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-2-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-2M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB430-C12-3-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB430-C12-3M-1Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB430-C12-3-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB430-C12-3M-5Block: NW4GB4 Side ported | Function: 3-position all ports blocked | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08G-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08G-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08G-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08G-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08G-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08G-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08G-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08G-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10G-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10G-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10G-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10G-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10G-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10G-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10G-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10G-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-08N-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-08N-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-08N-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-08N-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-08N-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-08N-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-08N-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-08N-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-10N-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-10N-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-10N-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-10N-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-10N-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-10N-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-10N-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-10N-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C8-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C8-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C8-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C8-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C8-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C8-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C8-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C8-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C10-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C10-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C10-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C10-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C10-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C10-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C10-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C10-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB440-C12-M-3Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB440-C12-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB440-C12-M-4Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB440-C12-1-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-1M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-1-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-1M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-2-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-2M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-2-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-2M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB440-C12-3-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB440-C12-3M-1Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB440-C12-3-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB440-C12-3M-5Block: NW4GB4 Side ported | Function: 3-position A/B/R connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08G-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08G-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08G-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08G-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08G-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08G-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08G-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08G-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10G-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10G-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10G-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10G-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10G-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10G-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10G-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10G-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: G3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-08N-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-08N-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-08N-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-08N-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-08N-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-08N-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-08N-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-08N-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-10N-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-10N-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-10N-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-10N-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-10N-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-10N-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-10N-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-10N-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: NPT3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C8-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C8-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C8-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C8-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C8-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C8-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C8-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C8-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 8 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C10-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C10-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C10-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C10-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C10-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C10-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C10-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C10-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 10 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GB450-C12-M-3Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GB450-C12-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GB450-C12-M-4Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GB450-C12-1-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-1M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-1-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-1M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-2-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-2M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-2-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-2M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GB450-C12-3-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GB450-C12-3M-1Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GB450-C12-3-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GB450-C12-3M-5Block: NW4GB4 Side ported | Function: 3-position P/A/B connection | A/B port: Push-in 12 mm | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08-M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08-M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08-1-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-1-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-2-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-2-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08-3-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08-3-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-10-M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-10-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-10-M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-10-1-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-1-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-2-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-2-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-10-3-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-10-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-10-3-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-10-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08G-M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08G-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08G-M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08G-1-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-1-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-2-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-2-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08G-3-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08G-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08G-3-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08G-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ410-08N-M-3Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ410-08N-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ410-08N-M-4Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ410-08N-1-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-1-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-2-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-2-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ410-08N-3-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ410-08N-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ410-08N-3-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ410-08N-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position single | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08-M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08-M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08-1-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-1-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-2-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-2-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08-3-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08-3-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-10-M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-10-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-10-M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-10-1-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-1-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-2-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-2-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-10-3-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-10-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-10-3-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-10-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08G-M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08G-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08G-M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08G-1-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-1-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-2-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-2-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08G-3-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08G-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08G-3-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08G-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ420-08N-M-3Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ420-08N-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ420-08N-M-4Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ420-08N-1-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-1M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-1-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-1M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-2-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-2M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-2-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-2M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ420-08N-3-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ420-08N-3M-1Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ420-08N-3-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ420-08N-3M-5Block: NW4GZ4 Bottom ported | Function: 2-position double | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08-M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08-M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08-1-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-1-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-2-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-2-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08-3-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08-3-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-10-M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-10-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-10-M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-10-1-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-1-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-2-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-2-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-10-3-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-10-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-10-3-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-10-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08G-M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08G-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08G-M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08G-1-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-1-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-2-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-2-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08G-3-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08G-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08G-3-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08G-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ430-08N-M-3Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ430-08N-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ430-08N-M-4Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ430-08N-1-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-1-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-2-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-2-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ430-08N-3-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ430-08N-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ430-08N-3-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ430-08N-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position all ports blocked | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08-M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08-M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08-1-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-1-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-2-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-2-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08-3-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08-3-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-10-M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-10-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-10-M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-10-1-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-1-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-2-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-2-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-10-3-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-10-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-10-3-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-10-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08G-M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08G-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08G-M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08G-1-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-1-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-2-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-2-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08G-3-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08G-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08G-3-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08G-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ440-08N-M-3Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ440-08N-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ440-08N-M-4Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ440-08N-1-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-1-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-2-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-2-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ440-08N-3-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ440-08N-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ440-08N-3-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ440-08N-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position A/B/R connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08-M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08-M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08-1-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-1-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-2-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-2-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08-3-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08-3-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-10-M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-10-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-10-M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-10-1-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-1-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-2-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-2-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-10-3-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-10-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-10-3-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-10-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: Rc3/8 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08G-M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08G-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08G-M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08G-1-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-1-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-2-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-2-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08G-3-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08G-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08G-3-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08G-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: G1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC24V
NW4GZ450-08N-M-3Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC24V
NW4GZ450-08N-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock/lock common | Voltage: DC12V
NW4GZ450-08N-M-4Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: Wiring-reduced DC | Manual override: Non-lock (M) | Voltage: DC12V
NW4GZ450-08N-1-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-1M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-1-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-1M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 1-6 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-2-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-2M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-2-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-2M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 7-12 | Manual override: Non-lock (M) | Voltage: AC110V
NW4GZ450-08N-3-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC100V
NW4GZ450-08N-3M-1Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC100V
NW4GZ450-08N-3-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock/lock common | Voltage: AC110V
NW4GZ450-08N-3M-5Block: NW4GZ4 Bottom ported | Function: 3-position P/A/B connection | A/B port: NPT1/4 | Wiring: AC terminal, stations 13-16 | Manual override: Non-lock (M) | Voltage: AC110V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
