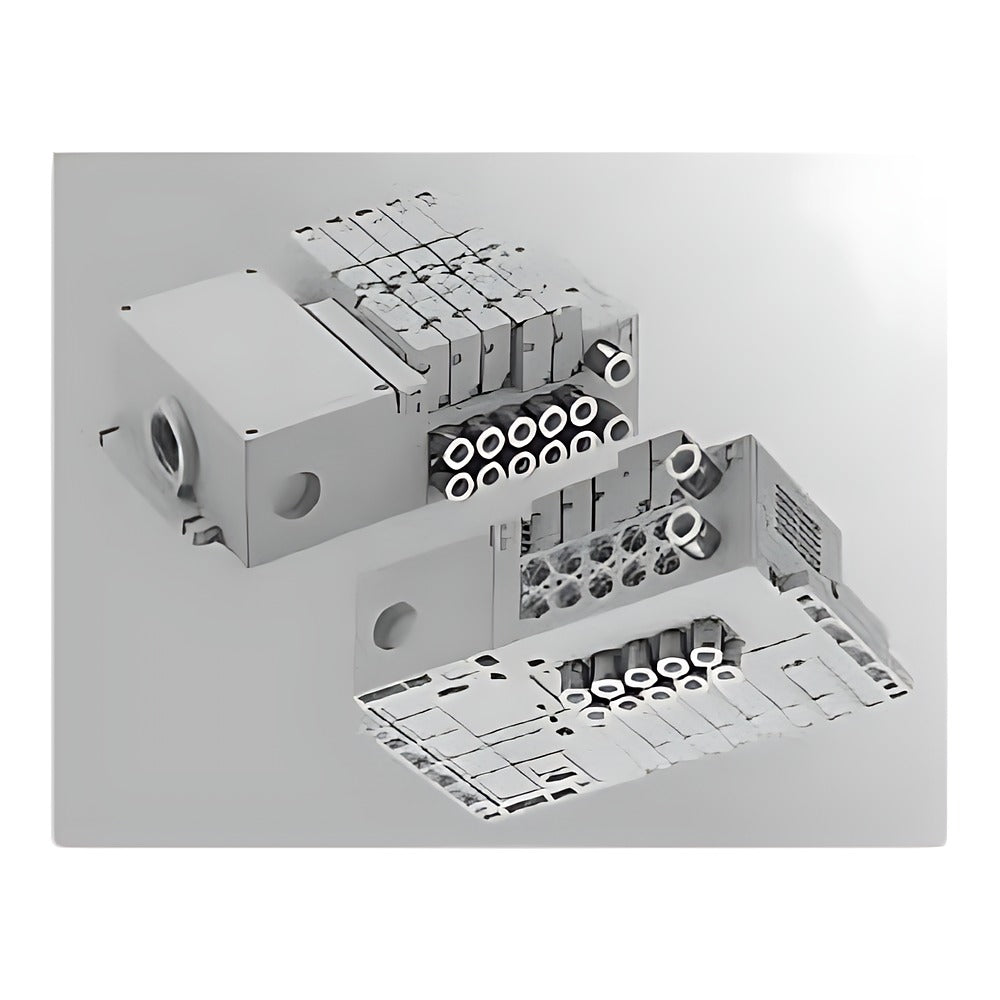

CKD MW3GA2/MW4GA2-T-FP1 Wiring-Saving Manifold (Food Grade, T10)

CKD MW3GA2/MW4GA2-T-FP1 Wiring-Saving Manifold (Food Grade, T10)

CKD MW3GA2/MW4GA2-T-FP1 food-processing block manifold with collective wiring and direct A/B piping, listed here with the T10 M3 terminal block.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • T10 central terminal block (M3 screw), left side; max 18 stations / 18 solenoids
  • Serial transmission units (not expanded): EtherCAT T7EC*, EtherNet/IP T7EN*, CC-Link IE Field Basic T7EB*, PROFINET T7EP*, CC-Link T7G*/T8G*, DeviceNet T7D*/T8D*
  • Standard wiring or double wiring W (W required for AC); AC100V and DC12V made to order
  • A/B ports push-in 6/8 mm, mix or Rc1/8; P/R push-in 8/10 mm on supply/exhaust block
  • Valve blocks NW*GA2 (DC relay board) listed; manifold valves W*GA2 shown in R1 product

Specifications

Valve type Pilot-operated soft spool valve
Fluid Compressed air
Operating pressure 0.2 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature -5 to 55 C (no freezing)
Fluid temperature 5 to 55 C
Protection IP65 dust/jet-proof
Coil voltage DC24V (code 3)
Power consumption 0.6 W (surge killer and indicator std.)
Wiring T10 terminal block M3, left side
Pin layout Standard wiring (W = double wiring)
Source CKD Korea catalog CC-1271K-5, p. 224-229
MW4GA210-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 2
MW4GA210-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 3
MW4GA210-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 4
MW4GA210-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 5
MW4GA210-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 6
MW4GA210-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 7
MW4GA210-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 8
MW4GA210-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 9
MW4GA210-C6-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 10
MW4GA210-C6-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 11
MW4GA210-C6-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 12
MW4GA210-C6-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 13
MW4GA210-C6-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 14
MW4GA210-C6-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 15
MW4GA210-C6-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 16
MW4GA210-C6-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 17
MW4GA210-C6-T10-18-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 18
MW4GA210-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 2
MW4GA210-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 3
MW4GA210-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 4
MW4GA210-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 5
MW4GA210-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 6
MW4GA210-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 7
MW4GA210-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 8
MW4GA210-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 9
MW4GA210-C8-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 10
MW4GA210-C8-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 11
MW4GA210-C8-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 12
MW4GA210-C8-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 13
MW4GA210-C8-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 14
MW4GA210-C8-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 15
MW4GA210-C8-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 16
MW4GA210-C8-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 17
MW4GA210-C8-T10-18-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 18
MW4GA210-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 2
MW4GA210-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 3
MW4GA210-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 4
MW4GA210-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 5
MW4GA210-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 6
MW4GA210-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 7
MW4GA210-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 8
MW4GA210-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 9
MW4GA210-CX-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 10
MW4GA210-CX-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 11
MW4GA210-CX-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 12
MW4GA210-CX-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 13
MW4GA210-CX-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 14
MW4GA210-CX-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 15
MW4GA210-CX-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 16
MW4GA210-CX-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 17
MW4GA210-CX-T10-18-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 18
MW4GA210-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 2
MW4GA210-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 3
MW4GA210-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 4
MW4GA210-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 5
MW4GA210-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 6
MW4GA210-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 7
MW4GA210-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 8
MW4GA210-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 9
MW4GA210-06-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 10
MW4GA210-06-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 11
MW4GA210-06-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 12
MW4GA210-06-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 13
MW4GA210-06-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 14
MW4GA210-06-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 15
MW4GA210-06-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 16
MW4GA210-06-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 17
MW4GA210-06-T10-18-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 18
MW4GA220-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 2
MW4GA220-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 3
MW4GA220-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 4
MW4GA220-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 5
MW4GA220-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 6
MW4GA220-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 7
MW4GA220-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 8
MW4GA220-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 9
MW4GA220-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 2
MW4GA220-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 3
MW4GA220-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 4
MW4GA220-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 5
MW4GA220-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 6
MW4GA220-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 7
MW4GA220-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 8
MW4GA220-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 9
MW4GA220-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 2
MW4GA220-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 3
MW4GA220-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 4
MW4GA220-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 5
MW4GA220-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 6
MW4GA220-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 7
MW4GA220-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 8
MW4GA220-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 9
MW4GA220-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 2
MW4GA220-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 3
MW4GA220-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 4
MW4GA220-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 5
MW4GA220-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 6
MW4GA220-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 7
MW4GA220-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 8
MW4GA220-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 9
MW4GA230-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 2
MW4GA230-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 3
MW4GA230-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 4
MW4GA230-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 5
MW4GA230-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 6
MW4GA230-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 7
MW4GA230-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 8
MW4GA230-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 9
MW4GA230-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 2
MW4GA230-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 3
MW4GA230-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 4
MW4GA230-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 5
MW4GA230-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 6
MW4GA230-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 7
MW4GA230-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 8
MW4GA230-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 9
MW4GA230-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 2
MW4GA230-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 3
MW4GA230-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 4
MW4GA230-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 5
MW4GA230-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 6
MW4GA230-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 7
MW4GA230-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 8
MW4GA230-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 9
MW4GA230-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 2
MW4GA230-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 3
MW4GA230-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 4
MW4GA230-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 5
MW4GA230-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 6
MW4GA230-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 7
MW4GA230-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 8
MW4GA230-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 9
MW4GA240-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 2
MW4GA240-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 3
MW4GA240-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 4
MW4GA240-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 5
MW4GA240-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 6
MW4GA240-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 7
MW4GA240-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 8
MW4GA240-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 9
MW4GA240-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 2
MW4GA240-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 3
MW4GA240-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 4
MW4GA240-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 5
MW4GA240-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 6
MW4GA240-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 7
MW4GA240-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 8
MW4GA240-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 9
MW4GA240-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 2
MW4GA240-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 3
MW4GA240-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 4
MW4GA240-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 5
MW4GA240-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 6
MW4GA240-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 7
MW4GA240-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 8
MW4GA240-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 9
MW4GA240-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 2
MW4GA240-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 3
MW4GA240-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 4
MW4GA240-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 5
MW4GA240-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 6
MW4GA240-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 7
MW4GA240-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 8
MW4GA240-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 9
MW4GA250-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 2
MW4GA250-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 3
MW4GA250-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 4
MW4GA250-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 5
MW4GA250-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 6
MW4GA250-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 7
MW4GA250-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 8
MW4GA250-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 9
MW4GA250-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 2
MW4GA250-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 3
MW4GA250-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 4
MW4GA250-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 5
MW4GA250-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 6
MW4GA250-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 7
MW4GA250-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 8
MW4GA250-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 9
MW4GA250-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 2
MW4GA250-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 3
MW4GA250-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 4
MW4GA250-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 5
MW4GA250-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 6
MW4GA250-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 7
MW4GA250-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 8
MW4GA250-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 9
MW4GA250-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 2
MW4GA250-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 3
MW4GA250-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 4
MW4GA250-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 5
MW4GA250-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 6
MW4GA250-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 7
MW4GA250-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 8
MW4GA250-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 9
MW4GA280-C6-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 2
MW4GA280-C6-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 3
MW4GA280-C6-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 4
MW4GA280-C6-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 5
MW4GA280-C6-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 6
MW4GA280-C6-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 7
MW4GA280-C6-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 8
MW4GA280-C6-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 9
MW4GA280-C6-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 10
MW4GA280-C6-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 11
MW4GA280-C6-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 12
MW4GA280-C6-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 13
MW4GA280-C6-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 14
MW4GA280-C6-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 15
MW4GA280-C6-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 16
MW4GA280-C6-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 17
MW4GA280-C8-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 2
MW4GA280-C8-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 3
MW4GA280-C8-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 4
MW4GA280-C8-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 5
MW4GA280-C8-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 6
MW4GA280-C8-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 7
MW4GA280-C8-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 8
MW4GA280-C8-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 9
MW4GA280-C8-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 10
MW4GA280-C8-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 11
MW4GA280-C8-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 12
MW4GA280-C8-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 13
MW4GA280-C8-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 14
MW4GA280-C8-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 15
MW4GA280-C8-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 16
MW4GA280-C8-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 17
MW4GA280-CX-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 2
MW4GA280-CX-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 3
MW4GA280-CX-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 4
MW4GA280-CX-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 5
MW4GA280-CX-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 6
MW4GA280-CX-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 7
MW4GA280-CX-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 8
MW4GA280-CX-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 9
MW4GA280-CX-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 10
MW4GA280-CX-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 11
MW4GA280-CX-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 12
MW4GA280-CX-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 13
MW4GA280-CX-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 14
MW4GA280-CX-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 15
MW4GA280-CX-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 16
MW4GA280-CX-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 17
MW4GA280-06-T10-2-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
MW4GA280-06-T10-3-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
MW4GA280-06-T10-4-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
MW4GA280-06-T10-5-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
MW4GA280-06-T10-6-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
MW4GA280-06-T10-7-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
MW4GA280-06-T10-8-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
MW4GA280-06-T10-9-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
MW4GA280-06-T10-10-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
MW4GA280-06-T10-11-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
MW4GA280-06-T10-12-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
MW4GA280-06-T10-13-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
MW4GA280-06-T10-14-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
MW4GA280-06-T10-15-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
MW4GA280-06-T10-16-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
MW4GA280-06-T10-17-3-FP1 Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
MW3GA210-C6-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 2
MW3GA210-C6-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 3
MW3GA210-C6-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 4
MW3GA210-C6-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 5
MW3GA210-C6-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 6
MW3GA210-C6-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 7
MW3GA210-C6-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 8
MW3GA210-C6-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 9
MW3GA210-C6-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 10
MW3GA210-C6-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 11
MW3GA210-C6-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 12
MW3GA210-C6-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 13
MW3GA210-C6-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 14
MW3GA210-C6-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 15
MW3GA210-C6-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 16
MW3GA210-C6-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 17
MW3GA210-C6-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 18
MW3GA210-C8-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 2
MW3GA210-C8-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 3
MW3GA210-C8-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 4
MW3GA210-C8-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 5
MW3GA210-C8-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 6
MW3GA210-C8-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 7
MW3GA210-C8-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 8
MW3GA210-C8-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 9
MW3GA210-C8-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 10
MW3GA210-C8-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 11
MW3GA210-C8-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 12
MW3GA210-C8-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 13
MW3GA210-C8-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 14
MW3GA210-C8-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 15
MW3GA210-C8-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 16
MW3GA210-C8-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 17
MW3GA210-C8-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 18
MW3GA210-CX-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 2
MW3GA210-CX-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 3
MW3GA210-CX-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 4
MW3GA210-CX-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 5
MW3GA210-CX-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 6
MW3GA210-CX-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 7
MW3GA210-CX-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 8
MW3GA210-CX-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 9
MW3GA210-CX-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 10
MW3GA210-CX-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 11
MW3GA210-CX-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 12
MW3GA210-CX-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 13
MW3GA210-CX-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 14
MW3GA210-CX-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 15
MW3GA210-CX-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 16
MW3GA210-CX-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 17
MW3GA210-CX-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 18
MW3GA210-06-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 2
MW3GA210-06-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 3
MW3GA210-06-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 4
MW3GA210-06-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 5
MW3GA210-06-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 6
MW3GA210-06-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 7
MW3GA210-06-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 8
MW3GA210-06-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 9
MW3GA210-06-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 10
MW3GA210-06-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 11
MW3GA210-06-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 12
MW3GA210-06-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 13
MW3GA210-06-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 14
MW3GA210-06-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 15
MW3GA210-06-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 16
MW3GA210-06-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 17
MW3GA210-06-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 18
MW3GA2110-C6-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 2
MW3GA2110-C6-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 3
MW3GA2110-C6-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 4
MW3GA2110-C6-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 5
MW3GA2110-C6-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 6
MW3GA2110-C6-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 7
MW3GA2110-C6-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 8
MW3GA2110-C6-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 9
MW3GA2110-C6-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 10
MW3GA2110-C6-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 11
MW3GA2110-C6-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 12
MW3GA2110-C6-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 13
MW3GA2110-C6-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 14
MW3GA2110-C6-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 15
MW3GA2110-C6-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 16
MW3GA2110-C6-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 17
MW3GA2110-C6-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 18
MW3GA2110-C8-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 2
MW3GA2110-C8-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 3
MW3GA2110-C8-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 4
MW3GA2110-C8-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 5
MW3GA2110-C8-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 6
MW3GA2110-C8-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 7
MW3GA2110-C8-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 8
MW3GA2110-C8-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 9
MW3GA2110-C8-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 10
MW3GA2110-C8-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 11
MW3GA2110-C8-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 12
MW3GA2110-C8-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 13
MW3GA2110-C8-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 14
MW3GA2110-C8-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 15
MW3GA2110-C8-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 16
MW3GA2110-C8-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 17
MW3GA2110-C8-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 18
MW3GA2110-CX-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 2
MW3GA2110-CX-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 3
MW3GA2110-CX-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 4
MW3GA2110-CX-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 5
MW3GA2110-CX-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 6
MW3GA2110-CX-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 7
MW3GA2110-CX-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 8
MW3GA2110-CX-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 9
MW3GA2110-CX-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 10
MW3GA2110-CX-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 11
MW3GA2110-CX-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 12
MW3GA2110-CX-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 13
MW3GA2110-CX-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 14
MW3GA2110-CX-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 15
MW3GA2110-CX-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 16
MW3GA2110-CX-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 17
MW3GA2110-CX-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 18
MW3GA2110-06-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 2
MW3GA2110-06-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 3
MW3GA2110-06-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 4
MW3GA2110-06-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 5
MW3GA2110-06-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 6
MW3GA2110-06-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 7
MW3GA2110-06-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 8
MW3GA2110-06-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 9
MW3GA2110-06-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 10
MW3GA2110-06-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 11
MW3GA2110-06-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 12
MW3GA2110-06-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 13
MW3GA2110-06-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 14
MW3GA2110-06-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 15
MW3GA2110-06-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 16
MW3GA2110-06-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 17
MW3GA2110-06-T10-18-3-FP1 Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 18
MW3GA280-C6-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 2
MW3GA280-C6-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 3
MW3GA280-C6-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 4
MW3GA280-C6-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 5
MW3GA280-C6-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 6
MW3GA280-C6-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 7
MW3GA280-C6-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 8
MW3GA280-C6-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 9
MW3GA280-C6-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 10
MW3GA280-C6-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 11
MW3GA280-C6-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 12
MW3GA280-C6-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 13
MW3GA280-C6-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 14
MW3GA280-C6-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 15
MW3GA280-C6-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 16
MW3GA280-C6-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 17
MW3GA280-C8-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 2
MW3GA280-C8-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 3
MW3GA280-C8-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 4
MW3GA280-C8-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 5
MW3GA280-C8-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 6
MW3GA280-C8-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 7
MW3GA280-C8-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 8
MW3GA280-C8-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 9
MW3GA280-C8-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 10
MW3GA280-C8-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 11
MW3GA280-C8-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 12
MW3GA280-C8-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 13
MW3GA280-C8-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 14
MW3GA280-C8-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 15
MW3GA280-C8-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 16
MW3GA280-C8-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 17
MW3GA280-CX-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 2
MW3GA280-CX-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 3
MW3GA280-CX-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 4
MW3GA280-CX-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 5
MW3GA280-CX-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 6
MW3GA280-CX-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 7
MW3GA280-CX-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 8
MW3GA280-CX-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 9
MW3GA280-CX-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 10
MW3GA280-CX-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 11
MW3GA280-CX-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 12
MW3GA280-CX-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 13
MW3GA280-CX-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 14
MW3GA280-CX-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 15
MW3GA280-CX-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 16
MW3GA280-CX-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 17
MW3GA280-06-T10-2-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
MW3GA280-06-T10-3-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
MW3GA280-06-T10-4-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
MW3GA280-06-T10-5-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
MW3GA280-06-T10-6-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
MW3GA280-06-T10-7-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
MW3GA280-06-T10-8-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
MW3GA280-06-T10-9-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
MW3GA280-06-T10-10-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
MW3GA280-06-T10-11-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
MW3GA280-06-T10-12-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
MW3GA280-06-T10-13-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
MW3GA280-06-T10-14-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
MW3GA280-06-T10-15-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
MW3GA280-06-T10-16-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
MW3GA280-06-T10-17-3-FP1 Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
NW4GA210-C6-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA210-C8-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA210-06-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA220-C6-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA220-C8-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA220-06-3-FP1 Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA230-C6-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA230-C8-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA230-06-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA240-C6-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA240-C8-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA240-06-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA250-C6-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA250-C8-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA250-06-3-FP1 Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: Block (1 station)
NW3GA210-C6-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW3GA210-C8-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW3GA210-06-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: Block (1 station)
NW3GA2110-C6-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW3GA2110-C8-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW3GA2110-06-3-FP1 Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: Block (1 station)
Valve ManifoldsCKD
481 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW3GA2/MW4GA2-T-FP1 Wiring-Saving Manifold (Food Grade, T10)

Brand CKD·Valve Manifolds

Available part numbers (481)

MW4GA210-C6-T10-2-3-FP1, MW4GA210-C6-T10-3-3-FP1, MW4GA210-C6-T10-4-3-FP1, MW4GA210-C6-T10-5-3-FP1, MW4GA210-C6-T10-6-3-FP1, MW4GA210-C6-T10-7-3-FP1, MW4GA210-C6-T10-8-3-FP1, MW4GA210-C6-T10-9-3-FP1, MW4GA210-C6-T10-10-3-FP1, MW4GA210-C6-T10-11-3-FP1 + 471 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MW4GA210-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 2
MW4GA210-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 3
MW4GA210-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 4
MW4GA210-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 5
MW4GA210-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 6
MW4GA210-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 7
MW4GA210-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 8
MW4GA210-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 9
MW4GA210-C6-T10-10-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 10
MW4GA210-C6-T10-11-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 11
MW4GA210-C6-T10-12-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 12
MW4GA210-C6-T10-13-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 13
MW4GA210-C6-T10-14-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 14
MW4GA210-C6-T10-15-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 15
MW4GA210-C6-T10-16-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 16
MW4GA210-C6-T10-17-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 17
MW4GA210-C6-T10-18-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: 18
MW4GA210-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 2
MW4GA210-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 3
MW4GA210-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 4
MW4GA210-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 5
MW4GA210-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 6
MW4GA210-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 7
MW4GA210-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 8
MW4GA210-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 9
MW4GA210-C8-T10-10-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 10
MW4GA210-C8-T10-11-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 11
MW4GA210-C8-T10-12-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 12
MW4GA210-C8-T10-13-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 13
MW4GA210-C8-T10-14-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 14
MW4GA210-C8-T10-15-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 15
MW4GA210-C8-T10-16-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 16
MW4GA210-C8-T10-17-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 17
MW4GA210-C8-T10-18-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: 18
MW4GA210-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 2
MW4GA210-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 3
MW4GA210-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 4
MW4GA210-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 5
MW4GA210-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 6
MW4GA210-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 7
MW4GA210-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 8
MW4GA210-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 9
MW4GA210-CX-T10-10-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 10
MW4GA210-CX-T10-11-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 11
MW4GA210-CX-T10-12-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 12
MW4GA210-CX-T10-13-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 13
MW4GA210-CX-T10-14-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 14
MW4GA210-CX-T10-15-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 15
MW4GA210-CX-T10-16-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 16
MW4GA210-CX-T10-17-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 17
MW4GA210-CX-T10-18-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Push-in mix | Stations: 18
MW4GA210-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 2
MW4GA210-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 3
MW4GA210-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 4
MW4GA210-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 5
MW4GA210-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 6
MW4GA210-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 7
MW4GA210-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 8
MW4GA210-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 9
MW4GA210-06-T10-10-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 10
MW4GA210-06-T10-11-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 11
MW4GA210-06-T10-12-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 12
MW4GA210-06-T10-13-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 13
MW4GA210-06-T10-14-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 14
MW4GA210-06-T10-15-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 15
MW4GA210-06-T10-16-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 16
MW4GA210-06-T10-17-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 17
MW4GA210-06-T10-18-3-FP1Item: MW4GA2 manifold | Switching: 2-pos single | A/B port: Rc1/8 | Stations: 18
MW4GA220-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 2
MW4GA220-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 3
MW4GA220-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 4
MW4GA220-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 5
MW4GA220-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 6
MW4GA220-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 7
MW4GA220-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 8
MW4GA220-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: 9
MW4GA220-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 2
MW4GA220-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 3
MW4GA220-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 4
MW4GA220-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 5
MW4GA220-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 6
MW4GA220-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 7
MW4GA220-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 8
MW4GA220-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: 9
MW4GA220-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 2
MW4GA220-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 3
MW4GA220-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 4
MW4GA220-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 5
MW4GA220-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 6
MW4GA220-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 7
MW4GA220-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 8
MW4GA220-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Push-in mix | Stations: 9
MW4GA220-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 2
MW4GA220-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 3
MW4GA220-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 4
MW4GA220-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 5
MW4GA220-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 6
MW4GA220-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 7
MW4GA220-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 8
MW4GA220-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 2-pos double | A/B port: Rc1/8 | Stations: 9
MW4GA230-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 2
MW4GA230-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 3
MW4GA230-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 4
MW4GA230-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 5
MW4GA230-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 6
MW4GA230-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 7
MW4GA230-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 8
MW4GA230-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: 9
MW4GA230-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 2
MW4GA230-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 3
MW4GA230-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 4
MW4GA230-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 5
MW4GA230-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 6
MW4GA230-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 7
MW4GA230-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 8
MW4GA230-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: 9
MW4GA230-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 2
MW4GA230-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 3
MW4GA230-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 4
MW4GA230-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 5
MW4GA230-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 6
MW4GA230-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 7
MW4GA230-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 8
MW4GA230-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Push-in mix | Stations: 9
MW4GA230-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 2
MW4GA230-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 3
MW4GA230-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 4
MW4GA230-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 5
MW4GA230-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 6
MW4GA230-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 7
MW4GA230-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 8
MW4GA230-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: 9
MW4GA240-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 2
MW4GA240-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 3
MW4GA240-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 4
MW4GA240-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 5
MW4GA240-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 6
MW4GA240-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 7
MW4GA240-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 8
MW4GA240-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: 9
MW4GA240-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 2
MW4GA240-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 3
MW4GA240-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 4
MW4GA240-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 5
MW4GA240-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 6
MW4GA240-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 7
MW4GA240-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 8
MW4GA240-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: 9
MW4GA240-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 2
MW4GA240-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 3
MW4GA240-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 4
MW4GA240-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 5
MW4GA240-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 6
MW4GA240-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 7
MW4GA240-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 8
MW4GA240-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Push-in mix | Stations: 9
MW4GA240-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 2
MW4GA240-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 3
MW4GA240-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 4
MW4GA240-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 5
MW4GA240-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 6
MW4GA240-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 7
MW4GA240-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 8
MW4GA240-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: 9
MW4GA250-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 2
MW4GA250-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 3
MW4GA250-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 4
MW4GA250-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 5
MW4GA250-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 6
MW4GA250-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 7
MW4GA250-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 8
MW4GA250-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: 9
MW4GA250-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 2
MW4GA250-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 3
MW4GA250-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 4
MW4GA250-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 5
MW4GA250-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 6
MW4GA250-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 7
MW4GA250-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 8
MW4GA250-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: 9
MW4GA250-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 2
MW4GA250-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 3
MW4GA250-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 4
MW4GA250-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 5
MW4GA250-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 6
MW4GA250-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 7
MW4GA250-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 8
MW4GA250-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Push-in mix | Stations: 9
MW4GA250-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 2
MW4GA250-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 3
MW4GA250-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 4
MW4GA250-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 5
MW4GA250-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 6
MW4GA250-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 7
MW4GA250-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 8
MW4GA250-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: 9
MW4GA280-C6-T10-2-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 2
MW4GA280-C6-T10-3-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 3
MW4GA280-C6-T10-4-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 4
MW4GA280-C6-T10-5-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 5
MW4GA280-C6-T10-6-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 6
MW4GA280-C6-T10-7-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 7
MW4GA280-C6-T10-8-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 8
MW4GA280-C6-T10-9-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 9
MW4GA280-C6-T10-10-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 10
MW4GA280-C6-T10-11-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 11
MW4GA280-C6-T10-12-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 12
MW4GA280-C6-T10-13-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 13
MW4GA280-C6-T10-14-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 14
MW4GA280-C6-T10-15-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 15
MW4GA280-C6-T10-16-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 16
MW4GA280-C6-T10-17-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 17
MW4GA280-C8-T10-2-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 2
MW4GA280-C8-T10-3-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 3
MW4GA280-C8-T10-4-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 4
MW4GA280-C8-T10-5-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 5
MW4GA280-C8-T10-6-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 6
MW4GA280-C8-T10-7-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 7
MW4GA280-C8-T10-8-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 8
MW4GA280-C8-T10-9-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 9
MW4GA280-C8-T10-10-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 10
MW4GA280-C8-T10-11-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 11
MW4GA280-C8-T10-12-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 12
MW4GA280-C8-T10-13-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 13
MW4GA280-C8-T10-14-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 14
MW4GA280-C8-T10-15-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 15
MW4GA280-C8-T10-16-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 16
MW4GA280-C8-T10-17-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 17
MW4GA280-CX-T10-2-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 2
MW4GA280-CX-T10-3-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 3
MW4GA280-CX-T10-4-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 4
MW4GA280-CX-T10-5-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 5
MW4GA280-CX-T10-6-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 6
MW4GA280-CX-T10-7-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 7
MW4GA280-CX-T10-8-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 8
MW4GA280-CX-T10-9-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 9
MW4GA280-CX-T10-10-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 10
MW4GA280-CX-T10-11-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 11
MW4GA280-CX-T10-12-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 12
MW4GA280-CX-T10-13-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 13
MW4GA280-CX-T10-14-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 14
MW4GA280-CX-T10-15-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 15
MW4GA280-CX-T10-16-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 16
MW4GA280-CX-T10-17-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 17
MW4GA280-06-T10-2-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
MW4GA280-06-T10-3-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
MW4GA280-06-T10-4-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
MW4GA280-06-T10-5-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
MW4GA280-06-T10-6-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
MW4GA280-06-T10-7-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
MW4GA280-06-T10-8-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
MW4GA280-06-T10-9-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
MW4GA280-06-T10-10-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
MW4GA280-06-T10-11-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
MW4GA280-06-T10-12-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
MW4GA280-06-T10-13-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
MW4GA280-06-T10-14-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
MW4GA280-06-T10-15-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
MW4GA280-06-T10-16-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
MW4GA280-06-T10-17-3-FP1Item: MW4GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
MW3GA210-C6-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 2
MW3GA210-C6-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 3
MW3GA210-C6-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 4
MW3GA210-C6-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 5
MW3GA210-C6-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 6
MW3GA210-C6-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 7
MW3GA210-C6-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 8
MW3GA210-C6-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 9
MW3GA210-C6-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 10
MW3GA210-C6-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 11
MW3GA210-C6-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 12
MW3GA210-C6-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 13
MW3GA210-C6-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 14
MW3GA210-C6-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 15
MW3GA210-C6-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 16
MW3GA210-C6-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 17
MW3GA210-C6-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: 18
MW3GA210-C8-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 2
MW3GA210-C8-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 3
MW3GA210-C8-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 4
MW3GA210-C8-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 5
MW3GA210-C8-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 6
MW3GA210-C8-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 7
MW3GA210-C8-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 8
MW3GA210-C8-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 9
MW3GA210-C8-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 10
MW3GA210-C8-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 11
MW3GA210-C8-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 12
MW3GA210-C8-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 13
MW3GA210-C8-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 14
MW3GA210-C8-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 15
MW3GA210-C8-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 16
MW3GA210-C8-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 17
MW3GA210-C8-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: 18
MW3GA210-CX-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 2
MW3GA210-CX-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 3
MW3GA210-CX-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 4
MW3GA210-CX-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 5
MW3GA210-CX-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 6
MW3GA210-CX-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 7
MW3GA210-CX-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 8
MW3GA210-CX-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 9
MW3GA210-CX-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 10
MW3GA210-CX-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 11
MW3GA210-CX-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 12
MW3GA210-CX-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 13
MW3GA210-CX-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 14
MW3GA210-CX-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 15
MW3GA210-CX-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 16
MW3GA210-CX-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 17
MW3GA210-CX-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Push-in mix | Stations: 18
MW3GA210-06-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 2
MW3GA210-06-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 3
MW3GA210-06-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 4
MW3GA210-06-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 5
MW3GA210-06-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 6
MW3GA210-06-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 7
MW3GA210-06-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 8
MW3GA210-06-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 9
MW3GA210-06-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 10
MW3GA210-06-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 11
MW3GA210-06-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 12
MW3GA210-06-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 13
MW3GA210-06-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 14
MW3GA210-06-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 15
MW3GA210-06-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 16
MW3GA210-06-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 17
MW3GA210-06-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: 18
MW3GA2110-C6-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 2
MW3GA2110-C6-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 3
MW3GA2110-C6-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 4
MW3GA2110-C6-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 5
MW3GA2110-C6-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 6
MW3GA2110-C6-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 7
MW3GA2110-C6-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 8
MW3GA2110-C6-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 9
MW3GA2110-C6-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 10
MW3GA2110-C6-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 11
MW3GA2110-C6-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 12
MW3GA2110-C6-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 13
MW3GA2110-C6-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 14
MW3GA2110-C6-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 15
MW3GA2110-C6-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 16
MW3GA2110-C6-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 17
MW3GA2110-C6-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: 18
MW3GA2110-C8-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 2
MW3GA2110-C8-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 3
MW3GA2110-C8-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 4
MW3GA2110-C8-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 5
MW3GA2110-C8-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 6
MW3GA2110-C8-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 7
MW3GA2110-C8-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 8
MW3GA2110-C8-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 9
MW3GA2110-C8-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 10
MW3GA2110-C8-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 11
MW3GA2110-C8-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 12
MW3GA2110-C8-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 13
MW3GA2110-C8-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 14
MW3GA2110-C8-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 15
MW3GA2110-C8-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 16
MW3GA2110-C8-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 17
MW3GA2110-C8-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: 18
MW3GA2110-CX-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 2
MW3GA2110-CX-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 3
MW3GA2110-CX-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 4
MW3GA2110-CX-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 5
MW3GA2110-CX-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 6
MW3GA2110-CX-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 7
MW3GA2110-CX-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 8
MW3GA2110-CX-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 9
MW3GA2110-CX-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 10
MW3GA2110-CX-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 11
MW3GA2110-CX-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 12
MW3GA2110-CX-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 13
MW3GA2110-CX-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 14
MW3GA2110-CX-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 15
MW3GA2110-CX-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 16
MW3GA2110-CX-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 17
MW3GA2110-CX-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Push-in mix | Stations: 18
MW3GA2110-06-T10-2-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 2
MW3GA2110-06-T10-3-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 3
MW3GA2110-06-T10-4-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 4
MW3GA2110-06-T10-5-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 5
MW3GA2110-06-T10-6-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 6
MW3GA2110-06-T10-7-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 7
MW3GA2110-06-T10-8-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 8
MW3GA2110-06-T10-9-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 9
MW3GA2110-06-T10-10-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 10
MW3GA2110-06-T10-11-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 11
MW3GA2110-06-T10-12-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 12
MW3GA2110-06-T10-13-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 13
MW3GA2110-06-T10-14-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 14
MW3GA2110-06-T10-15-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 15
MW3GA2110-06-T10-16-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 16
MW3GA2110-06-T10-17-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 17
MW3GA2110-06-T10-18-3-FP1Item: MW3GA2 manifold | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: 18
MW3GA280-C6-T10-2-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 2
MW3GA280-C6-T10-3-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 3
MW3GA280-C6-T10-4-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 4
MW3GA280-C6-T10-5-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 5
MW3GA280-C6-T10-6-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 6
MW3GA280-C6-T10-7-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 7
MW3GA280-C6-T10-8-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 8
MW3GA280-C6-T10-9-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 9
MW3GA280-C6-T10-10-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 10
MW3GA280-C6-T10-11-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 11
MW3GA280-C6-T10-12-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 12
MW3GA280-C6-T10-13-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 13
MW3GA280-C6-T10-14-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 14
MW3GA280-C6-T10-15-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 15
MW3GA280-C6-T10-16-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 16
MW3GA280-C6-T10-17-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 6 mm | Stations: 17
MW3GA280-C8-T10-2-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 2
MW3GA280-C8-T10-3-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 3
MW3GA280-C8-T10-4-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 4
MW3GA280-C8-T10-5-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 5
MW3GA280-C8-T10-6-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 6
MW3GA280-C8-T10-7-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 7
MW3GA280-C8-T10-8-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 8
MW3GA280-C8-T10-9-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 9
MW3GA280-C8-T10-10-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 10
MW3GA280-C8-T10-11-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 11
MW3GA280-C8-T10-12-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 12
MW3GA280-C8-T10-13-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 13
MW3GA280-C8-T10-14-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 14
MW3GA280-C8-T10-15-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 15
MW3GA280-C8-T10-16-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 16
MW3GA280-C8-T10-17-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in 8 mm | Stations: 17
MW3GA280-CX-T10-2-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 2
MW3GA280-CX-T10-3-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 3
MW3GA280-CX-T10-4-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 4
MW3GA280-CX-T10-5-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 5
MW3GA280-CX-T10-6-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 6
MW3GA280-CX-T10-7-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 7
MW3GA280-CX-T10-8-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 8
MW3GA280-CX-T10-9-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 9
MW3GA280-CX-T10-10-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 10
MW3GA280-CX-T10-11-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 11
MW3GA280-CX-T10-12-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 12
MW3GA280-CX-T10-13-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 13
MW3GA280-CX-T10-14-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 14
MW3GA280-CX-T10-15-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 15
MW3GA280-CX-T10-16-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 16
MW3GA280-CX-T10-17-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Push-in mix | Stations: 17
MW3GA280-06-T10-2-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
MW3GA280-06-T10-3-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
MW3GA280-06-T10-4-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
MW3GA280-06-T10-5-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
MW3GA280-06-T10-6-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
MW3GA280-06-T10-7-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
MW3GA280-06-T10-8-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
MW3GA280-06-T10-9-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
MW3GA280-06-T10-10-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
MW3GA280-06-T10-11-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
MW3GA280-06-T10-12-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
MW3GA280-06-T10-13-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
MW3GA280-06-T10-14-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
MW3GA280-06-T10-15-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
MW3GA280-06-T10-16-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
MW3GA280-06-T10-17-3-FP1Item: MW3GA2 manifold | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
NW4GA210-C6-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA210-C8-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA210-06-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos single | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA220-C6-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA220-C8-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA220-06-3-FP1Item: NW4GA2 valve block with valve | Switching: 2-pos double | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA230-C6-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA230-C8-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA230-06-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA240-C6-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA240-C8-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA240-06-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos A-B-R connection | A/B port: Rc1/8 | Stations: Block (1 station)
NW4GA250-C6-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW4GA250-C8-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW4GA250-06-3-FP1Item: NW4GA2 valve block with valve | Switching: 3-pos P-A-B connection | A/B port: Rc1/8 | Stations: Block (1 station)
NW3GA210-C6-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW3GA210-C8-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW3GA210-06-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.C. | A/B port: Rc1/8 | Stations: Block (1 station)
NW3GA2110-C6-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Push-in 6 mm | Stations: Block (1 station)
NW3GA2110-C8-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Push-in 8 mm | Stations: Block (1 station)
NW3GA2110-06-3-FP1Item: NW3GA2 valve block with valve | Switching: 2-pos single N.O. | A/B port: Rc1/8 | Stations: Block (1 station)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
