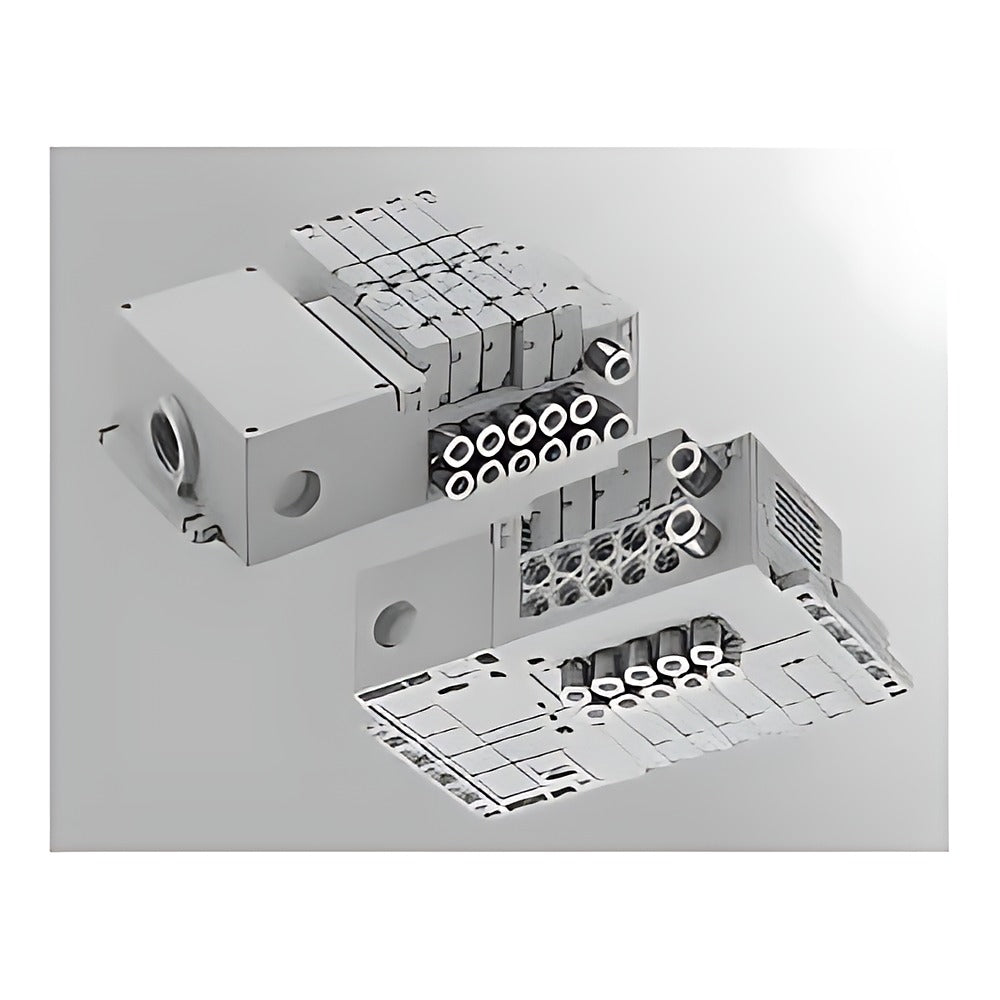

CKD MW4GZ2-T7/T8 Serial Transmission Manifold (Bottom-Ported Base)

CKD MW4GZ2-T7/T8 Serial Transmission Manifold (Bottom-Ported Base)

CKD W4G2-series MW4GZ2/MW3GZ2 serial-transmission plug-in block manifold (bottom-ported base piping) with EtherCAT, EtherNet/IP, CC-Link IEF Basic, PROFINET, CC-Link or DeviceNet slave.

Key features

  • Serial transmission slave built in: EtherCAT, EtherNet/IP, CC-Link IE Field Basic, PROFINET (T7, slim type), CC-Link and DeviceNet (T8)
  • 16 or 32 outputs, NPN or PNP valve output; B7 types add 16-point input/output blocks (Y combinations by specification)
  • Options (not multiplied): W double wiring, M, M7, H, K, A, F, I/O blocks Y**, spacers Z1/Z3/Z8, DIN rail D
  • Serial types are DC24V only
  • A/B ports: push-in ø4/ø6/ø8 or mixed CX on the base bottom

Specifications

Fluid Compressed air
Valve type Pilot-operated soft spool valve
Operating pressure 0.2 to 0.7 MPa (ext. pilot 0 to 0.7 MPa)
Proof pressure 1.05 MPa
Ambient / fluid temperature -5 to 55 / 5 to 55 °C (no freezing)
Manual override Non-locking / locking (standard)
Applicable cylinder bore ø20 to ø80
P/R port (supply/exhaust block) Push-in ø8, ø10
Stations (listed codes) 16 (max. 16 to 18 by slave type)
Protection IP65
Rated voltage DC24V
Source CKD Korea catalog CB-023SK-9, p. 1086-1087, 1096-1097, 1100-1123
MW4GZ210-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ210-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ210-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ210-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ210-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ210-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ210-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ210-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ210-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ210-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ210-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ210-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ210-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ210-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ210-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ210-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ210-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ210-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ210-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ210-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ210-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ220-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ220-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ220-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ220-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ220-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ220-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ220-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ220-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ220-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ220-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ220-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ220-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ220-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ220-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ220-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ220-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ220-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ220-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ220-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ220-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ230-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ230-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ230-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ230-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ230-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ230-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ230-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ230-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ230-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ230-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ230-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ230-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ230-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ230-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ230-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ230-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ230-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ230-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ230-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ230-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ240-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ240-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ240-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ240-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ240-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ240-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ240-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ240-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ240-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ240-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ240-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ240-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ240-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ240-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ240-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ240-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ240-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ240-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ240-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ240-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ250-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ250-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ250-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ250-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ250-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ250-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ250-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ250-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ250-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ250-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ250-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ250-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ250-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ250-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ250-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ250-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ250-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ250-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ250-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ250-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C4-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C4-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C4-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C4-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C4-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C4-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C4-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C4-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C4-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C4-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C4-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C4-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C4-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C4-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C4-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C4-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C4-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C4-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C4-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C4-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C4-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C4-T8G1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ280-C4-T8G2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ280-C4-T8G7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C4-T8D1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ280-C4-T8D2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ280-C4-T8D7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C6-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C6-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C6-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C6-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C6-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C6-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C6-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C6-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C6-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C6-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C6-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C6-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C6-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C6-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C6-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C6-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C6-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C6-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C6-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C6-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C6-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C6-T8G1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ280-C6-T8G2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ280-C6-T8G7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C6-T8D1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ280-C6-T8D2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ280-C6-T8D7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C8-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C8-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C8-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C8-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C8-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C8-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C8-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C8-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C8-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C8-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C8-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C8-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C8-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C8-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C8-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C8-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C8-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C8-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C8-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C8-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C8-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C8-T8G1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ280-C8-T8G2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ280-C8-T8G7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C8-T8D1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ280-C8-T8D2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ280-C8-T8D7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-CX-T7EC1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-CX-T7ECP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-CX-T7EC2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-CX-T7ECP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-CX-T7ECB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-CX-T7ECPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EN1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-CX-T7ENP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-CX-T7EN2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-CX-T7ENP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-CX-T7ENB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-CX-T7ENPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EB1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-CX-T7EBP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-CX-T7EB2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-CX-T7EBP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-CX-T7EBB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-CX-T7EBPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ280-CX-T7EPP1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ280-CX-T7EP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ280-CX-T7EPP2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ280-CX-T7EPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-CX-T7EPPB7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-CX-T8G1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ280-CX-T8G2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ280-CX-T8G7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-CX-T8D1-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ280-CX-T8D2-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ280-CX-T8D7-16-3 Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C4-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C4-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C4-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C4-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C4-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C4-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C4-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C4-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C4-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C4-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C4-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C4-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C4-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C4-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C4-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C4-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C4-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C4-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C4-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C4-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C4-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C4-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ210-C4-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ210-C4-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C4-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ210-C4-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ210-C4-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C6-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C6-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C6-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C6-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C6-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C6-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C6-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C6-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C6-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C6-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C6-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C6-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C6-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C6-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C6-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C6-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C6-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C6-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C6-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C6-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C6-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C6-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ210-C6-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ210-C6-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C6-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ210-C6-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ210-C6-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C8-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C8-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C8-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C8-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C8-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C8-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C8-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C8-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C8-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C8-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C8-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C8-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C8-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C8-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C8-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C8-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C8-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C8-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C8-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C8-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C8-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C8-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ210-C8-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ210-C8-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C8-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ210-C8-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ210-C8-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-CX-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-CX-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-CX-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-CX-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-CX-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-CX-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-CX-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-CX-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-CX-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-CX-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-CX-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-CX-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-CX-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-CX-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-CX-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-CX-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ210-CX-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ210-CX-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ210-CX-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ210-CX-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-CX-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-CX-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ210-CX-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ210-CX-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-CX-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ210-CX-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ210-CX-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C4-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C4-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C4-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C4-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C4-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C4-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C4-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C4-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C4-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C4-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C4-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C4-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C4-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C4-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C4-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C4-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C4-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C4-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ2110-C4-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ2110-C4-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C4-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C4-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C4-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C6-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C6-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C6-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C6-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C6-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C6-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C6-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C6-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C6-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C6-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C6-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C6-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C6-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C6-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C6-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C6-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C6-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C6-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ2110-C6-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ2110-C6-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C6-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C6-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C6-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C8-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C8-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C8-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C8-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C8-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C8-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C8-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C8-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C8-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C8-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C8-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C8-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C8-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C8-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C8-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C8-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C8-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C8-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ2110-C8-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ2110-C8-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C8-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C8-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C8-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-CX-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-CX-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-CX-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-CX-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-CX-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-CX-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-CX-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-CX-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-CX-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-CX-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-CX-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-CX-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-CX-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-CX-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-CX-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-CX-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-CX-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-CX-T8G1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ2110-CX-T8G2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ2110-CX-T8G7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-CX-T8D1-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ2110-CX-T8D2-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ2110-CX-T8D7-16-3 Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C4-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C4-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C4-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C4-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C4-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C4-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C4-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C4-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C4-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C4-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C4-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C4-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C4-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C4-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C4-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C4-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C4-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C4-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ2660-C4-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ2660-C4-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C4-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C4-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C4-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C6-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C6-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C6-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C6-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C6-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C6-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C6-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C6-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C6-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C6-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C6-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C6-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C6-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C6-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C6-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C6-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C6-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C6-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ2660-C6-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ2660-C6-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C6-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C6-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C6-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C8-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C8-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C8-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C8-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C8-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C8-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C8-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C8-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C8-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C8-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C8-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C8-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C8-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C8-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C8-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C8-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C8-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C8-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ2660-C8-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ2660-C8-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C8-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C8-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C8-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-CX-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-CX-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-CX-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-CX-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-CX-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-CX-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-CX-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-CX-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-CX-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-CX-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-CX-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-CX-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-CX-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-CX-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-CX-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-CX-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-CX-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-CX-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ2660-CX-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ2660-CX-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-CX-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ2660-CX-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ2660-CX-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C4-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C4-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C4-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C4-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C4-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C4-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C4-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C4-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C4-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C4-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C4-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C4-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C4-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C4-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C4-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C4-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C4-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C4-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C4-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C4-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C4-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C4-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ280-C4-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ280-C4-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C4-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ280-C4-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ280-C4-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C6-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C6-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C6-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C6-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C6-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C6-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C6-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C6-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C6-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C6-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C6-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C6-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C6-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C6-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C6-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C6-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C6-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C6-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C6-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C6-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C6-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C6-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ280-C6-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ280-C6-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C6-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ280-C6-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ280-C6-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C8-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C8-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C8-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C8-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C8-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C8-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C8-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C8-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C8-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C8-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C8-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C8-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C8-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C8-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C8-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C8-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C8-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C8-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C8-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C8-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C8-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C8-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ280-C8-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ280-C8-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C8-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ280-C8-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ280-C8-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-CX-T7EC1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-CX-T7ECP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-CX-T7EC2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-CX-T7ECP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-CX-T7ECB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-CX-T7ECPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EN1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-CX-T7ENP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-CX-T7EN2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-CX-T7ENP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-CX-T7ENB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-CX-T7ENPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EB1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-CX-T7EBP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-CX-T7EB2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-CX-T7EBP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-CX-T7EBB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-CX-T7EBPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ280-CX-T7EPP1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ280-CX-T7EP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ280-CX-T7EPP2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ280-CX-T7EPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-CX-T7EPPB7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-CX-T8G1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ280-CX-T8G2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ280-CX-T8G7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-CX-T8D1-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ280-CX-T8D2-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ280-CX-T8D7-16-3 Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
Valve ManifoldsCKD
1200 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MW4GZ2-T7/T8 Serial Transmission Manifold (Bottom-Ported Base)

Brand CKD·Valve Manifolds

Available part numbers (1200)

MW4GZ210-C4-T7EC1-16-3, MW4GZ210-C4-T7ECP1-16-3, MW4GZ210-C4-T7EC2-16-3, MW4GZ210-C4-T7ECP2-16-3, MW4GZ210-C4-T7ECB7-16-3, MW4GZ210-C4-T7ECPB7-16-3, MW4GZ210-C4-T7EN1-16-3, MW4GZ210-C4-T7ENP1-16-3, MW4GZ210-C4-T7EN2-16-3, MW4GZ210-C4-T7ENP2-16-3 + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MW4GZ210-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ210-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ210-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ210-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ210-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ210-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ210-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ210-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ210-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ210-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ210-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ210-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ210-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ210-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ210-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ210-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ210-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ210-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ210-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ210-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ210-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ210-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ210-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ210-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ210-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ210-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ210-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ210-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ210-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ210-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ210-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ210-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ210-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ210-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ210-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ210-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ210-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ210-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ210-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ210-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ210-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ210-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ210-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ210-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ210-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position single | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ220-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ220-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ220-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ220-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ220-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ220-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ220-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ220-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ220-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ220-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ220-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ220-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ220-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ220-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ220-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ220-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ220-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ220-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ220-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ220-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ220-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ220-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ220-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ220-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ220-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ220-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ220-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ220-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ220-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ220-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ220-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ220-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ220-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ220-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ220-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ220-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ220-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ220-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ220-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ220-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ220-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ220-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ220-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ220-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: 2-position double | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ230-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ230-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ230-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ230-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ230-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ230-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ230-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ230-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ230-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ230-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ230-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ230-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ230-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ230-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ230-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ230-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ230-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ230-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ230-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ230-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ230-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ230-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ230-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ230-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ230-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ230-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ230-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ230-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ230-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ230-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ230-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ230-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ230-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ230-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ230-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ230-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ230-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ230-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ230-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ230-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ230-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ230-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ230-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ230-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position all ports blocked | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ240-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ240-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ240-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ240-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ240-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ240-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ240-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ240-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ240-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ240-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ240-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ240-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ240-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ240-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ240-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ240-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ240-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ240-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ240-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ240-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ240-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ240-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ240-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ240-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ240-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ240-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ240-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ240-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ240-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ240-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ240-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ240-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ240-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ240-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ240-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ240-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ240-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ240-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ240-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ240-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ240-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ240-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ240-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ240-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position A/B/R connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ250-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ250-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ250-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ250-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ250-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ250-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ250-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ250-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ250-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ250-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ250-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ250-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ250-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ250-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ250-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ250-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ250-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ250-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ250-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ250-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ250-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ250-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ250-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ250-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ250-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ250-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ250-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ250-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ250-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ250-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ250-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ250-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ250-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ250-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ250-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ250-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ250-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ250-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ250-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ250-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ250-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ250-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ250-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ250-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: 3-position P/A/B connection | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C4-T7EC1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C4-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C4-T7EC2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C4-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C4-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C4-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EN1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C4-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C4-T7EN2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C4-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C4-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C4-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EB1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C4-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C4-T7EB2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C4-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C4-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C4-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C4-T7EP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C4-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C4-T7EP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C4-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C4-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C4-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C4-T8G1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW4GZ280-C4-T8G2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW4GZ280-C4-T8G7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C4-T8D1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW4GZ280-C4-T8D2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW4GZ280-C4-T8D7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C6-T7EC1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C6-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C6-T7EC2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C6-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C6-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C6-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EN1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C6-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C6-T7EN2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C6-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C6-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C6-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EB1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C6-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C6-T7EB2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C6-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C6-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C6-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C6-T7EP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C6-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C6-T7EP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C6-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C6-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C6-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C6-T8G1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW4GZ280-C6-T8G2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW4GZ280-C6-T8G7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C6-T8D1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW4GZ280-C6-T8D2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW4GZ280-C6-T8D7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-C8-T7EC1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-C8-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-C8-T7EC2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-C8-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-C8-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-C8-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EN1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-C8-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-C8-T7EN2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-C8-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-C8-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-C8-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EB1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-C8-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-C8-T7EB2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-C8-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-C8-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-C8-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-C8-T7EP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW4GZ280-C8-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW4GZ280-C8-T7EP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW4GZ280-C8-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW4GZ280-C8-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-C8-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-C8-T8G1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW4GZ280-C8-T8G2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW4GZ280-C8-T8G7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-C8-T8D1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW4GZ280-C8-T8D2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW4GZ280-C8-T8D7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW4GZ280-CX-T7EC1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW4GZ280-CX-T7ECP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW4GZ280-CX-T7EC2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW4GZ280-CX-T7ECP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW4GZ280-CX-T7ECB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW4GZ280-CX-T7ECPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EN1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW4GZ280-CX-T7ENP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW4GZ280-CX-T7EN2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW4GZ280-CX-T7ENP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW4GZ280-CX-T7ENB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW4GZ280-CX-T7ENPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EB1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW4GZ280-CX-T7EBP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW4GZ280-CX-T7EB2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW4GZ280-CX-T7EBP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW4GZ280-CX-T7EBB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW4GZ280-CX-T7EBPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW4GZ280-CX-T7EP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW4GZ280-CX-T7EPP1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW4GZ280-CX-T7EP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW4GZ280-CX-T7EPP2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW4GZ280-CX-T7EPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW4GZ280-CX-T7EPPB7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW4GZ280-CX-T8G1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW4GZ280-CX-T8G2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW4GZ280-CX-T8G7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW4GZ280-CX-T8D1-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW4GZ280-CX-T8D2-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW4GZ280-CX-T8D7-16-3Item: Manifold MW4GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C4-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C4-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C4-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C4-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C4-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C4-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C4-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C4-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C4-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C4-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C4-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C4-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C4-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C4-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C4-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C4-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C4-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C4-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C4-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C4-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C4-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C4-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C4-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ210-C4-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ210-C4-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C4-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ210-C4-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ210-C4-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C6-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C6-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C6-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C6-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C6-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C6-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C6-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C6-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C6-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C6-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C6-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C6-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C6-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C6-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C6-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C6-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C6-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C6-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C6-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C6-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C6-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C6-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C6-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ210-C6-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ210-C6-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C6-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ210-C6-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ210-C6-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-C8-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-C8-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-C8-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-C8-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-C8-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-C8-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-C8-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-C8-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-C8-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-C8-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-C8-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-C8-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-C8-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-C8-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-C8-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-C8-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-C8-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ210-C8-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ210-C8-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ210-C8-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ210-C8-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-C8-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-C8-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ210-C8-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ210-C8-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-C8-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ210-C8-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ210-C8-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ210-CX-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ210-CX-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ210-CX-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ210-CX-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ210-CX-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ210-CX-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ210-CX-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ210-CX-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ210-CX-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ210-CX-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ210-CX-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ210-CX-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ210-CX-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ210-CX-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ210-CX-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ210-CX-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ210-CX-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ210-CX-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ210-CX-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ210-CX-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ210-CX-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ210-CX-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ210-CX-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ210-CX-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ210-CX-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ210-CX-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ210-CX-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ210-CX-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.C. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C4-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C4-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C4-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C4-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C4-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C4-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C4-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C4-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C4-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C4-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C4-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C4-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C4-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C4-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C4-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C4-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C4-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C4-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C4-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C4-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ2110-C4-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ2110-C4-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C4-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C4-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C4-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C6-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C6-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C6-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C6-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C6-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C6-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C6-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C6-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C6-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C6-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C6-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C6-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C6-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C6-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C6-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C6-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C6-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C6-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C6-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C6-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ2110-C6-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ2110-C6-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C6-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C6-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C6-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-C8-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-C8-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-C8-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-C8-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-C8-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-C8-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-C8-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-C8-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-C8-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-C8-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-C8-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-C8-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-C8-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-C8-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-C8-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-C8-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-C8-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-C8-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-C8-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-C8-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ2110-C8-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ2110-C8-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-C8-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ2110-C8-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ2110-C8-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2110-CX-T7EC1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ2110-CX-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ2110-CX-T7EC2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ2110-CX-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ2110-CX-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EN1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2110-CX-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2110-CX-T7EN2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2110-CX-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2110-CX-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EB1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2110-CX-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2110-CX-T7EB2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2110-CX-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2110-CX-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2110-CX-T7EP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ2110-CX-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ2110-CX-T7EP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ2110-CX-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ2110-CX-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2110-CX-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2110-CX-T8G1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ2110-CX-T8G2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ2110-CX-T8G7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ2110-CX-T8D1-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ2110-CX-T8D2-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ2110-CX-T8D7-16-3Item: Manifold MW3GZ2 | Function: 2-position single N.O. | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C4-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C4-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C4-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C4-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C4-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C4-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C4-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C4-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C4-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C4-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C4-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C4-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C4-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C4-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C4-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C4-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C4-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C4-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C4-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C4-T8G1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ2660-C4-T8G2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ2660-C4-T8G7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C4-T8D1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C4-T8D2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C4-T8D7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C6-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C6-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C6-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C6-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C6-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C6-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C6-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C6-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C6-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C6-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C6-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C6-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C6-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C6-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C6-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C6-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C6-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C6-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C6-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C6-T8G1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ2660-C6-T8G2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ2660-C6-T8G7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C6-T8D1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C6-T8D2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C6-T8D7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-C8-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-C8-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-C8-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-C8-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-C8-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-C8-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-C8-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-C8-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-C8-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-C8-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-C8-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-C8-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-C8-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-C8-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-C8-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-C8-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-C8-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-C8-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-C8-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-C8-T8G1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ2660-C8-T8G2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ2660-C8-T8G7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-C8-T8D1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ2660-C8-T8D2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ2660-C8-T8D7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ2660-CX-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ2660-CX-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ2660-CX-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ2660-CX-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ2660-CX-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ2660-CX-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ2660-CX-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ2660-CX-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ2660-CX-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ2660-CX-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ2660-CX-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ2660-CX-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ2660-CX-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ2660-CX-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ2660-CX-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ2660-CX-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ2660-CX-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ2660-CX-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ2660-CX-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ2660-CX-T8G1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ2660-CX-T8G2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ2660-CX-T8G7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ2660-CX-T8D1-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ2660-CX-T8D2-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ2660-CX-T8D7-16-3Item: Manifold MW3GZ2 | Function: Dual 3-port (N.C./N.C.) | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C4-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C4-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C4-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C4-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C4-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C4-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C4-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C4-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C4-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C4-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C4-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C4-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C4-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C4-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C4-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C4-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C4-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C4-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C4-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C4-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C4-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C4-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C4-T8G1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 out
MW3GZ280-C4-T8G2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 32 out
MW3GZ280-C4-T8G7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C4-T8D1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 out
MW3GZ280-C4-T8D2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 32 out
MW3GZ280-C4-T8D7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø4 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C6-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C6-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C6-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C6-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C6-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C6-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C6-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C6-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C6-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C6-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C6-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C6-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C6-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C6-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C6-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C6-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C6-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C6-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C6-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C6-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C6-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C6-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C6-T8G1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 out
MW3GZ280-C6-T8G2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 32 out
MW3GZ280-C6-T8G7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C6-T8D1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 out
MW3GZ280-C6-T8D2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 32 out
MW3GZ280-C6-T8D7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø6 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-C8-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-C8-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-C8-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-C8-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-C8-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-C8-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-C8-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-C8-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-C8-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-C8-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-C8-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-C8-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-C8-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-C8-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-C8-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-C8-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-C8-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out NPN
MW3GZ280-C8-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 out PNP
MW3GZ280-C8-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out NPN
MW3GZ280-C8-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 32 out PNP
MW3GZ280-C8-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-C8-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-C8-T8G1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 out
MW3GZ280-C8-T8G2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 32 out
MW3GZ280-C8-T8G7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-C8-T8D1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 out
MW3GZ280-C8-T8D2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 32 out
MW3GZ280-C8-T8D7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in ø8 | Network: DeviceNet | Points: 16 in/16 out
MW3GZ280-CX-T7EC1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out NPN
MW3GZ280-CX-T7ECP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 out PNP
MW3GZ280-CX-T7EC2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out NPN
MW3GZ280-CX-T7ECP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 32 out PNP
MW3GZ280-CX-T7ECB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out NPN
MW3GZ280-CX-T7ECPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherCAT | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EN1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out NPN
MW3GZ280-CX-T7ENP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 out PNP
MW3GZ280-CX-T7EN2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out NPN
MW3GZ280-CX-T7ENP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 32 out PNP
MW3GZ280-CX-T7ENB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out NPN
MW3GZ280-CX-T7ENPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: EtherNet/IP | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EB1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out NPN
MW3GZ280-CX-T7EBP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 out PNP
MW3GZ280-CX-T7EB2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out NPN
MW3GZ280-CX-T7EBP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 32 out PNP
MW3GZ280-CX-T7EBB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out NPN
MW3GZ280-CX-T7EBPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link IEF Basic | Points: 16 in/16 out PNP
MW3GZ280-CX-T7EP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out NPN
MW3GZ280-CX-T7EPP1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 out PNP
MW3GZ280-CX-T7EP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out NPN
MW3GZ280-CX-T7EPP2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 32 out PNP
MW3GZ280-CX-T7EPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out NPN
MW3GZ280-CX-T7EPPB7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: PROFINET | Points: 16 in/16 out PNP
MW3GZ280-CX-T8G1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 out
MW3GZ280-CX-T8G2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 32 out
MW3GZ280-CX-T8G7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: CC-Link | Points: 16 in/16 out
MW3GZ280-CX-T8D1-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 out
MW3GZ280-CX-T8D2-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 32 out
MW3GZ280-CX-T8D7-16-3Item: Manifold MW3GZ2 | Function: Mix manifold | A/B port: Push-in mixed | Network: DeviceNet | Points: 16 in/16 out

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
