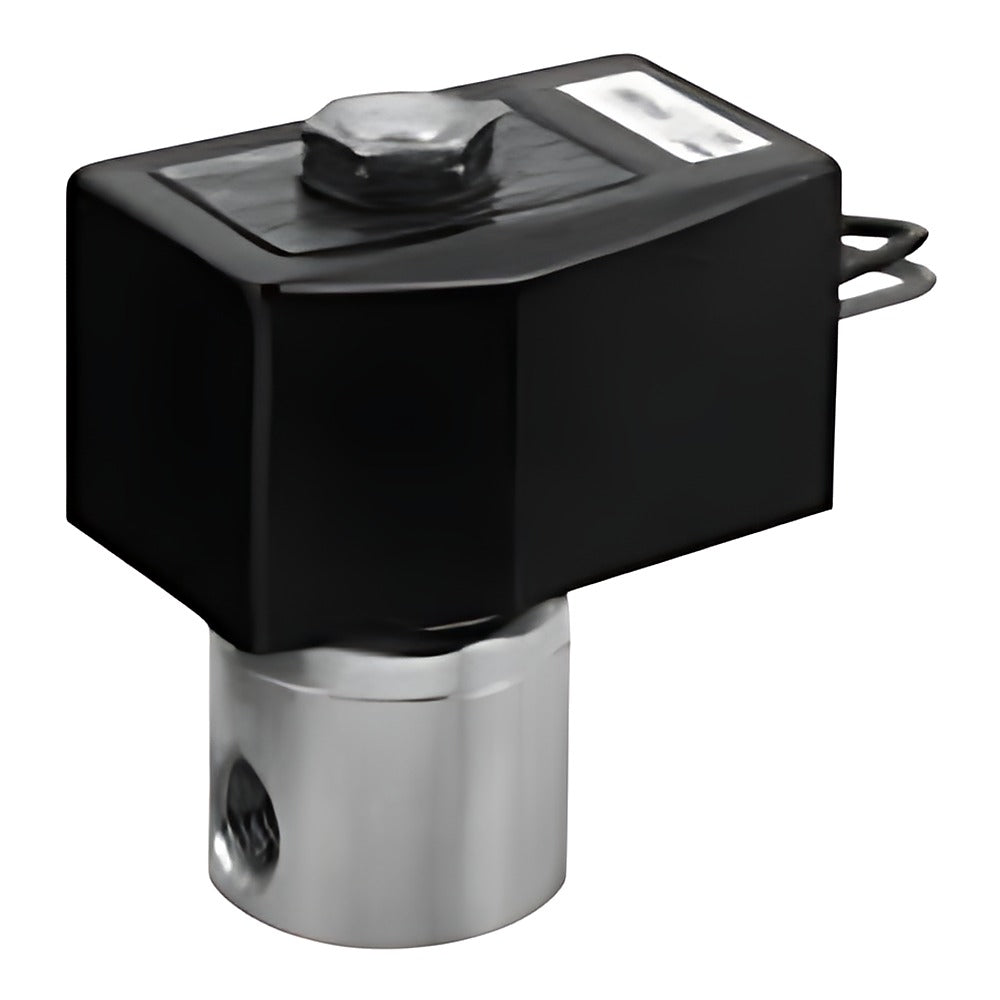

CKD MYB3-FP2 Metal-Free 2-Port Solenoid Valve (NC)

CKD MYB3-FP2 Metal-Free 2-Port Solenoid Valve (NC)

CKD MYB3-FP2 metal-free normally closed 2-port solenoid valve for water, pure water and chemicals.

Key features

  • No metal in the wetted parts
  • Rc1/8, Rc1/4 or Rc3/8 ports
  • Orifice 5.0 mm equivalent, Cv 0.5
  • DC24V or AC100V coil
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Water, pure water, chemicals
Operating pressure IN 0-0.2 MPa, OUT 0-0.1 MPa
Proof pressure 0.3 MPa (hydraulic)
Fluid temperature 5 to 60 C
Seat leakage 0 cm3/min (water)
Mass 0.55 kg
Source CKD Korea catalog CC-1271K-5, p. 410-410
MYB3-6-FP2-DC24V Port: Rc1/8 | Voltage: DC24V
MYB3-6-FP2-AC100V Port: Rc1/8 | Voltage: AC100V
MYB3-8-FP2-DC24V Port: Rc1/4 | Voltage: DC24V
MYB3-8-FP2-AC100V Port: Rc1/4 | Voltage: AC100V
MYB3-10-FP2-DC24V Port: Rc3/8 | Voltage: DC24V
MYB3-10-FP2-AC100V Port: Rc3/8 | Voltage: AC100V
2-Port Solenoid ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MYB3-FP2 Metal-Free 2-Port Solenoid Valve (NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (6)

MYB3-6-FP2-DC24V, MYB3-6-FP2-AC100V, MYB3-8-FP2-DC24V, MYB3-8-FP2-AC100V, MYB3-10-FP2-DC24V, MYB3-10-FP2-AC100V

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MYB3-6-FP2-DC24VPort: Rc1/8 | Voltage: DC24V
MYB3-6-FP2-AC100VPort: Rc1/8 | Voltage: AC100V
MYB3-8-FP2-DC24VPort: Rc1/4 | Voltage: DC24V
MYB3-8-FP2-AC100VPort: Rc1/4 | Voltage: AC100V
MYB3-10-FP2-DC24VPort: Rc3/8 | Voltage: DC24V
MYB3-10-FP2-AC100VPort: Rc3/8 | Voltage: AC100V
