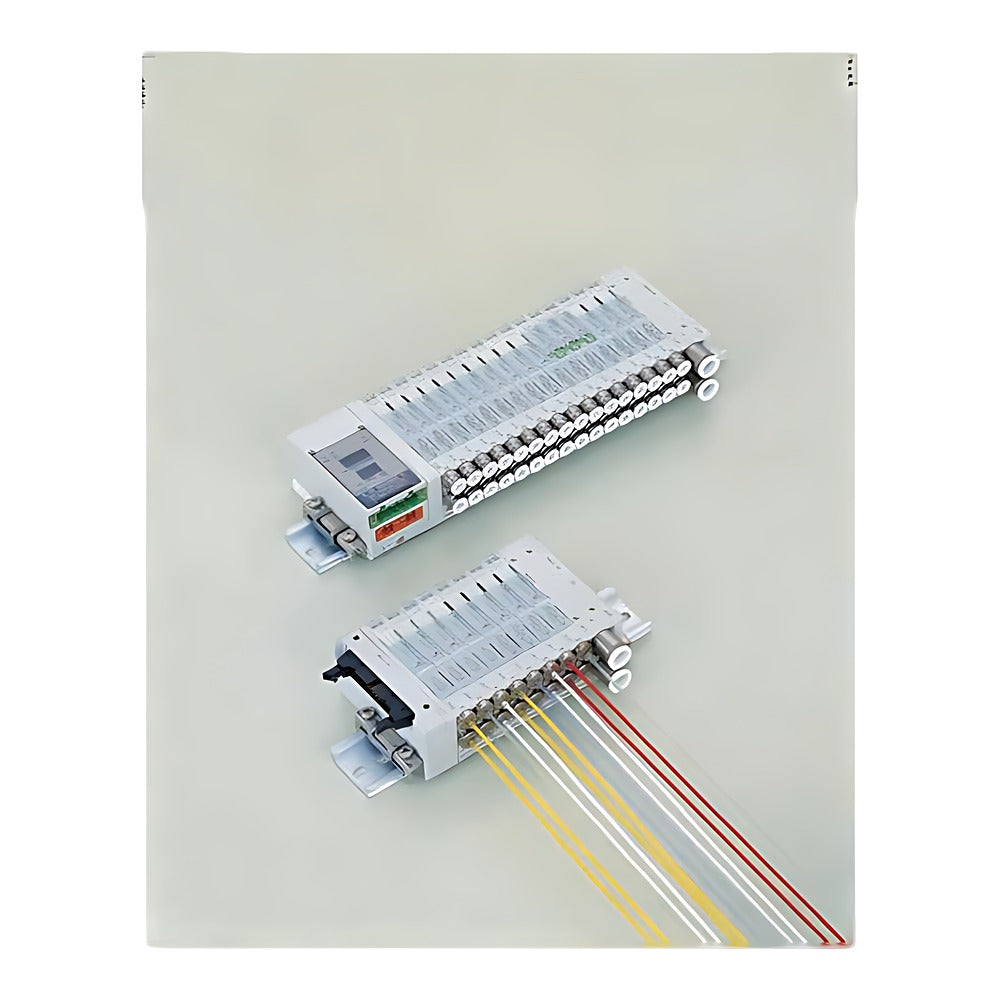

CKD N3S0/N4S0 Valve Block for MN3S0/MN4S0 Block Manifold

CKD N3S0/N4S0 Valve Block for MN3S0/MN4S0 Block Manifold

CKD N3S0/N4S0 pilot operated 3/4-port soft spool valve blocks for the PLC-ready wiring-saving MN3S0/MN4S0 and MT3S0/MT4S0 block manifolds.

Key features

  • 3-port blocks (NC or NO single) and twin 3-port blocks with two valves in one station (NC/NC, NC/NO, NO/NC, NO/NO)
  • 4-port blocks: 2-position single/double and 3-position all ports blocked, A-B-R or P-A-B connection
  • A/B ports: ø4/ø6 one-touch cartridge fittings (side or up) or M5 female thread; add F after the port symbol for an A/B port filter
  • Wiring-saving type (no symbol) or individual wiring connector C (300 mm; C0/C1/C2 = 500/1000/2000 mm lead)
  • Non-locking manual override standard; M1 locking (tool), M2/M3 made to order; ozone resistant (P11) and CE (ST) suffixes available

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Operating pressure 0.20 to 0.70 MPa (external pilot: 0 MPa min.)
Proof pressure 1.05 MPa
Ambient / fluid temperature 5 to 50°C
Rated voltage DC24V / DC12V (±10%)
Power consumption 0.6 W
Flow (C) 0.50 to 0.80 dm3/(s·bar)
Source CKD Korea catalog CB-023SK-9, p. 1267-1306
N3S010-C4-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-C4-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-C4-C-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-C4-C-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-C6-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-C6-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-C6-C-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-C6-C-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-CL4-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-CL4-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-CL4-C-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-CL4-C-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-CL6-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-CL6-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-CL6-C-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-CL6-C-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-M5-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-M5-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-M5-C-3 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-M5-C-4 Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-C4-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-C4-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-C4-C-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-C4-C-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-C6-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-C6-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-C6-C-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-C6-C-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-CL4-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-CL4-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-CL4-C-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-CL4-C-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-CL6-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-CL6-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-CL6-C-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-CL6-C-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-M5-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-M5-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-M5-C-3 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-M5-C-4 Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-C4-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-C4-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-C4-C-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-C4-C-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-C6-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-C6-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-C6-C-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-C6-C-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-CL4-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-CL4-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-CL4-C-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-CL4-C-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-CL6-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-CL6-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-CL6-C-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-CL6-C-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-M5-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-M5-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-M5-C-3 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-M5-C-4 Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-C4-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-C4-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-C4-C-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-C4-C-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-C6-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-C6-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-C6-C-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-C6-C-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-CL4-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-CL4-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-CL4-C-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-CL4-C-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-CL6-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-CL6-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-CL6-C-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-CL6-C-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-M5-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-M5-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-M5-C-3 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-M5-C-4 Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-C4-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-C4-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-C4-C-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-C4-C-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-C6-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-C6-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-C6-C-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-C6-C-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-CL4-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-CL4-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-CL4-C-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-CL4-C-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-CL6-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-CL6-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-CL6-C-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-CL6-C-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-M5-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-M5-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-M5-C-3 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-M5-C-4 Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-C4-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-C4-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-C4-C-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-C4-C-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-C6-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-C6-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-C6-C-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-C6-C-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-CL4-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-CL4-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-CL4-C-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-CL4-C-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-CL6-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-CL6-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-CL6-C-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-CL6-C-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-M5-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-M5-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-M5-C-3 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-M5-C-4 Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-C4-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-C4-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-C4-C-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-C4-C-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-C6-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-C6-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-C6-C-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-C6-C-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-CL4-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-CL4-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-CL4-C-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-CL4-C-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-CL6-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-CL6-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-CL6-C-3 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-CL6-C-4 Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-M5-3 Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-M5-4 Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-M5-C-3 Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-M5-C-4 Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-C4-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-C4-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-C4-C-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-C4-C-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-C6-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-C6-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-C6-C-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-C6-C-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-CL4-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-CL4-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-CL4-C-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-CL4-C-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-CL6-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-CL6-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-CL6-C-3 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-CL6-C-4 Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-M5-3 Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-M5-4 Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-M5-C-3 Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-M5-C-4 Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-C4-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-C4-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-C4-C-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-C4-C-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-C6-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-C6-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-C6-C-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-C6-C-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-CL4-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-CL4-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-CL4-C-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-CL4-C-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-CL6-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-CL6-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-CL6-C-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-CL6-C-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-M5-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-M5-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-M5-C-3 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-M5-C-4 Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-C4-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-C4-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-C4-C-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-C4-C-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-C6-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-C6-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-C6-C-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-C6-C-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-CL4-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-CL4-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-CL4-C-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-CL4-C-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-CL6-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-CL6-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-CL6-C-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-CL6-C-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-M5-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-M5-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-M5-C-3 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-M5-C-4 Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-C4-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-C4-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-C4-C-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-C4-C-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-C6-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-C6-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-C6-C-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-C6-C-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-CL4-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-CL4-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-CL4-C-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-CL4-C-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-CL6-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-CL6-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-CL6-C-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-CL6-C-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-M5-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-M5-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-M5-C-3 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-M5-C-4 Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
Solenoid ValvesCKD
220 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD N3S0/N4S0 Valve Block for MN3S0/MN4S0 Block Manifold

Brand CKD·Solenoid Valves

Available part numbers (220)

N3S010-C4-3, N3S010-C4-4, N3S010-C4-C-3, N3S010-C4-C-4, N3S010-C6-3, N3S010-C6-4, N3S010-C6-C-3, N3S010-C6-C-4, N3S010-CL4-3, N3S010-CL4-4 + 210 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N3S010-C4-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-C4-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-C4-C-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-C4-C-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-C6-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-C6-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-C6-C-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-C6-C-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-CL4-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-CL4-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-CL4-C-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-CL4-C-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-CL6-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-CL6-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-CL6-C-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-CL6-C-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S010-M5-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S010-M5-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S010-M5-C-3Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S010-M5-C-4Valve: 3-port | Switching: 3-port 2-pos single NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-C4-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-C4-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-C4-C-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-C4-C-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-C6-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-C6-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-C6-C-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-C6-C-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-CL4-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-CL4-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-CL4-C-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-CL4-C-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-CL6-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-CL6-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-CL6-C-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-CL6-C-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0110-M5-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0110-M5-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0110-M5-C-3Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0110-M5-C-4Valve: 3-port | Switching: 3-port 2-pos single NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-C4-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-C4-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-C4-C-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-C4-C-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-C6-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-C6-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-C6-C-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-C6-C-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-CL4-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-CL4-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-CL4-C-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-CL4-C-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-CL6-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-CL6-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-CL6-C-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-CL6-C-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0660-M5-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0660-M5-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0660-M5-C-3Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0660-M5-C-4Valve: 3-port | Switching: 2x3-port NC/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-C4-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-C4-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-C4-C-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-C4-C-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-C6-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-C6-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-C6-C-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-C6-C-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-CL4-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-CL4-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-CL4-C-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-CL4-C-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-CL6-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-CL6-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-CL6-C-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-CL6-C-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0670-M5-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0670-M5-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0670-M5-C-3Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0670-M5-C-4Valve: 3-port | Switching: 2x3-port NC/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-C4-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-C4-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-C4-C-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-C4-C-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-C6-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-C6-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-C6-C-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-C6-C-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-CL4-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-CL4-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-CL4-C-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-CL4-C-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-CL6-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-CL6-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-CL6-C-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-CL6-C-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0760-M5-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0760-M5-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0760-M5-C-3Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0760-M5-C-4Valve: 3-port | Switching: 2x3-port NO/NC | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-C4-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-C4-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-C4-C-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-C4-C-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-C6-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-C6-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-C6-C-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-C6-C-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-CL4-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-CL4-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-CL4-C-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-CL4-C-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-CL6-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-CL6-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-CL6-C-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-CL6-C-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N3S0770-M5-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N3S0770-M5-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N3S0770-M5-C-3Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N3S0770-M5-C-4Valve: 3-port | Switching: 2x3-port NO/NO | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-C4-3Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-C4-4Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-C4-C-3Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-C4-C-4Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-C6-3Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-C6-4Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-C6-C-3Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-C6-C-4Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-CL4-3Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-CL4-4Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-CL4-C-3Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-CL4-C-4Valve: 4-port | Switching: 2-pos single | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-CL6-3Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-CL6-4Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-CL6-C-3Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-CL6-C-4Valve: 4-port | Switching: 2-pos single | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S010-M5-3Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S010-M5-4Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S010-M5-C-3Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S010-M5-C-4Valve: 4-port | Switching: 2-pos single | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-C4-3Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-C4-4Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-C4-C-3Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-C4-C-4Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-C6-3Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-C6-4Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-C6-C-3Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-C6-C-4Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-CL4-3Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-CL4-4Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-CL4-C-3Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-CL4-C-4Valve: 4-port | Switching: 2-pos double | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-CL6-3Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-CL6-4Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-CL6-C-3Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-CL6-C-4Valve: 4-port | Switching: 2-pos double | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S020-M5-3Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S020-M5-4Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S020-M5-C-3Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S020-M5-C-4Valve: 4-port | Switching: 2-pos double | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-C4-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-C4-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-C4-C-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-C4-C-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-C6-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-C6-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-C6-C-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-C6-C-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-CL4-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-CL4-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-CL4-C-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-CL4-C-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-CL6-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-CL6-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-CL6-C-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-CL6-C-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S030-M5-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S030-M5-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S030-M5-C-3Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S030-M5-C-4Valve: 4-port | Switching: 3-pos all ports blocked | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-C4-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-C4-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-C4-C-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-C4-C-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-C6-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-C6-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-C6-C-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-C6-C-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-CL4-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-CL4-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-CL4-C-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-CL4-C-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-CL6-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-CL6-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-CL6-C-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-CL6-C-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S040-M5-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S040-M5-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S040-M5-C-3Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S040-M5-C-4Valve: 4-port | Switching: 3-pos A-B-R connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-C4-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-C4-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-C4-C-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-C4-C-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-C6-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-C6-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-C6-C-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-C6-C-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, side | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-CL4-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-CL4-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-CL4-C-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-CL4-C-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø4 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-CL6-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-CL6-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-CL6-C-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-CL6-C-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: ø6 one-touch, up | Wiring: Individual connector, 300 mm | Voltage: DC12V
N4S050-M5-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC24V
N4S050-M5-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Wiring-saving (manifold) | Voltage: DC12V
N4S050-M5-C-3Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC24V
N4S050-M5-C-4Valve: 4-port | Switching: 3-pos P-A-B connection | A/B port: M5 female thread | Wiring: Individual connector, 300 mm | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
