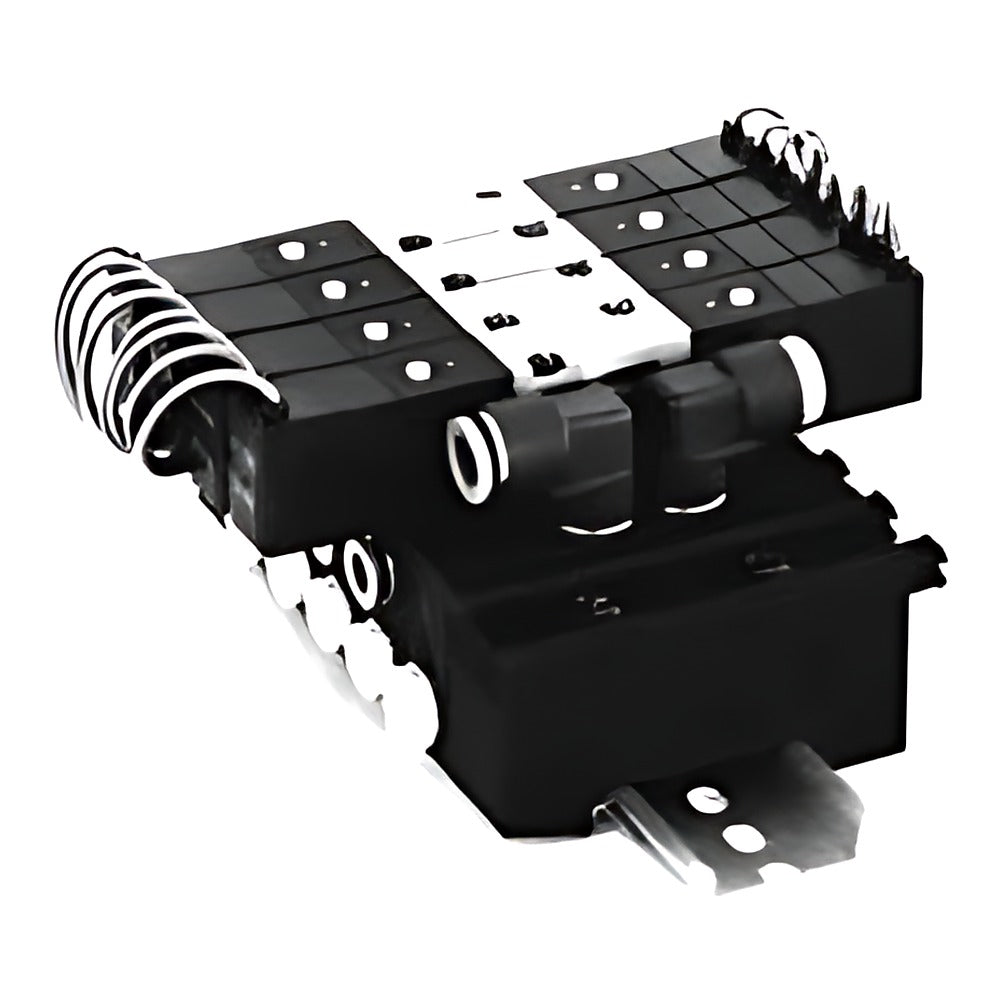

CKD N4KB1/N4KB2 Block Manifold Valves, Blocks and Accessories

Replacement solenoid valves, valve blocks, end, supply/exhaust and partition blocks, masking plate kits, DIN rails, silencers and blank plugs for CKD MN4KB1/MN4KB2 block manifolds.

Key features

N4KB1/N4KB2 solenoid valves for block manifold supplied with gasket and mounting screws
Valve block assemblies N4KB1/N4KB2 with valve fitted, A/B push-in fittings ø4-ø10
End, side/top supply-exhaust, supply-only, exhaust-only and partition blocks per printed part tables
Valve blocks (NS) are dedicated to the switching type; change NS block when changing switching position
BAA DIN rails, SLW-H silencers and GWP-B blank plugs listed as related equipment

Specifications

Applicable manifold	MN4KB1, MN4KB2 block manifold
Valve type	Pilot operated soft spool valve
Fluid	Compressed air
Max. operating pressure	0.70 MPa
Valve manual / wiring (as listed)	M1 locking / B small terminal box
Block mass 4KB1 / 4KB2	End 54.3/62.3 g, valve block 29.7/51.5 g
Source	CKD Korea catalog CB-023SK-9, p. 1408-1417

N4KB119A-00-M1B-AC100V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB119A-00-M1B-AC200V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB119A-00-M1B-DC24V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: DC24V
N4KB129A-00-M1B-AC100V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB129A-00-M1B-AC200V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB129A-00-M1B-DC24V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: DC24V
N4KB139A-00-M1B-AC100V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB139A-00-M1B-AC200V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB139A-00-M1B-DC24V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: DC24V
N4KB149A-00-M1B-AC100V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB149A-00-M1B-AC200V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB149A-00-M1B-DC24V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: DC24V
N4KB159A-00-M1B-AC100V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB159A-00-M1B-AC200V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB159A-00-M1B-DC24V		Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: DC24V
N4KB110A-H4-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: AC100V 50/60Hz
N4KB110A-H4-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: AC200V 50/60Hz
N4KB110A-H4-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: DC24V
N4KB110A-H6-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB110A-H6-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB110A-H6-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: DC24V
N4KB110A-H8-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB110A-H8-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB110A-H8-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: DC24V
N4KB120A-H4-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: AC100V 50/60Hz
N4KB120A-H4-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: AC200V 50/60Hz
N4KB120A-H4-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: DC24V
N4KB120A-H6-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB120A-H6-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB120A-H6-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: DC24V
N4KB120A-H8-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB120A-H8-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB120A-H8-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: DC24V
N4KB130A-H4-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: AC100V 50/60Hz
N4KB130A-H4-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: AC200V 50/60Hz
N4KB130A-H4-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: DC24V
N4KB130A-H6-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB130A-H6-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB130A-H6-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: DC24V
N4KB130A-H8-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB130A-H8-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB130A-H8-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: DC24V
N4KB140A-H4-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: AC100V 50/60Hz
N4KB140A-H4-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: AC200V 50/60Hz
N4KB140A-H4-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: DC24V
N4KB140A-H6-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB140A-H6-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB140A-H6-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: DC24V
N4KB140A-H8-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB140A-H8-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB140A-H8-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: DC24V
N4KB150A-H4-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: AC100V 50/60Hz
N4KB150A-H4-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: AC200V 50/60Hz
N4KB150A-H4-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: DC24V
N4KB150A-H6-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB150A-H6-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB150A-H6-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: DC24V
N4KB150A-H8-M1B-AC100V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB150A-H8-M1B-AC200V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB150A-H8-M1B-DC24V		Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: DC24V
N4KB219-00-M1B-AC100V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB219-00-M1B-AC200V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB219-00-M1B-DC24V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: DC24V
N4KB229-00-M1B-AC100V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB229-00-M1B-AC200V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB229-00-M1B-DC24V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: DC24V
N4KB239-00-M1B-AC100V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB239-00-M1B-AC200V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB239-00-M1B-DC24V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: DC24V
N4KB249-00-M1B-AC100V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB249-00-M1B-AC200V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB249-00-M1B-DC24V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: DC24V
N4KB259-00-M1B-AC100V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
N4KB259-00-M1B-AC200V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
N4KB259-00-M1B-DC24V		Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: DC24V
N4KB210-H6-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB210-H6-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB210-H6-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: DC24V
N4KB210-H8-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB210-H8-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB210-H8-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: DC24V
N4KB210-H10-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: AC100V 50/60Hz
N4KB210-H10-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: AC200V 50/60Hz
N4KB210-H10-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: DC24V
N4KB220-H6-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB220-H6-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB220-H6-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: DC24V
N4KB220-H8-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB220-H8-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB220-H8-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: DC24V
N4KB220-H10-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: AC100V 50/60Hz
N4KB220-H10-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: AC200V 50/60Hz
N4KB220-H10-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: DC24V
N4KB230-H6-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB230-H6-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB230-H6-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: DC24V
N4KB230-H8-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB230-H8-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB230-H8-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: DC24V
N4KB230-H10-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: AC100V 50/60Hz
N4KB230-H10-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: AC200V 50/60Hz
N4KB230-H10-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: DC24V
N4KB240-H6-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB240-H6-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB240-H6-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: DC24V
N4KB240-H8-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB240-H8-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB240-H8-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: DC24V
N4KB240-H10-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: AC100V 50/60Hz
N4KB240-H10-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: AC200V 50/60Hz
N4KB240-H10-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: DC24V
N4KB250-H6-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
N4KB250-H6-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
N4KB250-H6-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: DC24V
N4KB250-H8-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
N4KB250-H8-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
N4KB250-H8-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: DC24V
N4KB250-H10-M1B-AC100V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: AC100V 50/60Hz
N4KB250-H10-M1B-AC200V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: AC200V 50/60Hz
N4KB250-H10-M1B-DC24V		Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: DC24V
MN4KB180A-MP-KIT-S		Model: N4KB1 \| Part: Masking plate kit, single solenoid \| Switching: - \| Port size: - \| Voltage: -
MN4KB180A-MP-KIT-D		Model: N4KB1 \| Part: Masking plate kit, double/3-pos. \| Switching: - \| Port size: - \| Voltage: -
MN4KB280-MP-KIT-S		Model: N4KB2 \| Part: Masking plate kit, single solenoid \| Switching: - \| Port size: - \| Voltage: -
MN4KB280-MP-KIT-D		Model: N4KB2 \| Part: Masking plate kit, double/3-pos. \| Switching: - \| Port size: - \| Voltage: -
BAA500		Model: N4KB1/N4KB2 \| Part: Mounting DIN rail \| Switching: - \| Port size: 500 mm length \| Voltage: -
BAA1000		Model: N4KB1/N4KB2 \| Part: Mounting DIN rail \| Switching: - \| Port size: 1000 mm length \| Voltage: -

Valve ManifoldsCKD

126 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD N4KB1/N4KB2 Block Manifold Valves, Blocks and Accessories

Brand CKD·Valve Manifolds

Available part numbers (126)

N4KB119A-00-M1B-AC100V, N4KB119A-00-M1B-AC200V, N4KB119A-00-M1B-DC24V, N4KB129A-00-M1B-AC100V, N4KB129A-00-M1B-AC200V, N4KB129A-00-M1B-DC24V, N4KB139A-00-M1B-AC100V, N4KB139A-00-M1B-AC200V, N4KB139A-00-M1B-DC24V, N4KB149A-00-M1B-AC100V + 116 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	N4KB119A-00-M1B-AC100V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB119A-00-M1B-AC200V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB119A-00-M1B-DC24V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: DC24V
	N4KB129A-00-M1B-AC100V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB129A-00-M1B-AC200V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB129A-00-M1B-DC24V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: DC24V
	N4KB139A-00-M1B-AC100V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB139A-00-M1B-AC200V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB139A-00-M1B-DC24V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: DC24V
	N4KB149A-00-M1B-AC100V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB149A-00-M1B-AC200V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB149A-00-M1B-DC24V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: DC24V
	N4KB159A-00-M1B-AC100V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB159A-00-M1B-AC200V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB159A-00-M1B-DC24V	Model: N4KB1 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: DC24V
	N4KB110A-H4-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: AC100V 50/60Hz
	N4KB110A-H4-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: AC200V 50/60Hz
	N4KB110A-H4-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø4 \| Voltage: DC24V
	N4KB110A-H6-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB110A-H6-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB110A-H6-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: DC24V
	N4KB110A-H8-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB110A-H8-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB110A-H8-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: DC24V
	N4KB120A-H4-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: AC100V 50/60Hz
	N4KB120A-H4-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: AC200V 50/60Hz
	N4KB120A-H4-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø4 \| Voltage: DC24V
	N4KB120A-H6-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB120A-H6-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB120A-H6-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: DC24V
	N4KB120A-H8-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB120A-H8-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB120A-H8-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: DC24V
	N4KB130A-H4-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: AC100V 50/60Hz
	N4KB130A-H4-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: AC200V 50/60Hz
	N4KB130A-H4-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø4 \| Voltage: DC24V
	N4KB130A-H6-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB130A-H6-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB130A-H6-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: DC24V
	N4KB130A-H8-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB130A-H8-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB130A-H8-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: DC24V
	N4KB140A-H4-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: AC100V 50/60Hz
	N4KB140A-H4-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: AC200V 50/60Hz
	N4KB140A-H4-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø4 \| Voltage: DC24V
	N4KB140A-H6-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB140A-H6-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB140A-H6-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: DC24V
	N4KB140A-H8-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB140A-H8-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB140A-H8-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: DC24V
	N4KB150A-H4-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: AC100V 50/60Hz
	N4KB150A-H4-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: AC200V 50/60Hz
	N4KB150A-H4-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø4 \| Voltage: DC24V
	N4KB150A-H6-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB150A-H6-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB150A-H6-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: DC24V
	N4KB150A-H8-M1B-AC100V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB150A-H8-M1B-AC200V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB150A-H8-M1B-DC24V	Model: N4KB1 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: DC24V
	N4KB219-00-M1B-AC100V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB219-00-M1B-AC200V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB219-00-M1B-DC24V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position single \| Port size: Valve only \| Voltage: DC24V
	N4KB229-00-M1B-AC100V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB229-00-M1B-AC200V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB229-00-M1B-DC24V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 2-position double \| Port size: Valve only \| Voltage: DC24V
	N4KB239-00-M1B-AC100V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB239-00-M1B-AC200V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB239-00-M1B-DC24V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position all ports blocked \| Port size: Valve only \| Voltage: DC24V
	N4KB249-00-M1B-AC100V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB249-00-M1B-AC200V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB249-00-M1B-DC24V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position A-B-R connection \| Port size: Valve only \| Voltage: DC24V
	N4KB259-00-M1B-AC100V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC100V 50/60Hz
	N4KB259-00-M1B-AC200V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: AC200V 50/60Hz
	N4KB259-00-M1B-DC24V	Model: N4KB2 \| Part: Solenoid valve for block manifold \| Switching: 3-position P-A-B connection \| Port size: Valve only \| Voltage: DC24V
	N4KB210-H6-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB210-H6-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB210-H6-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø6 \| Voltage: DC24V
	N4KB210-H8-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB210-H8-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB210-H8-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø8 \| Voltage: DC24V
	N4KB210-H10-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: AC100V 50/60Hz
	N4KB210-H10-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: AC200V 50/60Hz
	N4KB210-H10-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position single \| Port size: ø10 \| Voltage: DC24V
	N4KB220-H6-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB220-H6-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB220-H6-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø6 \| Voltage: DC24V
	N4KB220-H8-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB220-H8-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB220-H8-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø8 \| Voltage: DC24V
	N4KB220-H10-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: AC100V 50/60Hz
	N4KB220-H10-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: AC200V 50/60Hz
	N4KB220-H10-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 2-position double \| Port size: ø10 \| Voltage: DC24V
	N4KB230-H6-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB230-H6-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB230-H6-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø6 \| Voltage: DC24V
	N4KB230-H8-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB230-H8-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB230-H8-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø8 \| Voltage: DC24V
	N4KB230-H10-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: AC100V 50/60Hz
	N4KB230-H10-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: AC200V 50/60Hz
	N4KB230-H10-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position all ports blocked \| Port size: ø10 \| Voltage: DC24V
	N4KB240-H6-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB240-H6-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB240-H6-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø6 \| Voltage: DC24V
	N4KB240-H8-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB240-H8-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB240-H8-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø8 \| Voltage: DC24V
	N4KB240-H10-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: AC100V 50/60Hz
	N4KB240-H10-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: AC200V 50/60Hz
	N4KB240-H10-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position A-B-R connection \| Port size: ø10 \| Voltage: DC24V
	N4KB250-H6-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC100V 50/60Hz
	N4KB250-H6-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: AC200V 50/60Hz
	N4KB250-H6-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø6 \| Voltage: DC24V
	N4KB250-H8-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC100V 50/60Hz
	N4KB250-H8-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: AC200V 50/60Hz
	N4KB250-H8-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø8 \| Voltage: DC24V
	N4KB250-H10-M1B-AC100V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: AC100V 50/60Hz
	N4KB250-H10-M1B-AC200V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: AC200V 50/60Hz
	N4KB250-H10-M1B-DC24V	Model: N4KB2 \| Part: Valve block with solenoid valve \| Switching: 3-position P-A-B connection \| Port size: ø10 \| Voltage: DC24V
	MN4KB180A-MP-KIT-S	Model: N4KB1 \| Part: Masking plate kit, single solenoid \| Switching: - \| Port size: - \| Voltage: -
	MN4KB180A-MP-KIT-D	Model: N4KB1 \| Part: Masking plate kit, double/3-pos. \| Switching: - \| Port size: - \| Voltage: -
	MN4KB280-MP-KIT-S	Model: N4KB2 \| Part: Masking plate kit, single solenoid \| Switching: - \| Port size: - \| Voltage: -
	MN4KB280-MP-KIT-D	Model: N4KB2 \| Part: Masking plate kit, double/3-pos. \| Switching: - \| Port size: - \| Voltage: -
	BAA500	Model: N4KB1/N4KB2 \| Part: Mounting DIN rail \| Switching: - \| Port size: 500 mm length \| Voltage: -
	BAA1000	Model: N4KB1/N4KB2 \| Part: Mounting DIN rail \| Switching: - \| Port size: 1000 mm length \| Voltage: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD N4KB1/N4KB2 Block Manifold Valves, Blocks and Accessories
