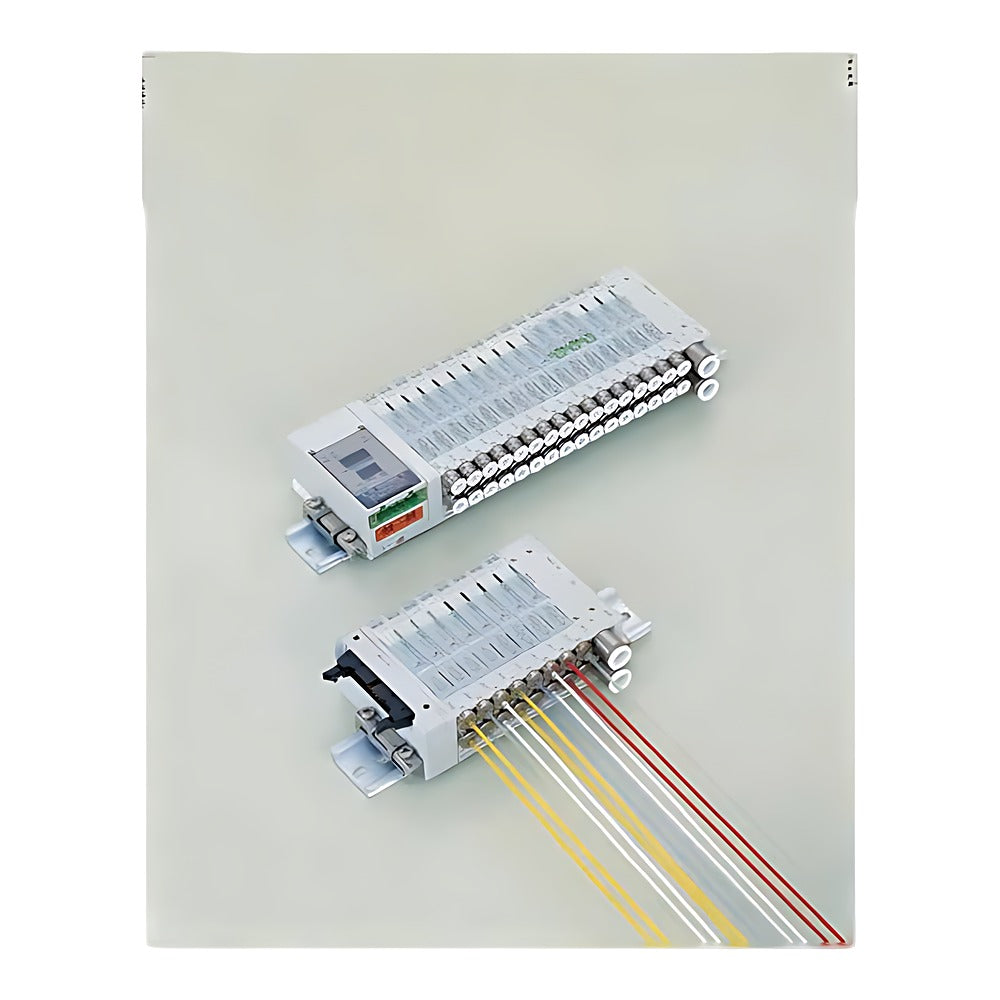

CKD N4S0 Cartridge Fittings and Accessories for MN3S0/MN4S0

CKD replaceable one-touch cartridge fittings, plugs, silencers and tools for N3S0/N4S0 valve blocks and N4S0 supply/exhaust blocks of the MN3S0/MN4S0 manifold.

Key features

N4S0-JOINT cartridges for valve block A/B ports and supply block PA port: ø4/ø6 straight, short elbow and long elbow
M5 cartridge requires the anti-rotation plate CMP; M5-4-KIT and M5-3-KIT combine cartridges, plug and plate
N4S0-Q-JOINT cartridges ø6/ø8 straight, short and long elbow for supply/exhaust block P and R ports, MP port plug
SLW-H8/SLW-H6 silencers (accessory), GZP blank plugs ø4-ø8 and N4S0-E0T4-6 tube remover

Specifications

Series	MN3S0 / MN4S0 / MT3S0 / MT4S0
Fluid	Compressed air
Max. operating pressure	0.70 MPa
Silencer effective area	8.5 mm2 (SLW-H8), 7 mm2 (SLW-H6)
Fitting type	One-touch cartridge, push-in
Source	CKD Korea catalog CB-023SK-9, p. 1287, 1291

N4S0-JOINT-C4		Category: Cartridge for valve block \| Fitting: Straight \| Tube: ø4
N4S0-JOINT-C6		Category: Cartridge for valve block \| Fitting: Straight \| Tube: ø6
N4S0-JOINT-CL4		Category: Cartridge for valve block \| Fitting: Short elbow \| Tube: ø4
N4S0-JOINT-CL6		Category: Cartridge for valve block \| Fitting: Short elbow \| Tube: ø6
N4S0-JOINT-CLL4		Category: Cartridge for valve block \| Fitting: Long elbow \| Tube: ø4
N4S0-JOINT-CLL6		Category: Cartridge for valve block \| Fitting: Long elbow \| Tube: ø6
N4S0-JOINT-CM5		Category: Cartridge for valve block \| Fitting: Cartridge \| Tube: M5
N4S0-JOINT-CMP		Category: Cartridge for valve block \| Fitting: Anti-rotation plate \| Tube: M5
N4S0-JOINT-CPG		Category: Cartridge for valve block \| Fitting: Plug \| Tube: -
N4S0-JOINT-CMB		Category: Cartridge for valve block \| Fitting: Plug \| Tube: M5
N4S0-JOINT-M5-4-KIT		Category: Cartridge for valve block \| Fitting: Kit: 2 cartridges + plate \| Tube: M5
N4S0-JOINT-M5-3-KIT		Category: Cartridge for valve block \| Fitting: Kit: cartridge, plug, plate \| Tube: M5
N4S0-Q-JOINT-8		Category: Cartridge for supply block \| Fitting: Straight \| Tube: ø8
N4S0-Q-JOINT-6		Category: Cartridge for supply block \| Fitting: Straight \| Tube: ø6
N4S0-Q-JOINT-8L		Category: Cartridge for supply block \| Fitting: Short elbow \| Tube: ø8
N4S0-Q-JOINT-6L		Category: Cartridge for supply block \| Fitting: Short elbow \| Tube: ø6
N4S0-Q-JOINT-8LL		Category: Cartridge for supply block \| Fitting: Long elbow \| Tube: ø8
N4S0-Q-JOINT-6LL		Category: Cartridge for supply block \| Fitting: Long elbow \| Tube: ø6
N4S0-Q-JOINT-MP		Category: Cartridge for supply block \| Fitting: Port plug P, R \| Tube: -
GZP4-B		Category: Accessory \| Fitting: Blank plug \| Tube: ø4
GZP6-B		Category: Accessory \| Fitting: Blank plug \| Tube: ø6
GZP8-B		Category: Accessory \| Fitting: Blank plug \| Tube: ø8
N4S0-E0T4-6		Category: Accessory \| Fitting: Tube remover \| Tube: -
