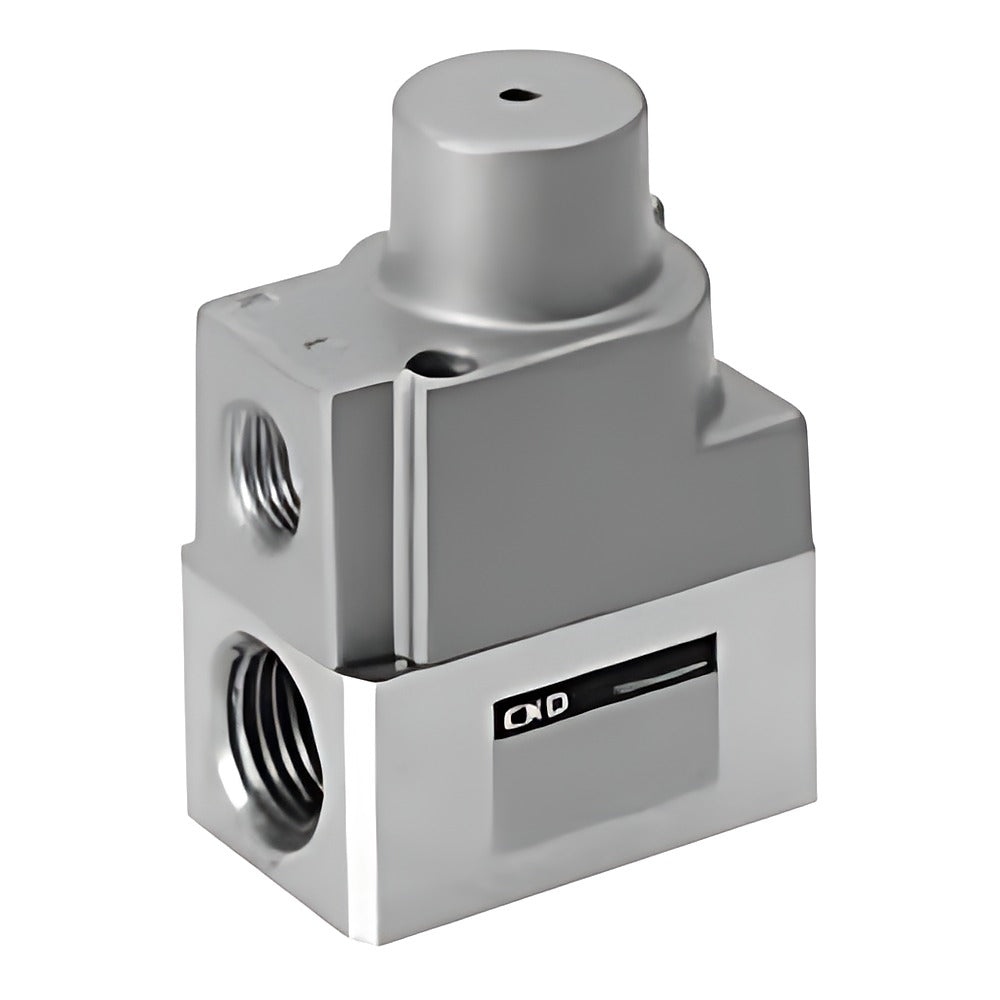

CKD NAB-X2267/X2268 Color Change Valve (MTO)

CKD NAB-X2267 (2-port) / NAB-X2268 (3-port) made-to-order air-operated single-acting color change valves for dyes, thinner and air.

Key features

Air-operated single acting valves for paint color change lines
Wetted parts SUS303, FKM, PTFE
Main port G1/4, pilot port Rc1/8
NO port of the 3-port valve is the circulation side (seat leakage not guaranteed)
Made-to-order product

Specifications

Fluid	Dye, thinner, air
Operating pressure	0-1.0 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 50 C
Main port	G1/4
Cv	0.3
Pilot pressure	0.35-0.7 MPa
Source	CKD Korea catalog CB-03-1SK-9, p. 1236-1237

NAB-X2267		Ports: 2-port valve \| Mass: 180 g
NAB-X2268		Ports: 3-port valve \| Mass: 210 g

Air Operated ValvesCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD NAB-X2267/X2268 Color Change Valve (MTO)

Brand CKD·Air Operated Valves

Available part numbers (2)

NAB-X2267, NAB-X2268

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
