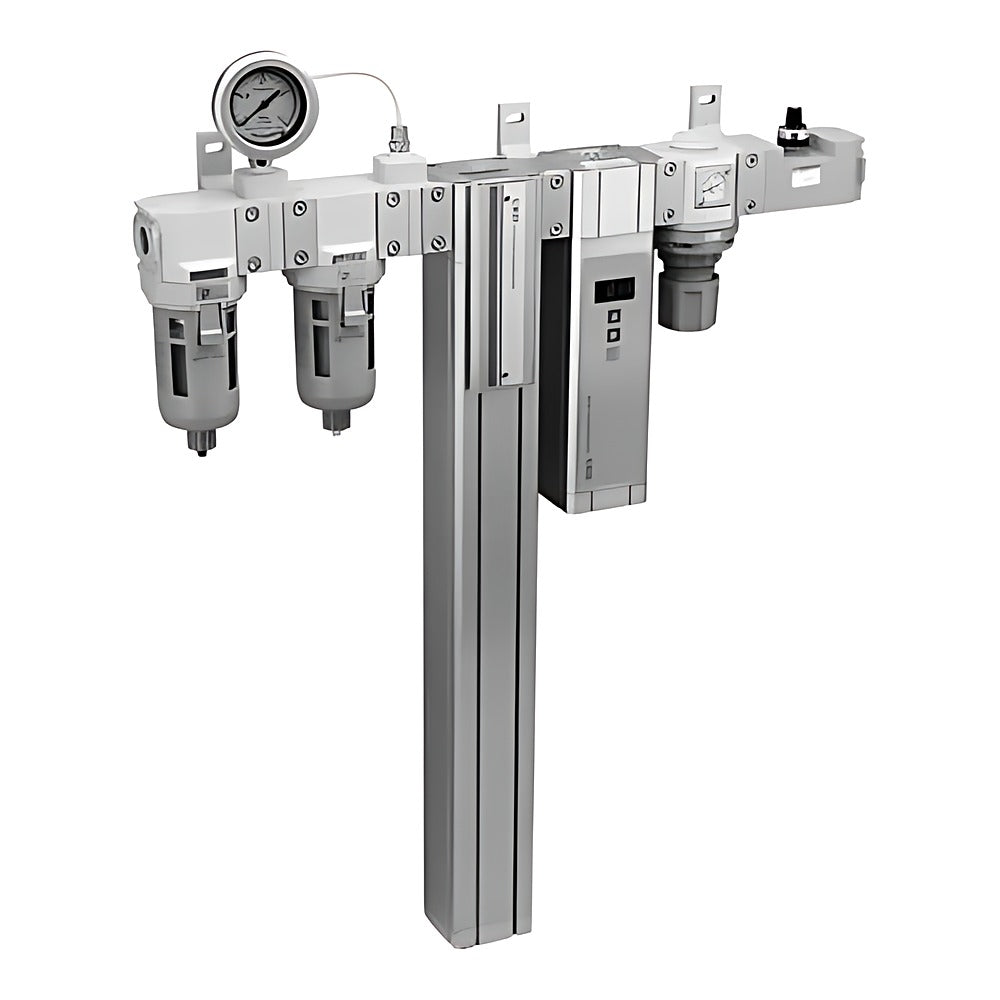

• CKD NSU-FP1 Nitrogen Gas Purification Unit (Food Processing Series)
1 1

CKD NSU-FP1 Nitrogen Gas Purification Unit (Food Processing Series)

CKD NSU-FP1 Nitrogen Gas Purification Unit (Food Processing Series)

CKD NSU-FP1 food-processing series nitrogen gas purification units use NSF H1 grease and food-sanitation-law compliant materials in the fluid path.

Key features

  • FP1 food-processing series: NSF H1 grease, food sanitation law compliant resin/rubber in fluid passages
  • Components: F3000/F4000-10-W-F-FP1 filter, M3000/M4000-10-W-F1-FP1 mist filter, NS-...-FP2 membrane unit, NS-QR3/QR4-FP1 regulator
  • Code: NSU-[3/4][S/L][needle A-E][10A/10B/10C][NN/AK/AM]-[option]-FP1
  • Option symbol (not multiplied): N none, X reverse flow, E exhaust port Rc1/2, H reverse flow + exhaust port
  • Outlet N2 at 99%: 5.0 (3S), 15.5 (3L), 28.2 (4S), 66.9 (4L) L/min (ANR)

Specifications

Fluid Compressed air
Inlet air pressure 0.4 to 1.0 MPa
Proof pressure 1.5 MPa
Inlet air / ambient temperature 5 to 50 C
Air filter 5 um
Oil mist filter 0.01 mg/m3 or less
Regulator set range 0.05 to 0.85 MPa
Standard equipment Gauge, differential gauge, bracket
Source CKD Korea catalog CB-024SK-9, p. 1752-1757
NSU-3SA10ANN-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10AAK-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10AAM-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SA10BNN-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10BAK-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10BAM-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SA10CNN-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10CAK-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10CAM-N-FP1 Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10ANN-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10AAK-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10AAM-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10BNN-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10BAK-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10BAM-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10CNN-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10CAK-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10CAM-N-FP1 Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3LA10ANN-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10AAK-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10AAM-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LA10BNN-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10BAK-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10BAM-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LA10CNN-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10CAK-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10CAM-N-FP1 Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10ANN-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10AAK-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10AAM-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10BNN-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10BAK-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10BAM-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10CNN-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10CAK-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10CAM-N-FP1 Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10ANN-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10AAK-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10AAM-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10BNN-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10BAK-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10BAM-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10CNN-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10CAK-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10CAM-N-FP1 Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-4SA10ANN-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10AAK-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10AAM-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SA10BNN-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10BAK-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10BAM-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SA10CNN-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10CAK-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10CAM-N-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10ANN-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10AAK-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10AAM-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10BNN-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10BAK-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10BAM-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10CNN-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10CAK-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10CAM-N-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10ANN-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10AAK-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10AAM-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10BNN-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10BAK-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10BAM-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10CNN-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10CAK-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10CAM-N-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10ANN-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10AAK-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10AAM-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10BNN-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10BAK-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10BAM-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10CNN-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10CAK-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10CAM-N-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4LA10ANN-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10AAK-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10AAM-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LA10BNN-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10BAK-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10BAM-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LA10CNN-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10CAK-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10CAM-N-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10ANN-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10AAK-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10AAM-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10BNN-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10BAK-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10BAM-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10CNN-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10CAK-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10CAM-N-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10ANN-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10AAK-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10AAM-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10BNN-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10BAK-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10BAM-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10CNN-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10CAK-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10CAM-N-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10ANN-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10AAK-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10AAM-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10BNN-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10BAK-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10BAM-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10CNN-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10CAK-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10CAM-N-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10ANN-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10AAK-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10AAM-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10BNN-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10BAK-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10BAM-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10CNN-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10CAK-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10CAM-N-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
Nitrogen GeneratorsCKD
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD NSU-FP1 Nitrogen Gas Purification Unit (Food Processing Series)

Brand CKD·Nitrogen Generators

Available part numbers (126)

NSU-3SA10ANN-N-FP1, NSU-3SA10AAK-N-FP1, NSU-3SA10AAM-N-FP1, NSU-3SA10BNN-N-FP1, NSU-3SA10BAK-N-FP1, NSU-3SA10BAM-N-FP1, NSU-3SA10CNN-N-FP1, NSU-3SA10CAK-N-FP1, NSU-3SA10CAM-N-FP1, NSU-3SB10ANN-N-FP1 + 116 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSU-3SA10ANN-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10AAK-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10AAM-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SA10BNN-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10BAK-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10BAM-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SA10CNN-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SA10CAK-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SA10CAM-N-FP1Model: NSU-3S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10ANN-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10AAK-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10AAM-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10BNN-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10BAK-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10BAM-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3SB10CNN-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.0 kg
NSU-3SB10CAK-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 5.6 kg
NSU-3SB10CAM-N-FP1Model: NSU-3S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 5.6 kg
NSU-3LA10ANN-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10AAK-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10AAM-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LA10BNN-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10BAK-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10BAM-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LA10CNN-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LA10CAK-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LA10CAM-N-FP1Model: NSU-3L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10ANN-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10AAK-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10AAM-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10BNN-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10BAK-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10BAM-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LB10CNN-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LB10CAK-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LB10CAM-N-FP1Model: NSU-3L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10ANN-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10AAK-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10AAM-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10BNN-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10BAK-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10BAM-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-3LC10CNN-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 4.9 kg
NSU-3LC10CAK-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 6.5 kg
NSU-3LC10CAM-N-FP1Model: NSU-3L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 6.5 kg
NSU-4SA10ANN-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10AAK-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10AAM-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SA10BNN-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10BAK-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10BAM-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SA10CNN-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SA10CAK-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SA10CAM-N-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10ANN-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10AAK-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10AAM-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10BNN-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10BAK-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10BAM-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SB10CNN-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SB10CAK-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SB10CAM-N-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10ANN-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10AAK-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10AAM-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10BNN-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10BAK-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10BAM-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SC10CNN-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SC10CAK-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SC10CAM-N-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10ANN-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10AAK-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10AAM-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10BNN-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10BAK-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10BAM-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4SD10CNN-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Mass: 6.9 kg
NSU-4SD10CAK-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 8.5 kg
NSU-4SD10CAM-N-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 8.5 kg
NSU-4LA10ANN-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10AAK-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10AAM-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LA10BNN-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10BAK-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10BAM-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LA10CNN-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LA10CAK-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LA10CAM-N-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10ANN-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10AAK-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10AAM-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10BNN-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10BAK-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10BAM-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LB10CNN-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LB10CAK-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LB10CAM-N-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10ANN-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10AAK-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10AAM-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10BNN-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10BAK-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10BAM-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LC10CNN-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LC10CAK-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LC10CAM-N-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10ANN-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10AAK-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10AAM-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10BNN-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10BAK-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10BAM-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LD10CNN-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LD10CAK-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LD10CAM-N-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10ANN-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10AAK-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10AAM-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10BNN-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10BAK-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10BAM-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg
NSU-4LE10CNN-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Mass: 9.7 kg
NSU-4LE10CAK-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: With O2 meter | Mass: 11.3 kg
NSU-4LE10CAM-N-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability | Mass: 11.3 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
