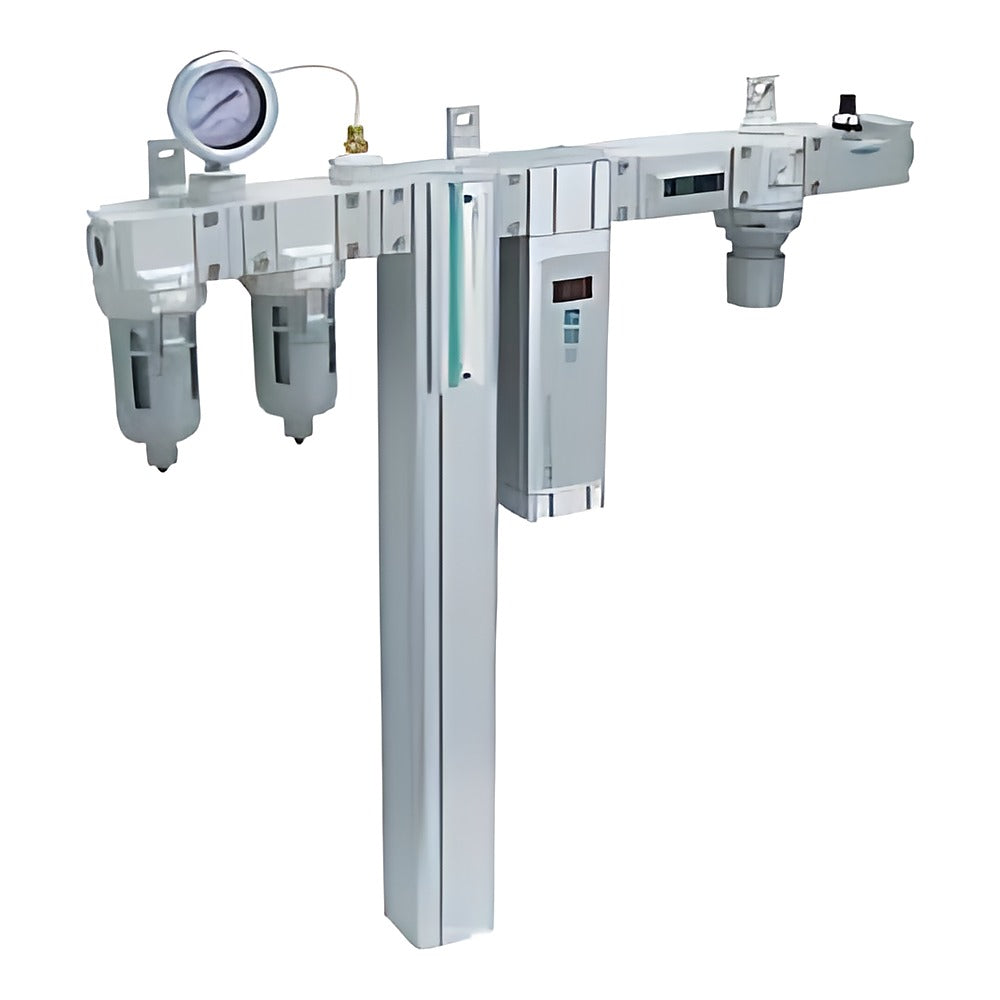

• CKD NSU-FP1 Nitrogen Gas Purification Unit, System Type (Food Grade)
1 1

CKD NSU-FP1 Nitrogen Gas Purification Unit, System Type (Food Grade)

CKD NSU-FP1 Nitrogen Gas Purification Unit, System Type (Food Grade)

CKD NSU-FP1 all-in-one membrane nitrogen gas purification units that deliver nitrogen simply by piping to a compressed air source.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Body 3 (63 mm) or 4 (79 mm); membrane S, F (S+S), L, G (L+S), H (L+L)
  • Outlet N2 at 99%: 5.0 (3S) to 107 (4H) L/min (ANR)
  • Components: F3000/F4000-10-W-F-FP1 filter, M3000/M4000-10-W-F1-FP1 mist filter, NS membrane, NS-QR3/QR4-FP1 regulator, NS-QDVL needle valve
  • Flow sensor variants BA-CK and options E/K/P/X not multiplied; horizontal layout T for 4S/4L

Specifications

Fluid Compressed air
Inlet air pressure 0.4 to 1.0 MPa
Proof pressure 1.5 MPa
Inlet air temperature 5 to 50 C
Air filter 5 um
Oil mist filter 0.01 mg/m3 or less
Regulator set range 0.05 to 0.85 MPa
Standard equipment Gauge, differential gauge, bracket
Source CKD Korea catalog CC-1271K-5, p. 320-333
NSU-4SA10ANN-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10AAK-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10AAM-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SA10BNN-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10BAK-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10BAM-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SA10CNN-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10CAK-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10CAM-NT-FP1 Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10ANN-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10AAK-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10AAM-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10BNN-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10BAK-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10BAM-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10CNN-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10CAK-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10CAM-NT-FP1 Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10ANN-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10AAK-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10AAM-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10BNN-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10BAK-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10BAM-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10CNN-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10CAK-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10CAM-NT-FP1 Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10ANN-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10AAK-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10AAM-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10BNN-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10BAK-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10BAM-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10CNN-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10CAK-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10CAM-NT-FP1 Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4FA10ANN-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10AAK-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10AAM-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FA10BNN-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10BAK-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10BAM-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FA10CNN-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10CAK-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10CAM-N-FP1 Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10ANN-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10AAK-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10AAM-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10BNN-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10BAK-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10BAM-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10CNN-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10CAK-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10CAM-N-FP1 Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10ANN-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10AAK-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10AAM-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10BNN-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10BAK-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10BAM-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10CNN-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10CAK-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10CAM-N-FP1 Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10ANN-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10AAK-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10AAM-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10BNN-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10BAK-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10BAM-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10CNN-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10CAK-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10CAM-N-FP1 Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4LA10ANN-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10AAK-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10AAM-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LA10BNN-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10BAK-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10BAM-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LA10CNN-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10CAK-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10CAM-NT-FP1 Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10ANN-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10AAK-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10AAM-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10BNN-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10BAK-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10BAM-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10CNN-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10CAK-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10CAM-NT-FP1 Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10ANN-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10AAK-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10AAM-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10BNN-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10BAK-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10BAM-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10CNN-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10CAK-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10CAM-NT-FP1 Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10ANN-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10AAK-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10AAM-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10BNN-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10BAK-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10BAM-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10CNN-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10CAK-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10CAM-NT-FP1 Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10ANN-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10AAK-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10AAM-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10BNN-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10BAK-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10BAM-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10CNN-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10CAK-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10CAM-NT-FP1 Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4GA10ANN-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10AAK-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10AAM-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GA10BNN-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10BAK-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10BAM-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GA10CNN-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10CAK-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10CAM-N-FP1 Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10ANN-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10AAK-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10AAM-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10BNN-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10BAK-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10BAM-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10CNN-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10CAK-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10CAM-N-FP1 Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10ANN-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10AAK-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10AAM-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10BNN-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10BAK-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10BAM-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10CNN-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10CAK-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10CAM-N-FP1 Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10ANN-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10AAK-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10AAM-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10BNN-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10BAK-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10BAM-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10CNN-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10CAK-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10CAM-N-FP1 Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10ANN-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10AAK-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10AAM-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10BNN-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10BAK-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10BAM-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10CNN-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10CAK-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10CAM-N-FP1 Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10ANN-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10AAK-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10AAM-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10BNN-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10BAK-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10BAM-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10CNN-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10CAK-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10CAM-N-FP1 Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10ANN-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10AAK-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10AAM-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10BNN-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10BAK-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10BAM-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10CNN-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10CAK-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10CAM-N-FP1 Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10ANN-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10AAK-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10AAM-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10BNN-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10BAK-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10BAM-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10CNN-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10CAK-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10CAM-N-FP1 Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10ANN-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10AAK-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10AAM-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10BNN-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10BAK-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10BAM-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10CNN-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10CAK-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10CAM-N-FP1 Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10ANN-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10AAK-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10AAM-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10BNN-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10BAK-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10BAM-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10CNN-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10CAK-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10CAM-N-FP1 Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
Nitrogen GeneratorsCKD
207 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD NSU-FP1 Nitrogen Gas Purification Unit, System Type (Food Grade)

Brand CKD·Nitrogen Generators

Available part numbers (207)

NSU-4SA10ANN-NT-FP1, NSU-4SA10AAK-NT-FP1, NSU-4SA10AAM-NT-FP1, NSU-4SA10BNN-NT-FP1, NSU-4SA10BAK-NT-FP1, NSU-4SA10BAM-NT-FP1, NSU-4SA10CNN-NT-FP1, NSU-4SA10CAK-NT-FP1, NSU-4SA10CAM-NT-FP1, NSU-4SB10ANN-NT-FP1 + 197 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSU-4SA10ANN-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10AAK-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10AAM-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SA10BNN-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10BAK-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10BAM-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SA10CNN-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SA10CAK-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SA10CAM-NT-FP1Model: NSU-4S | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10ANN-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10AAK-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10AAM-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10BNN-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10BAK-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10BAM-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SB10CNN-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SB10CAK-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SB10CAM-NT-FP1Model: NSU-4S | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10ANN-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10AAK-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10AAM-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10BNN-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10BAK-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10BAM-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SC10CNN-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SC10CAK-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SC10CAM-NT-FP1Model: NSU-4S | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10ANN-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10AAK-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10AAM-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10BNN-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10BAK-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10BAM-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4SD10CNN-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4SD10CAK-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4SD10CAM-NT-FP1Model: NSU-4S | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4FA10ANN-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10AAK-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10AAM-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FA10BNN-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10BAK-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10BAM-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FA10CNN-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FA10CAK-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FA10CAM-N-FP1Model: NSU-4F | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10ANN-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10AAK-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10AAM-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10BNN-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10BAK-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10BAM-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FB10CNN-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FB10CAK-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FB10CAM-N-FP1Model: NSU-4F | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10ANN-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10AAK-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10AAM-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10BNN-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10BAK-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10BAM-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FC10CNN-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FC10CAK-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FC10CAM-N-FP1Model: NSU-4F | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10ANN-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10AAK-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10AAM-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10BNN-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10BAK-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10BAM-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4FD10CNN-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4FD10CAK-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4FD10CAM-N-FP1Model: NSU-4F | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4LA10ANN-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10AAK-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10AAM-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LA10BNN-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10BAK-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10BAM-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LA10CNN-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LA10CAK-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LA10CAM-NT-FP1Model: NSU-4L | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10ANN-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10AAK-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10AAM-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10BNN-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10BAK-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10BAM-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LB10CNN-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LB10CAK-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LB10CAM-NT-FP1Model: NSU-4L | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10ANN-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10AAK-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10AAM-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10BNN-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10BAK-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10BAM-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LC10CNN-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LC10CAK-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LC10CAM-NT-FP1Model: NSU-4L | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10ANN-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10AAK-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10AAM-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10BNN-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10BAK-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10BAM-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LD10CNN-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LD10CAK-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LD10CAM-NT-FP1Model: NSU-4L | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10ANN-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10AAK-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10AAM-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10BNN-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10BAK-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10BAM-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4LE10CNN-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Horizontal
NSU-4LE10CAK-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Horizontal
NSU-4LE10CAM-NT-FP1Model: NSU-4L | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Horizontal
NSU-4GA10ANN-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10AAK-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10AAM-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GA10BNN-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10BAK-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10BAM-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GA10CNN-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GA10CAK-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GA10CAM-N-FP1Model: NSU-4G | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10ANN-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10AAK-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10AAM-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10BNN-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10BAK-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10BAM-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GB10CNN-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GB10CAK-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GB10CAM-N-FP1Model: NSU-4G | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10ANN-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10AAK-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10AAM-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10BNN-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10BAK-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10BAM-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GC10CNN-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GC10CAK-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GC10CAM-N-FP1Model: NSU-4G | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10ANN-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10AAK-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10AAM-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10BNN-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10BAK-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10BAM-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GD10CNN-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GD10CAK-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GD10CAM-N-FP1Model: NSU-4G | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10ANN-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10AAK-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10AAM-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10BNN-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10BAK-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10BAM-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4GE10CNN-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4GE10CAK-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4GE10CAM-N-FP1Model: NSU-4G | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10ANN-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10AAK-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10AAM-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10BNN-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10BAK-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10BAM-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HA10CNN-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HA10CAK-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HA10CAM-N-FP1Model: NSU-4H | Needle valve: max. 20 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10ANN-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10AAK-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10AAM-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10BNN-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10BAK-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10BAM-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HB10CNN-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HB10CAK-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HB10CAM-N-FP1Model: NSU-4H | Needle valve: max. 80 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10ANN-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10AAK-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10AAM-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10BNN-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10BAK-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10BAM-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HC10CNN-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HC10CAK-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HC10CAM-N-FP1Model: NSU-4H | Needle valve: max. 160 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10ANN-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10AAK-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10AAM-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10BNN-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10BAK-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10BAM-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HD10CNN-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HD10CAK-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HD10CAM-N-FP1Model: NSU-4H | Needle valve: max. 240 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10ANN-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10AAK-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10AAM-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: Rc3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10BNN-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10BAK-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10BAM-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: G3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical
NSU-4HE10CNN-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: None | Layout: Vertical
NSU-4HE10CAK-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter | Layout: Vertical
NSU-4HE10CAM-N-FP1Model: NSU-4H | Needle valve: max. 400 L/min | Port: NPT3/8 | O2 meter: O2 meter + traceability docs | Layout: Vertical

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
