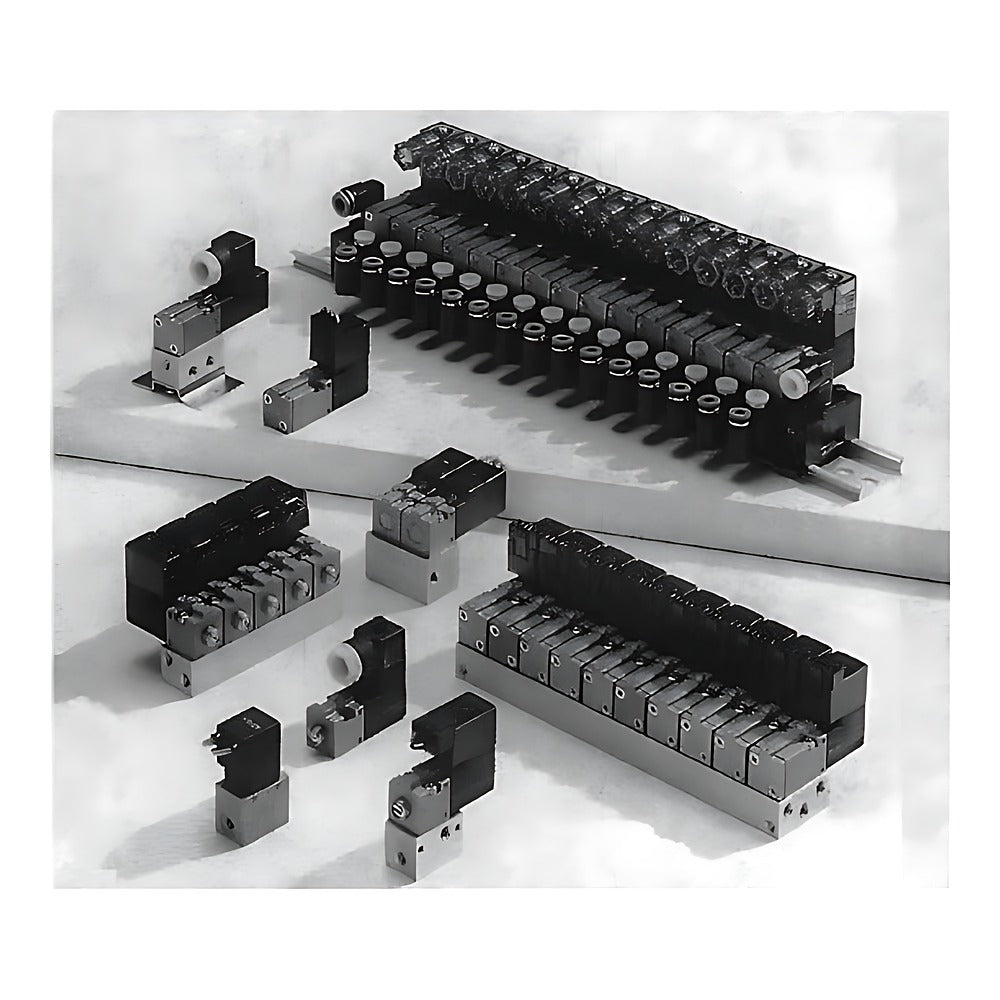

CKD P/M/B Microsol 2/3/5-Port Solenoid Valve (Single Valve)

CKD P/M/B Microsol 2/3/5-Port Solenoid Valve (Single Valve)

CKD Microsol P/M/B series compact pilot-operated poppet 2-, 3- and 5-port solenoid valves for ø6-ø16 cylinders, as pilot (P), direct (M), sub-base (B) or double (W2P) type.

Key features

  • 2-port and 3-port NC poppet valves, orifice ø1.2 (2) or ø1.6 (6); 5-port single valve P5142/B5142
  • W2P513: two 3-port valves in one body acting as a 4-position double 5-port valve
  • Manual override side non-locking (M0), dust-cover (M4) or top non-locking (M6)
  • Grommet lead (E) or compact terminal box (B); AC100V/AC200V/DC24V/DC12V
  • Options: low pressure/vacuum (V), coil rotated (R), Rc1/8 port (06), surge killer (S), U/L brackets, C/D connectors, L/LS terminal box

Specifications

Valve Pilot-operated poppet
Fluid Compressed air
Max. operating pressure 2/3-port 1.0 MPa (ø1.6: 0.6), 5-port 0.7 MPa
Flow rate C [dm³/(s·bar)] 0.09 to 0.15
Port (M/B/W2P) M5
Response time 2/3-port 30 ms, 5-port 60 ms or less
Power consumption DC 1.8 W
Source CKD Korea catalog CB-023SK-9, p. 1709-1729
P5122-M0E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M0E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M0E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M0E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M0B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M0B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M0B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M0B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5122-M4E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M4E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M4E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M4E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M4B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M4B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M4B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M4B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5122-M6E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M6E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M6E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M6E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M6B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M6B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M6B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M6B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M0E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M0E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M0E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M0E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M0B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M0B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M0B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M0B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M4E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M4E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M4E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M4E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M4B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M4B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M4B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M4B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M6E-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M6E-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M6E-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M6E-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M6B-AC100V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M6B-AC200V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M6B-DC24V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M6B-DC12V Type: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M0E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M0E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M0E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M0E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M0B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M0B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M0B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M0B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M4E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M4E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M4E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M4E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M4B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M4B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M4B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M4B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M6E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M6E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M6E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M6E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M6B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M6B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M6B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M6B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M0E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M0E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M0E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M0E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M0B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M0B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M0B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M0B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M4E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M4E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M4E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M4E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M4B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M4B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M4B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M4B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M6E-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M6E-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M6E-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M6E-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M6B-AC100V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M6B-AC200V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M6B-DC24V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M6B-DC12V Type: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5142-M6E-AC100V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5142-M6E-AC200V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5142-M6E-DC24V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5142-M6E-DC12V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5142-M6B-AC100V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5142-M6B-AC200V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5142-M6B-DC24V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5142-M6B-DC12V Type: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5122-M6E-M5-AC100V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5122-M6E-M5-AC200V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5122-M6E-M5-DC24V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5122-M6E-M5-DC12V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5122-M6B-M5-AC100V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5122-M6B-M5-AC200V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5122-M6B-M5-DC24V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5122-M6B-M5-DC12V Type: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5126-M6E-M5-AC100V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5126-M6E-M5-AC200V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5126-M6E-M5-DC24V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5126-M6E-M5-DC12V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5126-M6B-M5-AC100V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5126-M6B-M5-AC200V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5126-M6B-M5-DC24V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5126-M6B-M5-DC12V Type: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5132-M6E-M5-AC100V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5132-M6E-M5-AC200V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5132-M6E-M5-DC24V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5132-M6E-M5-DC12V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5132-M6B-M5-AC100V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5132-M6B-M5-AC200V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5132-M6B-M5-DC24V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5132-M6B-M5-DC12V Type: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5136-M6E-M5-AC100V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5136-M6E-M5-AC200V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5136-M6E-M5-DC24V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5136-M6E-M5-DC12V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5136-M6B-M5-AC100V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5136-M6B-M5-AC200V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5136-M6B-M5-DC24V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5136-M6B-M5-DC12V Type: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M0E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M0E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M0E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M0E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M0B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M0B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M0B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M0B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M4E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M4E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M4E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M4E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M4B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M4B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M4B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M4B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M6E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M6E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M6E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M6E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M6B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M6B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M6B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M6B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M0E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M0E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M0E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M0E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M0B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M0B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M0B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M0B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M4E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M4E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M4E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M4E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M4B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M4B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M4B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M4B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M6E-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M6E-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M6E-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M6E-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M6B-M5-AC100V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M6B-M5-AC200V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M6B-M5-DC24V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M6B-M5-DC12V Type: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M0E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M0E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M0E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M0E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M0B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M0B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M0B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M0B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M4E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M4E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M4E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M4E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M4B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M4B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M4B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M4B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M6E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M6E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M6E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M6E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M6B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M6B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M6B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M6B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M0E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M0E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M0E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M0E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M0B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M0B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M0B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M0B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M4E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M4E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M4E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M4E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M4B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M4B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M4B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M4B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M6E-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M6E-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M6E-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M6E-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M6B-M5-AC100V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M6B-M5-AC200V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M6B-M5-DC24V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M6B-M5-DC12V Type: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5142-M6E-M5-AC100V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5142-M6E-M5-AC200V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5142-M6E-M5-DC24V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5142-M6E-M5-DC12V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5142-M6B-M5-AC100V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5142-M6B-M5-AC200V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5142-M6B-M5-DC24V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5142-M6B-M5-DC12V Type: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M0E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M0E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M0E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M0E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M0B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M0B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M0B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M0B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M4E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M4E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M4E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M4E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M4B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M4B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M4B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M4B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M6E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M6E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M6E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M6E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M6B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M6B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M6B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M6B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M0E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M0E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M0E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M0E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M0B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M0B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M0B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M0B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M4E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M4E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M4E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M4E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M4B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M4B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M4B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M4B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M6E-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M6E-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M6E-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M6E-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M6B-M5-AC100V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M6B-M5-AC200V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M6B-M5-DC24V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M6B-M5-DC12V Type: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
Solenoid ValvesCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD P/M/B Microsol 2/3/5-Port Solenoid Valve (Single Valve)

Brand CKD·Solenoid Valves

Available part numbers (288)

P5122-M0E-AC100V, P5122-M0E-AC200V, P5122-M0E-DC24V, P5122-M0E-DC12V, P5122-M0B-AC100V, P5122-M0B-AC200V, P5122-M0B-DC24V, P5122-M0B-DC12V, P5122-M4E-AC100V, P5122-M4E-AC200V + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
P5122-M0E-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M0E-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M0E-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M0E-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M0B-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M0B-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M0B-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M0B-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5122-M4E-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M4E-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M4E-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M4E-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M4B-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M4B-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M4B-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M4B-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5122-M6E-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5122-M6E-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5122-M6E-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5122-M6E-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5122-M6B-AC100VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5122-M6B-AC200VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5122-M6B-DC24VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5122-M6B-DC12VType: 2-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M0E-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M0E-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M0E-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M0E-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M0B-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M0B-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M0B-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M0B-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M4E-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M4E-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M4E-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M4E-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M4B-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M4B-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M4B-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M4B-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5126-M6E-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5126-M6E-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5126-M6E-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5126-M6E-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5126-M6B-AC100VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5126-M6B-AC200VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5126-M6B-DC24VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5126-M6B-DC12VType: 2-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M0E-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M0E-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M0E-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M0E-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M0B-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M0B-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M0B-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M0B-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M4E-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M4E-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M4E-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M4E-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M4B-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M4B-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M4B-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M4B-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5132-M6E-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5132-M6E-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5132-M6E-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5132-M6E-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5132-M6B-AC100VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5132-M6B-AC200VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5132-M6B-DC24VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5132-M6B-DC12VType: 3-port NC, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M0E-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M0E-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M0E-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M0E-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M0B-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M0B-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M0B-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M0B-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M4E-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M4E-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M4E-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M4E-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M4B-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M4B-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M4B-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M4B-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
P5136-M6E-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5136-M6E-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5136-M6E-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5136-M6E-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5136-M6B-AC100VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5136-M6B-AC200VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5136-M6B-DC24VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5136-M6B-DC12VType: 3-port NC, pilot type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
P5142-M6E-AC100VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
P5142-M6E-AC200VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
P5142-M6E-DC24VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
P5142-M6E-DC12VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
P5142-M6B-AC100VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
P5142-M6B-AC200VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
P5142-M6B-DC24VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
P5142-M6B-DC12VType: 5-port single, pilot type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5122-M6E-M5-AC100VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5122-M6E-M5-AC200VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5122-M6E-M5-DC24VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5122-M6E-M5-DC12VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5122-M6B-M5-AC100VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5122-M6B-M5-AC200VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5122-M6B-M5-DC24VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5122-M6B-M5-DC12VType: 2-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5126-M6E-M5-AC100VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5126-M6E-M5-AC200VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5126-M6E-M5-DC24VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5126-M6E-M5-DC12VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5126-M6B-M5-AC100VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5126-M6B-M5-AC200VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5126-M6B-M5-DC24VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5126-M6B-M5-DC12VType: 2-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5132-M6E-M5-AC100VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5132-M6E-M5-AC200VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5132-M6E-M5-DC24VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5132-M6E-M5-DC12VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5132-M6B-M5-AC100VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5132-M6B-M5-AC200VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5132-M6B-M5-DC24VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5132-M6B-M5-DC12VType: 3-port NC, direct type | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
M5136-M6E-M5-AC100VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
M5136-M6E-M5-AC200VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
M5136-M6E-M5-DC24VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
M5136-M6E-M5-DC12VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
M5136-M6B-M5-AC100VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
M5136-M6B-M5-AC200VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
M5136-M6B-M5-DC24VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
M5136-M6B-M5-DC12VType: 3-port NC, direct type | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M0E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M0E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M0E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M0E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M0B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M0B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M0B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M0B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M4E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M4E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M4E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M4E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M4B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M4B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M4B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M4B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5122-M6E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5122-M6E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5122-M6E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5122-M6E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5122-M6B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5122-M6B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5122-M6B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5122-M6B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M0E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M0E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M0E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M0E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M0B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M0B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M0B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M0B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M4E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M4E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M4E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M4E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M4B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M4B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M4B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M4B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5126-M6E-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5126-M6E-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5126-M6E-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5126-M6E-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5126-M6B-M5-AC100VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5126-M6B-M5-AC200VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5126-M6B-M5-DC24VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5126-M6B-M5-DC12VType: 2-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M0E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M0E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M0E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M0E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M0B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M0B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M0B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M0B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M4E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M4E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M4E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M4E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M4B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M4B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M4B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M4B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5132-M6E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5132-M6E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5132-M6E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5132-M6E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5132-M6B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5132-M6B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5132-M6B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5132-M6B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M0E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M0E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M0E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M0E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M0B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M0B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M0B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M0B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M4E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M4E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M4E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M4E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M4B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M4B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M4B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M4B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
B5136-M6E-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5136-M6E-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5136-M6E-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5136-M6E-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5136-M6B-M5-AC100VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5136-M6B-M5-AC200VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5136-M6B-M5-DC24VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5136-M6B-M5-DC12VType: 3-port NC, sub-base | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
B5142-M6E-M5-AC100VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
B5142-M6E-M5-AC200VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
B5142-M6E-M5-DC24VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
B5142-M6E-M5-DC12VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
B5142-M6B-M5-AC100VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
B5142-M6B-M5-AC200VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
B5142-M6B-M5-DC24VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
B5142-M6B-M5-DC12VType: 5-port single, sub-base | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M0E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M0E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M0E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M0E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M0B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M0B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M0B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M0B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M4E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M4E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M4E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M4E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M4B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M4B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M4B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M4B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5132-M6E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5132-M6E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5132-M6E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5132-M6E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5132-M6B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5132-M6B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5132-M6B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5132-M6B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.2 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M0E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M0E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M0E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M0E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M0B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M0B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M0B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M0B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Side non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M4E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M4E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M4E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M4E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M4B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M4B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M4B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M4B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Dust cover non-locking | Wiring: Terminal box | Voltage: DC12V
W2P5136-M6E-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC100V
W2P5136-M6E-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: AC200V
W2P5136-M6E-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC24V
W2P5136-M6E-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Grommet 300mm | Voltage: DC12V
W2P5136-M6B-M5-AC100VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC100V
W2P5136-M6B-M5-AC200VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: AC200V
W2P5136-M6B-M5-DC24VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC24V
W2P5136-M6B-M5-DC12VType: Double 5-port (2 x 3-port) | Orifice: ø1.6 | Manual override: Top non-locking | Wiring: Terminal box | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
