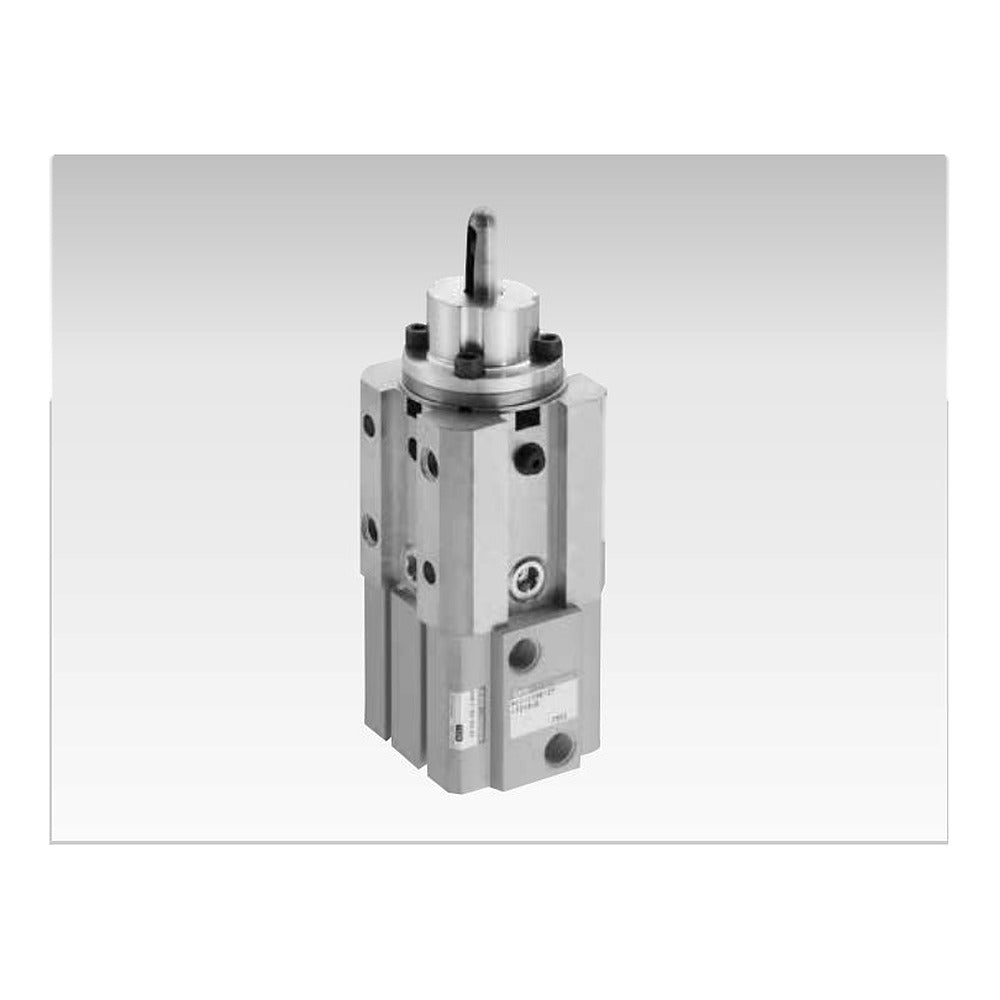

CKD PCC/PCC-Q Pin Clamp Cylinder (Locate Pin 19.5-30.0)

CKD PCC pin clamp cylinder (bore 50) that locates and clamps a workpiece through its hole, base codes for locate pins dia 19.5 to 30.0 mm (work holes 20 to 30 mm), with optional drop prevention lock (PCC-Q).

Key features

Pin clamp cylinder that locates the workpiece by its hole and clamps it in one stroke
Clamp lever direction selectable from 4 directions (Q, R, S, T); round or diamond locate pin
PCC-Q adds a drop prevention lock that holds the clamp position on air loss (not for D1 mounting)
Shim symbol (0: none, 2: 2 mm shim), switch (T2YD, T2YDT, T2YDU), switch qty and spatter cover SP1 are appended to the base code
Cleaning port Rc3/8 standard; mountings A1, B1, C1, C2, D1

Specifications

Bore	50 mm
Action	Double acting pin clamp (locate + clamp)
Fluid	Compressed air
Operating pressure	0.2 to 0.5 MPa
Proof pressure	1.0 MPa
Ambient temperature	-10 to 60 C
Port size	Rc1/4
Clamp stroke	10-12 mm with shim, 12 mm without
Clamp force	824 N at 0.5 MPa
Lock force (PCC-Q)	943 N
Source	CKD Korea catalog CB-030SK-9, p. 1205-1223

PCC-A15Q195		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-A15Q195D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15Q197		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-A15Q197D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15Q198		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-A15Q198D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15Q199		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-A15Q199D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15Q200		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-A15Q200D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15Q245		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-A15Q245D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15Q247		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-A15Q247D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15Q248		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-A15Q248D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15Q249		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-A15Q249D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15Q250		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-A15Q250D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15Q295		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-A15Q295D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15Q297		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-A15Q297D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15Q298		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-A15Q298D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15Q299		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-A15Q299D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15Q300		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-A15Q300D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15R195		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-A15R195D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15R197		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-A15R197D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15R198		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-A15R198D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15R199		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-A15R199D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15R200		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-A15R200D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15R245		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-A15R245D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15R247		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-A15R247D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15R248		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-A15R248D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15R249		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-A15R249D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15R250		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-A15R250D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15R295		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-A15R295D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15R297		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-A15R297D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15R298		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-A15R298D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15R299		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-A15R299D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15R300		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-A15R300D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15S195		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-A15S195D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15S197		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-A15S197D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15S198		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-A15S198D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15S199		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-A15S199D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15S200		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-A15S200D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15S245		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-A15S245D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15S247		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-A15S247D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15S248		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-A15S248D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15S249		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-A15S249D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15S250		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-A15S250D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15S295		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-A15S295D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15S297		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-A15S297D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15S298		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-A15S298D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15S299		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-A15S299D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15S300		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-A15S300D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15T195		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-A15T195D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15T197		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-A15T197D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15T198		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-A15T198D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15T199		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-A15T199D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15T200		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-A15T200D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-A15T245		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-A15T245D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15T247		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-A15T247D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15T248		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-A15T248D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15T249		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-A15T249D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15T250		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-A15T250D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-A15T295		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-A15T295D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15T297		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-A15T297D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15T298		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-A15T298D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15T299		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-A15T299D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-A15T300		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-A15T300D		Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15Q195		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-B15Q195D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15Q197		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-B15Q197D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15Q198		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-B15Q198D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15Q199		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-B15Q199D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15Q200		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-B15Q200D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15Q245		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-B15Q245D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15Q247		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-B15Q247D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15Q248		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-B15Q248D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15Q249		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-B15Q249D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15Q250		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-B15Q250D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15Q295		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-B15Q295D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15Q297		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-B15Q297D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15Q298		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-B15Q298D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15Q299		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-B15Q299D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15Q300		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-B15Q300D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15R195		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-B15R195D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15R197		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-B15R197D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15R198		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-B15R198D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15R199		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-B15R199D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15R200		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-B15R200D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15R245		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-B15R245D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15R247		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-B15R247D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15R248		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-B15R248D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15R249		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-B15R249D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15R250		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-B15R250D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15R295		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-B15R295D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15R297		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-B15R297D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15R298		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-B15R298D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15R299		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-B15R299D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15R300		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-B15R300D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15S195		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-B15S195D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15S197		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-B15S197D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15S198		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-B15S198D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15S199		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-B15S199D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15S200		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-B15S200D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15S245		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-B15S245D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15S247		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-B15S247D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15S248		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-B15S248D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15S249		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-B15S249D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15S250		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-B15S250D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15S295		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-B15S295D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15S297		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-B15S297D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15S298		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-B15S298D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15S299		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-B15S299D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15S300		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-B15S300D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15T195		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-B15T195D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15T197		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-B15T197D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15T198		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-B15T198D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15T199		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-B15T199D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15T200		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-B15T200D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-B15T245		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-B15T245D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15T247		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-B15T247D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15T248		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-B15T248D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15T249		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-B15T249D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15T250		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-B15T250D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-B15T295		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-B15T295D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15T297		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-B15T297D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15T298		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-B15T298D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15T299		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-B15T299D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-B15T300		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-B15T300D		Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15Q195		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C15Q195D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15Q197		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C15Q197D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15Q198		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C15Q198D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15Q199		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C15Q199D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15Q200		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C15Q200D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15Q245		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C15Q245D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15Q247		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C15Q247D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15Q248		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C15Q248D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15Q249		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C15Q249D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15Q250		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C15Q250D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15Q295		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C15Q295D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15Q297		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C15Q297D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15Q298		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C15Q298D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15Q299		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C15Q299D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15Q300		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C15Q300D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15R195		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C15R195D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15R197		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C15R197D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15R198		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C15R198D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15R199		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C15R199D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15R200		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C15R200D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15R245		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C15R245D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15R247		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C15R247D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15R248		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C15R248D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15R249		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C15R249D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15R250		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C15R250D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15R295		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C15R295D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15R297		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C15R297D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15R298		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C15R298D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15R299		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C15R299D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15R300		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C15R300D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15S195		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C15S195D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15S197		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C15S197D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15S198		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C15S198D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15S199		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C15S199D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15S200		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C15S200D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15S245		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C15S245D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15S247		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C15S247D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15S248		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C15S248D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15S249		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C15S249D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15S250		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C15S250D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15S295		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C15S295D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15S297		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C15S297D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15S298		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C15S298D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15S299		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C15S299D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15S300		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C15S300D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15T195		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C15T195D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15T197		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C15T197D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15T198		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C15T198D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15T199		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C15T199D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15T200		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C15T200D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C15T245		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C15T245D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15T247		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C15T247D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15T248		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C15T248D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15T249		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C15T249D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15T250		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C15T250D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C15T295		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C15T295D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15T297		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C15T297D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15T298		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C15T298D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15T299		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C15T299D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C15T300		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C15T300D		Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25Q195		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C25Q195D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25Q197		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C25Q197D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25Q198		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C25Q198D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25Q199		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C25Q199D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25Q200		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C25Q200D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25Q245		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C25Q245D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25Q247		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C25Q247D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25Q248		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C25Q248D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25Q249		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C25Q249D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25Q250		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C25Q250D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25Q295		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C25Q295D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25Q297		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C25Q297D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25Q298		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C25Q298D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25Q299		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C25Q299D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25Q300		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C25Q300D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25R195		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C25R195D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25R197		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C25R197D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25R198		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C25R198D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25R199		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C25R199D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25R200		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C25R200D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25R245		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C25R245D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25R247		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C25R247D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25R248		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C25R248D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25R249		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C25R249D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25R250		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C25R250D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25R295		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C25R295D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25R297		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C25R297D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25R298		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C25R298D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25R299		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C25R299D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25R300		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C25R300D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25S195		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C25S195D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25S197		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C25S197D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25S198		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C25S198D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25S199		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C25S199D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25S200		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C25S200D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25S245		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C25S245D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25S247		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C25S247D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25S248		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C25S248D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25S249		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C25S249D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25S250		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C25S250D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25S295		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C25S295D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25S297		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C25S297D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25S298		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C25S298D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25S299		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C25S299D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25S300		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C25S300D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25T195		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-C25T195D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25T197		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-C25T197D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25T198		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-C25T198D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25T199		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-C25T199D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25T200		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-C25T200D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-C25T245		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-C25T245D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25T247		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-C25T247D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25T248		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-C25T248D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25T249		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-C25T249D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25T250		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-C25T250D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-C25T295		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-C25T295D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25T297		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-C25T297D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25T298		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-C25T298D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25T299		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-C25T299D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-C25T300		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-C25T300D		Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15Q195		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-D15Q195D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15Q197		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-D15Q197D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15Q198		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-D15Q198D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15Q199		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-D15Q199D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15Q200		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-D15Q200D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15Q245		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-D15Q245D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15Q247		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-D15Q247D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15Q248		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-D15Q248D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15Q249		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-D15Q249D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15Q250		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-D15Q250D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15Q295		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-D15Q295D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15Q297		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-D15Q297D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15Q298		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-D15Q298D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15Q299		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-D15Q299D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15Q300		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-D15Q300D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15R195		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-D15R195D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15R197		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-D15R197D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15R198		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-D15R198D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15R199		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-D15R199D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15R200		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-D15R200D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15R245		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-D15R245D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15R247		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-D15R247D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15R248		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-D15R248D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15R249		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-D15R249D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15R250		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-D15R250D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15R295		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-D15R295D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15R297		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-D15R297D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15R298		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-D15R298D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15R299		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-D15R299D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15R300		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-D15R300D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15S195		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-D15S195D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15S197		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-D15S197D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15S198		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-D15S198D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15S199		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-D15S199D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15S200		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-D15S200D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15S245		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-D15S245D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15S247		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-D15S247D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15S248		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-D15S248D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15S249		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-D15S249D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15S250		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-D15S250D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15S295		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-D15S295D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15S297		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-D15S297D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15S298		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-D15S298D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15S299		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-D15S299D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15S300		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-D15S300D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15T195		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-D15T195D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15T197		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-D15T197D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15T198		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-D15T198D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15T199		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-D15T199D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15T200		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-D15T200D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-D15T245		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-D15T245D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15T247		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-D15T247D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15T248		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-D15T248D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15T249		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-D15T249D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15T250		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-D15T250D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-D15T295		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-D15T295D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15T297		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-D15T297D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15T298		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-D15T298D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15T299		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-D15T299D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-D15T300		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-D15T300D		Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15Q195		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QA15Q195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15Q197		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QA15Q197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15Q198		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QA15Q198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15Q199		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QA15Q199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15Q200		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QA15Q200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15Q245		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QA15Q245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15Q247		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QA15Q247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15Q248		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QA15Q248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15Q249		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QA15Q249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15Q250		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QA15Q250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15Q295		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QA15Q295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15Q297		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QA15Q297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15Q298		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QA15Q298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15Q299		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QA15Q299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15Q300		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QA15Q300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15R195		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QA15R195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15R197		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QA15R197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15R198		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QA15R198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15R199		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QA15R199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15R200		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QA15R200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15R245		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QA15R245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15R247		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QA15R247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15R248		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QA15R248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15R249		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QA15R249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15R250		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QA15R250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15R295		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QA15R295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15R297		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QA15R297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15R298		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QA15R298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15R299		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QA15R299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15R300		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QA15R300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15S195		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QA15S195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15S197		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QA15S197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15S198		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QA15S198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15S199		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QA15S199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15S200		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QA15S200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15S245		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QA15S245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15S247		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QA15S247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15S248		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QA15S248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15S249		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QA15S249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15S250		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QA15S250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15S295		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QA15S295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15S297		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QA15S297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15S298		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QA15S298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15S299		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QA15S299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15S300		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QA15S300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15T195		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QA15T195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15T197		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QA15T197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15T198		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QA15T198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15T199		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QA15T199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15T200		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QA15T200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QA15T245		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QA15T245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15T247		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QA15T247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15T248		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QA15T248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15T249		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QA15T249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15T250		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QA15T250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QA15T295		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QA15T295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15T297		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QA15T297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15T298		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QA15T298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15T299		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QA15T299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QA15T300		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QA15T300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15Q195		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QB15Q195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15Q197		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QB15Q197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15Q198		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QB15Q198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15Q199		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QB15Q199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15Q200		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QB15Q200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15Q245		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QB15Q245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15Q247		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QB15Q247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15Q248		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QB15Q248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15Q249		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QB15Q249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15Q250		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QB15Q250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15Q295		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QB15Q295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15Q297		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QB15Q297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15Q298		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QB15Q298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15Q299		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QB15Q299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15Q300		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QB15Q300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15R195		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QB15R195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15R197		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QB15R197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15R198		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QB15R198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15R199		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QB15R199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15R200		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QB15R200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15R245		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QB15R245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15R247		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QB15R247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15R248		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QB15R248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15R249		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QB15R249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15R250		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QB15R250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15R295		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QB15R295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15R297		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QB15R297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15R298		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QB15R298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15R299		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QB15R299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15R300		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QB15R300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15S195		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QB15S195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15S197		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QB15S197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15S198		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QB15S198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15S199		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QB15S199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15S200		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QB15S200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15S245		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QB15S245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15S247		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QB15S247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15S248		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QB15S248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15S249		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QB15S249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15S250		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QB15S250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15S295		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QB15S295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15S297		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QB15S297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15S298		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QB15S298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15S299		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QB15S299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15S300		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QB15S300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15T195		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QB15T195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15T197		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QB15T197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15T198		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QB15T198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15T199		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QB15T199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15T200		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QB15T200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QB15T245		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QB15T245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15T247		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QB15T247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15T248		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QB15T248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15T249		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QB15T249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15T250		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QB15T250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QB15T295		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QB15T295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15T297		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QB15T297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15T298		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QB15T298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15T299		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QB15T299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QB15T300		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QB15T300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15Q195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC15Q195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15Q197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC15Q197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15Q198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC15Q198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15Q199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC15Q199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15Q200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC15Q200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15Q245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC15Q245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15Q247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC15Q247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15Q248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC15Q248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15Q249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC15Q249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15Q250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC15Q250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15Q295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC15Q295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15Q297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC15Q297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15Q298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC15Q298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15Q299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC15Q299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15Q300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC15Q300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15R195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC15R195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15R197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC15R197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15R198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC15R198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15R199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC15R199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15R200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC15R200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15R245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC15R245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15R247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC15R247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15R248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC15R248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15R249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC15R249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15R250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC15R250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15R295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC15R295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15R297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC15R297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15R298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC15R298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15R299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC15R299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15R300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC15R300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15S195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC15S195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15S197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC15S197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15S198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC15S198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15S199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC15S199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15S200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC15S200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15S245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC15S245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15S247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC15S247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15S248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC15S248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15S249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC15S249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15S250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC15S250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15S295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC15S295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15S297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC15S297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15S298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC15S298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15S299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC15S299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15S300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC15S300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15T195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC15T195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15T197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC15T197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15T198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC15T198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15T199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC15T199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15T200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC15T200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC15T245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC15T245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15T247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC15T247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15T248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC15T248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15T249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC15T249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15T250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC15T250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC15T295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC15T295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15T297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC15T297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15T298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC15T298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15T299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC15T299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC15T300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC15T300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25Q195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC25Q195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25Q197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC25Q197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25Q198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC25Q198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25Q199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC25Q199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25Q200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC25Q200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25Q245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC25Q245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25Q247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC25Q247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25Q248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC25Q248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25Q249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC25Q249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25Q250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC25Q250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25Q295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC25Q295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25Q297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC25Q297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25Q298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC25Q298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25Q299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC25Q299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25Q300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC25Q300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25R195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC25R195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25R197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC25R197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25R198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC25R198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25R199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC25R199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25R200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC25R200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25R245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC25R245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25R247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC25R247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25R248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC25R248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25R249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC25R249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25R250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC25R250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25R295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC25R295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25R297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC25R297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25R298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC25R298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25R299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC25R299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25R300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC25R300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25S195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC25S195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25S197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC25S197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25S198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC25S198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25S199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC25S199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25S200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC25S200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25S245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC25S245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25S247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC25S247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25S248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC25S248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25S249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC25S249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25S250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC25S250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25S295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC25S295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25S297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC25S297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25S298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC25S298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25S299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC25S299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25S300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC25S300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25T195		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
PCC-QC25T195D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25T197		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
PCC-QC25T197D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25T198		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
PCC-QC25T198D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25T199		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
PCC-QC25T199D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25T200		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
PCC-QC25T200D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
PCC-QC25T245		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
PCC-QC25T245D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25T247		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
PCC-QC25T247D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25T248		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
PCC-QC25T248D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25T249		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
PCC-QC25T249D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25T250		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
PCC-QC25T250D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
PCC-QC25T295		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
PCC-QC25T295D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25T297		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
PCC-QC25T297D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25T298		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
PCC-QC25T298D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25T299		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
PCC-QC25T299D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
PCC-QC25T300		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
PCC-QC25T300D		Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin

Pneumatic CylindersCKD

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PCC/PCC-Q Pin Clamp Cylinder (Locate Pin 19.5-30.0)

Brand CKD·Pneumatic Cylinders

Available part numbers (1080)

PCC-A15Q195, PCC-A15Q195D, PCC-A15Q197, PCC-A15Q197D, PCC-A15Q198, PCC-A15Q198D, PCC-A15Q199, PCC-A15Q199D, PCC-A15Q200, PCC-A15Q200D + 1070 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	PCC-A15Q195	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-A15Q195D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15Q197	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-A15Q197D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15Q198	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-A15Q198D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15Q199	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-A15Q199D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15Q200	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-A15Q200D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15Q245	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-A15Q245D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15Q247	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-A15Q247D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15Q248	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-A15Q248D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15Q249	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-A15Q249D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15Q250	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-A15Q250D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15Q295	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-A15Q295D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15Q297	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-A15Q297D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15Q298	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-A15Q298D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15Q299	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-A15Q299D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15Q300	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-A15Q300D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15R195	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-A15R195D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15R197	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-A15R197D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15R198	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-A15R198D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15R199	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-A15R199D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15R200	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-A15R200D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15R245	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-A15R245D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15R247	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-A15R247D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15R248	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-A15R248D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15R249	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-A15R249D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15R250	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-A15R250D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15R295	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-A15R295D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15R297	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-A15R297D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15R298	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-A15R298D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15R299	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-A15R299D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15R300	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-A15R300D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15S195	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-A15S195D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15S197	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-A15S197D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15S198	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-A15S198D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15S199	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-A15S199D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15S200	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-A15S200D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15S245	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-A15S245D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15S247	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-A15S247D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15S248	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-A15S248D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15S249	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-A15S249D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15S250	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-A15S250D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15S295	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-A15S295D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15S297	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-A15S297D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15S298	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-A15S298D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15S299	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-A15S299D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15S300	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-A15S300D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15T195	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-A15T195D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15T197	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-A15T197D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15T198	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-A15T198D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15T199	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-A15T199D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15T200	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-A15T200D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-A15T245	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-A15T245D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15T247	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-A15T247D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15T248	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-A15T248D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15T249	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-A15T249D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15T250	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-A15T250D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-A15T295	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-A15T295D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15T297	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-A15T297D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15T298	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-A15T298D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15T299	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-A15T299D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-A15T300	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-A15T300D	Type: Standard (PCC) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15Q195	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-B15Q195D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15Q197	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-B15Q197D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15Q198	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-B15Q198D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15Q199	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-B15Q199D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15Q200	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-B15Q200D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15Q245	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-B15Q245D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15Q247	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-B15Q247D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15Q248	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-B15Q248D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15Q249	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-B15Q249D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15Q250	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-B15Q250D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15Q295	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-B15Q295D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15Q297	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-B15Q297D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15Q298	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-B15Q298D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15Q299	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-B15Q299D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15Q300	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-B15Q300D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15R195	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-B15R195D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15R197	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-B15R197D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15R198	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-B15R198D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15R199	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-B15R199D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15R200	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-B15R200D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15R245	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-B15R245D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15R247	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-B15R247D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15R248	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-B15R248D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15R249	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-B15R249D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15R250	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-B15R250D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15R295	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-B15R295D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15R297	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-B15R297D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15R298	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-B15R298D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15R299	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-B15R299D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15R300	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-B15R300D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15S195	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-B15S195D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15S197	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-B15S197D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15S198	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-B15S198D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15S199	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-B15S199D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15S200	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-B15S200D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15S245	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-B15S245D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15S247	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-B15S247D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15S248	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-B15S248D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15S249	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-B15S249D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15S250	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-B15S250D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15S295	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-B15S295D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15S297	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-B15S297D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15S298	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-B15S298D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15S299	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-B15S299D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15S300	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-B15S300D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15T195	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-B15T195D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15T197	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-B15T197D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15T198	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-B15T198D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15T199	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-B15T199D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15T200	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-B15T200D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-B15T245	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-B15T245D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15T247	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-B15T247D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15T248	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-B15T248D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15T249	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-B15T249D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15T250	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-B15T250D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-B15T295	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-B15T295D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15T297	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-B15T297D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15T298	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-B15T298D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15T299	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-B15T299D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-B15T300	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-B15T300D	Type: Standard (PCC) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15Q195	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C15Q195D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15Q197	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C15Q197D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15Q198	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C15Q198D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15Q199	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C15Q199D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15Q200	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C15Q200D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15Q245	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C15Q245D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15Q247	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C15Q247D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15Q248	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C15Q248D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15Q249	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C15Q249D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15Q250	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C15Q250D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15Q295	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C15Q295D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15Q297	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C15Q297D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15Q298	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C15Q298D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15Q299	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C15Q299D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15Q300	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C15Q300D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15R195	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C15R195D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15R197	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C15R197D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15R198	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C15R198D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15R199	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C15R199D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15R200	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C15R200D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15R245	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C15R245D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15R247	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C15R247D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15R248	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C15R248D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15R249	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C15R249D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15R250	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C15R250D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15R295	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C15R295D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15R297	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C15R297D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15R298	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C15R298D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15R299	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C15R299D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15R300	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C15R300D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15S195	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C15S195D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15S197	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C15S197D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15S198	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C15S198D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15S199	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C15S199D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15S200	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C15S200D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15S245	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C15S245D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15S247	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C15S247D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15S248	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C15S248D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15S249	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C15S249D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15S250	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C15S250D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15S295	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C15S295D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15S297	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C15S297D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15S298	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C15S298D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15S299	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C15S299D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15S300	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C15S300D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15T195	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C15T195D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15T197	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C15T197D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15T198	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C15T198D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15T199	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C15T199D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15T200	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C15T200D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C15T245	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C15T245D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15T247	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C15T247D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15T248	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C15T248D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15T249	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C15T249D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15T250	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C15T250D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C15T295	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C15T295D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15T297	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C15T297D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15T298	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C15T298D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15T299	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C15T299D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C15T300	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C15T300D	Type: Standard (PCC) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25Q195	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C25Q195D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25Q197	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C25Q197D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25Q198	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C25Q198D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25Q199	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C25Q199D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25Q200	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C25Q200D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25Q245	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C25Q245D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25Q247	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C25Q247D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25Q248	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C25Q248D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25Q249	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C25Q249D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25Q250	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C25Q250D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25Q295	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C25Q295D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25Q297	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C25Q297D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25Q298	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C25Q298D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25Q299	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C25Q299D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25Q300	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C25Q300D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25R195	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C25R195D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25R197	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C25R197D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25R198	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C25R198D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25R199	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C25R199D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25R200	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C25R200D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25R245	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C25R245D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25R247	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C25R247D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25R248	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C25R248D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25R249	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C25R249D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25R250	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C25R250D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25R295	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C25R295D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25R297	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C25R297D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25R298	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C25R298D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25R299	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C25R299D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25R300	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C25R300D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25S195	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C25S195D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25S197	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C25S197D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25S198	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C25S198D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25S199	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C25S199D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25S200	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C25S200D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25S245	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C25S245D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25S247	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C25S247D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25S248	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C25S248D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25S249	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C25S249D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25S250	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C25S250D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25S295	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C25S295D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25S297	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C25S297D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25S298	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C25S298D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25S299	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C25S299D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25S300	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C25S300D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25T195	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-C25T195D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25T197	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-C25T197D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25T198	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-C25T198D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25T199	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-C25T199D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25T200	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-C25T200D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-C25T245	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-C25T245D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25T247	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-C25T247D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25T248	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-C25T248D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25T249	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-C25T249D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25T250	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-C25T250D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-C25T295	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-C25T295D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25T297	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-C25T297D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25T298	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-C25T298D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25T299	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-C25T299D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-C25T300	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-C25T300D	Type: Standard (PCC) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15Q195	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-D15Q195D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15Q197	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-D15Q197D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15Q198	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-D15Q198D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15Q199	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-D15Q199D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15Q200	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-D15Q200D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15Q245	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-D15Q245D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15Q247	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-D15Q247D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15Q248	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-D15Q248D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15Q249	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-D15Q249D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15Q250	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-D15Q250D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15Q295	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-D15Q295D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15Q297	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-D15Q297D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15Q298	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-D15Q298D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15Q299	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-D15Q299D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15Q300	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-D15Q300D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15R195	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-D15R195D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15R197	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-D15R197D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15R198	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-D15R198D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15R199	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-D15R199D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15R200	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-D15R200D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15R245	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-D15R245D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15R247	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-D15R247D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15R248	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-D15R248D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15R249	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-D15R249D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15R250	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-D15R250D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15R295	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-D15R295D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15R297	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-D15R297D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15R298	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-D15R298D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15R299	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-D15R299D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15R300	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-D15R300D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15S195	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-D15S195D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15S197	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-D15S197D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15S198	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-D15S198D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15S199	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-D15S199D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15S200	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-D15S200D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15S245	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-D15S245D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15S247	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-D15S247D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15S248	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-D15S248D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15S249	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-D15S249D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15S250	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-D15S250D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15S295	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-D15S295D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15S297	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-D15S297D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15S298	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-D15S298D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15S299	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-D15S299D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15S300	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-D15S300D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15T195	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-D15T195D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15T197	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-D15T197D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15T198	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-D15T198D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15T199	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-D15T199D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15T200	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-D15T200D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-D15T245	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-D15T245D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15T247	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-D15T247D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15T248	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-D15T248D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15T249	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-D15T249D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15T250	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-D15T250D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-D15T295	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-D15T295D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15T297	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-D15T297D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15T298	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-D15T298D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15T299	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-D15T299D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-D15T300	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-D15T300D	Type: Standard (PCC) \| Mounting: Bottom face mount \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15Q195	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15Q195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15Q197	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15Q197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15Q198	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15Q198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15Q199	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15Q199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15Q200	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15Q200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15Q245	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15Q245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15Q247	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15Q247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15Q248	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15Q248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15Q249	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15Q249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15Q250	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15Q250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15Q295	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15Q295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15Q297	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15Q297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15Q298	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15Q298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15Q299	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15Q299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15Q300	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15Q300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15R195	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15R195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15R197	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15R197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15R198	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15R198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15R199	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15R199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15R200	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15R200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15R245	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15R245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15R247	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15R247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15R248	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15R248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15R249	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15R249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15R250	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15R250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15R295	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15R295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15R297	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15R297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15R298	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15R298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15R299	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15R299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15R300	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15R300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15S195	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15S195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15S197	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15S197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15S198	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15S198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15S199	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15S199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15S200	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15S200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15S245	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15S245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15S247	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15S247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15S248	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15S248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15S249	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15S249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15S250	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15S250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15S295	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15S295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15S297	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15S297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15S298	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15S298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15S299	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15S299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15S300	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15S300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15T195	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15T195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15T197	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15T197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15T198	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15T198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15T199	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15T199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15T200	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QA15T200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QA15T245	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15T245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15T247	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15T247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15T248	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15T248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15T249	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15T249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15T250	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QA15T250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QA15T295	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15T295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15T297	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15T297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15T298	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15T298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15T299	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15T299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QA15T300	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QA15T300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Top flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15Q195	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15Q195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15Q197	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15Q197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15Q198	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15Q198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15Q199	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15Q199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15Q200	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15Q200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15Q245	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15Q245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15Q247	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15Q247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15Q248	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15Q248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15Q249	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15Q249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15Q250	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15Q250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15Q295	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15Q295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15Q297	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15Q297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15Q298	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15Q298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15Q299	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15Q299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15Q300	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15Q300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15R195	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15R195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15R197	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15R197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15R198	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15R198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15R199	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15R199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15R200	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15R200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15R245	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15R245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15R247	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15R247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15R248	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15R248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15R249	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15R249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15R250	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15R250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15R295	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15R295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15R297	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15R297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15R298	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15R298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15R299	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15R299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15R300	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15R300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15S195	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15S195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15S197	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15S197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15S198	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15S198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15S199	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15S199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15S200	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15S200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15S245	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15S245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15S247	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15S247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15S248	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15S248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15S249	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15S249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15S250	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15S250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15S295	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15S295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15S297	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15S297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15S298	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15S298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15S299	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15S299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15S300	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15S300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15T195	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15T195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15T197	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15T197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15T198	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15T198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15T199	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15T199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15T200	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QB15T200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QB15T245	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15T245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15T247	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15T247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15T248	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15T248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15T249	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15T249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15T250	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QB15T250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QB15T295	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15T295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15T297	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15T297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15T298	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15T298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15T299	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15T299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QB15T300	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QB15T300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Bottom flange \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15Q195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15Q195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15Q197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15Q197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15Q198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15Q198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15Q199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15Q199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15Q200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15Q200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15Q245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15Q245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15Q247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15Q247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15Q248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15Q248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15Q249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15Q249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15Q250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15Q250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15Q295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15Q295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15Q297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15Q297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15Q298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15Q298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15Q299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15Q299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15Q300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15Q300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15R195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15R195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15R197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15R197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15R198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15R198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15R199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15R199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15R200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15R200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15R245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15R245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15R247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15R247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15R248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15R248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15R249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15R249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15R250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15R250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15R295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15R295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15R297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15R297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15R298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15R298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15R299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15R299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15R300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15R300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15S195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15S195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15S197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15S197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15S198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15S198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15S199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15S199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15S200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15S200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15S245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15S245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15S247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15S247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15S248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15S248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15S249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15S249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15S250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15S250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15S295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15S295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15S297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15S297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15S298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15S298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15S299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15S299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15S300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15S300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15T195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15T195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15T197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15T197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15T198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15T198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15T199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15T199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15T200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC15T200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC15T245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15T245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15T247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15T247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15T248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15T248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15T249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15T249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15T250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC15T250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC15T295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15T295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15T297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15T297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15T298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15T298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15T299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15T299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC15T300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC15T300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C1 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25Q195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25Q195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25Q197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25Q197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25Q198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25Q198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25Q199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25Q199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25Q200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25Q200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25Q245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25Q245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25Q247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25Q247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25Q248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25Q248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25Q249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25Q249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25Q250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25Q250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25Q295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25Q295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25Q297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25Q297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25Q298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25Q298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25Q299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25Q299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25Q300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25Q300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: Q \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25R195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25R195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25R197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25R197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25R198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25R198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25R199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25R199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25R200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25R200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25R245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25R245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25R247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25R247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25R248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25R248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25R249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25R249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25R250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25R250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25R295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25R295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25R297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25R297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25R298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25R298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25R299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25R299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25R300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25R300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: R \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25S195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25S195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25S197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25S197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25S198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25S198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25S199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25S199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25S200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25S200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25S245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25S245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25S247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25S247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25S248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25S248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25S249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25S249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25S250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25S250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25S295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25S295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25S297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25S297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25S298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25S298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25S299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25S299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25S300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25S300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: S \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25T195	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25T195D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.5 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25T197	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25T197D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.7 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25T198	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25T198D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.8 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25T199	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25T199D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 19.9 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25T200	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Round pin
	PCC-QC25T200D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 20.0 (hole dia 20) \| Pin shape: Diamond pin
	PCC-QC25T245	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25T245D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.5 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25T247	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25T247D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.7 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25T248	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25T248D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.8 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25T249	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25T249D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 24.9 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25T250	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Round pin
	PCC-QC25T250D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 25.0 (hole dia 25) \| Pin shape: Diamond pin
	PCC-QC25T295	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25T295D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.5 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25T297	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25T297D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.7 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25T298	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25T298D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.8 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25T299	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25T299D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 29.9 (hole dia 30) \| Pin shape: Diamond pin
	PCC-QC25T300	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Round pin
	PCC-QC25T300D	Type: Drop prevention lock (PCC-Q) \| Mounting: Side mount C2 (2 faces) \| Lever direction: T \| Locate pin: dia 30.0 (hole dia 30) \| Pin shape: Diamond pin

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD PCC/PCC-Q Pin Clamp Cylinder (Locate Pin 19.5-30.0)
