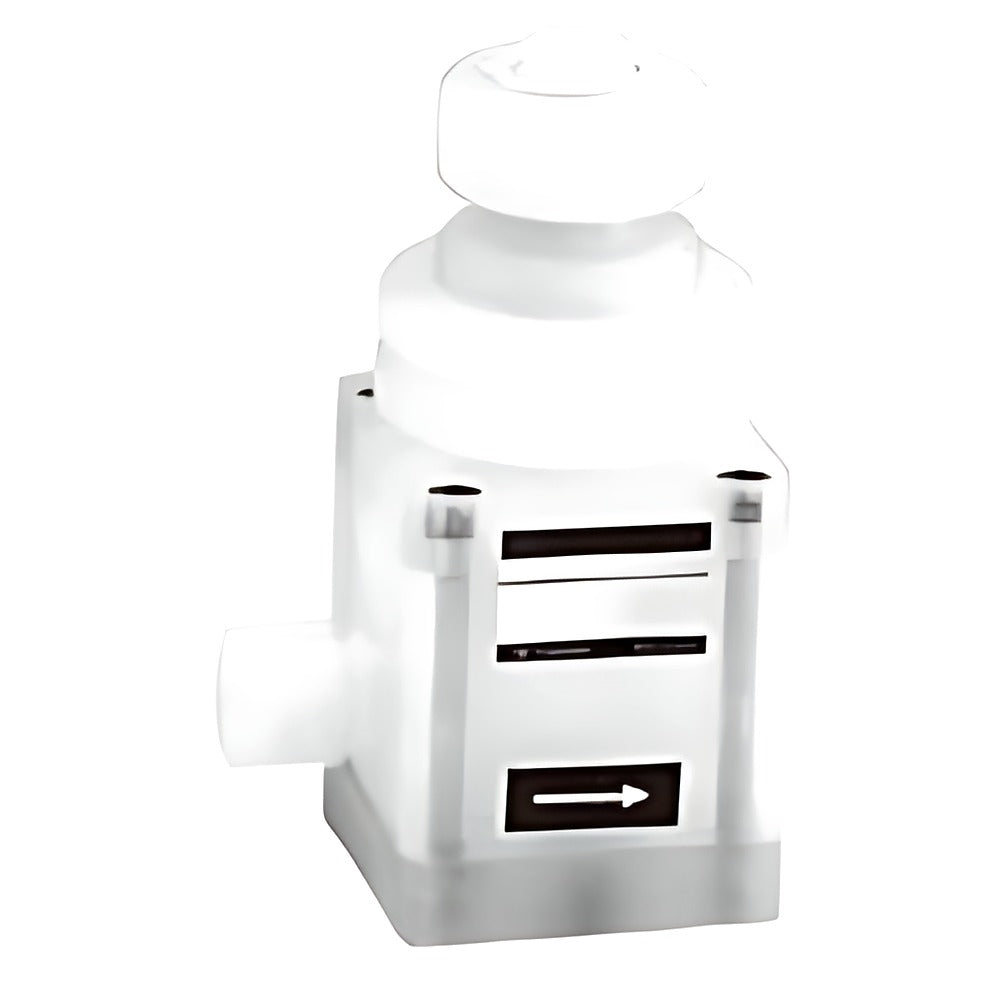

CKD PMM20 Fine Regulator (Manual, Fluororesin, Tube 8-10 mm)

CKD PMM20 Fine Regulator (Manual, Fluororesin, Tube 8-10 mm)

CKD PMM20 manual fine regulator with all wetted parts in fluororesin for pure water pressure reduction.

Key features

  • PFA or PTFE body, PTFE diaphragm and bellows
  • Integrated fittings: Super type Pillar, Super 300 Pillar P, F-LOCK 20A/60, Final Lock, Flare Tech
  • Tube 8 and 10 mm and 3/8 in
  • Panel mounting possible; -H suffix for 0.05-0.4 MPa set range (5-40 C)
  • PTFE machined bodies made to order

Specifications

Regulator type Manual fine regulator, non-relief
Wetted parts All fluororesin
Fluid Pure water
Fluid temperature 5 to 80 C
Max. operating pressure 0.5 MPa
Proof pressure 0.75 MPa
Set pressure 0.02-0.2 MPa (-H suffix 0.05-0.4 MPa)
Source CKD Korea catalog CB-031K-15, p. 220-221
PMM20-8US Fitting: Super type Pillar | Tube: OD 8 x ID 6 mm | Body: PFA
PMM20-10US Fitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Body: PFA
PMM20-10BUS Fitting: Super type Pillar | Tube: 3/8 x 1/4 in | Body: PFA
PMM20-10UP Fitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUP Fitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10UA Fitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUA Fitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10UR Fitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUR Fitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10UK Fitting: Final Lock | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUK Fitting: Final Lock | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10BUW Fitting: Flare Tech | Tube: 3/8 x 1/4 in | Body: PTFE
RegulatorsCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PMM20 Fine Regulator (Manual, Fluororesin, Tube 8-10 mm)

Brand CKD·Regulators

Available part numbers (12)

PMM20-8US, PMM20-10US, PMM20-10BUS, PMM20-10UP, PMM20-10BUP, PMM20-10UA, PMM20-10BUA, PMM20-10UR, PMM20-10BUR, PMM20-10UK + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMM20-8USFitting: Super type Pillar | Tube: OD 8 x ID 6 mm | Body: PFA
PMM20-10USFitting: Super type Pillar | Tube: OD 10 x ID 8 mm | Body: PFA
PMM20-10BUSFitting: Super type Pillar | Tube: 3/8 x 1/4 in | Body: PFA
PMM20-10UPFitting: Super 300 Pillar P | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUPFitting: Super 300 Pillar P | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10UAFitting: F-LOCK 20A | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUAFitting: F-LOCK 20A | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10URFitting: F-LOCK 60 | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BURFitting: F-LOCK 60 | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10UKFitting: Final Lock | Tube: OD 10 x ID 8 mm | Body: PTFE
PMM20-10BUKFitting: Final Lock | Tube: 3/8 x 1/4 in | Body: PTFE
PMM20-10BUWFitting: Flare Tech | Tube: 3/8 x 1/4 in | Body: PTFE
