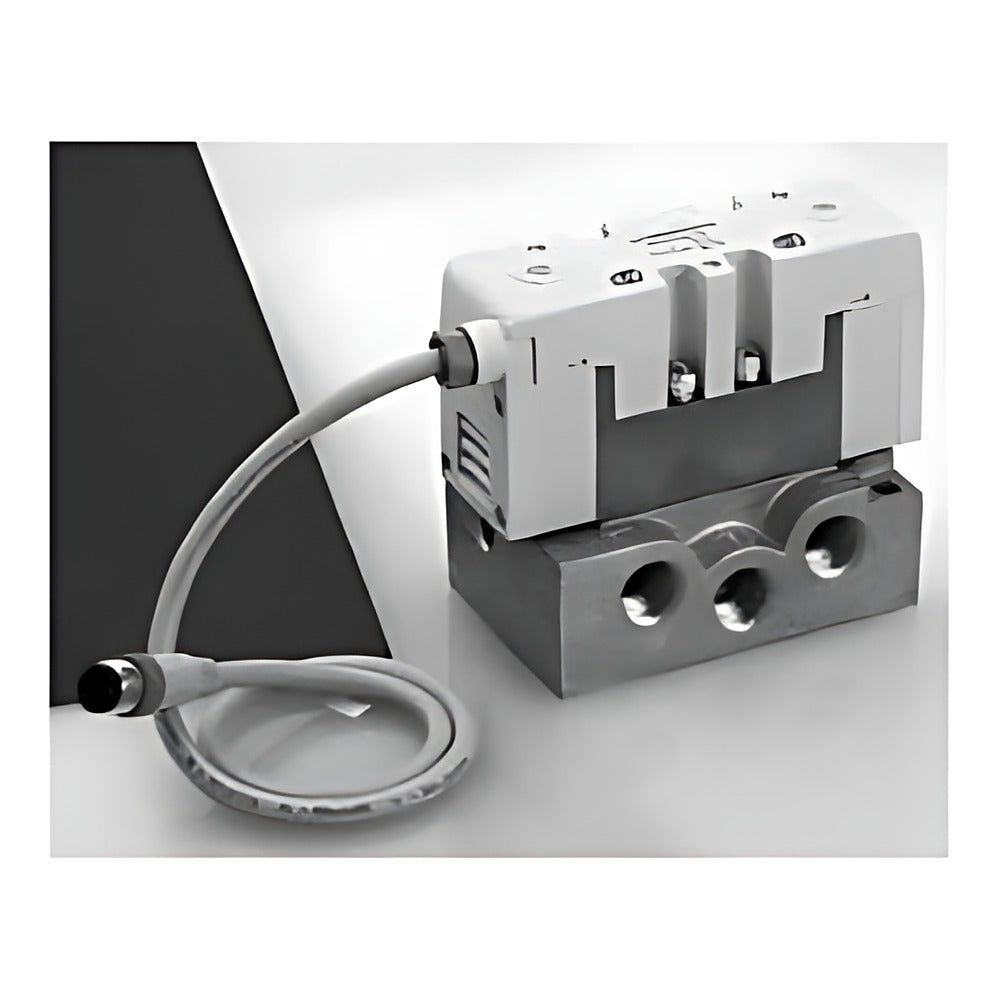

CKD PV5 ISO 5-Port Solenoid Valve (ISO Size 1/2, M12 I/O Connector)

CKD PV5 ISO 5-Port Solenoid Valve (ISO Size 1/2, M12 I/O Connector)

CKD PV5-6R (ISO size 1) and PV5-8R (ISO size 2) pilot-operated 5-port ISO solenoid valves with M12 I/O connector (NPN/PNP common, -TC), DC24V.

Key features

  • M12 I/O connector, NPN/PNP common type; surge killer and lamp fitted as standard
  • DC24V coil, 1.2 W (0.050 A) with lamp; molded class B coil
  • Six switching types: 2-position single/double, 3-position closed, A-B-R, P-A-B and closed non-leak
  • Flow C: PV5-6R 6.1 dm3/(s.bar), PV5-8R 10.7 dm3/(s.bar); IP65 equivalent
  • Option A ozone/oil resistant and -ST CE suffix ordered separately; mounts on GMF1/GMF2 manifolds

Specifications

Valve type Pilot-operated soft spool valve
Fluid Compressed air
Operating pressure 0.15-1.0 MPa (3-position min. 0.20)
Proof pressure 1.50 MPa
Ambient temperature -5 to 60 C (no freezing)
Rated voltage DC24V +/-10%
Wiring M12 I/O connector, NPN/PNP common (TC)
Protection IP65 equivalent
Source CKD Korea catalog CB-023SK-9, p. 1576-1587
PV5-6R-FG-S-TC ISO size: 1 (PV5-6R) | Switching: 2-pos single | Sub-plate: None
PV5-6R-FG-S-A02-TC ISO size: 1 (PV5-6R) | Switching: 2-pos single | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FG-S-A03-TC ISO size: 1 (PV5-6R) | Switching: 2-pos single | Sub-plate: Side Rc3/8
PV5-6R-FG-D-TC ISO size: 1 (PV5-6R) | Switching: 2-pos double | Sub-plate: None
PV5-6R-FG-D-A02-TC ISO size: 1 (PV5-6R) | Switching: 2-pos double | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FG-D-A03-TC ISO size: 1 (PV5-6R) | Switching: 2-pos double | Sub-plate: Side Rc3/8
PV5-6R-FHG-D-TC ISO size: 1 (PV5-6R) | Switching: 3-pos all ports closed | Sub-plate: None
PV5-6R-FHG-D-A02-TC ISO size: 1 (PV5-6R) | Switching: 3-pos all ports closed | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FHG-D-A03-TC ISO size: 1 (PV5-6R) | Switching: 3-pos all ports closed | Sub-plate: Side Rc3/8
PV5-6R-FJG-D-TC ISO size: 1 (PV5-6R) | Switching: 3-pos A-B-R connection | Sub-plate: None
PV5-6R-FJG-D-A02-TC ISO size: 1 (PV5-6R) | Switching: 3-pos A-B-R connection | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FJG-D-A03-TC ISO size: 1 (PV5-6R) | Switching: 3-pos A-B-R connection | Sub-plate: Side Rc3/8
PV5-6R-FIG-D-TC ISO size: 1 (PV5-6R) | Switching: 3-pos P-A-B connection | Sub-plate: None
PV5-6R-FIG-D-A02-TC ISO size: 1 (PV5-6R) | Switching: 3-pos P-A-B connection | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FIG-D-A03-TC ISO size: 1 (PV5-6R) | Switching: 3-pos P-A-B connection | Sub-plate: Side Rc3/8
PV5-6R-FPG-D-TC ISO size: 1 (PV5-6R) | Switching: 3-pos closed, non-leak | Sub-plate: None
PV5-6R-FPG-D-A02-TC ISO size: 1 (PV5-6R) | Switching: 3-pos closed, non-leak | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5-6R-FPG-D-A03-TC ISO size: 1 (PV5-6R) | Switching: 3-pos closed, non-leak | Sub-plate: Side Rc3/8
PV5-8R-FG-S-TC ISO size: 2 (PV5-8R) | Switching: 2-pos single | Sub-plate: None
PV5-8R-FG-S-A03-TC ISO size: 2 (PV5-8R) | Switching: 2-pos single | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FG-S-A04-TC ISO size: 2 (PV5-8R) | Switching: 2-pos single | Sub-plate: Side Rc1/2
PV5-8R-FG-S-A06-TC ISO size: 2 (PV5-8R) | Switching: 2-pos single | Sub-plate: Side Rc3/4
PV5-8R-FG-D-TC ISO size: 2 (PV5-8R) | Switching: 2-pos double | Sub-plate: None
PV5-8R-FG-D-A03-TC ISO size: 2 (PV5-8R) | Switching: 2-pos double | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FG-D-A04-TC ISO size: 2 (PV5-8R) | Switching: 2-pos double | Sub-plate: Side Rc1/2
PV5-8R-FG-D-A06-TC ISO size: 2 (PV5-8R) | Switching: 2-pos double | Sub-plate: Side Rc3/4
PV5-8R-FHG-D-TC ISO size: 2 (PV5-8R) | Switching: 3-pos all ports closed | Sub-plate: None
PV5-8R-FHG-D-A03-TC ISO size: 2 (PV5-8R) | Switching: 3-pos all ports closed | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FHG-D-A04-TC ISO size: 2 (PV5-8R) | Switching: 3-pos all ports closed | Sub-plate: Side Rc1/2
PV5-8R-FHG-D-A06-TC ISO size: 2 (PV5-8R) | Switching: 3-pos all ports closed | Sub-plate: Side Rc3/4
PV5-8R-FJG-D-TC ISO size: 2 (PV5-8R) | Switching: 3-pos A-B-R connection | Sub-plate: None
PV5-8R-FJG-D-A03-TC ISO size: 2 (PV5-8R) | Switching: 3-pos A-B-R connection | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FJG-D-A04-TC ISO size: 2 (PV5-8R) | Switching: 3-pos A-B-R connection | Sub-plate: Side Rc1/2
PV5-8R-FJG-D-A06-TC ISO size: 2 (PV5-8R) | Switching: 3-pos A-B-R connection | Sub-plate: Side Rc3/4
PV5-8R-FIG-D-TC ISO size: 2 (PV5-8R) | Switching: 3-pos P-A-B connection | Sub-plate: None
PV5-8R-FIG-D-A03-TC ISO size: 2 (PV5-8R) | Switching: 3-pos P-A-B connection | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FIG-D-A04-TC ISO size: 2 (PV5-8R) | Switching: 3-pos P-A-B connection | Sub-plate: Side Rc1/2
PV5-8R-FIG-D-A06-TC ISO size: 2 (PV5-8R) | Switching: 3-pos P-A-B connection | Sub-plate: Side Rc3/4
PV5-8R-FPG-D-TC ISO size: 2 (PV5-8R) | Switching: 3-pos closed, non-leak | Sub-plate: None
PV5-8R-FPG-D-A03-TC ISO size: 2 (PV5-8R) | Switching: 3-pos closed, non-leak | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5-8R-FPG-D-A04-TC ISO size: 2 (PV5-8R) | Switching: 3-pos closed, non-leak | Sub-plate: Side Rc1/2
PV5-8R-FPG-D-A06-TC ISO size: 2 (PV5-8R) | Switching: 3-pos closed, non-leak | Sub-plate: Side Rc3/4
PV5-6R Legacy code | Note: Old base code, see full codes
PV5-8R Legacy code | Note: Old base code, see full codes
PV5-6R-FG-S Legacy code | Note: Old base code, see full codes
PV5-6R-FG-D Legacy code | Note: Old base code, see full codes
PV5-6R-FHG-D Legacy code | Note: Old base code, see full codes
PV5-6R-FPG-D Legacy code | Note: Old base code, see full codes
PV5-6R-FJG-D Legacy code | Note: Old base code, see full codes
PV5-6R-FIG-D Legacy code | Note: Old base code, see full codes
PV5-8R-FG-S Legacy code | Note: Old base code, see full codes
PV5-8R-FG-D Legacy code | Note: Old base code, see full codes
PV5-8R-FHG-D Legacy code | Note: Old base code, see full codes
PV5-8R-FPG-D Legacy code | Note: Old base code, see full codes
PV5-8R-FJG-D Legacy code | Note: Old base code, see full codes
PV5-8R-FIG-D Legacy code | Note: Old base code, see full codes
