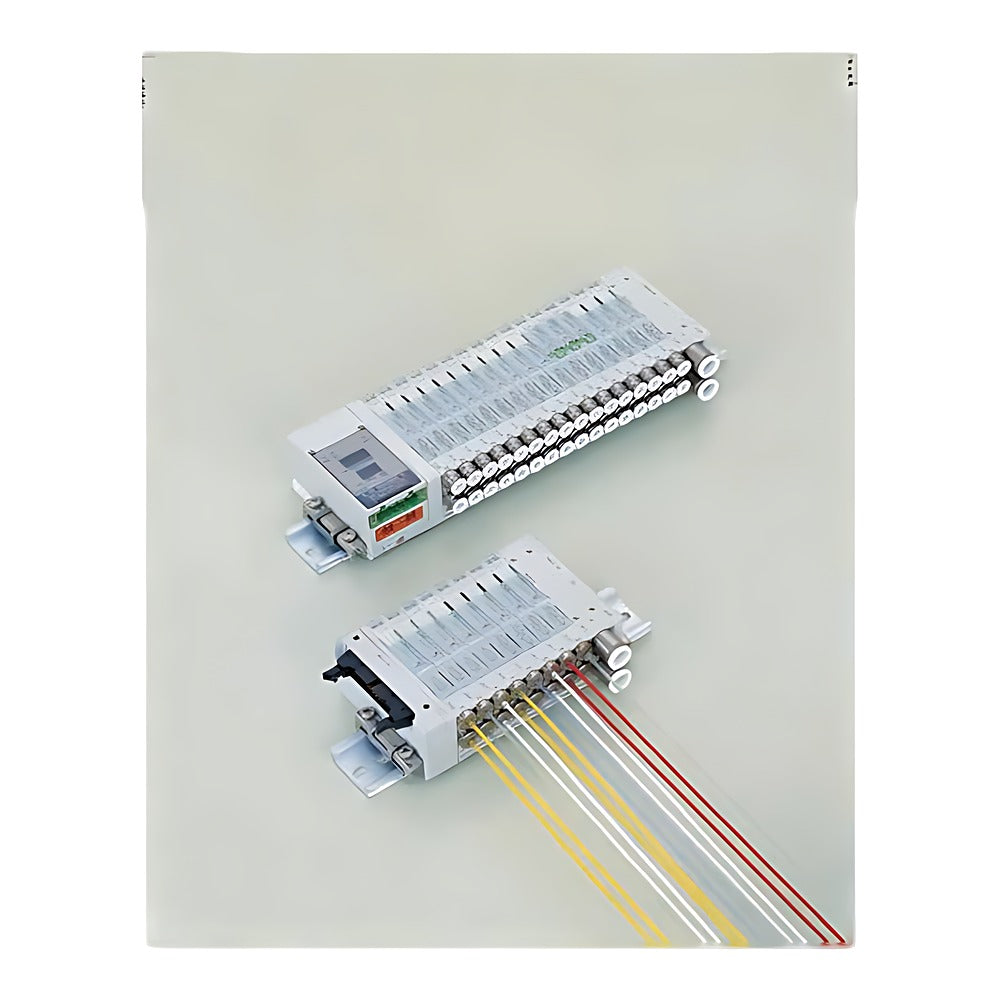

CKD PV5S-0 ISO Air-Piloted Master Valve (ISO Size 1/2)

CKD PV5S-0 ISO Air-Piloted Master Valve (ISO Size 1/2)

CKD PV5S-0 ISO-compliant air-piloted 5-port master valve, ISO size 1 (PV5S-6) or size 2 (PV5S-8), with optional CB1/CB2 side-ported sub-plate.

Key features

  • Air pilot operated soft spool valve; pilot ports PA/PB Rc1/8
  • Built-in pilot air indicator (ML) shows valve operation at a glance; direct manual override standard (M)
  • Five switching types: 2-position single/double, 3-position closed, A-B-R and P-A-B connection
  • Flow C 4 or more (PV5S-6) and 9 or more (PV5S-8) dm3/(s.bar)
  • Not supplied on manifold; use GMF series bases for manifold mounting

Specifications

Valve type Pilot-operated soft spool valve (air pilot)
Fluid Compressed air
Max. operating pressure 1.0 MPa
Main pressure 0.15-1.0 MPa (2-pos single), 0-1.0 MPa others
Proof pressure 1.50 MPa
Ambient temperature -5 to 60 C (no freezing)
Fluid temperature 5 to 60 C
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 1604-1609
PV5S-6-FG-S-0-M ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: None
PV5S-6-FG-S-0-M-A02 ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FG-S-0-M-A03 ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: Side Rc3/8
PV5S-6-FG-S-0-ML ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-6-FG-S-0-ML-A02 ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FG-S-0-ML-A03 ISO size: 1 (PV5S-6) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8
PV5S-6-FG-D-0-M ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: None
PV5S-6-FG-D-0-M-A02 ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FG-D-0-M-A03 ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: Side Rc3/8
PV5S-6-FG-D-0-ML ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-6-FG-D-0-ML-A02 ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FG-D-0-ML-A03 ISO size: 1 (PV5S-6) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8
PV5S-6-FHG-D-0-M ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: None
PV5S-6-FHG-D-0-M-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FHG-D-0-M-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: Side Rc3/8
PV5S-6-FHG-D-0-ML ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-6-FHG-D-0-ML-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FHG-D-0-ML-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8
PV5S-6-FJG-D-0-M ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: None
PV5S-6-FJG-D-0-M-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FJG-D-0-M-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: Side Rc3/8
PV5S-6-FJG-D-0-ML ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-6-FJG-D-0-ML-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FJG-D-0-ML-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8
PV5S-6-FIG-D-0-M ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: None
PV5S-6-FIG-D-0-M-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FIG-D-0-M-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: Side Rc3/8
PV5S-6-FIG-D-0-ML ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-6-FIG-D-0-ML-A02 ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/4 (R Rc3/8)
PV5S-6-FIG-D-0-ML-A03 ISO size: 1 (PV5S-6) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8
PV5S-8-FG-S-0-M ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: None
PV5S-8-FG-S-0-M-A03 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FG-S-0-M-A04 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: Side Rc1/2
PV5S-8-FG-S-0-M-A06 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Direct manual override | Sub-plate: Side Rc3/4
PV5S-8-FG-S-0-ML ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-8-FG-S-0-ML-A03 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FG-S-0-ML-A04 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/2
PV5S-8-FG-S-0-ML-A06 ISO size: 2 (PV5S-8) | Switching: 2-pos single | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/4
PV5S-8-FG-D-0-M ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: None
PV5S-8-FG-D-0-M-A03 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FG-D-0-M-A04 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: Side Rc1/2
PV5S-8-FG-D-0-M-A06 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Direct manual override | Sub-plate: Side Rc3/4
PV5S-8-FG-D-0-ML ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-8-FG-D-0-ML-A03 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FG-D-0-ML-A04 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/2
PV5S-8-FG-D-0-ML-A06 ISO size: 2 (PV5S-8) | Switching: 2-pos double | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/4
PV5S-8-FHG-D-0-M ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: None
PV5S-8-FHG-D-0-M-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FHG-D-0-M-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: Side Rc1/2
PV5S-8-FHG-D-0-M-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Direct manual override | Sub-plate: Side Rc3/4
PV5S-8-FHG-D-0-ML ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-8-FHG-D-0-ML-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FHG-D-0-ML-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/2
PV5S-8-FHG-D-0-ML-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos all ports closed | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/4
PV5S-8-FJG-D-0-M ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: None
PV5S-8-FJG-D-0-M-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FJG-D-0-M-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: Side Rc1/2
PV5S-8-FJG-D-0-M-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Direct manual override | Sub-plate: Side Rc3/4
PV5S-8-FJG-D-0-ML ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-8-FJG-D-0-ML-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FJG-D-0-ML-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/2
PV5S-8-FJG-D-0-ML-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos A-B-R connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/4
PV5S-8-FIG-D-0-M ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: None
PV5S-8-FIG-D-0-M-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FIG-D-0-M-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: Side Rc1/2
PV5S-8-FIG-D-0-M-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Direct manual override | Sub-plate: Side Rc3/4
PV5S-8-FIG-D-0-ML ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: None
PV5S-8-FIG-D-0-ML-A03 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/8 (R Rc1/2)
PV5S-8-FIG-D-0-ML-A04 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc1/2
PV5S-8-FIG-D-0-ML-A06 ISO size: 2 (PV5S-8) | Switching: 3-pos P-A-B connection | Option: Manual override + pilot indicator | Sub-plate: Side Rc3/4
PV5S-6-0 Legacy code | Note: Old base code, see full codes
PV5S-8-0 Legacy code | Note: Old base code, see full codes
Pneumatic ValvesCKD
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD PV5S-0 ISO Air-Piloted Master Valve (ISO Size 1/2)

Brand CKD·Pneumatic Valves

Available part numbers (72)

PV5S-6-FG-S-0-M, PV5S-6-FG-S-0-M-A02, PV5S-6-FG-S-0-M-A03, PV5S-6-FG-S-0-ML, PV5S-6-FG-S-0-ML-A02, PV5S-6-FG-S-0-ML-A03, PV5S-6-FG-D-0-M, PV5S-6-FG-D-0-M-A02, PV5S-6-FG-D-0-M-A03, PV5S-6-FG-D-0-ML + 62 more — see full table ↓
