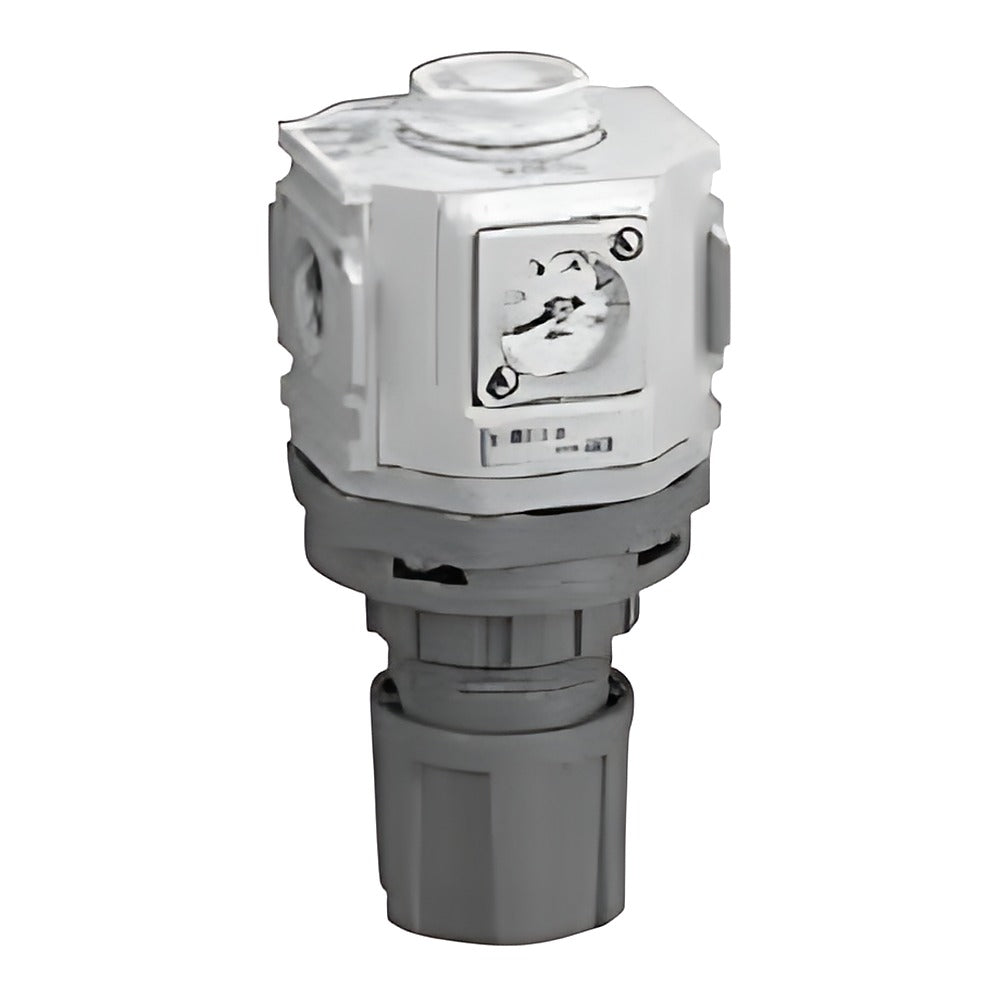

CKD R1000-R8000-W-FP1 Regulator (Food Grade, Rc1/8-1)

CKD R1000-R8000-W-FP1 Regulator (Food Grade, Rc1/8-1)

CKD R1000-W to R8000-W FP1 compact food-processing regulators with built-in gauge.

Key features

  • FP1 food-processing white series using NSF H1 registered grease
  • Set pressure 0.05 to 0.85 MPa (L: 0.05 to 0.35 MPa)
  • Relief mechanism standard; N non-relief option
  • Gauge and panel nut standard (R8000: gauge)
  • Ports Rc1/8 to Rc1
  • Other options (bowl Z/M/M1, Q, L, N, T/T8/T6, X1), piping adapter sets and gauge options added per ordering chart

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient/fluid temperature 5 to 60 C
Relief Relief mechanism
Source CKD Korea catalog CC-1271K-5, p. 274-275
R1000-6-W-FP1 Model: R1000-W | Port: Rc1/8 | Set range: 0.05-0.85 MPa
R1000-6-W-L-FP1 Model: R1000-W | Port: Rc1/8 | Set range: 0.05-0.35 MPa
R1000-8-W-FP1 Model: R1000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R1000-8-W-L-FP1 Model: R1000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2000-8-W-FP1 Model: R2000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R2000-8-W-L-FP1 Model: R2000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2000-10-W-FP1 Model: R2000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R2000-10-W-L-FP1 Model: R2000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R3000-8-W-FP1 Model: R3000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R3000-8-W-L-FP1 Model: R3000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R3000-10-W-FP1 Model: R3000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R3000-10-W-L-FP1 Model: R3000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4000-8-W-FP1 Model: R4000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R4000-8-W-L-FP1 Model: R4000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R4000-10-W-FP1 Model: R4000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R4000-10-W-L-FP1 Model: R4000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4000-15-W-FP1 Model: R4000-W | Port: Rc1/2 | Set range: 0.05-0.85 MPa
R4000-15-W-L-FP1 Model: R4000-W | Port: Rc1/2 | Set range: 0.05-0.35 MPa
R6000-20-W-FP1 Model: R6000-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R6000-20-W-L-FP1 Model: R6000-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R6000-25-W-FP1 Model: R6000-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R6000-25-W-L-FP1 Model: R6000-W | Port: Rc1 | Set range: 0.05-0.35 MPa
R8000-20-W-FP1 Model: R8000-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R8000-20-W-L-FP1 Model: R8000-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R8000-25-W-FP1 Model: R8000-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R8000-25-W-L-FP1 Model: R8000-W | Port: Rc1 | Set range: 0.05-0.35 MPa
RegulatorsCKD
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD R1000-R8000-W-FP1 Regulator (Food Grade, Rc1/8-1)

Brand CKD·Regulators

Available part numbers (26)

R1000-6-W-FP1, R1000-6-W-L-FP1, R1000-8-W-FP1, R1000-8-W-L-FP1, R2000-8-W-FP1, R2000-8-W-L-FP1, R2000-10-W-FP1, R2000-10-W-L-FP1, R3000-8-W-FP1, R3000-8-W-L-FP1 + 16 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1000-6-W-FP1Model: R1000-W | Port: Rc1/8 | Set range: 0.05-0.85 MPa
R1000-6-W-L-FP1Model: R1000-W | Port: Rc1/8 | Set range: 0.05-0.35 MPa
R1000-8-W-FP1Model: R1000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R1000-8-W-L-FP1Model: R1000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2000-8-W-FP1Model: R2000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R2000-8-W-L-FP1Model: R2000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2000-10-W-FP1Model: R2000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R2000-10-W-L-FP1Model: R2000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R3000-8-W-FP1Model: R3000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R3000-8-W-L-FP1Model: R3000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R3000-10-W-FP1Model: R3000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R3000-10-W-L-FP1Model: R3000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4000-8-W-FP1Model: R4000-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R4000-8-W-L-FP1Model: R4000-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R4000-10-W-FP1Model: R4000-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R4000-10-W-L-FP1Model: R4000-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4000-15-W-FP1Model: R4000-W | Port: Rc1/2 | Set range: 0.05-0.85 MPa
R4000-15-W-L-FP1Model: R4000-W | Port: Rc1/2 | Set range: 0.05-0.35 MPa
R6000-20-W-FP1Model: R6000-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R6000-20-W-L-FP1Model: R6000-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R6000-25-W-FP1Model: R6000-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R6000-25-W-L-FP1Model: R6000-W | Port: Rc1 | Set range: 0.05-0.35 MPa
R8000-20-W-FP1Model: R8000-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R8000-20-W-L-FP1Model: R8000-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R8000-25-W-FP1Model: R8000-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R8000-25-W-L-FP1Model: R8000-W | Port: Rc1 | Set range: 0.05-0.35 MPa
