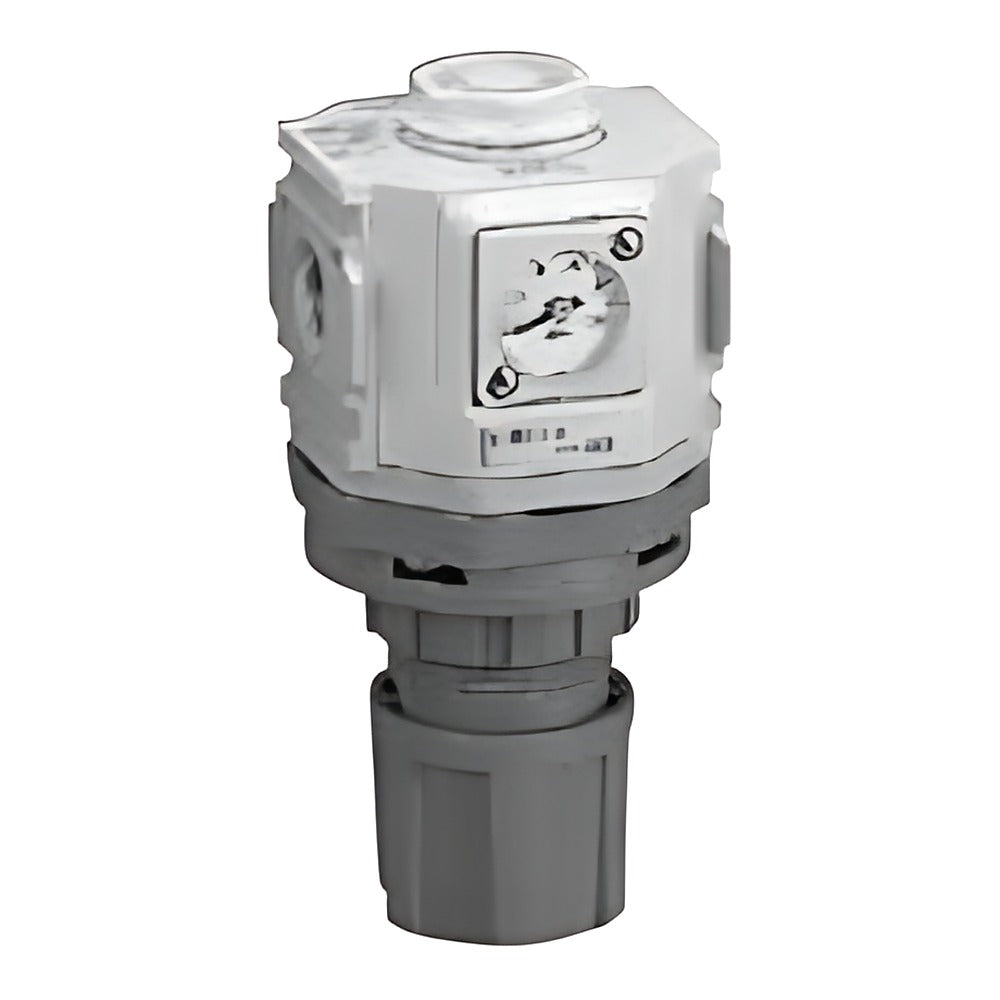

CKD R1100-R8100-W-FP1 Reverse Regulator (Food Grade, Rc1/8-1)

CKD R1100-R8100-W-FP1 Reverse Regulator (Food Grade, Rc1/8-1)

CKD R1100-W to R8100-W FP1 food-processing regulators with built-in check valve for reverse flow.

Key features

  • FP1 food-processing white series using NSF H1 registered grease
  • Built-in check valve; primary at least 0.05 MPa above secondary
  • Set pressure 0.05 to 0.85 MPa (L: 0.05 to 0.35 MPa)
  • Relief mechanism standard
  • Ports Rc1/8 to Rc1
  • Other options (bowl Z/M/M1, Q, L, N, T/T8/T6, X1), piping adapter sets and gauge options added per ordering chart

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient/fluid temperature 5 to 60 C
Relief Relief mechanism
Source CKD Korea catalog CC-1271K-5, p. 276-277
R1100-6-W-FP1 Model: R1100-W | Port: Rc1/8 | Set range: 0.05-0.85 MPa
R1100-6-W-L-FP1 Model: R1100-W | Port: Rc1/8 | Set range: 0.05-0.35 MPa
R1100-8-W-FP1 Model: R1100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R1100-8-W-L-FP1 Model: R1100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2100-8-W-FP1 Model: R2100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R2100-8-W-L-FP1 Model: R2100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2100-10-W-FP1 Model: R2100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R2100-10-W-L-FP1 Model: R2100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R3100-8-W-FP1 Model: R3100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R3100-8-W-L-FP1 Model: R3100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R3100-10-W-FP1 Model: R3100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R3100-10-W-L-FP1 Model: R3100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4100-8-W-FP1 Model: R4100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R4100-8-W-L-FP1 Model: R4100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R4100-10-W-FP1 Model: R4100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R4100-10-W-L-FP1 Model: R4100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4100-15-W-FP1 Model: R4100-W | Port: Rc1/2 | Set range: 0.05-0.85 MPa
R4100-15-W-L-FP1 Model: R4100-W | Port: Rc1/2 | Set range: 0.05-0.35 MPa
R6100-20-W-FP1 Model: R6100-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R6100-20-W-L-FP1 Model: R6100-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R6100-25-W-FP1 Model: R6100-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R6100-25-W-L-FP1 Model: R6100-W | Port: Rc1 | Set range: 0.05-0.35 MPa
R8100-20-W-FP1 Model: R8100-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R8100-20-W-L-FP1 Model: R8100-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R8100-25-W-FP1 Model: R8100-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R8100-25-W-L-FP1 Model: R8100-W | Port: Rc1 | Set range: 0.05-0.35 MPa
RegulatorsCKD
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD R1100-R8100-W-FP1 Reverse Regulator (Food Grade, Rc1/8-1)

Brand CKD·Regulators

Available part numbers (26)

R1100-6-W-FP1, R1100-6-W-L-FP1, R1100-8-W-FP1, R1100-8-W-L-FP1, R2100-8-W-FP1, R2100-8-W-L-FP1, R2100-10-W-FP1, R2100-10-W-L-FP1, R3100-8-W-FP1, R3100-8-W-L-FP1 + 16 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
R1100-6-W-FP1Model: R1100-W | Port: Rc1/8 | Set range: 0.05-0.85 MPa
R1100-6-W-L-FP1Model: R1100-W | Port: Rc1/8 | Set range: 0.05-0.35 MPa
R1100-8-W-FP1Model: R1100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R1100-8-W-L-FP1Model: R1100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2100-8-W-FP1Model: R2100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R2100-8-W-L-FP1Model: R2100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R2100-10-W-FP1Model: R2100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R2100-10-W-L-FP1Model: R2100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R3100-8-W-FP1Model: R3100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R3100-8-W-L-FP1Model: R3100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R3100-10-W-FP1Model: R3100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R3100-10-W-L-FP1Model: R3100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4100-8-W-FP1Model: R4100-W | Port: Rc1/4 | Set range: 0.05-0.85 MPa
R4100-8-W-L-FP1Model: R4100-W | Port: Rc1/4 | Set range: 0.05-0.35 MPa
R4100-10-W-FP1Model: R4100-W | Port: Rc3/8 | Set range: 0.05-0.85 MPa
R4100-10-W-L-FP1Model: R4100-W | Port: Rc3/8 | Set range: 0.05-0.35 MPa
R4100-15-W-FP1Model: R4100-W | Port: Rc1/2 | Set range: 0.05-0.85 MPa
R4100-15-W-L-FP1Model: R4100-W | Port: Rc1/2 | Set range: 0.05-0.35 MPa
R6100-20-W-FP1Model: R6100-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R6100-20-W-L-FP1Model: R6100-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R6100-25-W-FP1Model: R6100-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R6100-25-W-L-FP1Model: R6100-W | Port: Rc1 | Set range: 0.05-0.35 MPa
R8100-20-W-FP1Model: R8100-W | Port: Rc3/4 | Set range: 0.05-0.85 MPa
R8100-20-W-L-FP1Model: R8100-W | Port: Rc3/4 | Set range: 0.05-0.35 MPa
R8100-25-W-FP1Model: R8100-W | Port: Rc1 | Set range: 0.05-0.85 MPa
R8100-25-W-L-FP1Model: R8100-W | Port: Rc1 | Set range: 0.05-0.35 MPa
